| Model | Y9 Optical Power Meter with VFL and Cable |
| Wavelength Range | 800–1700 nm |
| Calibrated Wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625 nm |
| Power Measurement Range | -70~+6 dBm, -70~+10 dBm, -50~+26 dBm (selectable) |
| Detector Type | InGaAs |
| Display Type | 2.4″ Color LCD |
| Measurement Units | dBm, mW, μW |
| Resolution | 0.01 dB |
| Accuracy | ±0.2 dB |
| Visual Fault Locator (VFL) | Built-in, 650 nm |
| VFL Power | 5mW / 15mW / 20mW / 30mW (optional) |
| RJ45 Cable Tester | Supported |
| Data Storage | Up to 100 records |
| Frequency Identification | 270 Hz, 1 kHz, 2 kHz |
| Connector Types | SC, FC, ST (interchangeable) |
| Power Supply | Rechargeable lithium battery or AA batteries |
| Battery Capacity | 1100 mAh |
| Operating Time | Up to 20 hours |
| Auto Power Off | Yes |
| Backlight | Yes |
| LED Flashlight | Yes |
| Reference Value Setting | Yes |
| Zero Setting | Yes |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | <90% (non-condensing) |
| Dimensions | 142 × 73 × 31 mm |
| Weight | 375–455 g |
| Housing Material | ABS Plastic |
| Application | FTTH, CATV, LAN, Fiber Maintenance |
| Certifications | CE, RoHS |
| Warranty | 1 year |
Hot

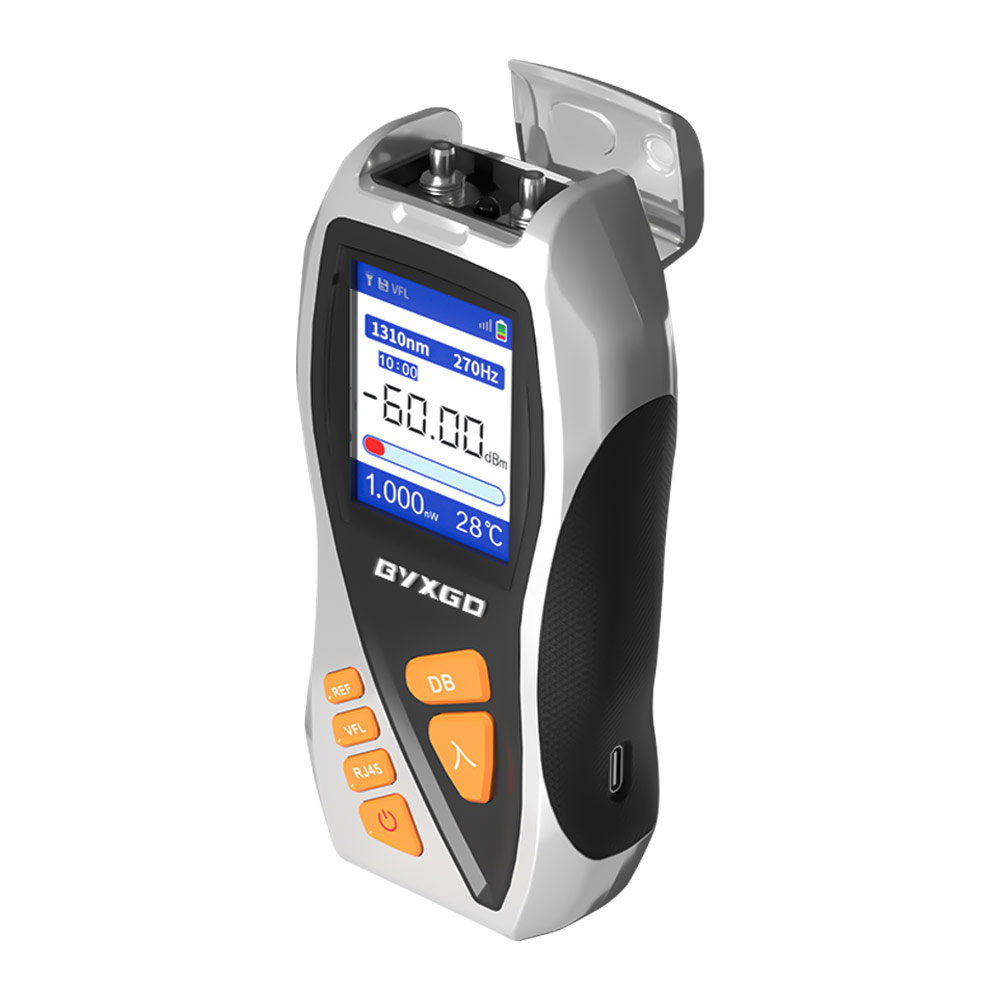

Y9 Optical Power Meter with VFL and Cable Tester for RJ45, Data Storage, SC/FC/ST, 800-1700nm
Wide Power Measurement Range: 3 selectable ranges of -70~+6 dBm, -70~+10 dBm, and -50~+26 dBm allow for checking testing versatility with fiber optics.
Broad Wavelength Coverage: Calibrated at 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, and 1625 nm wavelengths to cover every integral fiber communication wavelength band.
Integrated Visual Fault Locator (VFL): Built-in 650 nm red light source comes with selectable power output options (5mW/15mW/20mW/30mW), making locating quick breaks or faults in fiber a breeze.

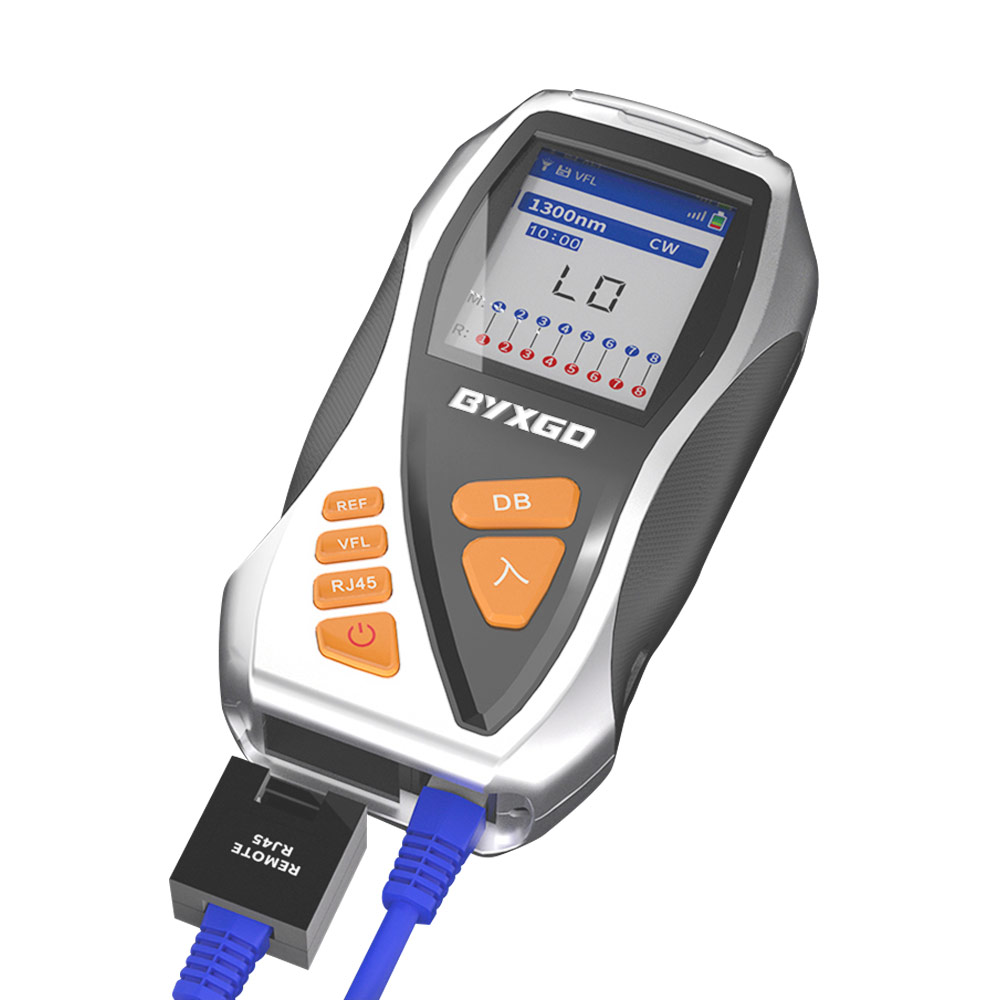

RJ45 Cable Tester: Tests continuity and wiring faults on network cables with ease.
Data Storage: Stores up to 100 test records for easy data management and review.

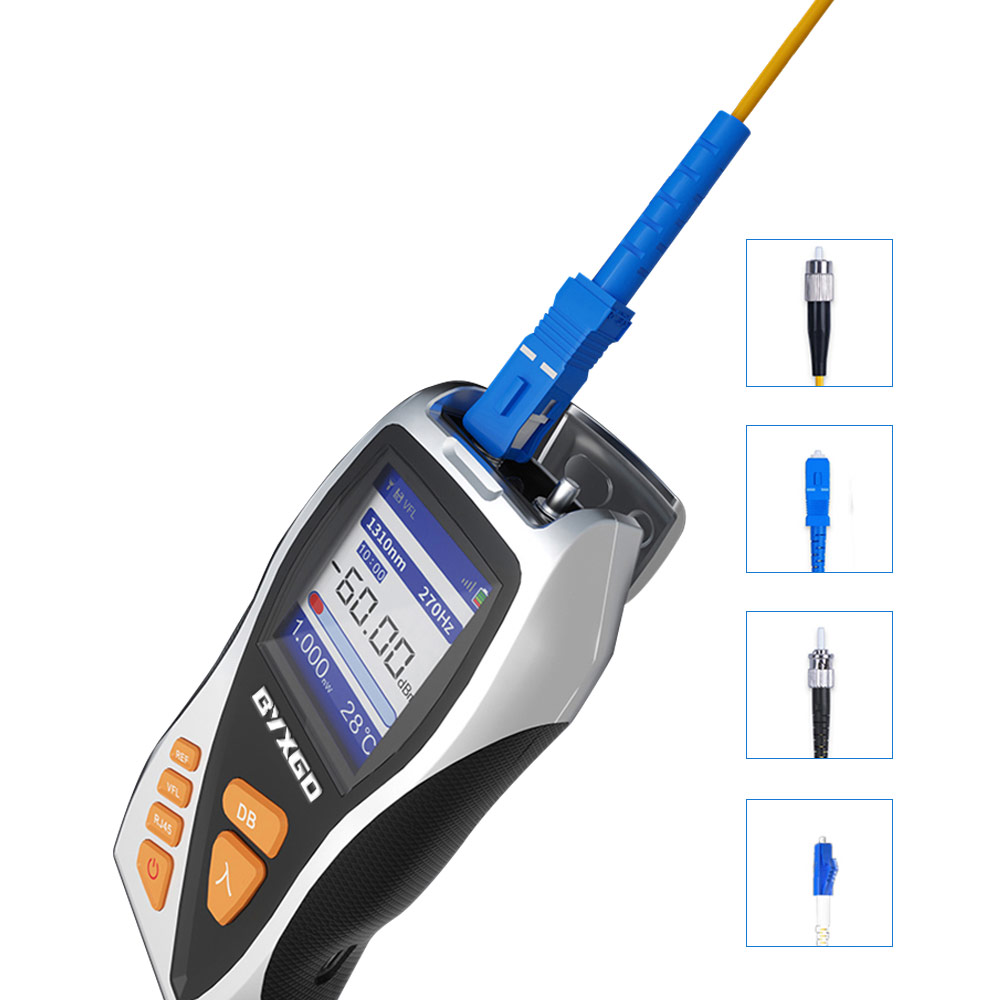

Multi-Connector Compatible: Easily interchangeable SC, FC, and ST interfaces provide flexible connections.

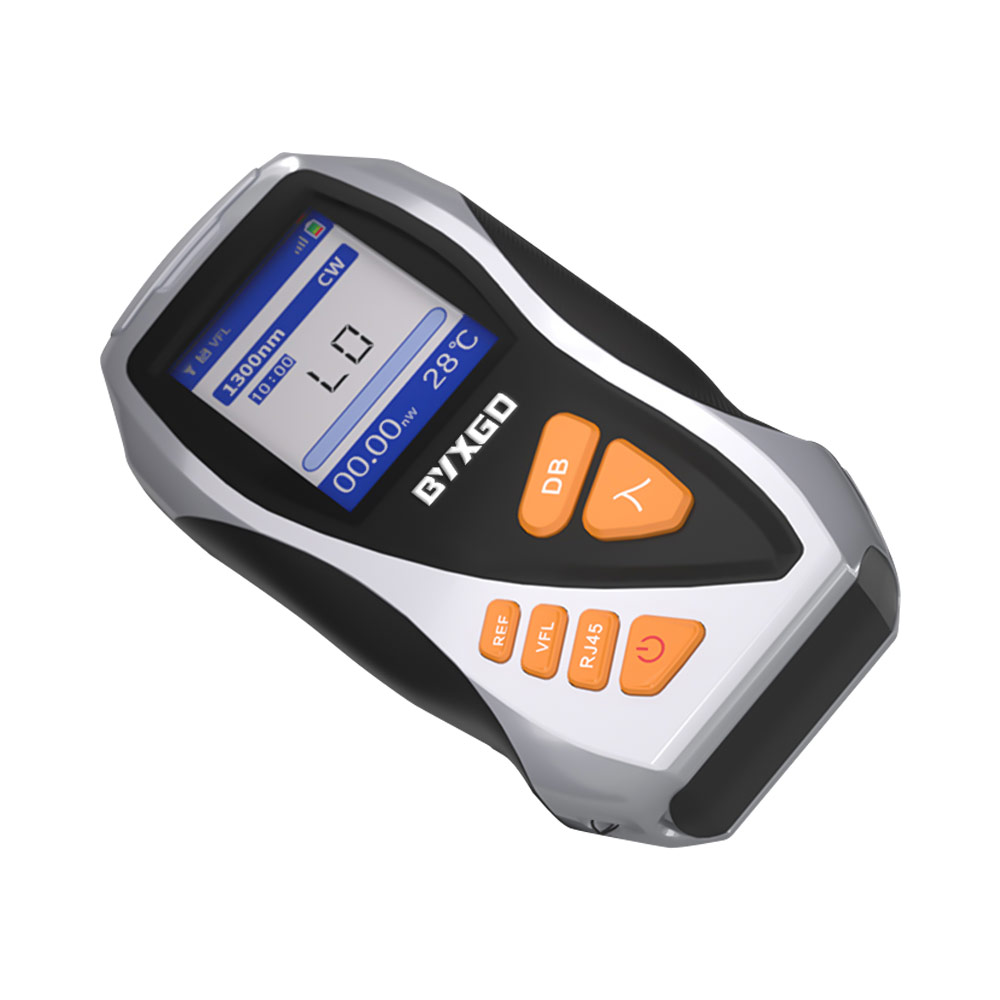

High-Resolution Display: 2.4″ color LCD display with clearly defined and easily readable measurements.
Frequency Identification: Detects modulation frequencies (270Hz, 1kHz, 2kHz) to allow advanced fiber identification.
LED Flashlight: Built-in flashlight to allow easy operation in dark environments.

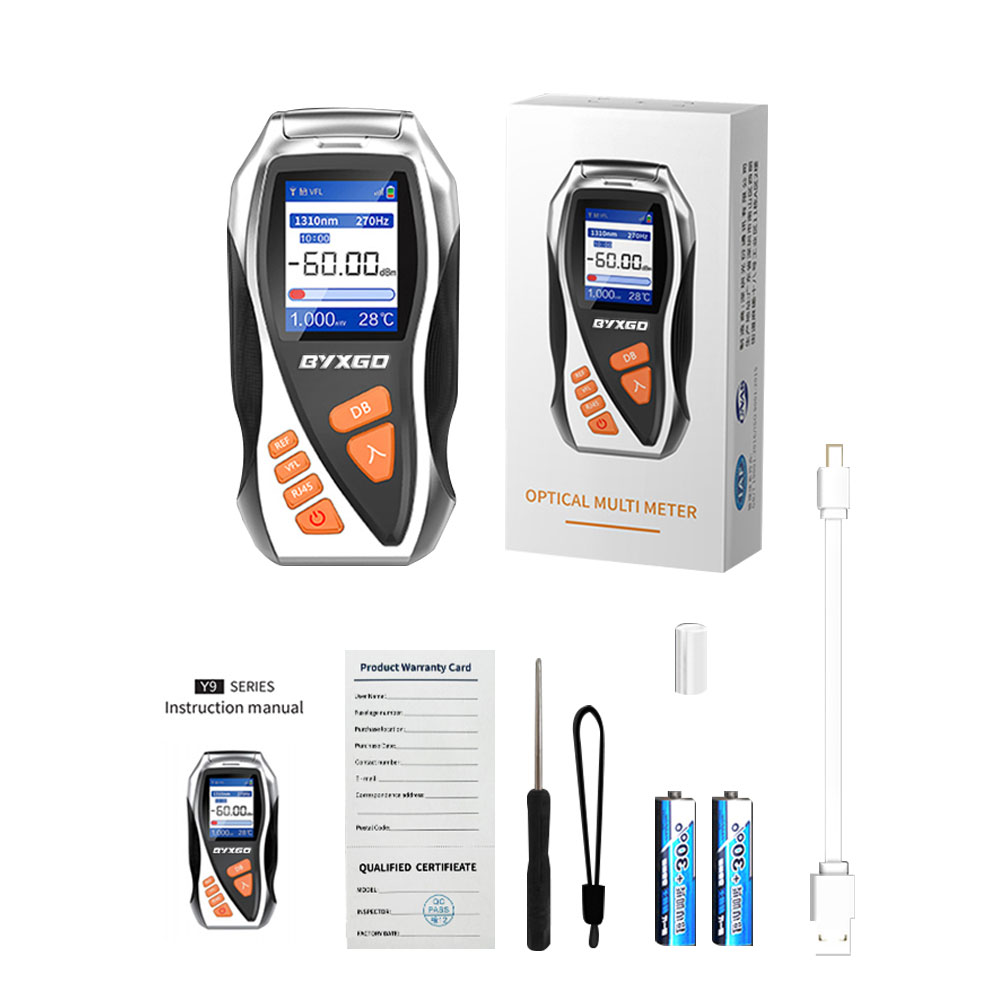

Rechargeable Battery: Lasts longer with an 1100mAh lithium battery or runs using AA batteries.
Auto Power Off: Saves energy with automatic shutdown.
Rugged Design: Durable ABS housing designed for portability and field use.
