Why SFP PoE Switches Matter: From Compatibility to Efficient Deployment

Power over Ethernet (PoE) technology has changed how networks are set up by delivering power and data over a single cable. However, using a PoE switch in conjunction with fast (high-speed) SFP modules may present challenges. Striking a balance between the convenience of PoE technologies and the needs of fast, long-distance connectivity often depends on knowledge and ease of implementation.
In this article, we will share an overview of SFP PoE switches, stripping down complexities and tackling common mistakes. You’ll leave this journey enlightened—having reviewed basic knowledge to advanced deployment—sufficient to make device choices that eliminate guesswork, maximize network performance, and support next-gen networks.
The research will also demonstrate where and how SFP ports can be used for PoE power—all while maximizing the efficiency and performance of your PoE switch.

What Is an SFP PoE Switch and Why Use It?

An SFP PoE Switch is a combination of data networking and power delivery through Small Form-factor Pluggable (SFP) ports that allow devices to receive signals and power over a single fiber or copper connection. SFP switches feature SFP slots capable of being used with Power over Ethernet for devices that require both high-speed data transfer and power over longer distance runs.
SFP PoE Switches can be thought of as a “smart hub” for both routing traffic and powering devices such as IP surveillance cameras, wireless access points, VoIP phones, etc. While standard PoE switches are only capable of delivering power over a copper cable length of 100m, an SFP PoE Switch can easily expand the reach by using fiber optic SFP modules for extended runs.
The Switch SFP Port acts as a multifunctional “gateway” module. Not only can the modules be interchanged, allowing for varying speeds and cable types, but they can also deliver PoE power when using the correct modules. This mode of flexibility is a key advantage in an environment where network needs may change and evolve over time.

Some advantages of SFP PoE Switches are:

• High-bandwidth support: far exceeds the standards for existing data-dependent applications such as high-definition IP surveillance.
• Transmission distance: fiber SFP modules can provide power and data transfer over kilometers versus meters.
• Cabling simplification: not using traditional power lines, installation is easier, less costly, and deployment time is greatly reduced.
• Scalability and modularity: ease of replacing SFP modules to add new devices or increase bandwidth on the network.

So, for a durable PoE application, SFP PoE Switches fit the bill where speed and length are critical. Adding power to data in almost any limited space, SFP PoE Switches become an important part of your network and a required application for extending distance and reliability.

How Does PoE Compatibility Work in SFP Ports?

Power over Ethernet  compatibility associated with SFP ports involves a thoughtful relationship between the switch, SFP module, and any connected device. Standard SFP modules are designed to process data, but they lack the physical and internal components to safely deliver electrical power, therefore making them incapable of PoE functionality on their own.
PoE SFP modules incorporate specialized electronic components to allow transmitting electrical power while still providing high-speed data transfers. They include isolation circuits and power management systems to deliver power without risking damage to sensitive switch circuitry or connected devices. Therefore, this energy and data management design allows standard fiber or copper SFP modules to transmit both electrical power and information.

The functionality of PoE SFP compatibility relies on recognition of devices requiring power and the ability to inject power safely at the module level. The switch differentiates if the attached SFP module is PoE-capable. It does not offer the module power until it recognizes the module as PoE-capable. When the switch recognizes the module is not PoE-capable, it does not send power to the module.

Summary of important concepts about PoE SFP compatibility:

• Standard SFP modules are designed for data, not power transmission.
• PoE SFP modules include a power circuit to allow electrical power to be delivered through the same port.
• Power can be negotiated safely, meaning the switch and module will communicate before enabling PoE such that it determines the connection can process PoE.
• Isolation and protection systems are put in place on the modules such that the switch and devices are protected from increased voltage and current levels.

A PoE SFP module performs like an adjunct adaptor to allow the switch to “speak” power language in addition to data language. Without these adaptors, the SFP ports are power-blind ports that only transmit signals. This distinction is important because it stresses the need for PoE SFP modules to assure deployment of a connection that requires high bandwidth and reliable electrical power.

What PoE Standards Impact SFP Switch Compatibility?

Power over Ethernet standards outline power levels and processes for transferring power across data optic cables. Knowing these standards is important for understanding the compatibility of devices connected to SFP PoE switches.

There are three main PoE standards :

• PoE (IEEE 802.3af): Up to 15.4 watts per port. This is for basic devices, like VoIP phones and simple cameras.
• PoE+ (IEEE 802.3at): Up to 30 watts per port. This is for devices requiring higher power, such as pan-tilt-zoom cameras and wireless access points.
• PoE++ (IEEE 802.3bt): This standard has two power classes: Type 3, which can deliver up to 60 watts of power per port, and Type 4, which can provide power between 90-100 watts. Type 3 and Type 4 are typically used for more complicated devices like multi-radio access points and digital signage.

SFP PoE ports must comply with PoE standards in order to provide adequate power. For example, if a switch is configured for PoE+, it can provide adequate power to devices requiring up to 30 watts. But if you use a device that is PoE++ and plug it into a PoE+ switch, you may be able to power it, but not without degradation of performance or possible switch failure.

Compatibility also comes down to the individual SFP modules that are able to transfer power as defined by the PoE standard. A PoE SFP for IEEE 802.3at, for example, will not provide enough power to a device that is PoE++. This will lead to the device not functioning properly in terms of the power required.

Some key factors for determining the compatibility of SFP PoE switches include:

• Power budget: All switches have a total power amount they can transfer to the number of devices connected to it.
• Negotiation of standards: The devices and switches negotiate about what power can be provided by the devices, based on the PoE standard that they comply with.
• Implementation of power safely: Using defined power exchange protocols confirms the devices and switches do not overheat or damage the device.

You can think of the PoE standards of PoE, PoE+, and PoE++ as three different sized pipes with water flowing through them, to feed a device (or devices). The pipe has to be the right size for the water (power) flow requirement of the device. If you try to deliver more water than the pipe can accommodate, the device won’t run properly or could be damaged. For reliable power delivery through the SFP ports, pick a switch based on the correct PoE standard.

To summarize, understanding PoE (AF), PoE+ (AT), and PoE++ (BT) will help you understand how SFP PoE switches transfer power safely and reliably to devices with varying power requirements.

How to Choose the Right PoE SFP Module?

Selecting a PoE SFP module is an important step in creating a stable network that supports power and data efficiently. Many of the specifications of the modules will determine if they work smoothly with your SFP PoE switch.

First, you want to ensure that the power will work. It is important that the SFP module has the same PoE compatibility as the switch, whether it is PoE (15.4W), PoE+ (30W), or PoE++ (up to 100W). Receiving power that does not match the rated power should be avoided, as this could lead to damage to the device or insufficient power delivery to the device.

Second, you want to check the data rate of the SFP module. Most modules will either be rated for 1 Gbps or 10 Gbps. Make sure that you pick a module that works with your network requirements; otherwise, you may create a bottleneck.

Third, you will want to check the transmission distance. Modules have different maximum lengths depending on whether it is optical or copper cable. The range for distance could be a few meters all the way to kilometers, depending on your installation.

When you are selecting a PoE SFP module, you should consider checking the manual and the labels on the module for hints. For example, a module may have a label or a manual that states the module is rated for PoE+, power rated at 30 W, and has a data rate of 1 Gbps.

Please follow this practical tip: Make sure to double-check the vendor compatibility lists to prevent PoE compatibility issues. You may not have perfect results when combining SFP modules from a different brand than the switch. Please refer to vendor documentation to ensure all devices are working well together.

To sum up the steps to verify PoE SFP compatibility:

• Check the module specifications for power, data speed, and distance.
• Ensure that the power standards match.
• Review labels and manual to verify the device is PoE rated.
• Double-check brand compatibility with the SFP switch vendor.

Selecting the proper PoE SFP module is much like selecting a proper charger for your mobile phone. A charger that is not spec’d properly may either overload your phone battery or will not provide the correct amount of power to the device. Similarly, an SFP module that is not meant to handle the power standard for the switch may cause the entire circuit to become unstable or fail.

By focusing on the specifications and the process to verify each module matches your requirements, you can ensure stable and safe power delivery to devices along with the optimal use of the network devices.

What Does Exclusive Data Reveal About SFP Module Compatibility?

Testing compatibility for PoE SFP modules requires a methodical approach to determine the performance of various brands in the real world. Exclusive tests mimic network situations with SFP modules from major brands and measure power delivery, data integrity, and overall stability.

The tests are designed with SFP PoE switches, connected to powered devices like IP cameras, using multiple SFP modules. The observation will measure the uptime of the connection, consistency of power, and power data throughput for periods of time. At any point, if a module fails to deliver a certain amount of power, or causes disconnections more than once, it is noted as a compatibility issue.

In comparing brands and general performance, we have found that premium brands like Cisco and Juniper will have more reliability than brands like TP-Link or Netgear, and D-Link brands will have less reliability than Cisco or Juniper. Premium brands will deliver stable power and have the highest data rates compared to TP-Link, Netgear, or D-Link brands.

Performance on all brands can vary widely, with characteristics diminishing from premium to lesser-known brands. This differentiation can create varying circumstances for deployment as it relates to the guaranteed use of the powered devices in the actual network trench. All combinations of the above characteristics can substantially impact the uptime of the network and network devices.

Furthermore, to qualify PoE data to performance, it can be demonstrated that although the PoE is either working or not, there are still effects of slight incompatibilities. For example, disconnects, latency side effects, or reduced bandwidth and their network impact upon powered devices.

It is important to choose modules that a trusted vendor has proven through their testing.

Some examples of our critical findings during our testing include:

• Consistent power delivery is paramount to device stability.
• Brand reputation is often a good indicator of module reliability.
• Mixing modules that are known not to perform will lead to device instability.
• Testing for the right module to work with the correct switch is essential.

To visualize network stability as a chain, the PoE SFP module is one of those critical links. If the SFP module is not tested and is a weaker link in the network, it will cause problems. The only true measure of reliability comes from installations where modules are tested and proven as compatible with the switch.

In conclusion, disclosing exclusive compatibility data will expose risks of deploying unproven modules. Make an investment in ‘an A’ brand or a vendor that will have a trusted SFP PoE brand to deliver a PoE deployment experience free from incompatibilities and rely on years of performance without repeatable errors.

How to Match PoE Power Budget With Device Needs?

It’s important to pair the PoE power budget with the connected device load requirements to achieve a stable powered network without overloading. All SFP PoE modules will have parameters identifying their power output, bandwidth, and distance, which all impact overall network performance.

As a starting point, determine the individual power requirement of the connected devices; commonly, these are IP cameras or access points. Many manufacturers will identify the power consumption in watts on the product datasheet. By adding these values together, you’ll have a total baseline for your overall PoE power budget requirement.

After identifying the overall devices’ power consumption, now compare it to the SFP module’s maximum power output. For proper power budget, the ratings must exceed the total power device consumption. Overloading the power budget in this case runs the risk of tripping the switches supplying power to the devices, which will drop connectivity, causing downtime. Or, in the very worst case, damaging connected equipment due to a PoE power overload.

Bandwidth becomes an important differentiator when picking SFP modules, so if the devices are constantly streaming video and have high data rates, you’ll need to choose SFP modules supporting 1 Gbps or even better, 10 Gbps data rates. Make sure the SFP module’s 10 Gbps data rate meets or exceeds the requirements of the connected devices so you don’t create a bottleneck with the overall power budget.

Distance also becomes a differentiator; for fiber SFP modules, you will probably have a longer distance, whereas for copper SFP modules, you’ll want to stay with shorter runs. The maximum transmission range will impact the quality of the signal and the total overall PoE power budget due to the impact of distance and signal loss.

A simple power budget formula is:

Add in 20–30% for unexpected shifts or future additions. If devices consume 50W total, plan on around 65W to 70W power consumption.

Here are some practical tips for selecting PoE SFP modules:

• Determine the total power consumption of the devices.
• Select modules to meet or exceed that power consumption.
• Ensure bandwidth and distance specifications are within the overall network design.
• Add a safety margin to budget for reliability and future proofing.

Consider power budgeting like planning for a road trip. Knowing how much fuel you will need and carrying extra fuel will help you avoid being stranded. Similarly, a PoE power budget will help keep the device powered by planning for a power-over-Ethernet SFP module that matches the devices without interruption.

By balancing the bandwidth, distance, and power capabilities, you can select the right PoE SFP modules to help maintain the stability of your network while improving performance.

How Was a PoE SFP Deployment Successfully Achieved?

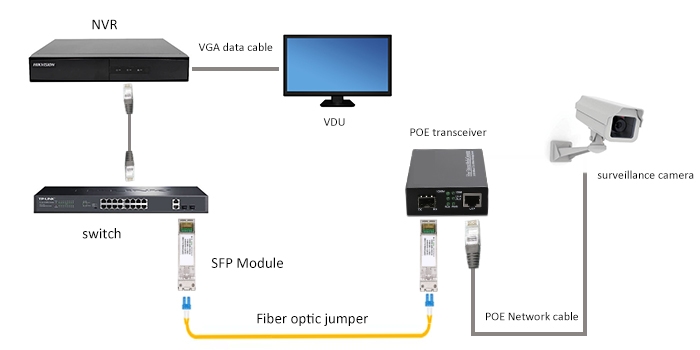

An organization seeking to expand coverage and flexibility for high-resolution IP cameras chose an SFP PoE switch installation to power communications for high-powered devices over long distances. The challenge was to get stable power and data for several cameras within a campus-wide installation.

The selection of the device began with a switch that had several SFP PoE ports that adhered to the IEEE 802.3at (PoE+) specification to power the power-hungry cameras. A compatible PoE SFP module was selected to match the fiber optic cable specifications. These SFP modules and cables allow for transmission over 500 meters. By utilizing these setups, the need for power outlets or repeaters was eliminated.

There are several factors to consider to ensure compatibility. Each SFP module was properly matched to the switch’s PoE specifications to ensure the camera received power safely. Each camera was tested with the switch to ensure stable communications were maintained with the switch under load.

In addition to the compatibility tests, fiber routes were planned out to eliminate latency and signal loss in the network design. Further, redundant paths were planned in case of a failure on critical path locations to optimize coverage. The centralized management system enabled monitoring of real-time power consumption and port status, allowing efficiency in operations.

Once operational, the deployment provided excellent stability. Each camera received solid power without losing video capture and processing with quality imagery. The SFP ports being modular allowed the administrator to swap out SFP modules for upgraded speeds and coverage areas.

Key lessons from the deployment include:

• Selecting switches and SFP modules that comply with all specifications of PoE.
• Testing with devices to ensure compatibility with the switch before full deployment.
• Organizing fiber routes for distance and performance.
• Utilizing monitoring tools to ensure devices are powered.

Like putting together a puzzle, ensuring every piece fits—switch, SFP module, device, and cable—made for a cohesive image of connectivity reliability. This deployment exemplifies the stability and flexibility that can be achieved with SFP PoE switches in enterprise networks.

How to Configure and Monitor PoE SFP Switches Effectively?

For effective and reliable power delivery and network performance, PoE SFP switches need to be configured and monitored properly. Advanced configuration settings allow the administrator to modify, allocate, and optimize power to connected devices while avoiding overload and malfunction on the switch and connected devices.

When starting with configured PoE switches, the first step is to determine the most effective way to allocate power to the connected devices. One recommended practice is to prioritize the devices that are critical to their operation, such as security cameras or wireless access points, to ensure that power is provided even while consumption is nearing the PoE switch’s maximum PoE power settings. Some devices will allow the administrator to set up a maximum power per port to avoid unexpected consumption spikes.

Almost all management portals offer power monitoring tools that allow the administrator to monitor power usage on a per-port basis. These dashboards typically have a chart format providing simple readouts with current, voltage, and power component metrics for live monitoring and take the guesswork beyond detection for anomalies or potentially failing devices.

Using the management portal monitor, the administrator can set alerts when power usage exceeds thresholds that are determined to be safe for device operation. Creating a notification or alerts so that the administrator is aware there may be concerns is a preemptive measure to prevent device failure or outages due to exceeding the thresholds. When combining monitoring of apportioning power to connected devices, the ability to automate a power reset option can sometimes result in a rapid recovery once power glitches or ramps to failure.

Lastly, when configuring the switch SFP ports, the administrator will have the ability to select which PoE standard is most suited for the connected device and configure the power supply to dynamic negotiation. Typically, enabling dynamic negotiation allows the switch to configure and adjust how much power is supplied based on the needs of the PoE-powered device, which can greatly increase energy efficiency by providing the device only as much power as needed to operate effectively.

To summarize activities to ensure stable PoE distribution as follows:

• Prioritize ports according to the criticality of the device.
• Monitor real-time power usage through management portals.
• Notifications or alerts when power use exceeds safe levels.
• Enable dynamic negotiation to meet connected device power needs.
• Plan it out as if managing PoE distribution like powering a building with limited capacity to avoid overloads or outages while meeting the devices’ need to provide capacity to operate as a component within the interior design.

As a follow-up: The added value of advanced configuration and monitoring tools extends beyond switch SFP port management toward stable and efficient distribution of PoE across the network.

What Does the Future Hold for PoE and SFP Integration?

SFP ports in switches provide unparalleled modularity and flexibility for future-proofing networks. Switching devices that come with removable “SFP” modules can easily swap them out for newer ones as standards develop, without the complete replacement of the switch, providing an adaptable product to emerging standards. Additionally, switch manufacturers will build on this modularity as it relates to upgrading SFP modules. This will support upgrades and updates that do not require the switch to be taken offline, if it can tolerate SFP upgrades.

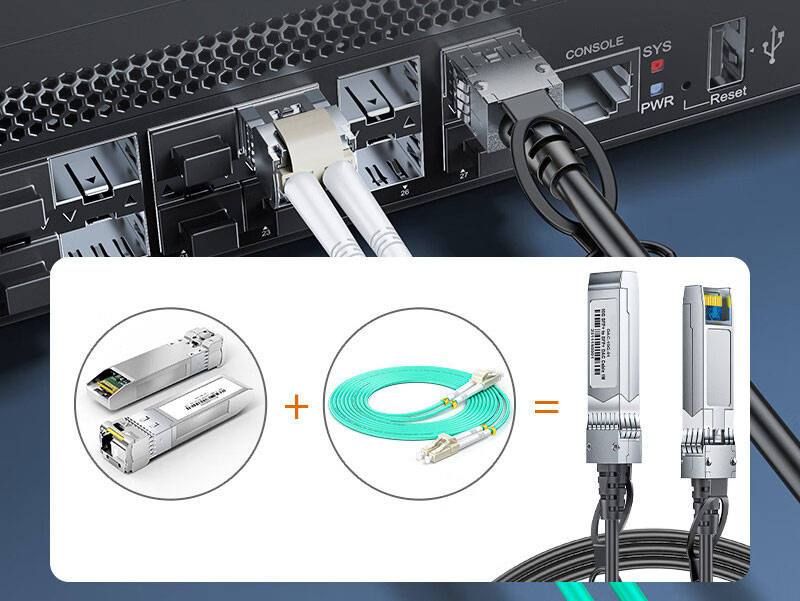

Intermixing different copper and fiber SFP modules and transceivers in a single switch creates deployment flexibility. You can add capacity gradually and as needed without replacing your existing infrastructure, while still gaining the benefits of being able to plug different SFP options into your switch ports. For example, you can add PoE connectivity for high-speed network expansion, and do so without replacing your entire network infrastructure. This advancement allows for the adoption of new technology while preserving your past investments.

The trends in technology demonstrate that SFP PoE switches will be able to handle faster speeds, as well as greater power requirements. With new developments in SFP PoE modules that will support multi-gigabit speeds and higher PoE++ power outputs, you will be able to easily integrate them into the existing switch SFP ports. This will allow you to keep ahead of your network demands without having to decommission the gear.

Here are advantages that shape the future of PoE and SFP integration:

• Modular – SFP removable modules give you the ability to swap out an existing one or upgrade on the fly for any speed and power.
• Flexible – The support for different cable types makes deployment for distances easy, while still being on the same platform of SFP modules.
• Scalable – Your network can grow to accommodate most devices without having to reinstall or replace existing styles, just the SFP interchangeable modules.
• Future Proofing – PoE has changed its standards based on demand for higher power levels, and changing bandwidth needs will rely heavily on the ability to use the same SFP ports.

Think of switch SFP ports as similar to a general outlet and the type of plugs that will fit into it, or be accepted. Every few years, the industry evolves and changes, and so do the types of plug shapes, special pins, or extensions like PoE++ that change the whole plug shape. These SFP designs free the network from rigid hardware limits to meet unpredictable and aggressive demands to expand connectivity options for your network.

In conclusion, integrating PoE and SFP technologies will not only assure that your network remains flexible in connecting devices, dynamic scalability, and future-proofing, but leveraging a modular open SFP port will build your enterprise into the future for the move into faster, stronger PoE.

Conclusion

Fully grasping PoE and SFP compatibility is essential to a successful network build. Harmonizing behavior between switches, SFP ports, and modules on your PoE switch ensures there will be no power-related issues or data bottlenecking, and you can realize the full capabilities of your network.
Selecting the right PoE SFP module, checking that it is compatible with your switch, and managing your power budget is the recommended way to move toward more stable and scalable networks. Consider how fitting the right key into a lock successfully opens the door; smart selection and configuration will create reliability and future-proofing.
Ultimately, borrowing from the principles discussed will facilitate users building effective PoE networks and expanding with technology, all while avoiding unnecessary service interruptions as a result of downtime.
