Why Fiber Optic Fusion Splicers Are Crucial for Reliable Connections
Fusion splicing of fiber optics is a key technology enabling high quality and dependable connections for communications networks of the modern era. Gaining an understanding of what a fusion splicer is and the importance of fusion splicing can help emphasize its importance in our digital futures.

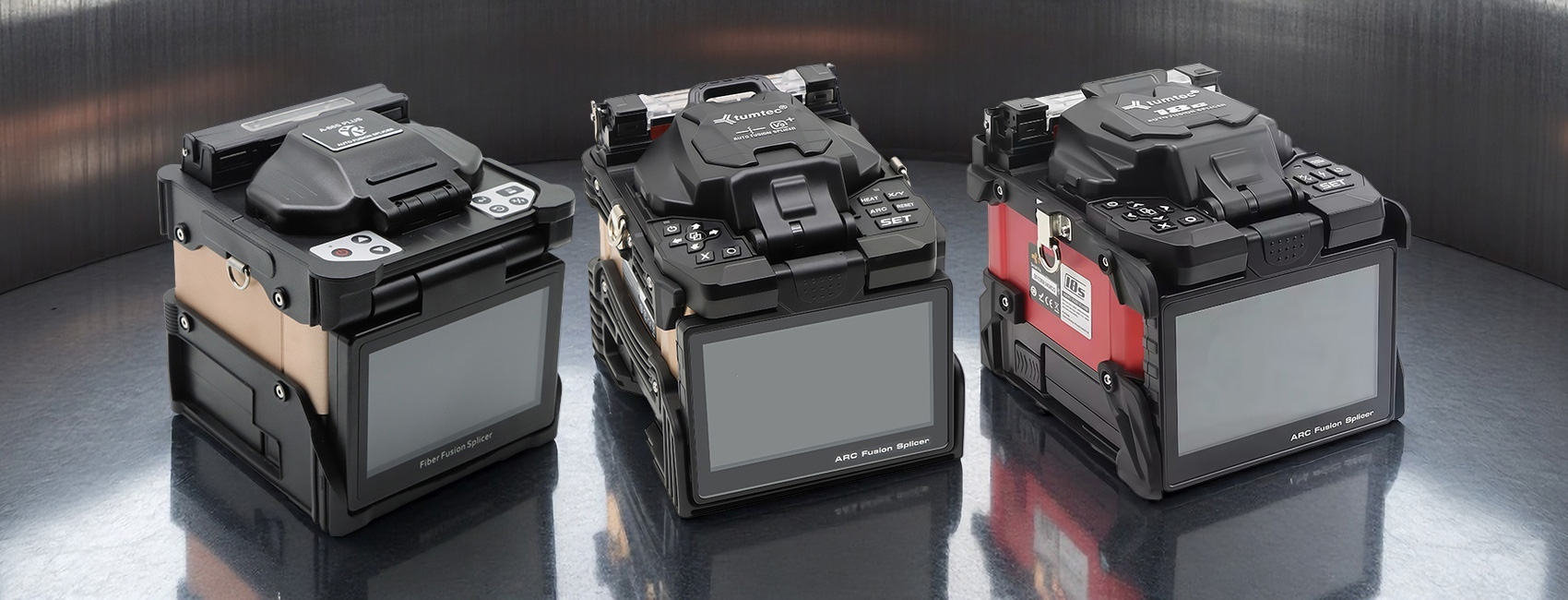

What is a fiber optic fusion splicer?
A fiber optic fusion splicer is a precision tool that is created to splice, or join, two optical fibers by aligning the cores and fusing them together using an electric arc. The splicing process results in a homogeneous, permanent connection with a low splice loss that will provide a high quality of signal transmission over the connection. Fusion splicers come with many additional features, such as core alignment, automated controls, and high-resolution imaging or other options that ensure accuracy and efficiency. Fusion splicers are very compact, lightweight, and durable tools that are crucial for field technicians involved with splicing or other fiber optic cable installations or repairs.
A fusion splicer is simply a very high-tech piece that is analogous to a puzzle piece or one piece of a connector that simply keeps the ends of two glass fibers correctly aligned and together so that the light signals can travel with little-to-no loss.
Why is fusion splicing important for modern communication?
Fusion splicing plays an important role in today’s communication network (telecom, FTTH, FTTx, data centers, etc.). Reliable fiber optic splices will greatly reduce signal attenuation and increase reliability, which is important for high-speed internet connection, video on demand, and cloud computing services. As the demand for faster and reliable services increases (as always), the importance of using a fusion splicer today to ensure low splice loss reliable and durable networks demonstrates fusion splices’ relevance in future communications. These splicers are the cornerstone of modern digital communications, providing fast, efficient, and long-term fiber optic connection, even in demanding circumstances, such as outdoor environments or underwater cables.
How Fiber Optic Fusion Splicing Works
The science of fusion splicing
Fiber optic fusion splicing is the process of joining two optical fibers by melting their glass fibers together with an electric arc. The procedure’s purpose is to form an optical path that is as continuous as possible with very little splice loss and reflection, which is necessary for a good signal transmission experience. Fusion splicers utilize core or cladding alignment technology to provide precision positioning of the fibers within sub-micron levels of accuracy, which is essential for attenuation reduction. In short, fusion splicing enables light to flow through one or more optical fibers, resulting in unbroken communications.
The step-by-step process
- Stripping the fiber – The stripped fiber is an essential procedure for preparing the fiber for the later steps by removing the protective coating and jacket using a fiber stripper, which exposes the bare glass fiber.
- Cleaning and cleaving – After the fiber ends have been stripped, alcohol is used to remove dust and debris to create a clean, smooth surface for splicing. The fibers are then cleaved (cut to precisely a 90-degree angle) with a fiber cleaver, which is essential to low-loss splicing.
- Aligning the fibers – The fiber is placed into the splicer’s clamps and uses automated motors and high-resolution cameras to align the fibers precisely. This procedure ensures that the fiber cores are aligned perfectly to minimize loss and maximize signal transmission.
- Fusing with electric arc – The electric arc melts the ends of two fibers, fusing them into a virtually seamless joint with minimal splice loss, typically less than 0.02 dB. This is where the fusion splicer really shines, for a permanent and robust connection.
- Splice Protection – After the fibers have been fused, a heat shrink sleeve, or splice protector, is placed over the splice area and heated, which enhances the joint and protects it from external environmental factors, such as moisture, temperature fluctuations, and mechanical stresses. This process assures high-quality, reliable fiber optic connections, solving the important problems of modern networks, whether they are telecommunications, inside data centers, or in other applications.
Fusion Splicers Key Achievements
Precision Alignment and Advanced Imaging
Fusion splicers align cores and use high-resolution CCD cameras for sub-micron precision. This assures splice loss is minimized to avoid signal degradation, keeping the integrity of the communication signal. The high-resolution imaging system also allows for technicians to visually confirm that the alignment is correct, further avoiding mistakes, and assuring durable, long-lasting connections.
Picture Controls and User-Friendly Design
Automatic fiber detection, selection of splice programs, and touch screen interfaces make fusion splicing easy and efficient. These features allow for the potential reduction of human mistakes (or at least support for fewer mistakes), and increases workflow and overall productivity. For instance, the automatic splice program allows technicians to select the most appropriate parameters for different types of fibers to help speed the ordering process and eliminate common mistakes.
Durability and Portability for Field Work
Fusion splicers are designed to be compact, low-weight, and rugged; they also have long battery life. These features are especially relevant for field technicians who often operate in difficult outdoor environments. The portable design offers dependable performance in harsh outdoor conditions, such as rain, extreme temperatures, and dust.
Fusion Splice vs. Mechanical Splice
How the methods are different
Fusion splicing permanently fuses fiber cores using an electric arc, creating a reliable, low-loss connection. Mechanical splicing simply aligns fibers inside a sleeve without fusing them, allowing the splice to be completed quickly, but it is not as reliable. Although a mechanical splice is faster and cheaper to deploy, the performance and longevity of the joint are not comparable to that of a fusion splice.
Why fusion splicing is the best option for permanent low-loss connections
Fusion splicing delivers more performance than mechanical splicing; splicing loss is typically measured at or below 0.02 dB, which is especially important for telecom, FTTH, and data center networks that require minimal or no degradation of the signal. A mechanical splice is more susceptible to attenuation and the effects of the environment, rendering it less of an option for a permanent installation. The precision that fusion splicing provides, along with the permanent connection, is what makes fusion splicing the gold standard when planning critical network infrastructure long term.
Real World Examples
Telecom
Fusion splicers are essential for backbone networks, FTTH and FTTx installations. They enable fast internet and communication services and installation is increasingly relevant as we experience a more connected world.
Data Centers
In data centers, fusion splicing deploys high precision splicing of single-mode and multimode fiber to support the continued massive data transfer capability needs of organizations. This is important to satisfy the demands of cloud computing, big data and high speed connectivity.
Cable TV and infrastructure
Fusion splicing is a necessity when maintaining a strong low-loss connection in Cable TV networks, ensuring signal quality and longevity of the networking infrastructure so that no disturbances take place. The signal quality is maintained to the utmost level and the service is maintained as the customer expects.
Emergency repairs and upgrades
Portable fusion splicers are exceptional in an emergency, allowing the technician to immediately pick up that damaged fiber line and get that new fiber added to the existing infrastructure. The speed and dependability of the splicing procedure will reduce downtime and allow critical communication systems to remain active.
Tips for Successful Fusion Splicing
Importance of clean, precise fiber preparation
Stripping, cleaning with rubbing alcohol, and cleaving were all examples, along with also being precise about the cleaving, are part of the preparation and the success of the splicing operation. Not being exact in fiber prep can lead to high splice loss followed by a drop in signal quality.
Common mistakes to avoid
Common mistakes to avoid are using damaged fibers, dirty ends of fibers, uneven cleaves and fiber misalignment. All of these mistakes can lead to weak joins, high splice loss, or both; all problems that can detract from performance in the network.
Maintenance and troubleshooting advice
Regularly cleaning the V-grooves, the electrodes and the lenses, along with calibration of the fusion splicer, will lead to reliability and consistent performance. In the event of a splice loss, it is advisable to check for dirt or foreign substances on the fiber, re-check fiber alignment, and confirm that the splice protection sleeve is fitted and applied properly.
Choosing the Right Fusion Splicer
Factors to consider (alignment type, automation, portability)
When selecting fusion splicers, all types of specifications should be included in the choice of splicer. In terms of the core alignment, should it be aligned for precision or for low loss? Consideration behind automation provided on the controls should also be factored in association with ease of use and portability for the field. This regression of splicer which is suited better for a high volume data center or other portable options for typical installations outdoors.
Popular models and brands
Popular brands are Fujikura, INNO, Sumitomo and TREND type splicers, each splicer having particular strengths which also improve the quality of signal. Fujikura offers the higher-end models which are normally synonymous with precision, while INNO offers more affordable specifications, and good models for everyday work in the field. TREND and Sumitomo are also popular and diversified brands; however, their models are for more applications like FTTH or mass fusion splicing in data centers.
Sum up
Fusion splicers ensure that durable and low-loss connections result in the most important aspect, signal integrity, across critical networks, meaning fewer downtimes and maintenance. As the networks evolve, AI-assisted alignment, and clouds assisting with monitoring improves efficiency and accuracy. These innovations does ensure that these fusion splicers continue to be a necessary tool while supporting the future of fiber optic networks and digital infrastructure, which will drive the world we live in.
