| Model | Tumtec FST-18S Fiber Optic V-Groove Fusion Splicer |
| Dimensions | 145mm × 165mm × 145mm |
| Weight | 2080g (with battery), 1700g (without battery), 2380g (with battery & cover), 2000g (without battery & cover) |
| Display | 5.0-inch color capacitive touchscreen |
| Magnification | 500x (X/Y/XY axis) |
| Applicable Fiber Count | Single fiber |
| Splicing Time | 6 seconds |
| Heating Time | 15 seconds |
| Supported Sleeve Lengths | 20mm, 30mm, 40mm, 50mm, 60mm |
| Battery Capacity | 5200mAh |
| Typical Splice & Heat Cycles | >280 times per charge |
| Fiber Types Supported | SM (ITU-T G.652 & G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), G.654, G.657, BI, multi-core, pigtail, patch cord, indoor cable |
| Fiber Diameter Supported | 0.25-3.0mm / Indoor Cable |
| Fiber Coating Diameter | 0.125-1mm |
| Cleave Length | 8-16mm |
| Splice Loss (Typical) | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB, G.657: 0.02dB, G.654: 0.01dB |
| Return Loss | ≥60dB |
| Splice Loss Estimation | Yes |
| Splice Length | 20-60mm |
| Tensile Test | 1.5-2.0N |
| Storage Capacity | 20,000 splice records, 200 images |
| Interface | Mini USB 2.0 |
| Operating Conditions | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10~50°C, Max wind speed: 15m/s |
| Storage Conditions | Humidity: 0-95%, Temperature: -40~80°C, Battery storage: -20~30°C (long term) |
| Power Input | AC 100-240V, DC 12-15V |
| Electrode Life | >3000 discharges (with professional cleaning, life extended by 20%+) |
| Lighting | 3 high-brightness LED lamps |
| Fixture Type | Three-in-one universal fixture, ceramic V-groove |
| Material | Aviation-grade alloy, elastic protective cover |
| Data Backup | Supports storage and export of splice records and images |

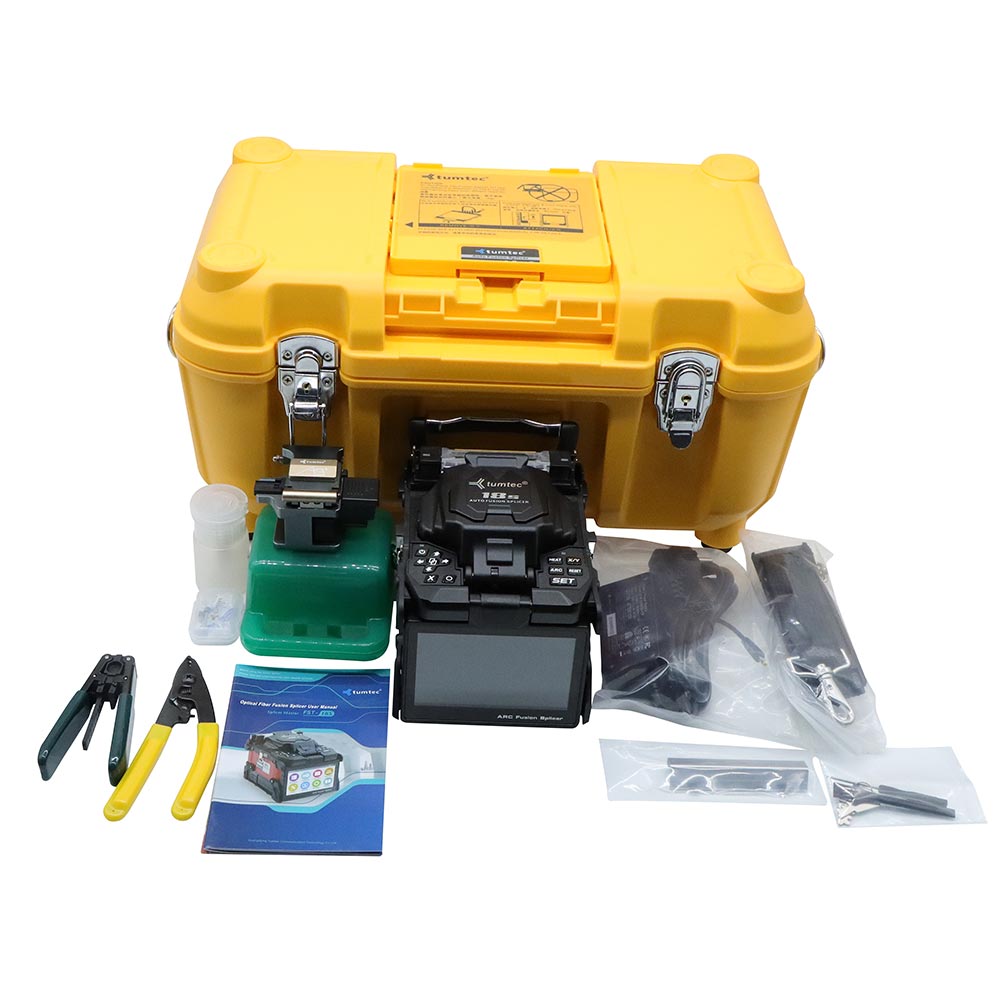

| Accessories Included | Fusion splicer, fiber cleaver, large-capacity battery, power adapter, carrying case, shoulder strap, electrodes, alcohol bottle, fiber tray, brush, screwdriver |

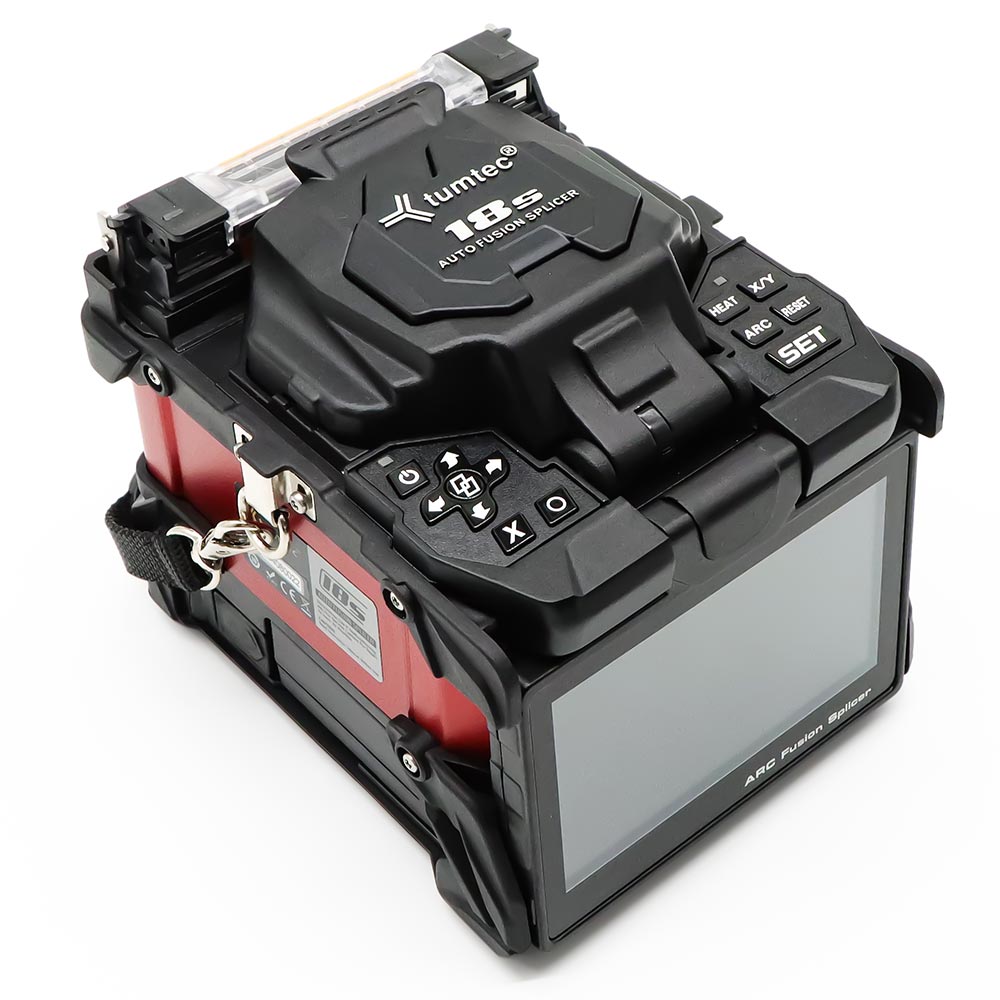

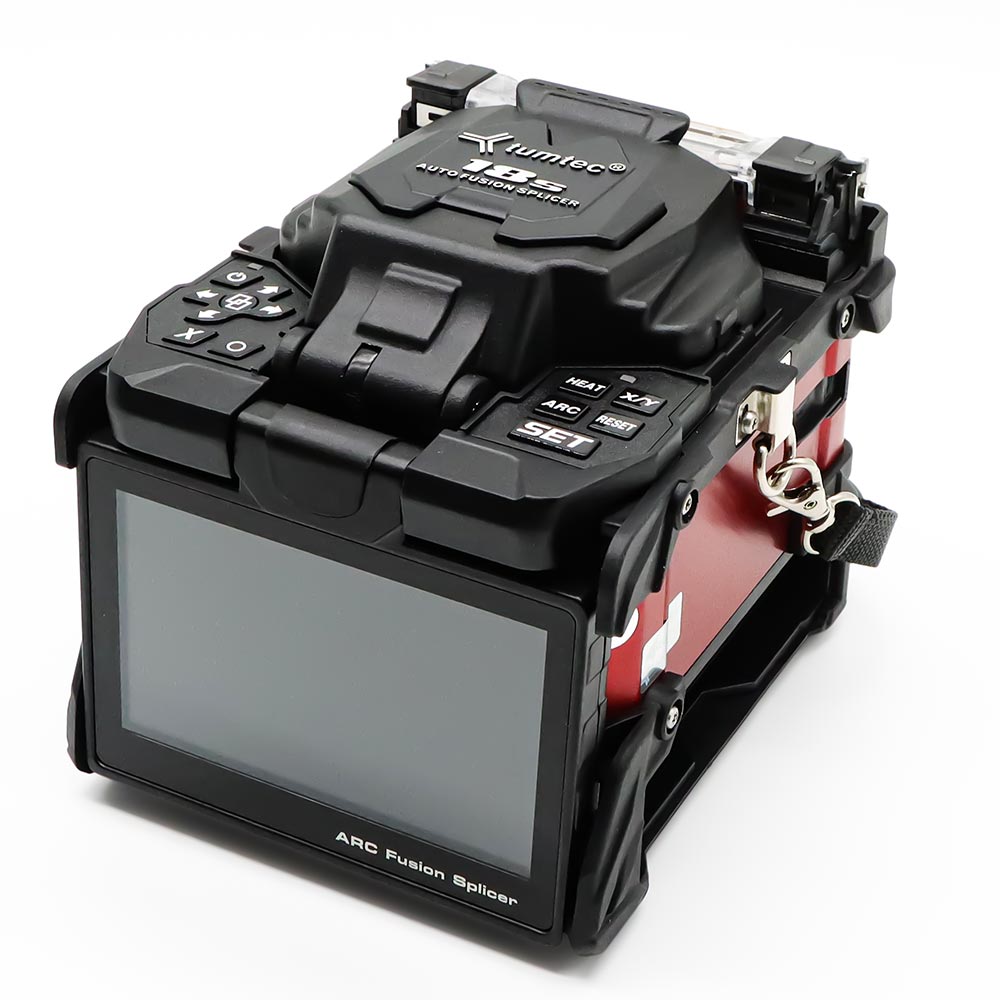

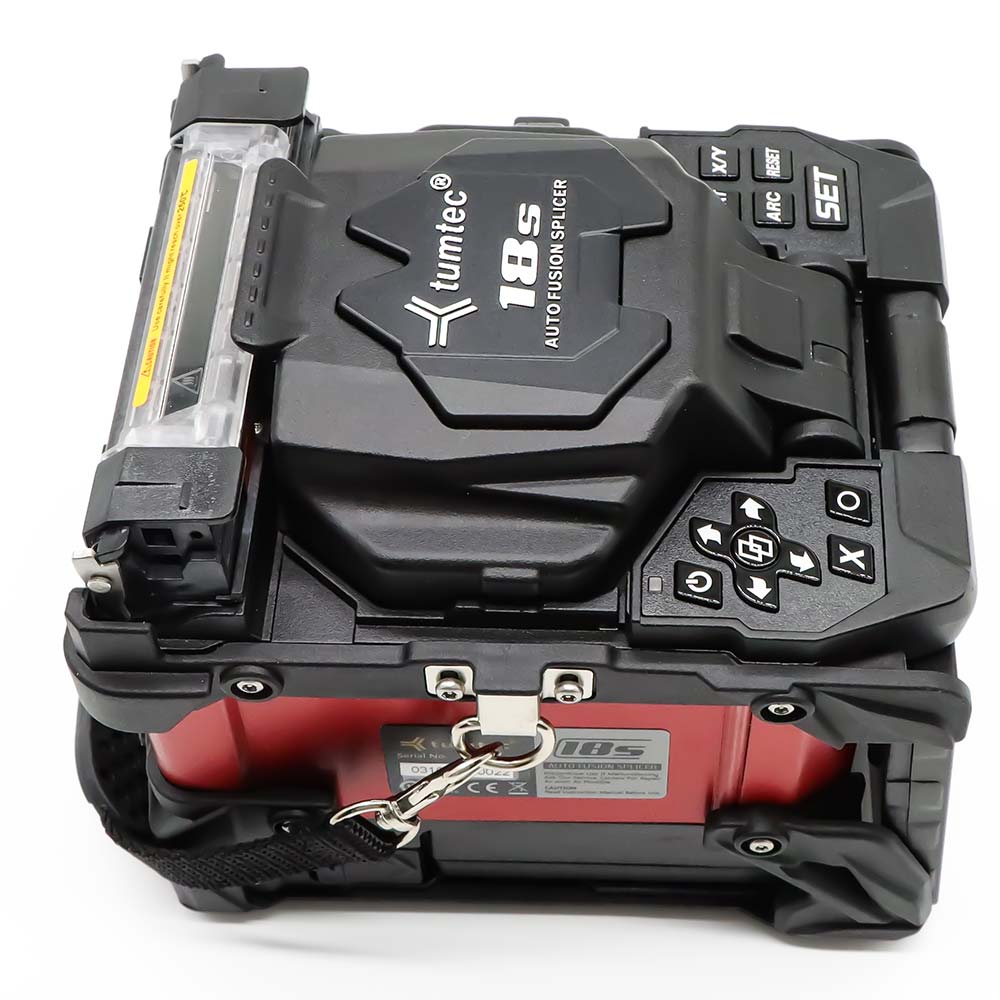

Tumtec FST-18S Fiber Optic V-Groove Fusion Splicer with 4 Motors, Fast Splicing & Long Battery Life for High Precision Splicing

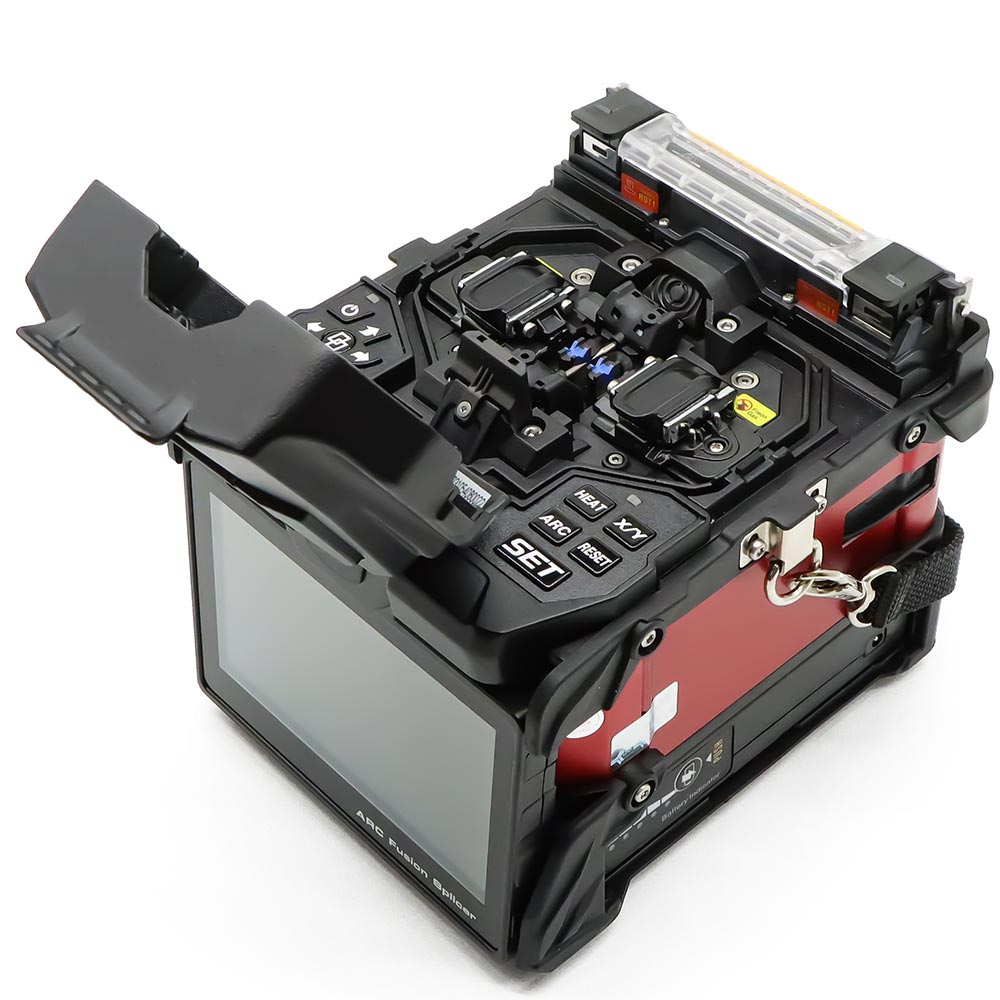

Precise V-Groove Core Alignment: Achieves extremely high reliability and ultra-low splice loss with precision measured in nanometers.
Four Precision Motors: Provides stable, precise fiber positioning during cleaving to maintain consistent splice quality.
Ultra-Fast Splicing and Heat: Only 6 seconds to splice and 15 seconds for heat shrink means maximum productivity.
5-inch HD Colour Touch Screen: The HD colour touch screen is large and easy to read, with 500x magnification so you can see real-time what is happening.

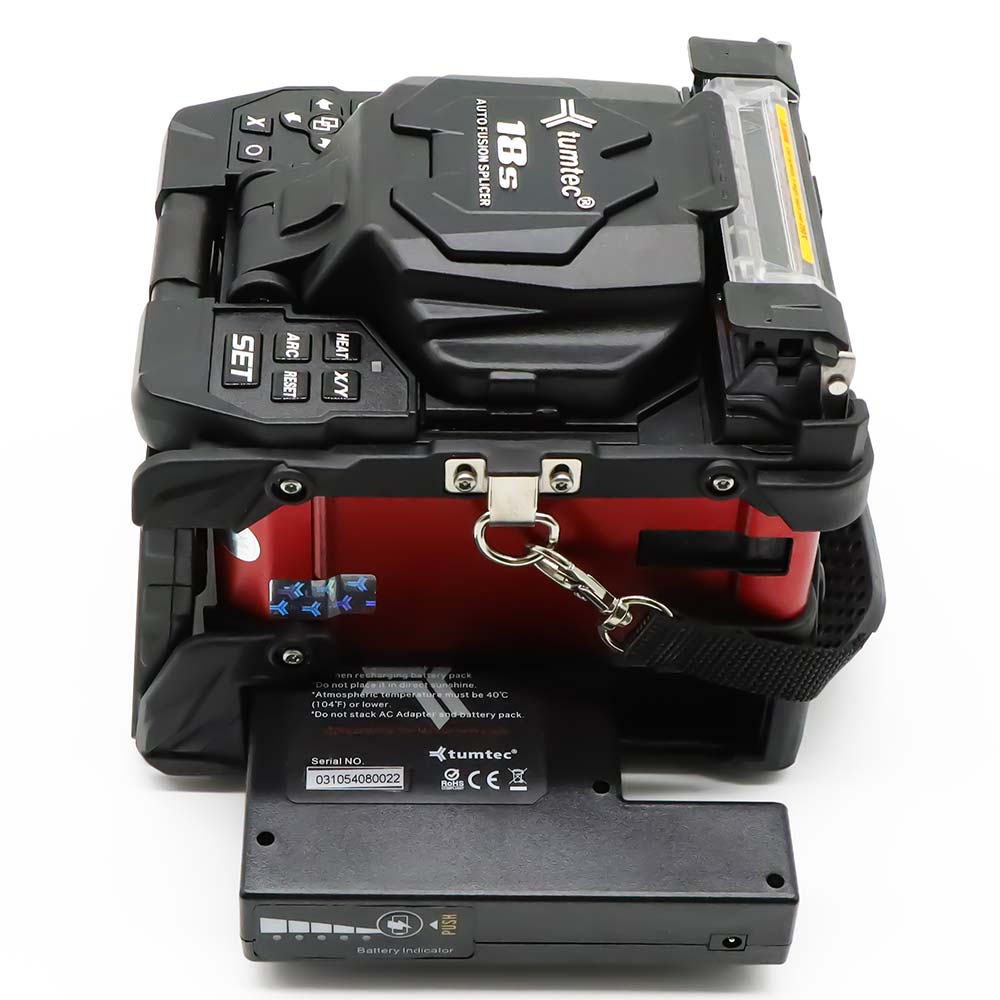

Long Battery Life: A 5200mAh battery is capable of more than 280 splicing and heating cycles while on a single charge, great for field applications.
Universal Fiber Compatibility: Compatible with single-mode, multi-mode, and nearly any optical fiber, including 0.25 – 3.0mm indoor cables.
Rugged and Portable: An aviation-grade alloy body with dustproof, waterproof, and shockproof protection makes it durable in even the most challenging conditions.
Innovative Automation: Automatic fiber end-face detection, automatic windproof cover, and smart clamps for easy and error-free operation.
Record Keeping: Store over 20,000 splice records and any combination of 200 images of splices enabling quality assurance and traceability.
