What is the Sumitomo Q102-CA+ Core Alignment Fusion Splicer?
The Sumitomo Q102-CA+ is a professional-grade core alignment fusion splicer that was specifically designed for fiber optic splicing tasks that require precision, efficiency, and reliability. The Q102-CA+ embodies state-of-the-art technology that offers the seamless fiber connections required for telecommunications, CATV, and data networks.

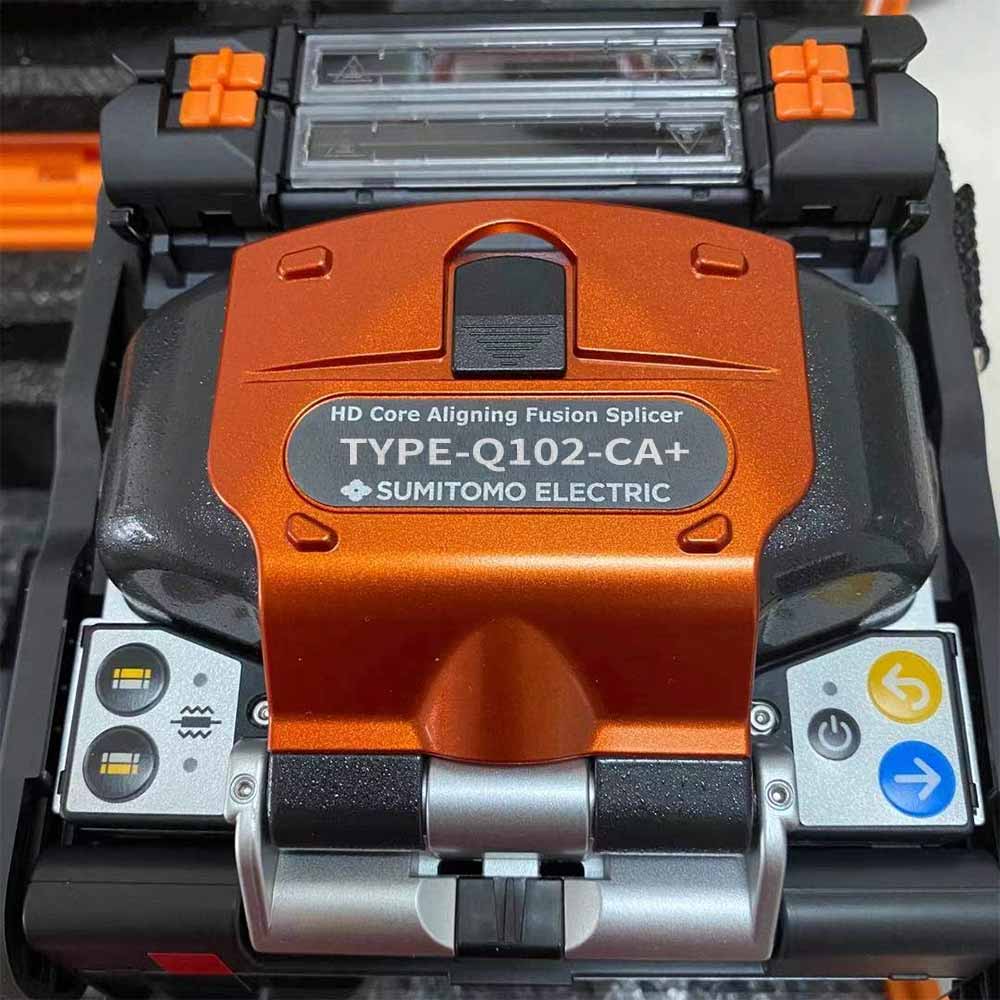

The Q102-CA+ was designed for high-definition core alignment to ensure precise fiber positioning during fusion. The Q102-CA+ uses dual CMOS cameras to capture high-definition images of the fiber cores, providing the splice quality and low splice loss desired. The splicer is also designed for easy accommodation of different types of fibers, offering versatility with respect to various fiber optic splicing projects.
How Does It Improve Fiber Optic Splicing Performance?
The Q102-CA+ is designed for rapid splicing cycles and heating cycles. The typical time for fusion is approximately 5 seconds, while the time to heat the protective sleeves is 8 seconds. Although the Q102-CA+ design offers extreme performance speed, it also significantly reduces work time and increases productivity in the field by technicians. The Q102-CA+ offers ultra-low splice loss, averaged at 0.01 dB using single-mode fibers. The ultra-low splice loss is essential in ensuring a stable and long-lasting connection necessary for today’s high-bandwidth applications.
The splicer’s casing is also designed as a rugged, tough environmental casing. The casing meets the extreme environment ratings for water (IPx2) and dust (IP5x), as well as for shock and impact, making it ideal for outdoor jobs. The casing’s high performance also provides a hydrophobic protective coating. The device also features a powerful lithium-ion battery (6,400 mAh), providing approximately 320 cycles of splicing and heating following a full charge; therefore, reducing technician downtime.
Interface and Usability Features

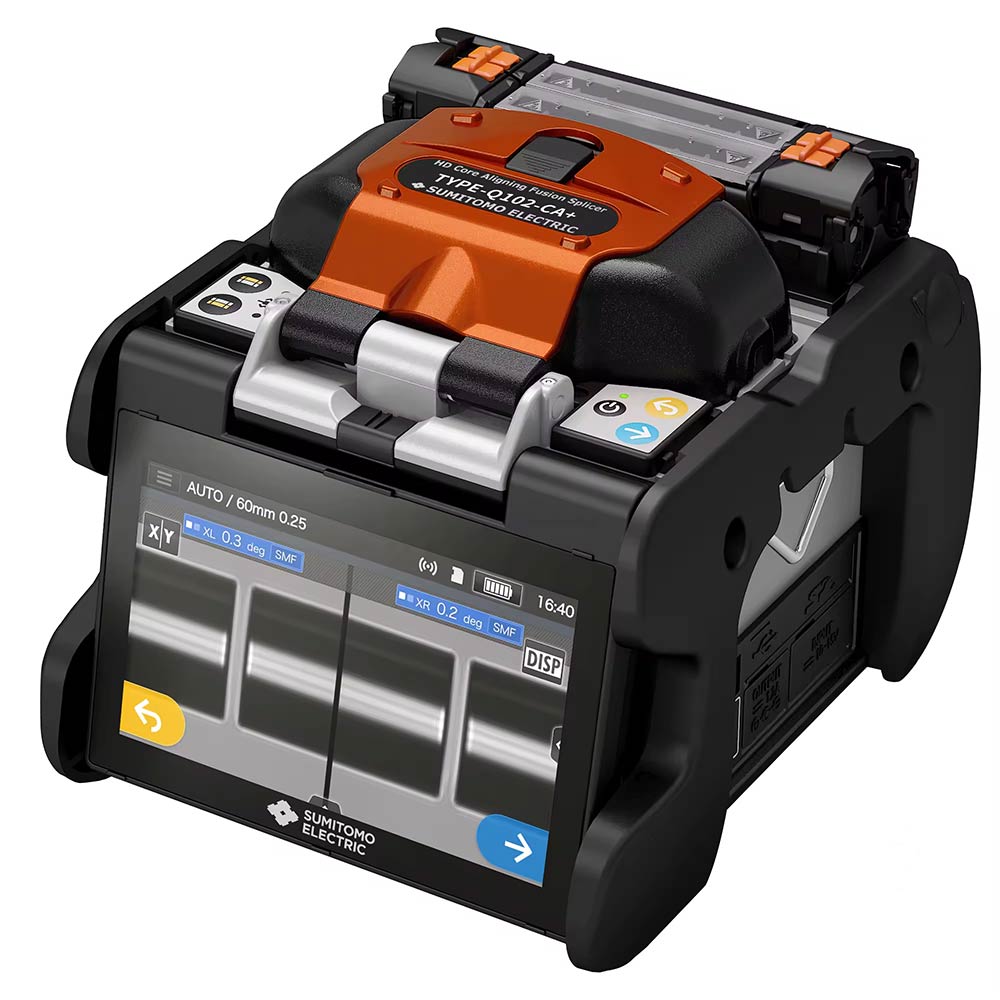

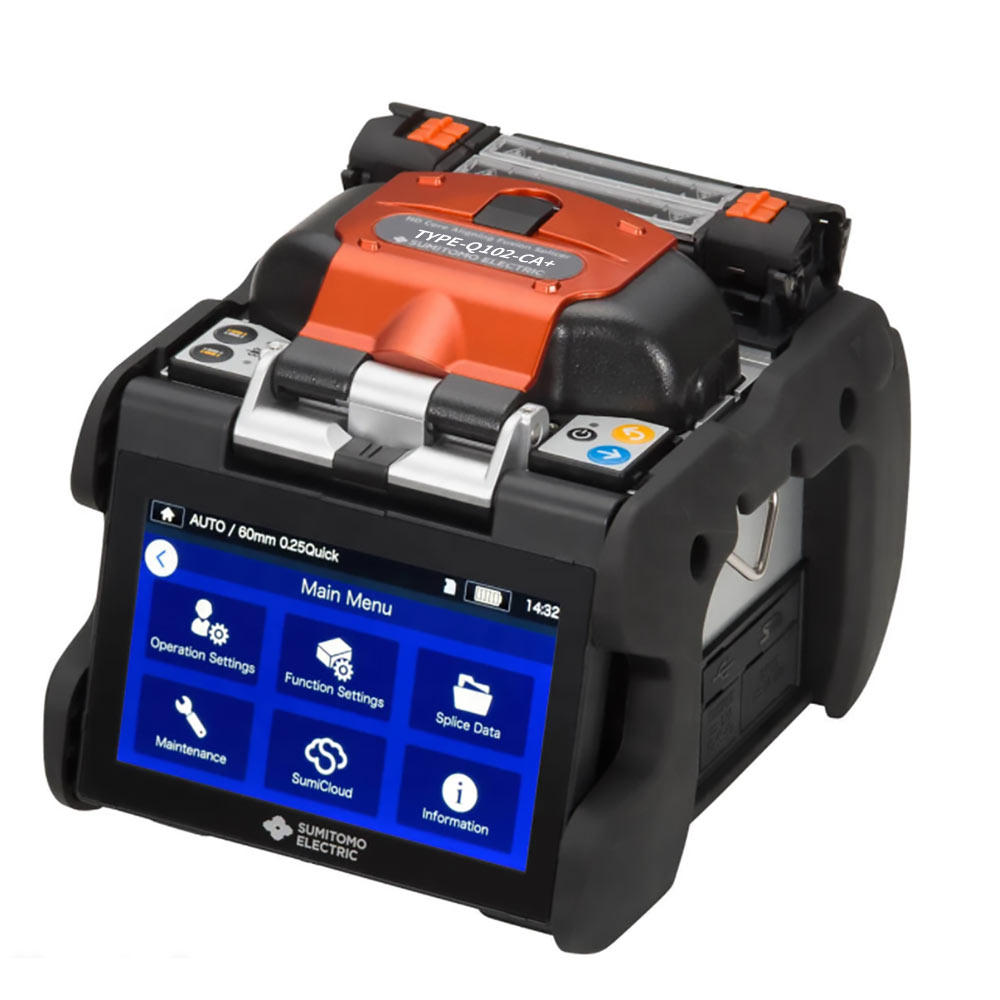

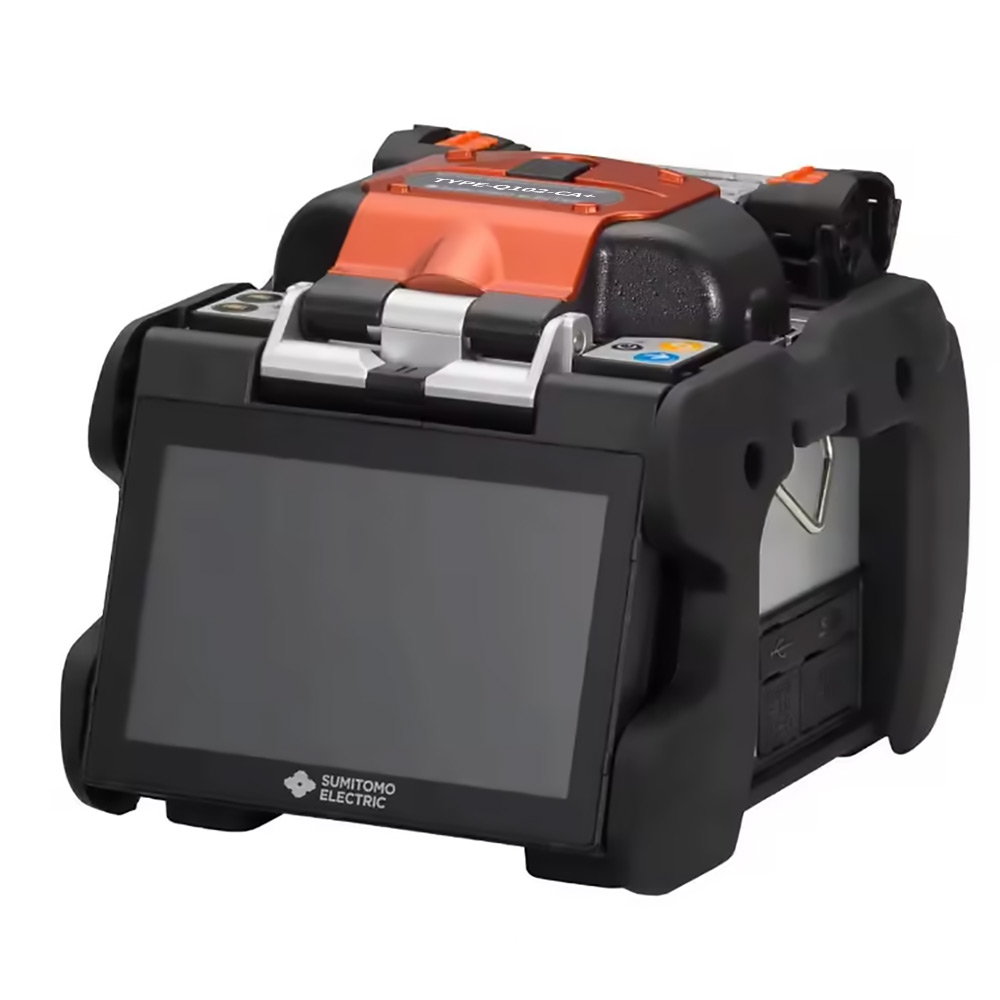

The Q102-CA+ is equipped with a 5.0-inch touchscreen color LCD panel. However, not only is it a touchscreen, it also provides an intuitive user interface designed for operators to familiarize themselves with the device. For this reason, the Q102-CA+ even features onboard training videos for the users. This eliminates any operator learning curve significantly because the operator can simply refer to the video rather than trying to find external material if they forget the steps.
The data management capabilities also improve traceability and quality control. The Q102-CA+ stores up to 10,000 splice logs and can be populated with SD cards to expand storage. The ability to expand the internal storage with SD cards is particularly desirable for the more regimented documentation and monitoring of splicing and analysis.
Specifications Overview
| Parameter | Specification |
| Fiber Compatibility | SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657), CSF (G.654), EDF |
| Fiber Diameter | Cladding: 80–150 µm; Coating: 100–1,000 µm |
| Cleave Length Range | 5–16 mm (with coating clamp) |
| Typical Splice Loss | SMF: 0.01 dB; MMF: 0.01 dB; DSF/NZDSF: 0.03 dB |
| Return Loss | ≥ 60 dB |
| Splice Time | 5 sec (Quick Mode SM G652), 7 sec (Standard and Auto Modes) |
| Heating Time | 8 sec (using 60mm FPS sleeve, 0.25 mm coating) |
| Battery Life | 6,400 mAh Li-ion, approx. 320 splice & heat cycles full charge |
| Fiber View Magnification | Dual 2 CMOS cameras: 380X single axis, 270X dual axis |
| Protection Sleeve Compatibility | 40mm, 60mm & Sumitomo Nano sleeves |
| Splice Programs | Max 300 total; 74 factory-optimized; 226 editable by user |
| Heating Programs | Max 100 total; 27 factory-optimized; 73 editable by user |
| Splice Data Storage | Up to 10,000 logs internally; SD cards up to 32 GB supported |
| Display | 5.0″ color touchscreen LCD |
| Dimensions | 128 mm (W) x 154 mm (D) x 130 mm (H) |
| Weight | 1.9 kg (without battery), 2.2 kg (with battery) |
| Environmental Specs | Operating Temp: -10 to +50°C; Humidity: up to 95% non-condensing; Altitude: 0–6,000m |
What Makes the Sumitomo Q102-CA+ the Best Choice?
The Q102-CA+ fusion splicer is ahead of the competition in the core alignment fusion splicer category for several reasons based on its balance of speed, performance, and field ruggedness. The splicer conforms to ITU-T and IEC specifications on splice loss and dependability, so fiber optic technicians can confidently prepare every construction splice knowing it will meet the required quality and dependability of the industry.
The capability to splice multiple fiber types, along with real-world ergonomics and a useful wireless LAN option, plus a full complement of logging options for splice preparation logs, ensures that users can perform every operation with efficiency and accuracy in the field.

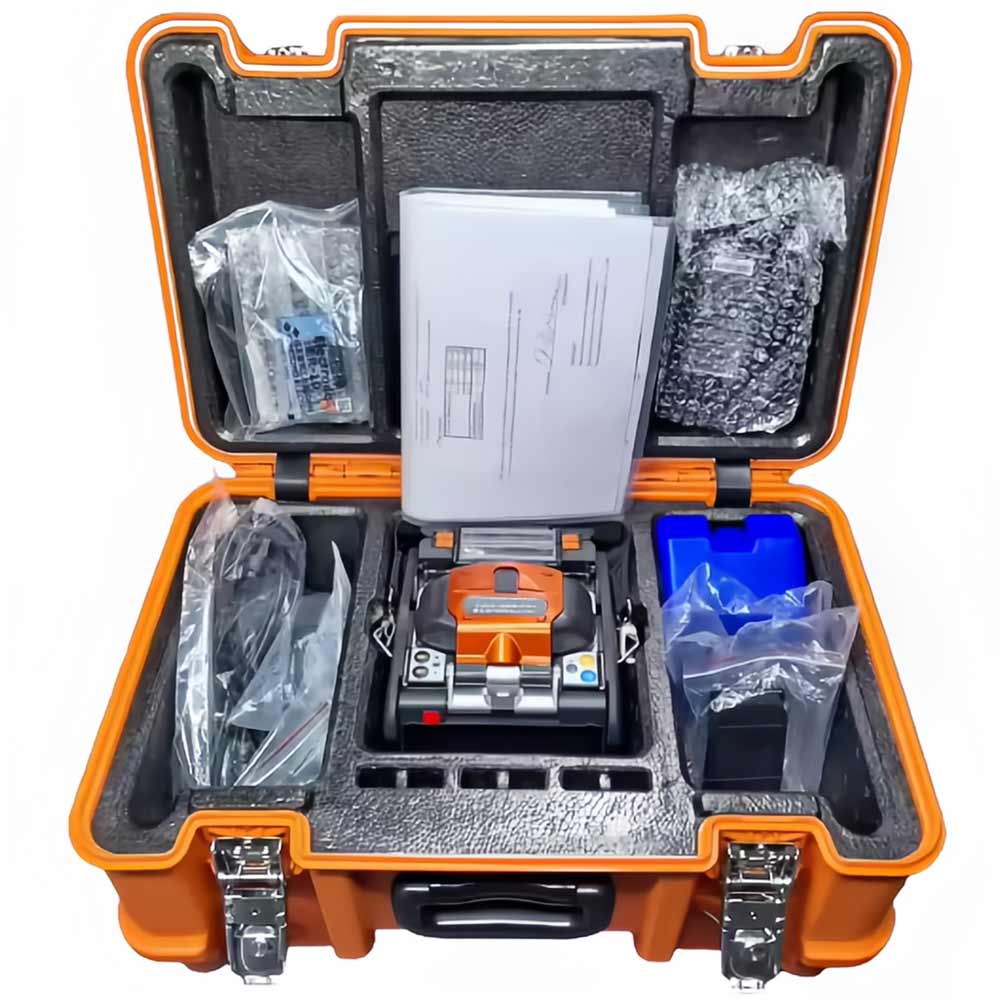

This product combines seamlessly with Sumitomo’s various accessory kits, like fiber holders, cleavers, and splicing protection sleeves that refine and enhance the splicing protocols.
In conclusion, the Q102-CA+ Core Alignment Fusion Splicer is a high-end, utility-ready solution that effectively combines leading-edge optical science with human usability. The product is ideally suited for telecommunications installers and network engineers looking to splice optical fibers with high-precision capability and stable reliability and dependability across a range of field conditions.
