Single Mode vs Multimode Fiber Cable: Guide to Fiber Optic Cable Types and Applications

Fiber optic technology enables the transfer of large volumes of data at exceptional rates across the world and is at the heart of today’s communication networks. As businesses and consumers continue to ask for faster, more reliable, and increased bandwidth, knowing the types of fiber optic cabling available is essential.  Single-mode fiber and multimode fiber cables are the 2 types of fibers available for use in networking infrastructure, each with their own characteristics, benefits, and scenarios they perform best in.

Overview of Fiber Optic Technology

Fiber optics is a technology that conveys data in the form of pulses of light through strands of glass or plastic fiber that are ultra-thin. These fibers are often not thicker than a human hair and consist of a core and then cladding that holds the light signal within the core of the strand through total internal reflection. Fiber is an excellent technology that can support high-speed data transfer through long distances with little signal loss or interference. These features are the reason fiber has become the preferred telecommunication medium, especially for backbones in the internet and data centers.

Single mode fiber and multimode fiber convey the basic fiber component for fiber optic technology. Single mode fiber has a much smaller diameter of the core of the fiber of about 9 microns, which only allows one mode of light to propagate, which keeps attenuation low and allows for long distances to be achieved. Multimode fiber has a larger core of 50 or 62.5 microns and supports more than one mode of the light signal propagating at the same time. Multimode fiber can be benefited from when distances are shorter and do not need the low level of cost sensitivity. It is important to understand what these basic differences are for selecting the cable for a network.

Purpose and Scope of This Guide

This guide will deliver an in-depth, data-driven comparison of single mode vs multimode fiber cables, looking through construction, performance, cost and the use case. By reviewing the key technical differences, such as core size, bandwidth capabilities, and attenuation, this article will also examine cost factors, such as cable and transceiver costs, to help you make an informed decision fit for your network. Regardless of whether you are developing a campus network, data center or long-haul telecom link, understanding the distinctions will help you make decisions based on performance and future-proofing your network.

Technical Fundamentals of Single Mode and Multimode Fiber

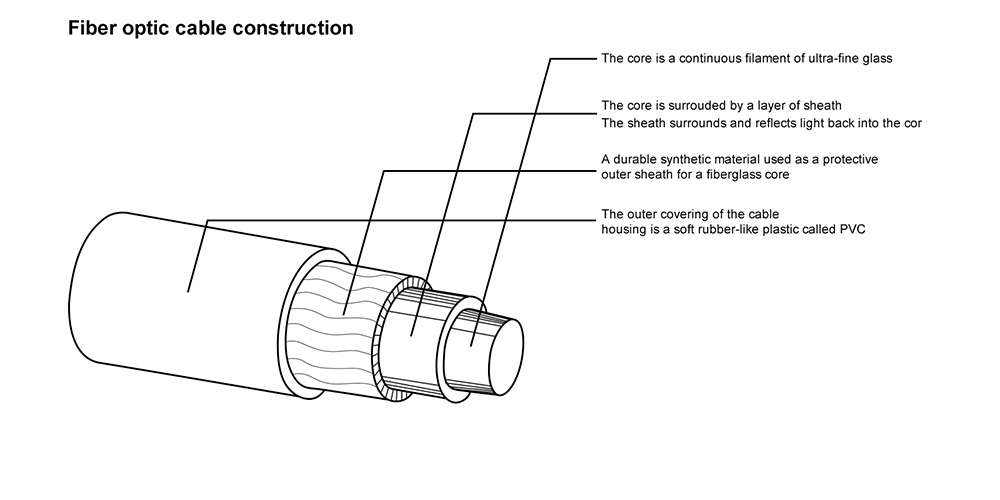

Fiber Core and Cladding Structure

1. Single Mode Fiber Core Diameter

In general, single mode fiber has a core diameter of about 9 microns (µm) with an outer cladding diameter of 125 µm. The core size is small, so it can only allow one mode (or path) of light to move through the fiber, so modal dispersion is minimized. Modal dispersion is the spreading of light pulses over time. With a single mode, the signal remains much cleaner with less distortion and induces less degradation of the signal, which allows transmission significantly further in distance than multimode fiber. The outer cladding of 125 µm acts as a reflective boundary allowing light to remain in the core of the fiber using total internal reflection. This ensures there is efficient transmission of the signal without losing any light during the signal transport.

2. Multimode Fiber Core Diameter

Multimode fiber has a much larger core diameter, typically 50 µm or 62.5 µm. The cladding remains the same at 125 µm in diameter. The larger core enables the ability for multiple light modes or light paths to propagate in successional fashion in the fiber. This “light gathering” capability allows multimode fiber to couple easier with light sources like LEDs and VCSELs that provide a wider coverage of light area. However, multimode fibers are subject to modal dispersion where several paths arrive at the receiver at different times, which prevents the effective bandwidth and transmission distance. Regardless, multimode fiber remains a popular option for short-distance applications for local area networks (LANs), data centers and other examples, because it is easy to implement and has a lower cost.

Light Propagation and Modal Dispersion

1. Single Mode Propagation

Single mode fiber optics are built specifically for a single light path, which means light will be able to travel perfectly straight down the center of the fiber core without scattering and reflecting. A direct path and very few reflections leads to less distortion and attenuation in the signal, meaning light can be transmitted over virtually any distance—tens of kilometers or more! Minimal modal dispersion contributes to single mode fibers’ large bandwidth, offering extreme performance for high-speed telecommunications and internet backbone applications.

2. Multimode Propagation

In contrast, multimode fiber accepts multiple light modes which can bounce at different angles on the core-cladding boundary. The presence of multiple light paths creates modal dispersion where the light pulses spread over time and overlap, causing signal loss due to the overlapping spread. Modal dispersion itself limits the distance and bandwidth you can obtain through multimode fiber. In addition to modal dispersion multimode fiber has a greater effective attenuation than single mode fiber. The combination of modal dispersion and effective attenuation limits the effective range of multimode fiber. Despite this, multimode fiber is capable of handling multiple light modes, making it appropriate for short distance, high density network applications.

Light Source and Wavelengths

1. Single Mode Fiber Light Sources

Typically, single mode fiber employs laser diodes as sources, lasing at wavelengths of 1310 nm and 1550 nm. These lasers and their associated optical components provide very focused, coherent light that couples well into the small (9 µm) core of the fiber and provides long-distance operation with low attenuation. Choice of wavelength is important: 1310 nm is a standard wavelength used for moderate distance, whilst 1550 nm provides lower attenuation and is available for ultra-long-haul applications.

2. Multimode Fiber Light Sources

Multimode fibers usually use either light-emitting diodes (LEDs) or vertical-cavity surface-emitting lasers (VCSELs) as their light sources, and they operate at short wavelengths of 850 nm and 1300 nm. Since LEDs emit incoherent light over a larger area, they are well suited for the large core diameter of multimode fiber. VCSELs have higher power than LEDs, provide a better modulation speed over longer distances, and make higher-speed multimode applications possible. However, for long distances, multimode light sources are less efficient than lasers used in single mode fiber.

Attenuation and Signal Loss Comparison

Signal loss or attenuation is an important consideration for how far and how well the signal will be transmitted. As seen in Table 2, single-mode fiber has much lower attenuation at both 1310 nm and 1550 nm wavelengths when compared to multimode fiber. The lower attenuation means signals can travel farther without the need for amplification or regeneration. Conversely, the higher attenuation, especially at 850 nm, means that multimode fiber is better used for shorter distances when signal loss is less of a problem. When evaluating the impact of attenuation, having a clear understanding of the attenuation differences will help network designers identify the appropriate fiber type based on distance and performance needs.

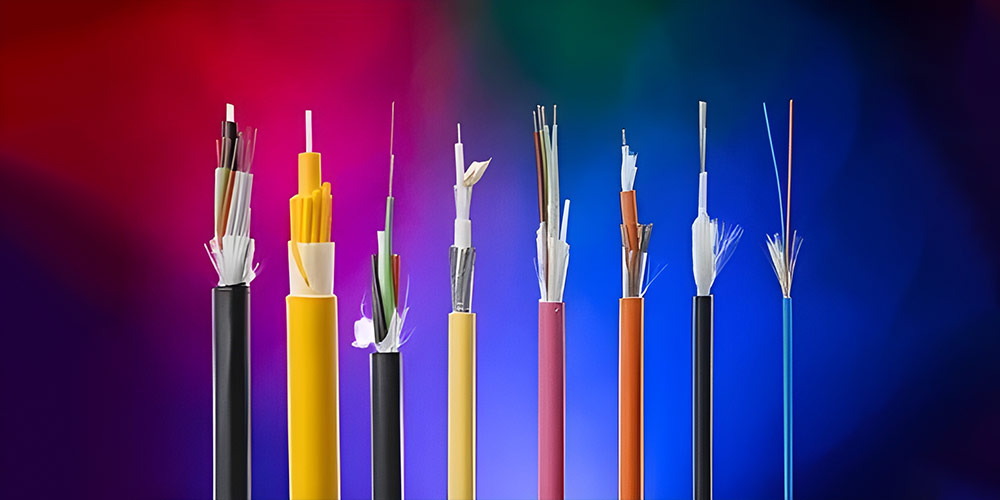

Fiber Jacket Color Coding

Fiber optic cables are typically color-coded to make identification easier during installation and maintenance. Single mode fiber jackets usually utilize yellow indicating their smaller core size for long distances. Multimode fiber jackets usually use orange for OM1 and OM2 fibers, aqua for OM3 and OM4 fibers, and lime green for OM5 fibers. This color coding is particularly useful to aid the technician in distinguishing between fiber types that may be presented in a complicated cabling deployment, which reduces mistakes, and enables quick troubleshooting and upgrades.

Distance and Bandwidth Capabilities

Maximum Transmission Distances by Fiber Type and Speed

The decision to go with single mode vs multimode fiber generally depends on the distance for transmission and network speed. The table below displays maximum typical distances for a number of Ethernet standards over single mode (OS2) and multimode fibers (OM1 – OM5):

The capability of single mode fiber to carry higher speeds and longer distances is rooted in its tiny core size of just 9 µm, allowing only one light mode to propagate. This is important because it limits modal dispersion and minimizes signal loss, allowing transmission distances greater than 10 km without significant loss of signal quality. Because of this, single mode fiber has become the preferred medium for telecom backbones, metro networks, and long-haul interconnects between data centers.

Likewise, multimode fiber has larger cores (50 or 62.5 µm) that can support more than one light mode to propagate simultaneously. Because the light modes will arrive at the receiver at slightly different times, this is considered modal dispersion. This overlap of light modes will limit how far you can transmit the signal. For example, OM3 multimode fiber supports 10G speeds up to a distance of 300 meters, while OM4 extends that distance to 400 meters. The latest OM5 multimode fiber will still allow for longer distances at certain wavelengths; however, multimode fiber cannot perform as well as single mode fiber at long distances.

Bandwidth Considerations

Modal dispersion limits bandwidth in multimode fiber and, consequently, the maximum data rate for distance. Multimode fibers have a particular modal bandwidth, typically expressed spectrally in MHz·km. A fiber’s modal bandwidth always diminishes as length increases. For example, OM3 fiber at 850 nm offers approximately 2000 MHz·km of bandwidth, enough to support 10G Ethernet up to 300 meters.

In contrast, single mode fiber offers an almost unlimited bandwidth capability because it contains only one mode of light with low modal dispersion. This unique structure allows single mode fibers to support very high data rates such as 25G, 40G, and 100G Ethernet over long distance while remaining future-proof to network requirements related to increased bandwidth.

Cost Comparison: Single Mode vs Multimode Fiber

Cable Cost Analysis

Comparing the price of 9/125 single mode fiber and 50/125 OM3 multimode fiber, the difference in cost per meter is typically not very large. Multimode fiber cables can be slightly more expensive, with marginal differentiation in price based on the larger core and thus the associated manufacturing. But on the balance of the overall network budget, the difference in pricing for cable is ultimately minimal. The greater costs are incurred from associated transceivers and equipment utilized, versus cost in cable.

Transceiver and Equipment Cost

Single mode transceivers are pricier fundamentally because they use laser technology and also precision optics which are needed to inject light into the very small 9 µm core. Lasers provide coherent and focused light necessary for transmission distance but introduce complexity and cost into the manufacturing process. Multimode transceivers use affordable LEDs or VCSELs which are less sensitive to alignment and place less demand on power.

This price differential increases with speed as a 40G single mode transceiver could cost more than seven times a 40G multimode. Cost is a somewhat big driver in the design of a network and this definitely weighs in when you’re designing for distances that are not significant.

Installation and Termination Costs

Due to its larger core size, multimode fiber is easier and less expensive to terminate. The large core also better tolerates slight misalignments and dirt than single mode fiber. Single mode fiber typically requires highly skilled technicians, as well as more time-consuming and precise cleaning to ensure low insertion loss; consequently, labor costs and installation time are increased. This complexity of single mode deployment can add considerable expense in larger installations, especially when many single mode fiber point-to-point installations are required.

Operational Costs and Power Consumption

Multimode transceivers often use less power and therefore cost less to operate in large-scale data centers or enterprise networks. The laser components of single mode transceivers use more energy, which has longer-term implications for total operational costs when multiplied by thousands of ports.

Total Cost of Ownership and Future-Proofing

Multimode fiber may be less expensive at first, but single mode fiber offers better scalability and longevity. The bandwidth and throughput of single mode fiber enables communication at higher speeds over longer distances, which leads to fewer costly upgrades and replacements in the years ahead. When considering total cost of ownership, it’s important to consider the installation and maintenance costs, costs of power consumption, and scheduled upgrades. Considering these factors, single mode fiber is often a lower cost option when you consider lifetime cycle costs.

Application Scenarios and Use Cases

Single Mode Fiber Applications

Single mode fiber (SMF) is the core component of modern high-speed and long-haul networks. SMF has a small core diameter and is engineered to only transmit a single light mode, improving its capacity to send a signal 200 km with negligible signal loss and virtually no modal dispersion. SMF is best utilized in telecom networks, ISP backbones, and long haul metropolitan area networks (MAN) applications where high bandwidth and low attenuation is essential.

Additionally, single mode fiber is becoming increasingly popular in high-speed data centers as SMF is more scalable, and more flexible for future upgrades. As data centers evolve to support 25G, 40G, 100G and beyond speeds, the practically unlimited bandwidth potential and longer reach provided by single mode fiber lets operators bump speeds up without major rewiring investments. The declining cost of single mode transceivers is also driving more rapid adoption in hyperscale data centers and enterprise data centers.

Multimode Fiber Applications

Multimode fiber (MMF), which has larger core sizes (50 or 62.5 µm) that allow multiple light modes to be supported, has improved performance for short-range communications, primarily and usually in a building or campus scenario. In MMF applications, the distances between buildings range from a few meters to approximately 550 meters for 10G Ethernet. MMF is typically used in enterprise LAN, campus networks, or data centers that fall under these distances.

The MMF is more favorable in cost-sensitive environments that require moves/additions/changes since it is easier to install this type of fiber and because of the cost of transceivers. OM3, OM4 and the newest OM5 multimode fiber solutions support high-speed data transmission with improved modal bandwidth transmission and wavelength division multiplexing (WDM) capabilities.

Hybrid Networks and Compatibility Issues

When both single mode and multimode fibers are used in the same network, there is usually an issue. Because single mode and multimode fibers have differing core size as well as light propagation methods, they cannot be connected directly without signal loss and performance coming into play. The narrower 9 µm core of the single mode fiber connects poorly with the larger multimode core, which means the light coupling is not efficient either.

To do this network designers make use of “media converters” or “mode conditioning patch cables.” A media converter refers to an active means of translating the optical signals from SMF to MMF, thus allowing these to be linked and operate in a single and hybrid network. The mode conditioning patch cable achieves the same goal but rather than using a media converter, the mode conditioning patch cable is employed to offset the single mode laser launch within the multimode fiber to minimize the differential mode delay and offer a better signal quality.

Emerging Trends and Market Shifts

In recent years, single mode transceivers have dramatically fallen in price and their price gap with multimode is closing, making single mode fiber (SMF) a more attractive option especially for data centers and enterprise networks. The growing demand for hyperscale data centers, alongside the adoption of the new 400G and 800G Ethernet standards are also driving factors, as the distance and bandwidth advantages of single mode fiber will eventually be required.

At the same time, OM5 multimode fiber is gaining traction for supporting multiple wavelengths with Shortwave Wavelength Division Multiplexing (SWDM). OM5 reduces the number of cables, increases scalability, and could be a cost-effective upgrade path for existing multimode installations.

Installation, Testing & Maintenance

Installation Complexity and Best Practices

Because single mode fiber has a small core diameter of 9 µm, precision must be very high to guarantee low signal loss and reflection. Connectors must be sufficiently cleaned and aligned correctly, with even 1 µm of misalignment or contamination introducing significant performance degradation. This is why installers use factory terminated connectors or special tools and training when terminating in the field.

Multimode fiber is more forgiving in the installation. Because it has a larger core diameter, it can tolerate some imperfections in the connector and acceptable dirt levels. This makes terminating multimode fibers easier and less expensive than single mode. Because it requires shorter installation time and less complexity, multimode fiber is often selected for moves, adds, and changes in environments.

Testing Procedures and Equipment Differences

Testing single mode fiber involves specialized equipment such as Optical Time Domain Reflectometers (OTDRs) and accurate light sources at 1310 nm and 1550 nm. These instruments are essential to finding faults, measuring attenuation, and reconciling the performance of fiber optic systems over long distances. Due to the accuracy and precision required, single mode fiber testing is typically more expensive and always requires technicians with specialized training.

Testing multimode fiber is much simpler and more cost-effective. Multimode fiber testing can utilize OTDRs and light sources at 850 nm and 1300 nm. All of these instruments are considerably less expensive and easier to operate. The larger core also makes these systems easy to troubleshoot and effectively locate faults, limiting downtime and maintenance costs.

Maintenance and Troubleshooting Tips

Fiber cleanliness and labeling are key points in sustaining effective operations within fiber optic networks. Connector end faces that are contaminated with dust, oils or dirt, can lead to appreciable signal loss, and are a particularly big issue in single mode fiber in most circumstances. Clean fiber using an approved cleaning process and tool on a regular basis.

The effort to utilize color coding standards simplifies the process of identifying fiber types during maintenance and troubleshooting. Single mode fiber jackets are typically yellow, while multimode fiber jackets are orange, aqua, or both colors depending on the multimode fiber grade (OM1 – OM4). Color coding keeps a technician from accidentally connecting to the wrong fiber and it assists in the management of the fiber optic network.

Frequently Asked Questions

Q1: What distinguishes single mode fiber from multimode fiber?

Single mode fiber has a narrower core size that can only carry one light mode, so it is better suited for longer distances and supporting higher bandwidths. Multi-mode fiber has a larger core size to support multiple light modes, but can only transmit over shorter distances.

Q2: Can I connect single mode fiber directly to multimode fiber?

No. Since the core size of the two types of fiber is different, if you directly connect the cables, this could also cause a signal level loss. You will need some kind of media converter or mode conditioning cables to connect the cables.

Q3: Which of these two types of fiber is more cost effective if I am transmitting over short distances?

The multimodal fiber is more cost effective to use because the transceivers and the installation are less expensive if you are transmitting over short distances.

Q4: How far can I run a 10G multimode circuit?

It depends on the specification being used. For example, OM3 supports a distance up to 300 meters at 10G. OM4 supports a distance up to 400 meters at 10G and OM5 also supports a distance up to 400 meters, but adds capabilities for the use of additional wavelengths.

Q5: Why are the single-mode transceivers more expensive than multimode?

The single-mode transceiver is more expensive because you are using lasers and optics that must be very precise in order to transmit signal through the smaller core.

Q6: What color are single-mode fiber cables?

Single mode fiber jackets are typically yellow.

Q7: Is single-mode fiber more “future-proof” for my network?

Yes. It has almost unlimited bandwidth and ideally for longer distances.

Q8: What is modal dispersion and how does it affect performance on multimode fiber?

Modal dispersion causes the signal to overlap with one another which limits your ability to transfer bandwidth and distance.

Q9: What special installation skills will I need for single-mode?

You need to be aware of proper connector alignment and cleanliness during installation, as well as the use of specialized tools to terminate connectors.

Q10: Can multimode fiber carry 100G?

Yes, but only over limited distances as an example OM4 supports 150m with 100G.

Conclusion

In conclusion, single mode versus multimode fiber cable ultimately comes down to affordability and technical differences. Single mode fiber has a smaller core diameter with no modal dispersion options, allowing it to transmit longer distances and typically more bandwidth, which is why it is used in nearly all telecom networks, ISP backbones, or data centers that are future-proofing their facilities. Unfortunately, single mode fiber also comes with a greater expense for the transceivers and the installation process, as a lot of the fiber component is precision based.

Multimode fiber allows for a larger core that supports multiple light modes but is best suited for short-range applications like enterprise LANs or campus networks. The net result is that multimode fiber will be lower cost upfront to install, and the installation is generally easier, but multimode fiber has its limitations on distance and bandwidth.

Selecting the correct fiber optic cable will depend on distance required for your network, budget, and ability to upgrade later. While multimode fiber may save you money on short runs, single mode fiber will last longer and has more potential for upgrades down the road, which decreases your total cost of ownership. Each network designer must weigh the considerations to find the best way to get the performance they need at the right price.

Overall, understanding single mode versus multimode fiber will allow you to effectively identify and design reliable networks that do the work they are intended to do, provide bandwidth needed today, and enable future growth. It is important to remember that selecting fiber applications involves understanding immediate needs while selecting arrangements that will allow for scalability. From a business standpoint, the ultimate goal is to create flexible infrastructure, which will accommodate future data demands.
