SFP Ports and Switch Compatibility: What You Need to Know

Have you ever faced a major network outage caused by one little port mismatch? Now, picture an office where all communication erupts into chaos because an SFP port can’t recognize its module. You wouldn’t believe how the smallest of details can completely break workflows. Understanding the details of SFP ports and module compatibility will provide you with the knowledge you need to avoid network downtime, streamline performance, and enable the connectivity needed to power the business.

Why Is Compatibility So Important? Risks and Challenges for SFP Port Compatibility

SFP port and module compatibility creates a wide range of different risks. The first risk, deemed the most immediate, is the unknown network downtime, which ultimately halts data transfer, impacts communication, and overall slows productivity for an organization. For example, a data center was shut down for several hours due to extreme network outages created after the newest patch guy attempted to install unproven third-party modules. The process without a doubt slowed or halted their productivity.

Unfortunately, the downtime or service interruptions are often only the beginning. The modules you have installed may work, but result in some other form of performance degradation, causing slow packet transfer, lost packets, and inconsistent connectivity.

In addition, many hardware or switch manufacturer warranties generally specify the use of supported and approved modules. Growing evidence of unsupported modules can quickly reduce claims submitted under warranty, as one organization quickly discovered in replacing hundreds of modules after their claims were denied.

If that were not enough, potential costs will start to accumulate because of downstream devices or configurations which may also fail as a result of crashing SFP modules or ports.

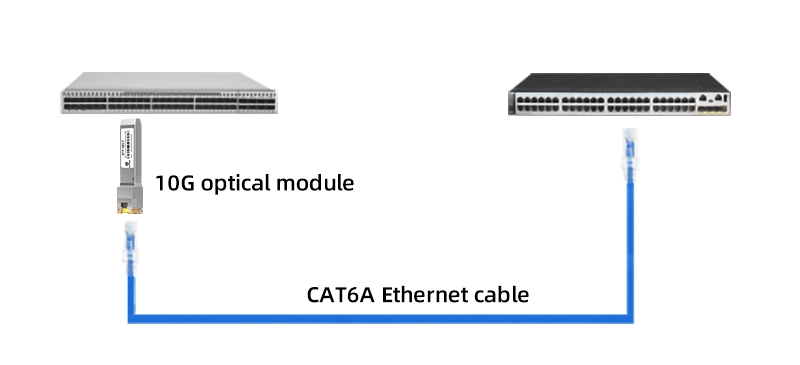

You may be asking yourself, What is an SFP port? An SFP port is a small hot-swappable slot available on switches and routers that provides detachable transceiver modules placed inside the port. This modular design works well to convert electrical signals to optical signals over fiber or copper signal. The capabilities of these devices are vast, but when the switch and transceiver module are not specifically aligned for compatibility, the connectivity will either not work or will be unstable.

That said, compatibility is a very important component in a stable network architecture. Proper port and module compatibility means there will be no bad connections, reducing maintenance time. Ignoring compatibility can wrongly add time to troubleshoot any problems, while creating additional wear and tear on hardware in the event you were wrong in selecting SFP modules.

Avoid risk of downtime if the connectivity you are relying on is critical. Most protections for your storage and infrastructure devices begin by knowing the compatibility of every SFP module that could be placed into a supported switch port.

Port and Module Types: Grasping Technical Specifications, and the Basis of Compatibility

SFP ports and modules can be regarded as tools, and like tools, they are designed for specific applications. Recognizing their classifications and capabilities allows for the network elements to fit together properly.

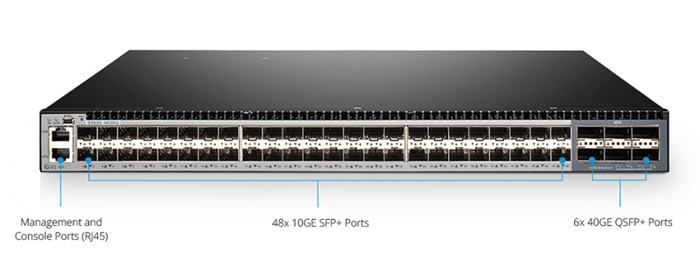

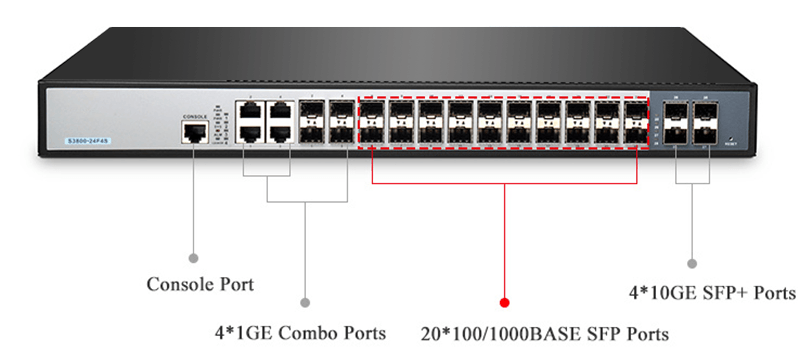

Various Types of Ports, and the Capacities

• Standard SFP (1G): Used primarily for Gigabit Ethernet and supports speeds up to 1 Gbps. Typically used for generic connections such as access switches and servers.
• SFP+ (10G): Increased to 10 Gbps, used frequently for high-bandwidth applications in data centers or aggregation layers.
• SFP28 (25G): Speeds up to 25 Gbps, becoming more popular for “future-proofing” connections into an enterprise’s backbone.
• QSFP+ (40G): Quad Small Form-factor Pluggable Plus packs four lanes of 10 Gbps into a single module, providing 40 Gbps.

Every port type will have a corresponding module designed to its speed and signaling protocols. Specifically, the standard SFP port would pair with modules listed as SFP-1G-SX, meaning that if the SFP modules communicate using short-wave optical transceivers, it would only be practical to use it for local connections of < 550 meters. The ultra SFP+ ports would communicate with modules like SFP-10G-LR, which has a long body and is optimized for long-reach fiber links, typically up to 10 kilometers.

Example

There was a multinational corporation that decided to use the standard SFP module in an SFP+ port to save money. As a result, they kept getting link flapping and data errors, losing a significant amount of time and money getting it properly retrofitted with the necessary modules. They couldn’t really figure out why it was down until they did a deeper dive into the logic of speed and protocol layers, and that was where the failure existed.

In closing, if you want to select the right module, you need to know the exact specifications for distances, wavelength, and speed of transmissions you implement. Some modules will pass the physical test of inserting them into the port but will not work when transmitting. Compatibility checks are needed, as proper module selection is critical and necessary.

The All-in-One Compatibility Checklist: A Basic Framework to Help Your SFP Modules Work Properly on Your Switch

Determining the correct SFP modules will require a methodical verification to avoid a mistake that could be costly to rectify later.

1. Check Official Manufacturer Compatibility Matrices
   The most authoritative source is the official compatibility matrix for the vendor that sold your switch. These matrices display lists of SFP modules both tested and certified for each model of switch. For example, Cisco’s compatibility matrix outlines supported SFP modules, compatibilities with particular firmware functions, and tested proven configurations in the documented use cases shown. You can generally locate these lists and matrices via the manufacturer’s support pages, usually grouped by product series and then firmware version. Knowing you are relying on official lists saves time and is important to ensure compatibility with the switch to avoid misfits or errors.
2. Weigh the Pros and Cons of Using Third-Party Modules
   While third-party SFP modules are sometimes more widely available and generally lower in cost than the vendor’s modules, there are risks to using third-party modules. In some cases, third-party modules are not officially supported by the vendor; in other cases, performance may be hugely variable with third-party modules. Some modules don’t have vendor coding or testing and may either (a) not work on your switch at all, (b) only work on your switch but without some features of the original vendor’s modules, or (c) work sometimes on the switch but not always. A financial client learned that third-party modules were producing small data errors that they did not discover until weeks later, simply because of transactional integrity. Again, carefully weigh the cost savings against the possible risk of support and performance forfeiture.
3. Confirm Firmware and Software Versions
   Firmware is your only gatekeeper between the switch recognizing any modules and performance. Upgrading to the latest firmware can also increase the number of SFP modules supported, as well as increase diagnostics and bug fixes with other firmware versions. Running the early installed version of firmware can lead to issues experienced as hiccups or rejected or unrecognized SFP modules. For example, a multinational software client was experiencing intermittent disconnections with their SFP+ until they upgraded to the newest firmware after a week of puzzling disconnection discussions with their team. Newer firmware creates full compatibility with the new modules. Scheduled checks for firmware and timely firmware upgrades are very common and necessary maintenance in mixed environments, as they relate to configuration and performance support in a network environment that is evolving.
4. Ensure Physical Interface and Speed Compatibility
   Most professionals understand that physical interfaces are the first consideration for adoption, as a physical interface will not work in most cases. Although SFP and SFP+ ports are interchangeable, their signal standards differ. A 1 Gbps SFP module will work in an SFP+ port but will not work as designed due to two migration standards related to speed. Likewise, a 10 Gbps SFP+ in a 1 Gbps port will almost always not work either. A physical interface selected incorrectly, in rare cases, can lead to catastrophic damage to a port. Always double-check ports, what speeds are supported, and SFP specifications before deployment.

After completely working through these steps, you will eliminate most common pitfalls associated with compatibility. The combination of strategic purchasing and validations will ensure that your network runs well and supports future configurations.

Troubleshooting: Eradicating Problems Related to SFP Ports Not Working

When network connections fail, precise root-cause analysis must be performed rapidly to mitigate outage time.

Common Problems

• Unrecognized modules: Your switch cannot see or recognize the SFP module inserted into it. Unrecognized modules can occur for several reasons, including incompatible or bad modules due to vendors introducing new modules for their end-of-life products (Cisco). Another reason could be a firmware version in the switch that is not able to identify the new module.
• Link flapping: Flapping means the link is going up and down and the data is not being transmitted in a stable condition.
• Ports were disabled: The ports might have been disabled administratively or auto-disabled by the switch due to a fault or issue.

Troubleshooting Steps to Follow

1. Check the module: Use CLI commands like show interfaces transceiver detail on your switch and check what modules are present, type of module, and the optical power associated with the module. This output will tell you whether or not the module is recognized, whether or not it is healthy and working, and the path quality on the link.
2. Check the connector: Flapping links usually come from physical layer issues. Look at the fiber connectors to see if they are dirty, scratched, or not seated properly. Cleaning the connectors with the right tools or reseating the module usually alleviates the problem and links are back in service.
3. Check port status: Make sure the port is admin-enabled (not shut down) and check the switch logs to see if there are messages saying that the port state is either blocking or is disabled due to a fault condition.
4. Now check your firmware: If you think it may be bad or out of date, you may want to check the firmware level of your installed version. If the model of the switch firmware is buggy or does not address known issues, you will want to compare the level you have against recommended tested release notes of either the vendor or community, and begin putting in place a plan of action to upgrade.

General Housekeeping Recommendation

Identify a regular periodic schedule for cleaning fiber connectors and verifying module state using the diagnostic commands provided above. Preventive maintenance also builds the ability to efficiently isolate issues with proper diagnostic commands, rolling together these two aspects of operation will improve your experience, isolate any issues much quicker, and reduce the amount of time in an outage.

FAQs

• How can I verify if an SFP module will work in my switch?
  You can check the manufacturer’s compatibility matrix, which includes the validated SFP modules for each switch and firmware level.
• Is it safe to use third-party SFP modules?
  They may save money, but they can also present detection and reliability problems. A vendor-validated SFP module guarantees better quality and support.
• Why doesn’t the SFP port recognize my SFP module?
  The usual causes for these problems are: dirty connectors, incompatible modules, the module not being seated properly, or older firmware.
• Can an SFP and SFP+ SFP be used interchangeably?
  No, even though they look the same, an SFP will support 1 Gbps and an SFP+ will support 10 Gbps. If an SFP is used in an SFP+ port, the devices will not connect.
• How important are firmware updates to ensure compatibility?
  Very important! Firmware updates provide better support for new SFP modules. They also fix bugs to address detection or performance issues.

Ensure Network Stability with the Right SFP Port and Module Selection

Using the right SFP ports and modules will help ensure your network is reliable. Following a compatibility check, informed module selection, and consistent maintenance will allow you to avoid outages and maximize performance. If possible, invest in trusted brands and take advantage of vendor updates to help ensure your network’s integrity and longevity!
