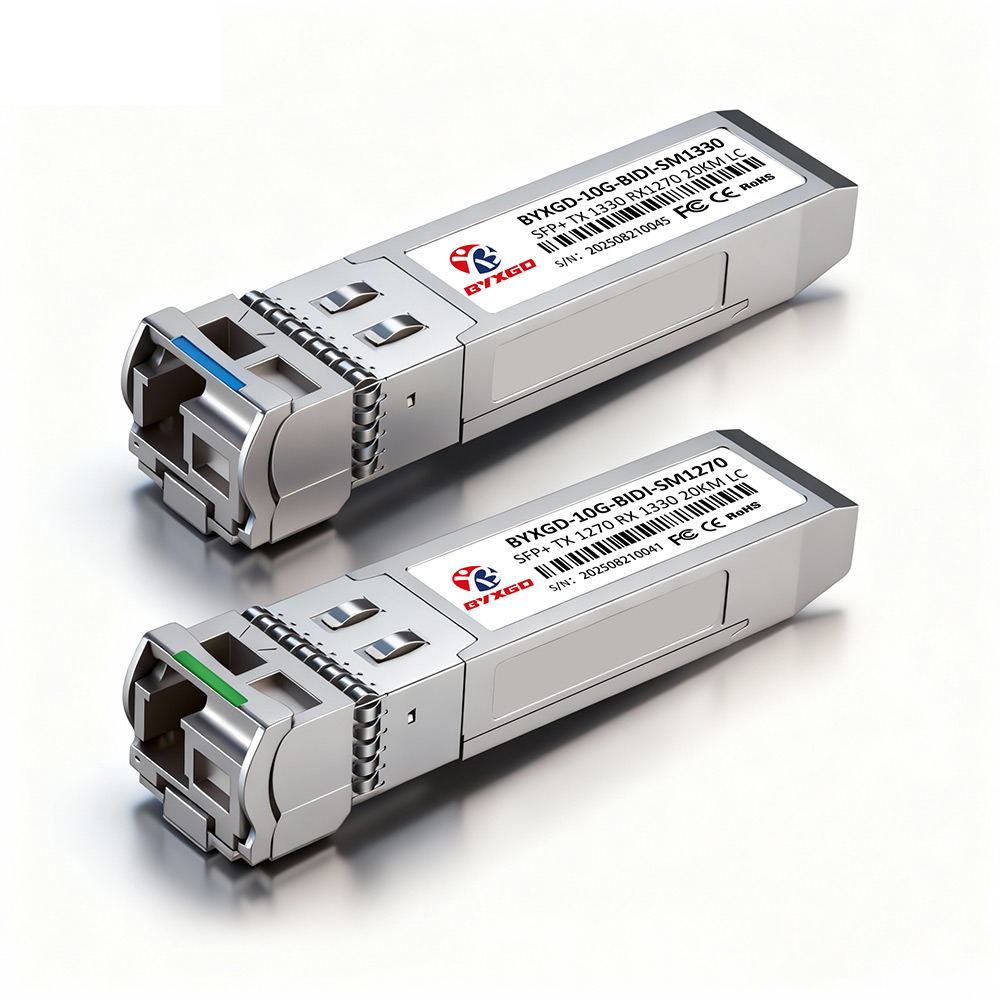

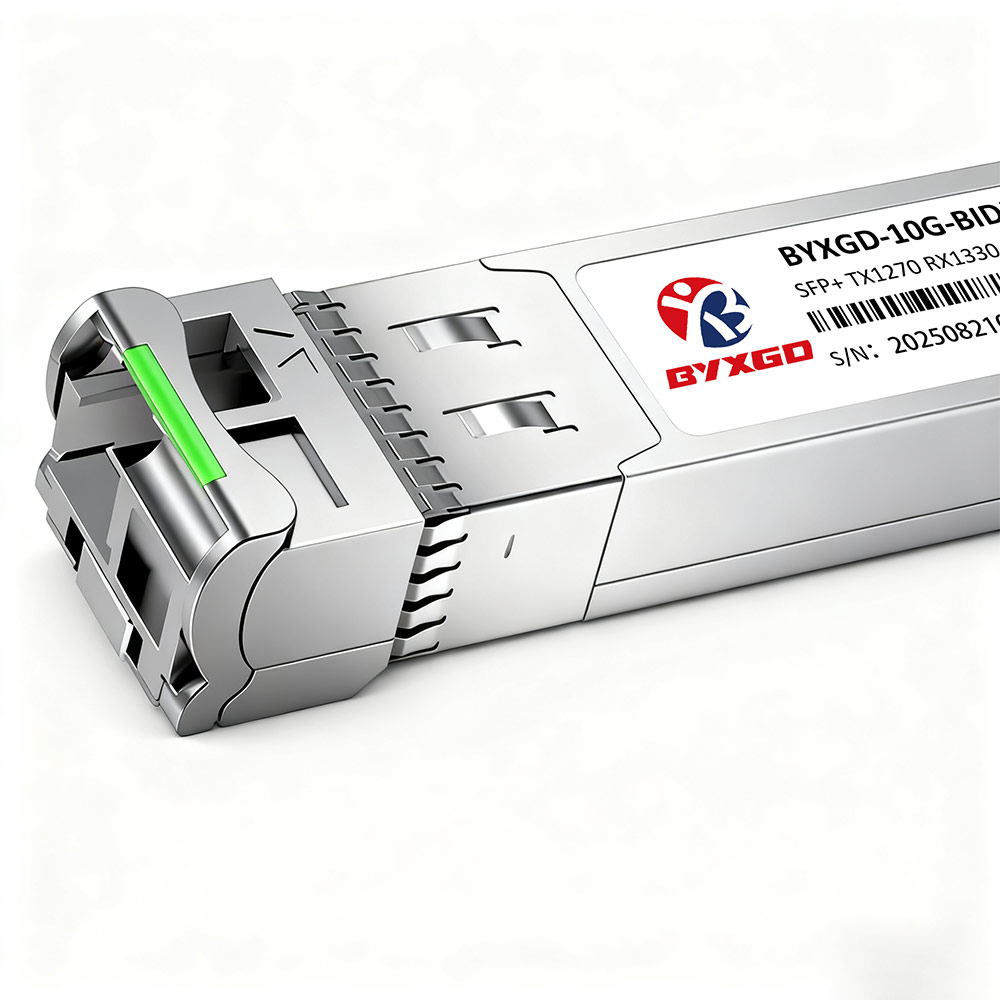

Cisco Compatible 10GBASE-BX20-U BiDi SFP+ provides a transmission speed of 10.3125 Gbps over distances up to 20 km on OS2 single-mode fiber with an LC simplex connector. It utilizes a 1270 nm DFB laser transmitter and a 1330 nm PIN receiver and supports full-duplex communication on one fiber strand. It is SFF-8431 and SFF-8472 compliant, enabling the provision of digital diagnostics via a 2-wire interface for real-time monitoring.
This module operates from a +3.3V power supply with a consumption of less than 1.0 W and has a temperature range of 0°C to +70°C. It has been designed for low EMI and ESD protection and complies with Class 1 laser safety requirements. The unit has been thoroughly tested for interoperability with switches, routers, and Network Interface Cards (NIC). The 10GBASE-BX20-U is an excellent module for enterprise wiring closets, service provider transport networks, as well as Radio and Baseband Units.
The 10GBASE-BX20-U is compatible with the following models: HW SFP-10G-BXU2, Ciena (ex. Nortel) 12787, D-Link DEM-436XT-BXU, Fortinet FN-TRAN-SFP+LR, Cisco SFP-10G-BXU, Juniper EX-SFP-10GE-BX23, Mellanox MFM1T02A-LR-BXU-60-I, DELL GP-SFP-10GBX-U-10.
Specifications
Max Data Rate10.3125 Gbps
| Parameter | Description |
| Brand | BYXGD |
| Form Factor | SFP+ |
| Wavelength | 1270nm Transmit / 1330nm Receive |
| Transmission Distance | Up to 20 km |
| Connector | Simplex LC/UPC |
| Fiber Type | Single-mode Fiber (SMF) |
| Transmitter Type | DFB (Distributed Feedback Laser) |
| Receiver Type | PIN Photodiode |
| TX Power | -6 to +3 dBm |
| Receiver Sensitivity | < -14.4 dBm |
| Power Budget | 8.4 dB |
| Receiver Overload | 0.5 dBm |
| Typical Power Consumption | ≤ 1 W |
| Extinction Ratio | > 3.5 dB |
| Power Supply Voltage | +3.3 V |
| Operating Temperature | 0°C to +70°C (32°F to 158°F) |
| Storage Temperature | -40°C to +85°C |
| Digital Diagnostics (DDM/DOM) | Supported, compliant with SFF-8472 |
| EMI/ESD Protection | Excellent |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| Laser Safety | Class 1 FDA / IEC 60825-1 |
| Compliance | RoHS Compliant, Lead-free |
| Application Scenarios | Enterprise wiring closets, service provider transport, Radio & Baseband Units, NICs |
| Warranty | 5 Years |
