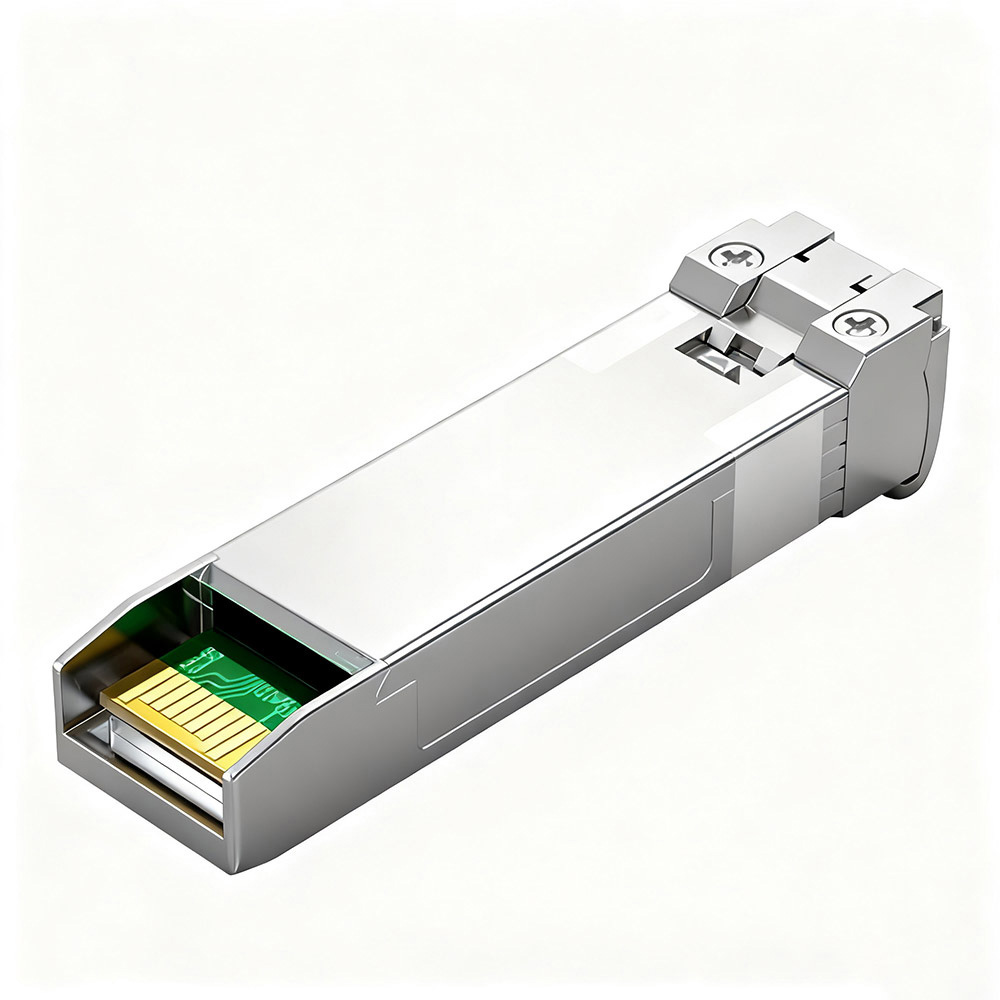

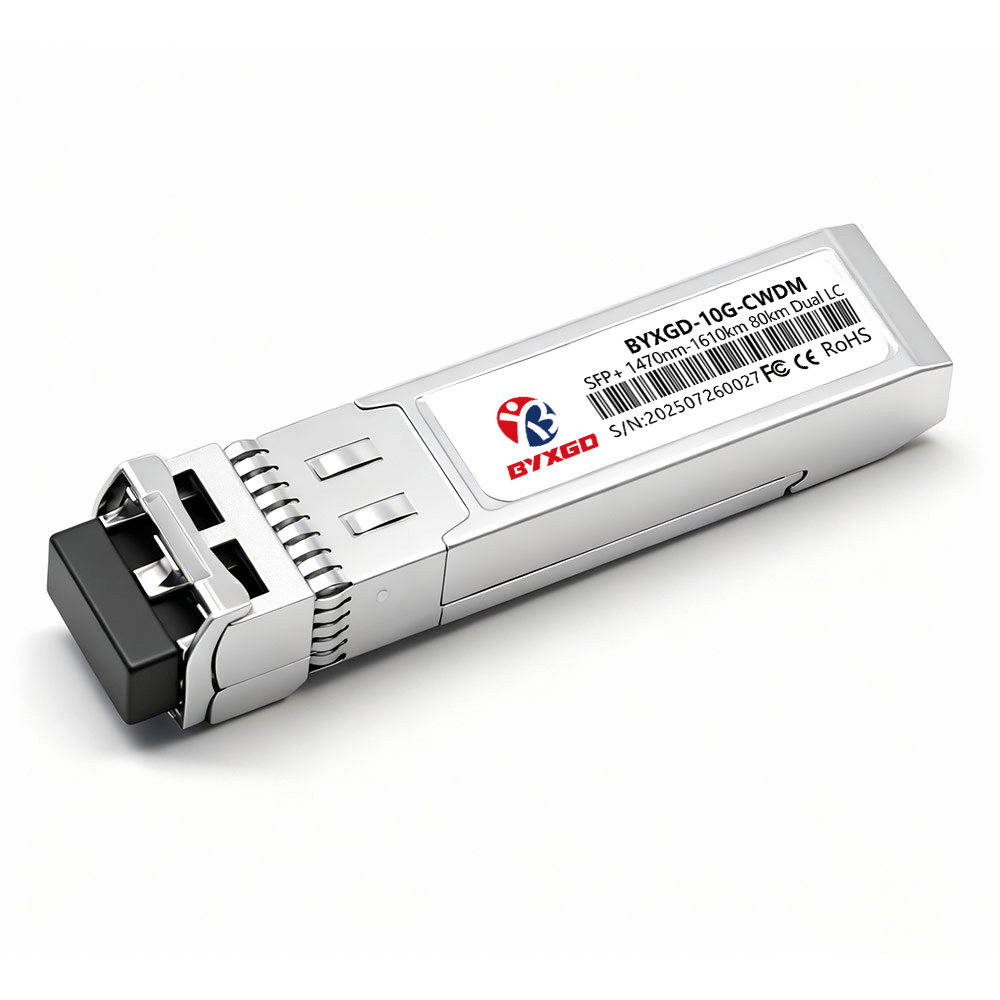

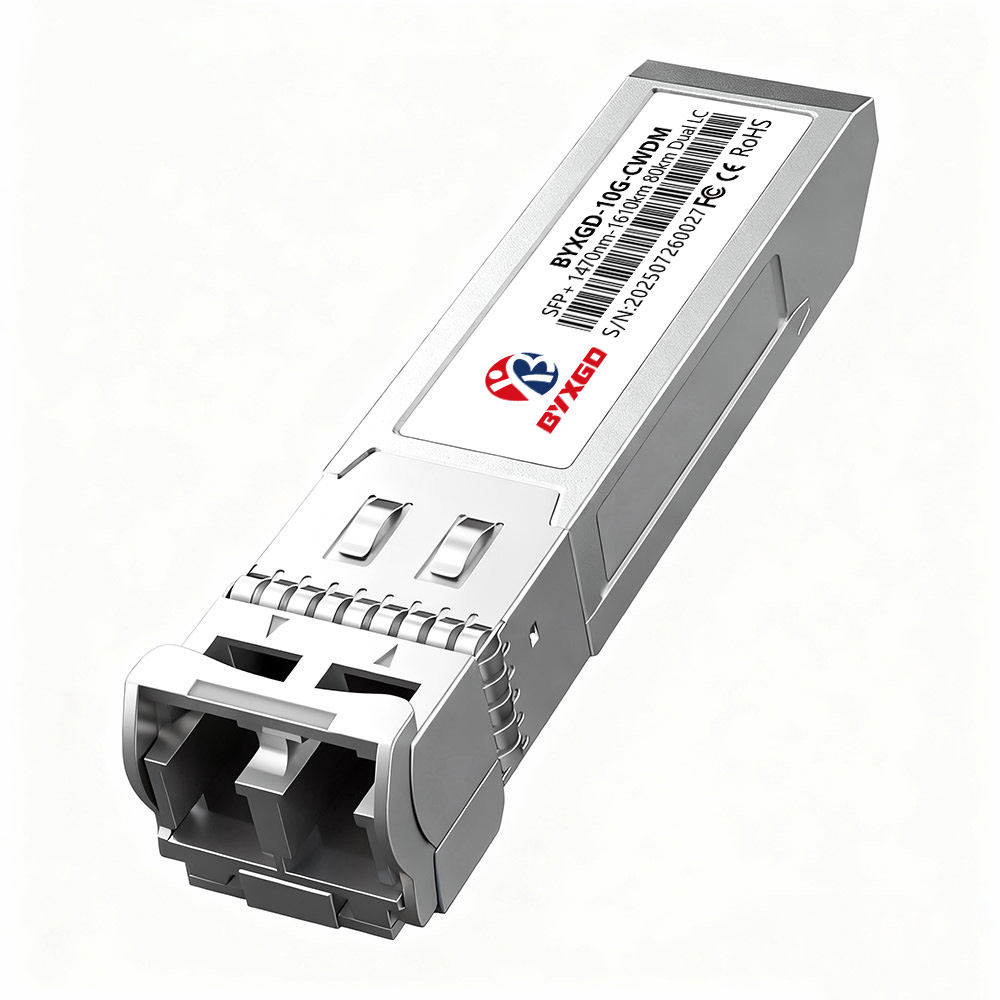

Cisco CWDM-SFP10G-1610 compatible SFP+ 10G CWDM transceiver supports a maximum transmission distance of up to 80 km (50 miles) on single-mode fiber using an LC duplex connector and can transmit at a data rate of 10 Gb/s. The optical transmitter is of the EML type, and the optical receiver uses an APD. The link budget (total channel loss and margin) of the transceiver across the 8 CWDM wavelengths (1470 nm–1610 nm) is greater than or equal to 24 dB. The transceiver is compliant with the SFF-8431/SFF-8432 Multi-Source Agreement (MSA) and IEEE 802.3ae 10GBASE-ZR/ZW specifications.
Real-time digital diagnostics monitoring (DDM/ddMI), as defined by SFF-8472, enables the monitoring of temperature, laser bias, optical power, and power supply telemetry through a two-wire serial interface. The Cisco CWDM-SFP10G-1610 compatible transceiver requires only a 3.3 V power supply, consumes less than 1.5 W typically (up to 2 W maximum), and does not require a separate metal enclosure to suppress EMI.
These transceivers can support both 10-Gigabit Ethernet (10GbE) and 10-Gigabit Fibre Channel equipment operating on single-mode fiber (ITU-T G.652/G.655). The CWDM Mux/Demux devices are used for CWDM wavelength management at all metropolitan, regional, and long-haul distances. They are designed to be used with 10GbE switches, 10GbE routers, NICs/media converters/storage devices, etc. They are fully compatible with over 100 network vendors. This transceiver is RoHS compliant and FDA Class 1 laser safety compliant.
It is compatible with: Cisco CWDM-SFP10G-1610, CWDM-SFP+-ZR-1470; Huawei SFP-10G-ZCW1611; Juniper Networks SFPP-10G-CWDM1611; Brocade XBR-SFP10G1470-80; H3C CWDM-SFP10G-1470-70; Dell Force10 CWDM-SFP10G-1610; Ciena CWDM-SFP10G-1610; and several others.
Specifications
| Form Factor | SFP+ (Hot-pluggable) |
| Data Rate | 9.95 to 11.3 Gb/s |
| Wavelengths | CWDM 1270–1610nm (8 channels, 20nm spacing) |
| Transmission Distance | 80km over G.652/OS2 SMF |

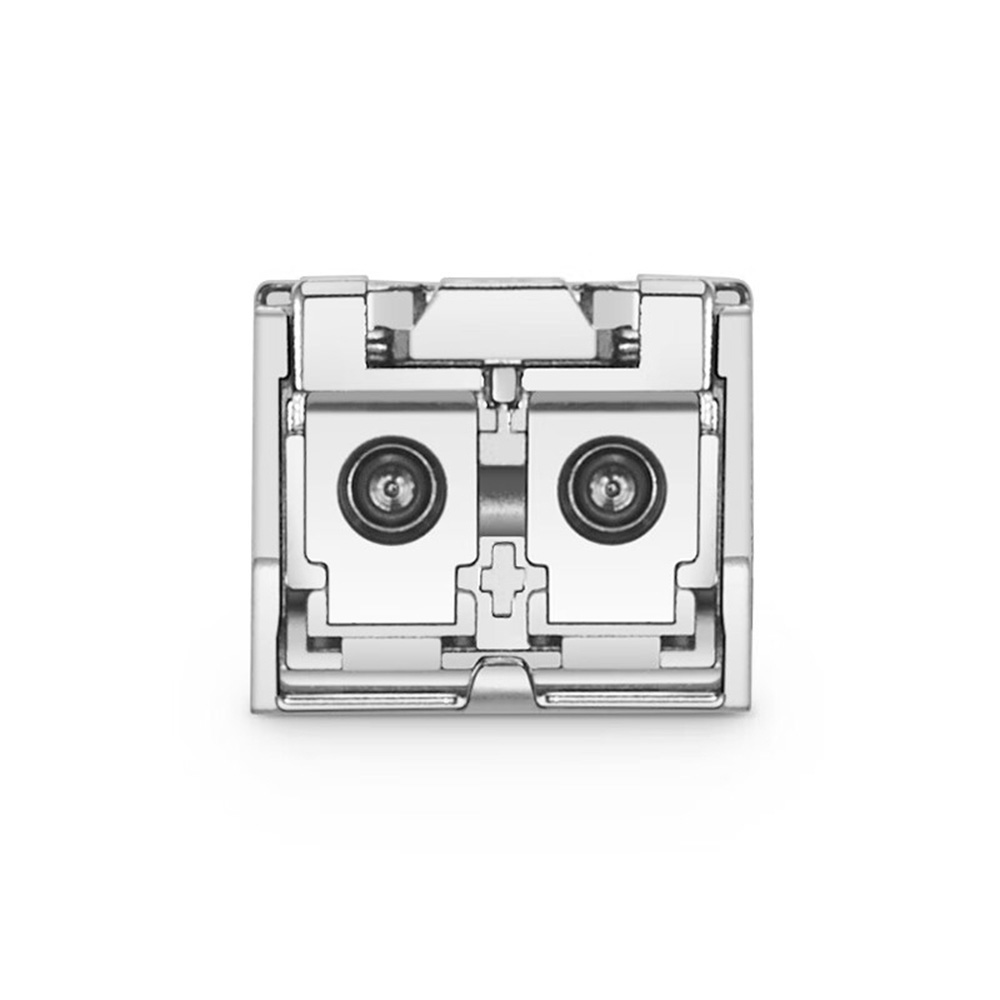

| Connector | LC Duplex |
| Transmitter Type | EML |
| Receiver Type | APD |
| TX Power | 0 to +5 dBm |
| RX Sensitivity | < -24 dBm |
| RX Overload | > -7 dBm |
| Link Budget | ≥24 dB |
| Extinction Ratio | > 7 dB |
| Modulation Format | NRZ |
| Bit Error Ratio (BER) | 1.00E-12 |
| Power Consumption | < 1.5W |
| Power Supply | Single 3.3V |
| DDM | Yes (SFF-8472, 2-wire serial interface) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 0.03 kg |
| Compliance | SFF-8431, SFF-8432, IEEE 802.3ae 10GBASE-ZR/ZW, ITU-T G.652, IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10/1040.11 |
| Safety & Environmental | RoHS Compliant, Lead-free, FDA Class 1 Laser Safety |
| Applications | 10GbE Switches, Routers, NICs, Media Converters, Storage Networks, CWDM Metro/Regional/Long-haul Networks |
| Warranty | 5 Years |
