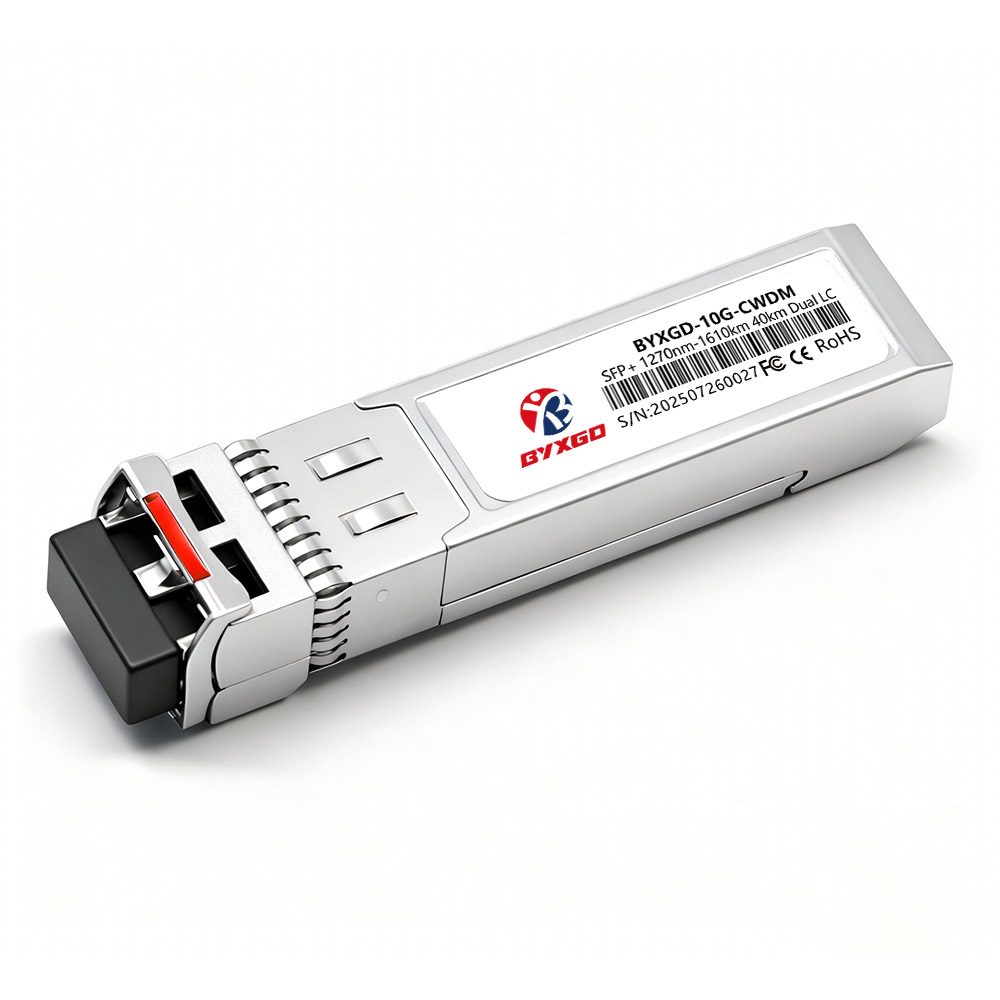

BYXGD Cisco CWDM-SFP10G-1270 module is a compliant SFP+ 10G CWDM optical transceiver that utilizes single-mode fiber to achieve distances of up to 40 km while providing up to 10.3125 Gbps of throughput over a 10G Ethernet connection. This module is compliant with SFP+ MSA specifications (SFF-8431, SFF-8472) and features a minimum power budget of 16.8 dB. The CWDM-SFP10G-1270 transceiver utilizes an EML laser transmitter and a PIN photodiode with an integrated transimpedance amplifier to ensure that the optical performance remains stable and repeatable.
The CWDM 1270 Optical Transceiver Module can be used in multiple wavelength applications as it supports all 16 ITU-T CWDM channels, spaced 20 nm apart, covering 1270–1610 nm. The CWDM-SFP10G-1270 Optical Transceiver Module includes a 2-wire Digital Diagnostic Monitoring interface to provide real-time information on temperature, voltage, laser bias current, and laser output power.
The optical transceiver module includes the following standard features: a hot-swappable SFP+ connector, TX disable, RX loss-of-signal detection, and a low operating power consumption of only 1.2 W for energy efficiency.
Compatible with many manufacturers, including Cisco, Fortinet (FN-TRAN-SFP+ER-CW), Juniper (EX/QFX), Arista (7050/7060), and HPE (10G) platforms supporting CWDM wavelengths, the CWDM-SFP10G-1270 Optical Transceiver Module undergoes comprehensive testing prior to shipment to ensure maximum reliability and performance in demanding fiber optic networks requiring long-distance 10G connectivity with CWDM multiplexing.
The CWDM-SFP10G-1270 Optical Transceiver Module requires a single 3.3 V power supply, utilizes a duplex LC/UPC connector, and is compliant with ITU-T G.652 standards, making it ideal for enterprise and data center applications that require robust, long-distance optical links.
Specifications
| Brand | BYXGD |
| Wavelength Range | 1270 nm to 1610 nm |
| Number of Channels | 16 CWDM channels spaced by 20 nm |
| Fiber Type | Single-mode fiber (SMF), ITU-T G.652 compliant |
| Maximum Distance | 40 km |
| Transmitter Type | CWDM EML (DFB Laser) |
| Receiver Type | PIN + TIA |
| Transmitter Power Range | -1.0 dBm to 4.0 dBm |
| Extinction Ratio | > 8.2 dB |
| Receiver Sensitivity | < -16.0 dBm |
| Receiver Overload | > 0.5 dBm |
| Power Budget | ≥ 16.8 dB |
| Data Rate | 11.0957 Gbps |

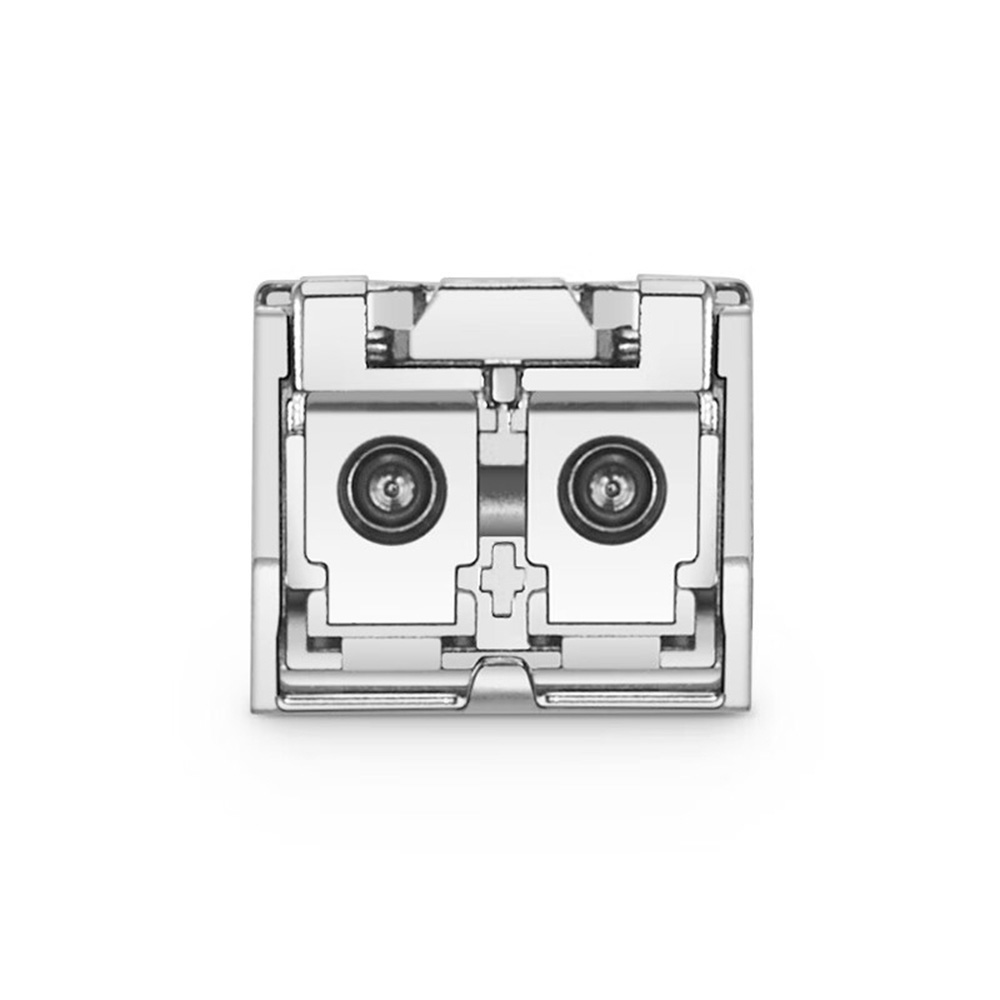

| Connector Type | Duplex LC/UPC |
| Digital Diagnostic Monitoring | Supported (SFF-8472 compliant) |
| TX Disable and RX Loss of Signal | Supported |
| Power Supply | Single 3.3 V |
| Max. Power Consumption | 1.2 W |
| Operating Temperature Range | 0°C to 70°C (Commercial) |
| Storage Temperature Range | -40°C to 85°C |
| Weight | Approx. 0.025 kg |
| Compliance | IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10/1040.11, RoHS, IEEE 802.3ae |
| Application | 10GBASE-CWDM ER Ethernet and 10G Fibre Channel |
| Hot Pluggable | Yes |
