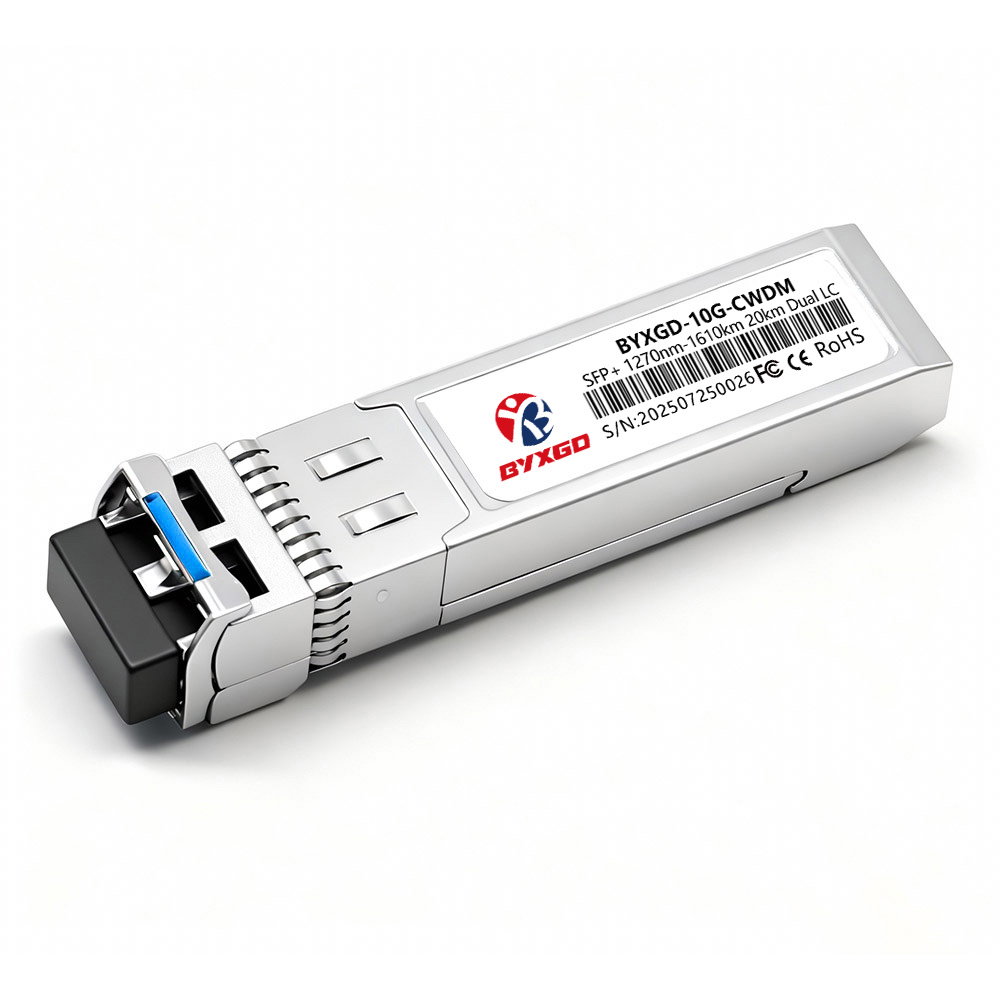

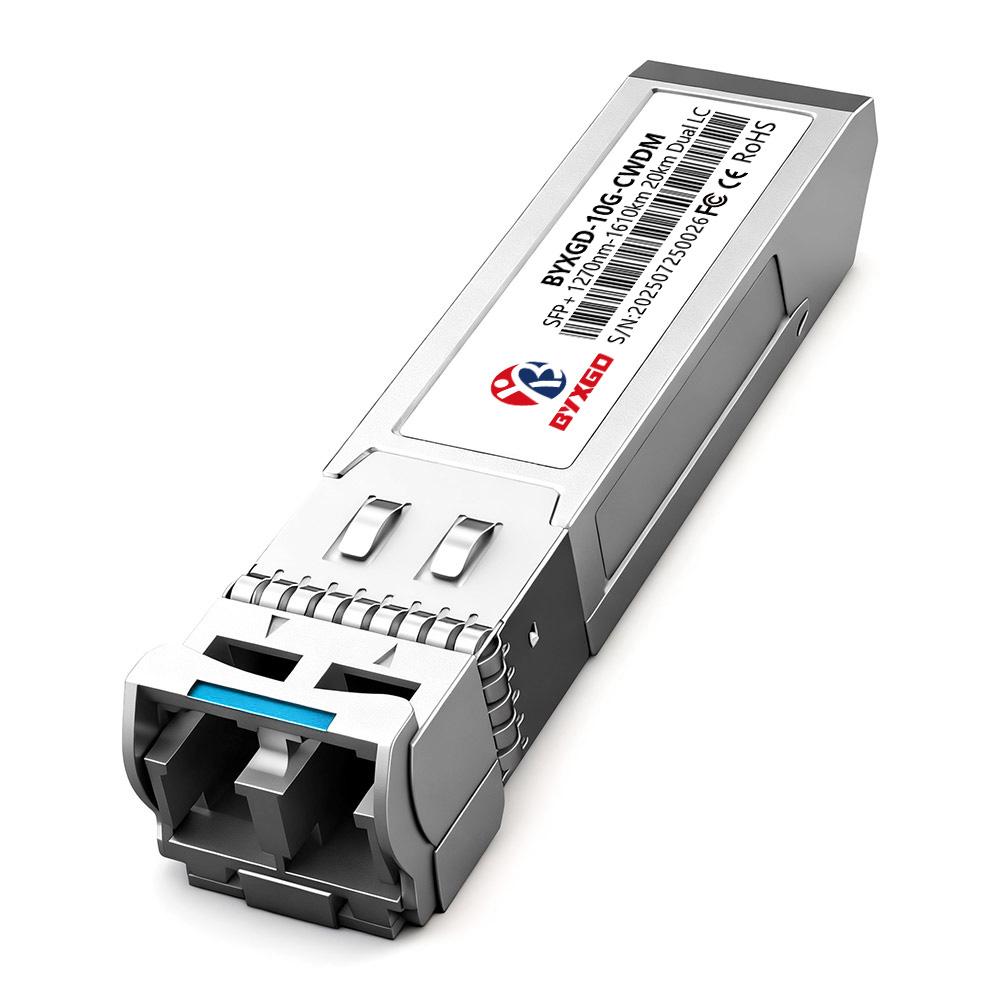

Cisco CWDM SFP10G-1270-20 compatible products support 10G CWDM at an effective speed of 10.3125 Gb/s over a single fiber using a duplex LC/UPC interface. This device will work with ITU-T specified CWDM wavelengths between 1270 nm and 1610 nm, differentiated by 20nm steps. The maximum length of transmission on a G.652 standard single-mode fiber is 20 km, and the device meets or exceeds IEEE 802.3ae 10GBASE-LR and Fibre Channel (10G) compliance.
The Cisco CWDM10G SFP transceiver contains a CWDM DFB laser diode transmitter, PIN photodiode with a transimpedance amplifier, which provides reliable optical performance. The device is compliant with SFP+ MSA standards SFF-8431, SFF-8432, and SFF-8472. Each transceiver has Digital Diagnostic Monitoring (DDM) capability that allows the user to monitor device temperature, laser bias current, received/transmitted optical power, and supply voltage via a 2-wire serial interface.

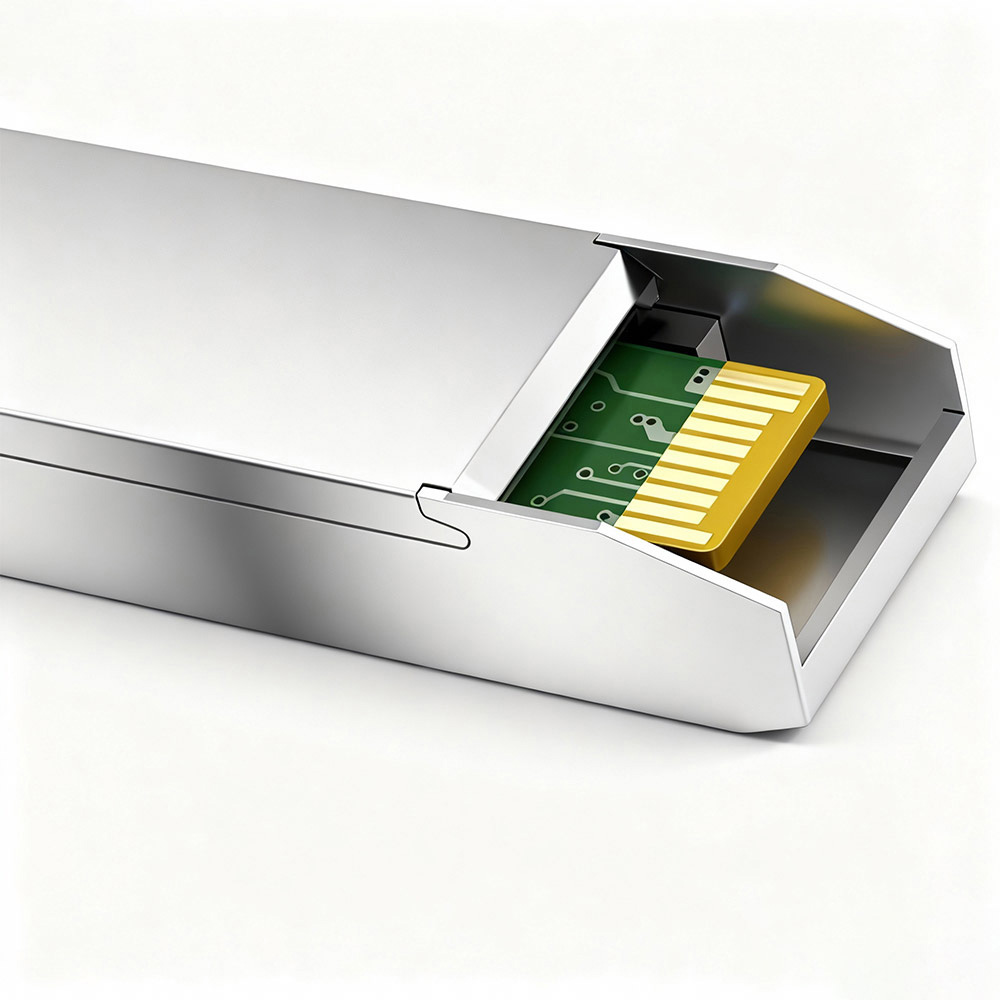

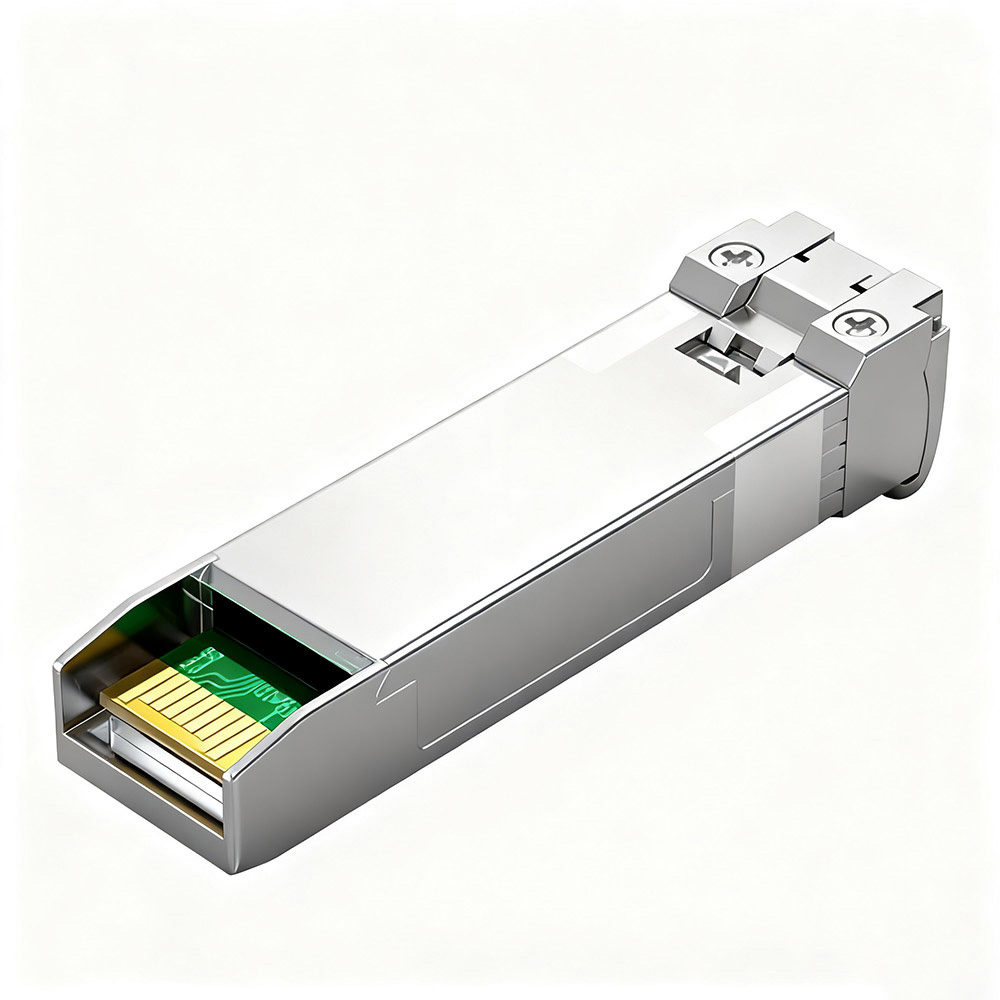

The Cisco CWDM-SFP10G-1270-20 uses a single 3.3V power supply, and the power consumption is less than 1.5 watts. Housed in a metal enclosure, this product’s design minimizes EMI interference when installed. The device is hot-pluggable (hot-swap) via a 20-pin connector supporting low-voltage differential signaling at 100-ohm differential impedances. The product is RoHS-compliant and classified as a Class 1 FDA laser safety certified product. Additionally, the Cisco CWDM-SFP10G-1270-20 is compatible with Juniper Networks EX-SFP-10GE-CWE27-20, Brocade XBR-SFP10G1270-20, Dell Force10 CWDM-SFP10G-1270, Ciena CWDM-SFP10G-1610, and H3C CWDM-SFP10G-1430-20 products; therefore, it can be used in various applications such as access, metro, and campus networks where dependable 10G CWDM solutions are needed.
Specifications
| Brand | BYXGD |
| Form Factor | SFP+ |
| Data Rate | 9.95 to 11.0957 Gbps |
| Wavelength | 1270 nm to 1610 nm CWDM, 20 nm step |
| Maximum Transmission Distance | 20 km (on G.652 single-mode fiber) |

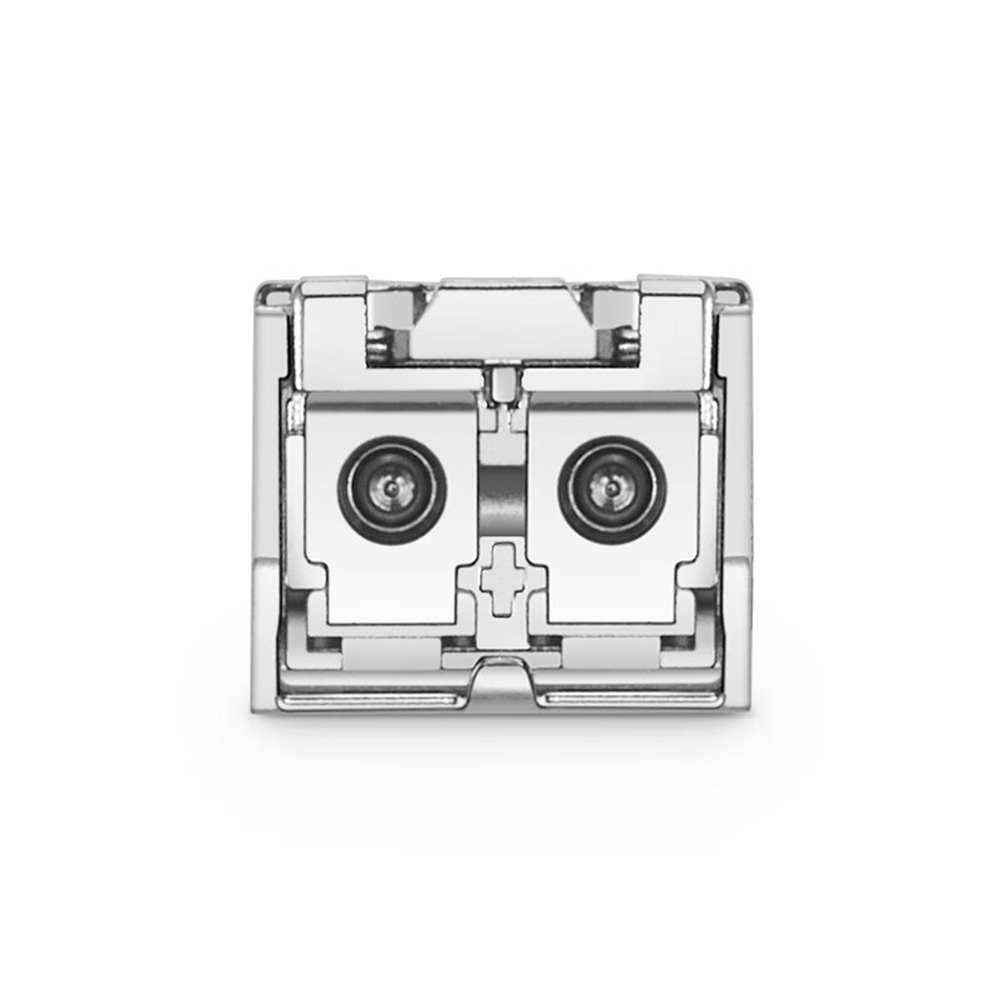

| Connector Type | Duplex LC/UPC |
| Fiber Type | Single Mode Fiber (SMF), OS2 |
| Transmitter Type | DFB CWDM Laser |
| Receiver Type | PIN photodiode with TIA |
| Transmitter Optical Power | -5 dBm to 6 dBm |
| Receiver Sensitivity | Better than -14.4 dBm |
| Receiver Overload | Greater than 0.5 dBm |
| Power Consumption | ≤ 1.2 W |
| Modulation Format | NRZ |
| Extinction Ratio | >3.5 dB |
| Digital Diagnostic Monitoring (DDM) | Supported (SFF-8472 compliant) |
| Supported Protocols | IEEE 802.3ae (10GBASE-LR/LW), SFP+ MSA(SFF-8431, SFF-8432), ITU-T G.652, CPRI, eCPRI |
| Operating Temperature Range | 0 to 70°C (32 to 158°F) |
| Storage Temperature Range | -40 to 85°C |
| Packaging Technology | TO (Transmitter Optical sub-Assembly) |
| Bit Error Rate (BER) | 1×10^-12 |
| Compliance | RoHS, FDA 21CFR 1040.10/1040.11, IEC/EN 61000-4-2, IEC-60825 |
| Weight | Approx. 0.03 kg |
| Applications | 10GBASE-LR/10GBASE-LW CWDM Ethernet, 10G Fiber Channel, Data Center switches and routers, Network interface cards, Fiber media converters |
