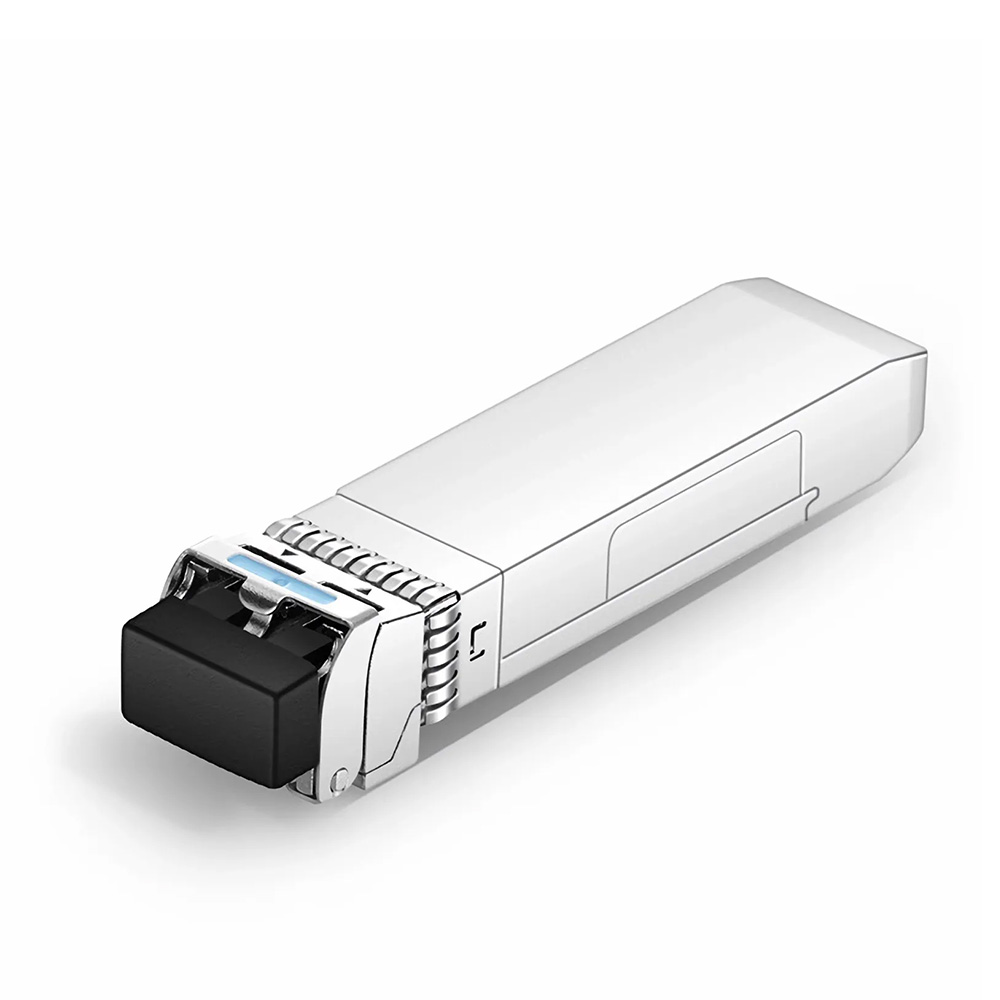

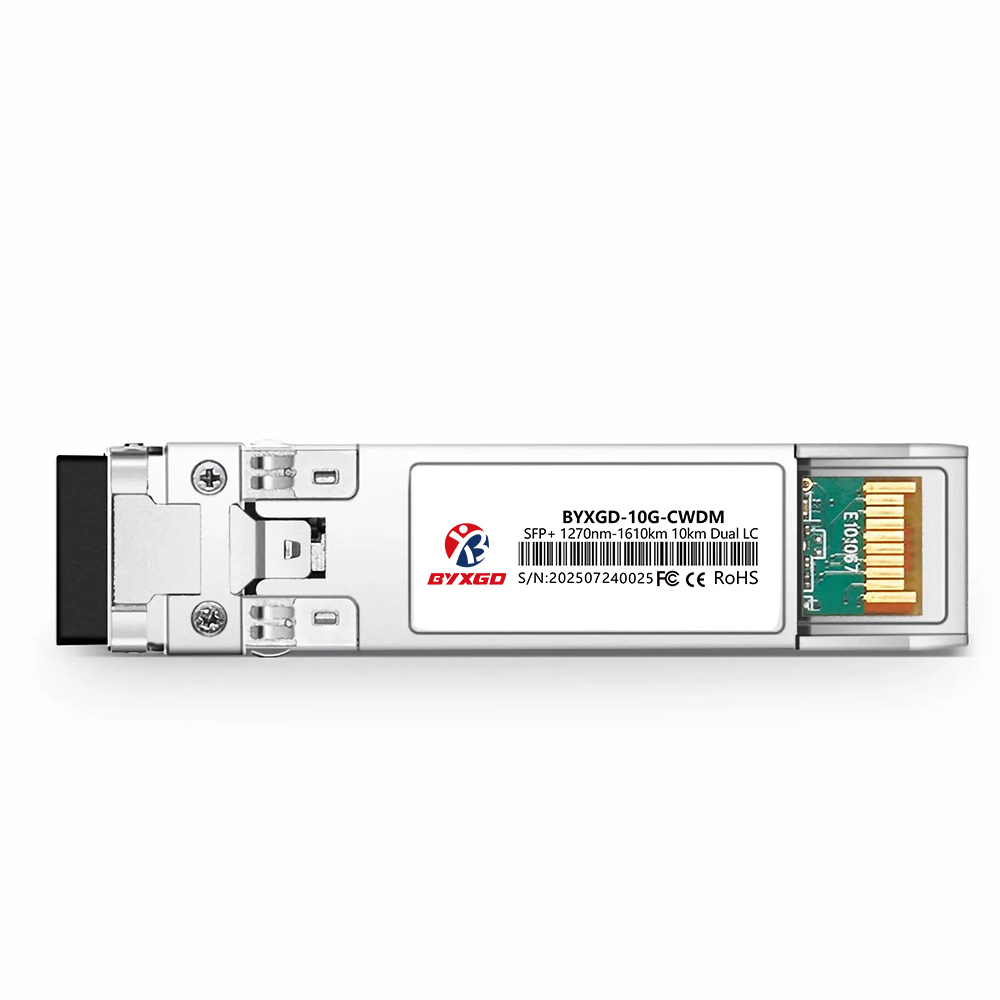

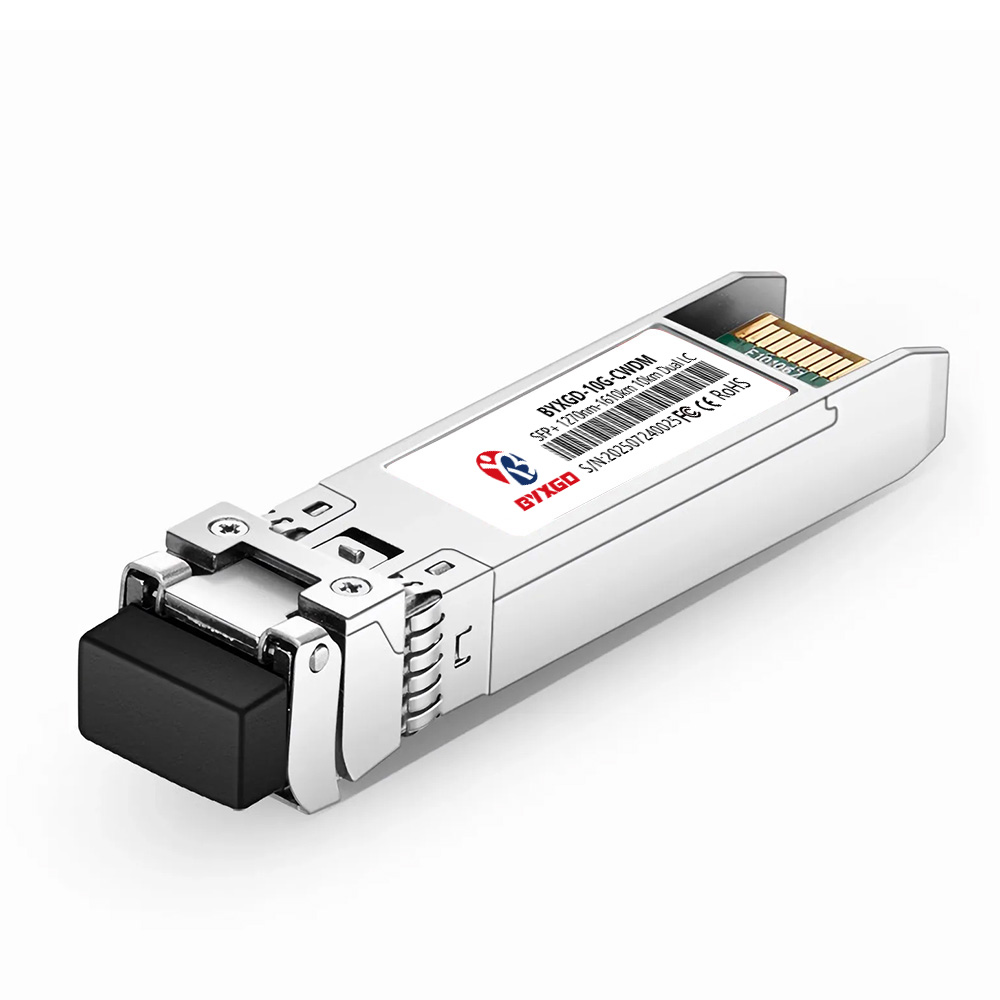

Cisco CWDM-SFP10G-1270-10 Compatible SFP+ 10G CWDM Transceiver Module utilizes a single-mode fiber (SMF) with a data rate of up to 10.3125 Gbps over a distance of ten kilometers. It is compliant with the SFP+ MSA standard and provides Digital Diagnostic Monitoring (DDM) capabilities, enabling real-time monitoring of the module’s performance. The CWDM-SFP10G-1270-10 also meets the IEEE 802.3ae 10GBASE-LR/LW and 10G Fibre Channel specifications (i.e., 1200-SM-LL-L).

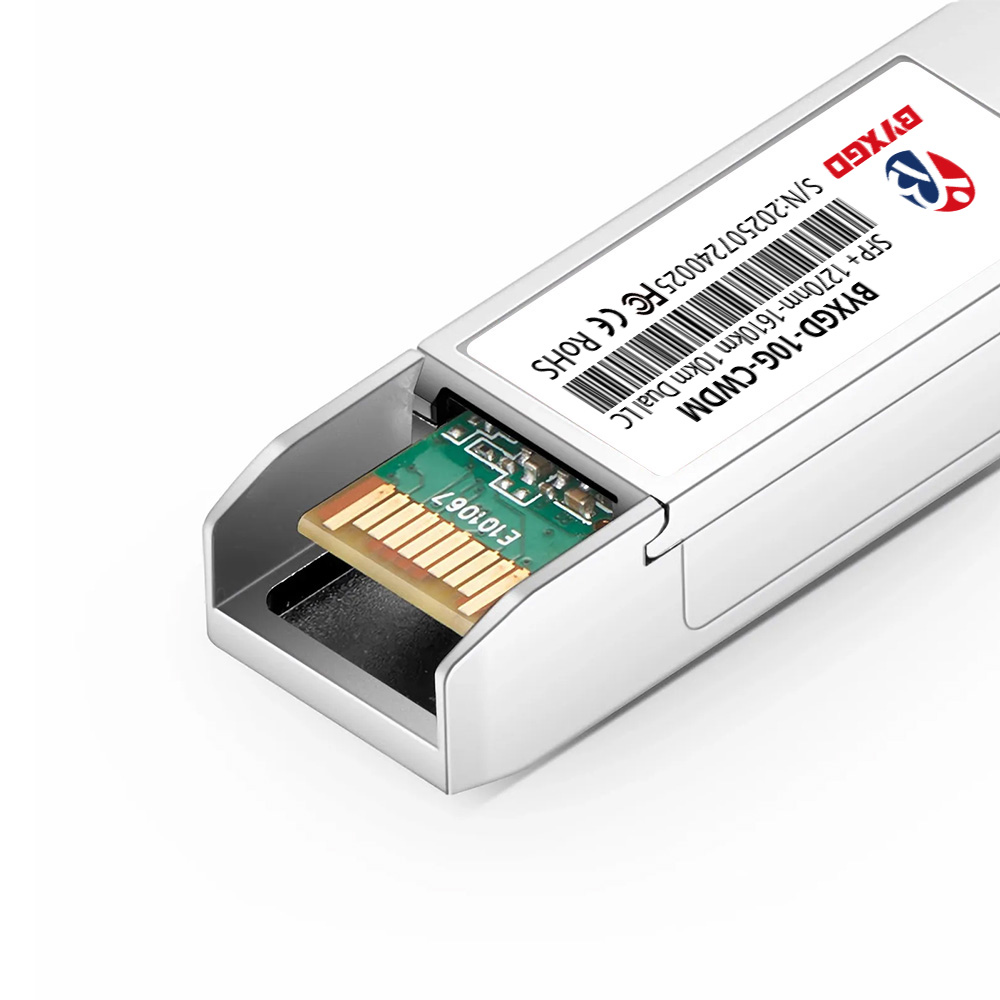

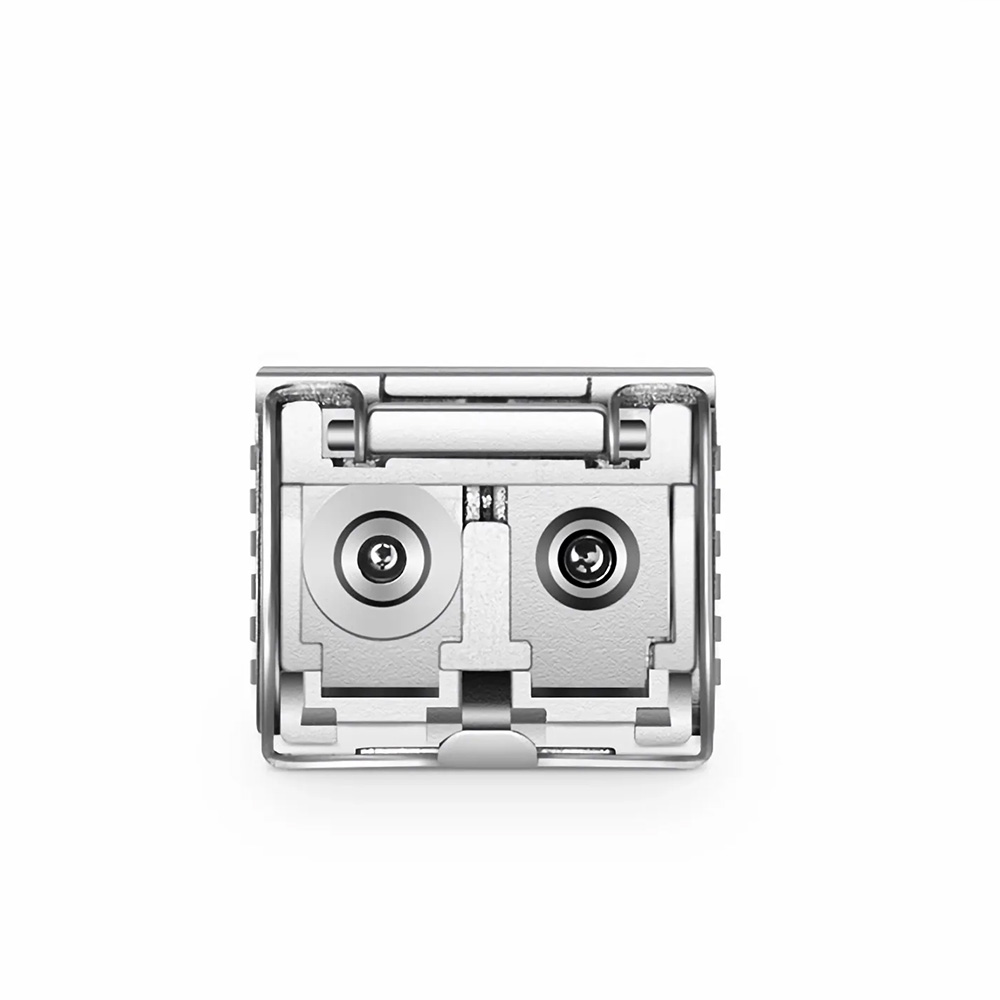

The CWDM-SFP10G-1270-10 uses a distributed feedback laser (DFB) transmitter that transmits on 18 separate wavelengths (each spaced 20 nm) from 1270 nm to 1610 nm. The CWDM-SFP10G-1270-10 is also equipped with a PIN photodiode receiver that provides high sensitivity and good signal integrity. This hot-pluggable SFP+ module has a 20-pin SFP+ form factor, duplex LC/UPC optical interface, and an EMI shielding metal housing to ensure consistent optical performance. The CWDM-SFP10G-1270-10 requires a single 3.3 V power supply and has a maximum power consumption of 1.5 W.
This module is also compatible with other vendors, including Juniper Networks EX-SFP-10GE-CWEM27-10, Brocade Communications XBR-SFP10G1270-10, and D-Link DEM-X10CS, and is suitable for use with 10 Gigabit Ethernet switches, routers, media converters and storage devices that utilize CWDM for transmission.
Specifications
| Product Series | BYXGD CWDM SFP+ Optical Transceiver |
| Form Factor | SFP+ |
| Data Rate | 10 Gb/s |
| Wavelength Range | 1270 nm – 1610 nm, 18 CWDM channels, 20 nm spacing |
| Fiber Type | Single-mode Fiber (SMF) |
| Max Transmission Distance | 10 km |
| Transmitter Type | CWDM Distributed Feedback (DFB) Laser |
| Transmitter Power | -6 dBm to 0 dBm |
| Extinction Ratio | > 3.5 dB |
| Receiver Type | PIN Photodiode |
| Receiver Sensitivity | < -14.4 dBm |
| Receiver Overload | > 0.5 dBm |
| Receiver Power Range | -14.4 dBm to 0 dBm |
| Modulation | NRZ |
| Connector Type | LC Duplex |
| Digital Diagnostics Monitoring | Supported |
| Operating Voltage | 3.3 V |
| Power Consumption | Max 1.5 W |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Optical Components | DFB CWDM Laser and PIN Receiver |
| Packaging Technology | TO |
| Compliance Standards | IEC/EN 61000-4-2, IEC-60825, FDA 21CFR 1040.10 & 1040.11, RoHS |
| Supported Protocols | 10GBase-X, SFP MSA, SFF-8472, CPRI, eCPRI, ITU-T |
| Modulation Format | NRZ |
| Warranty | 5 Years |
| Application | 10GBASE-LR / 10GBASE-LW CWDM Ethernet, 10G Fibre Channel, 10GE Data Center Switches and Routers, 10GE NICs, Fiber Media Converters |
| Weight | 0.03 kg |
