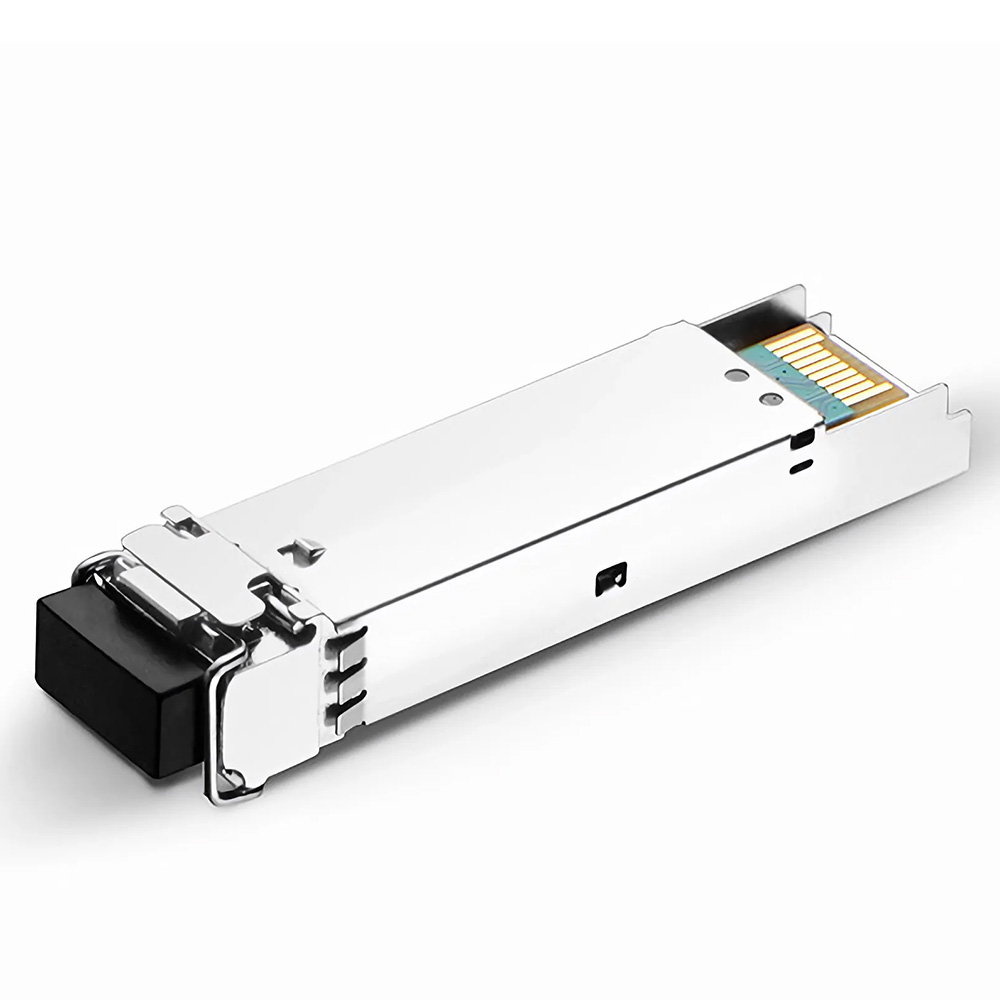

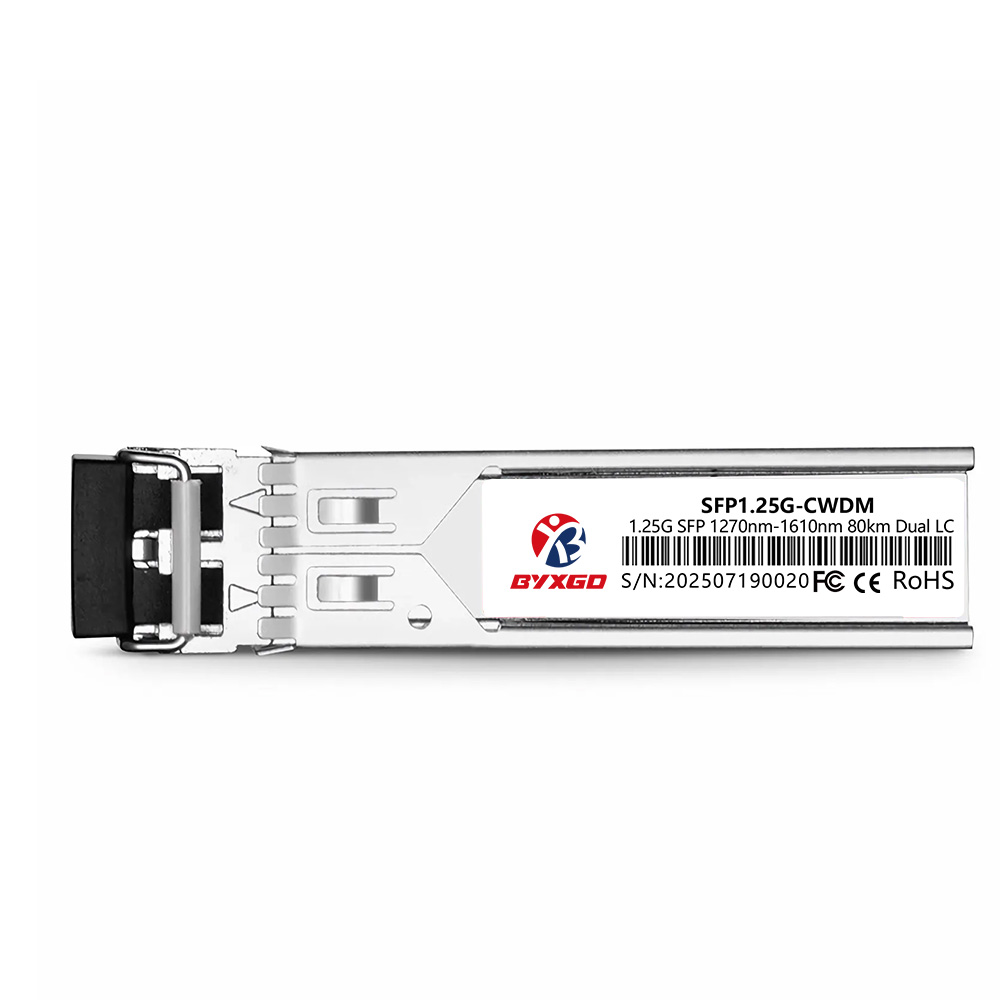

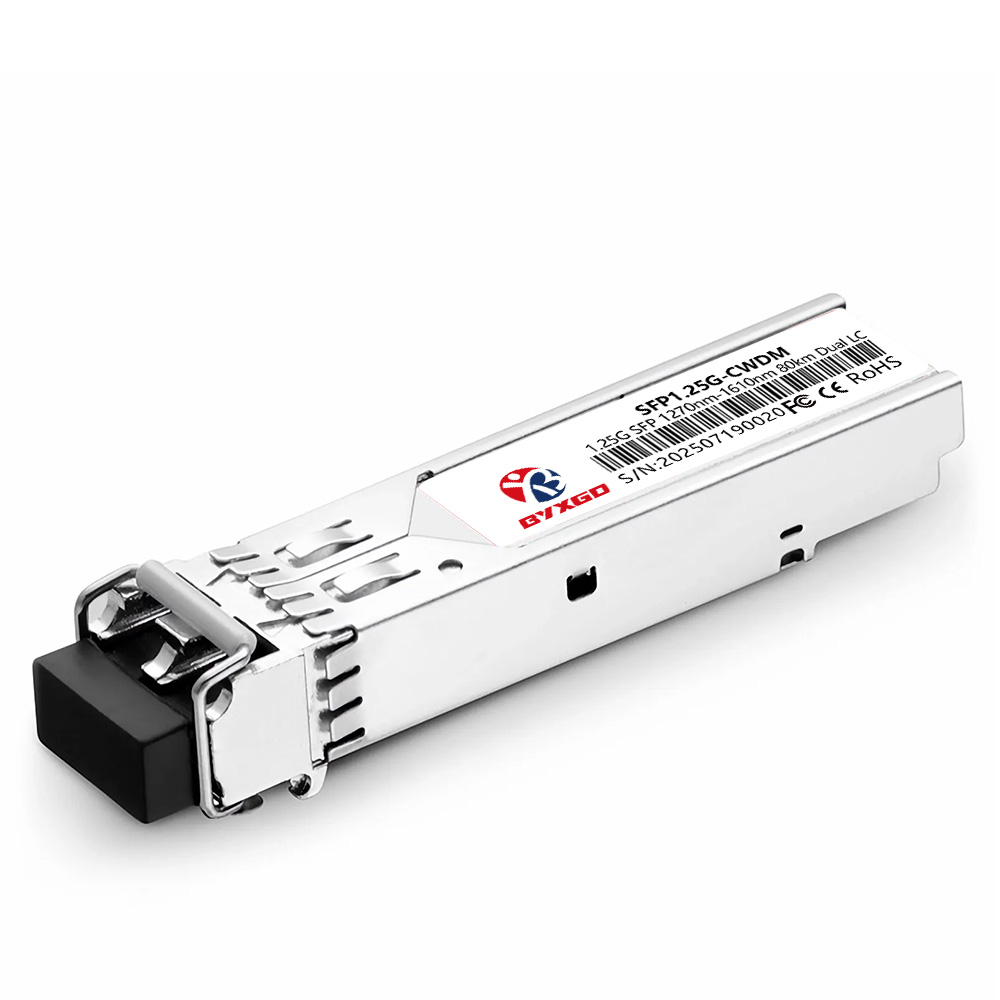

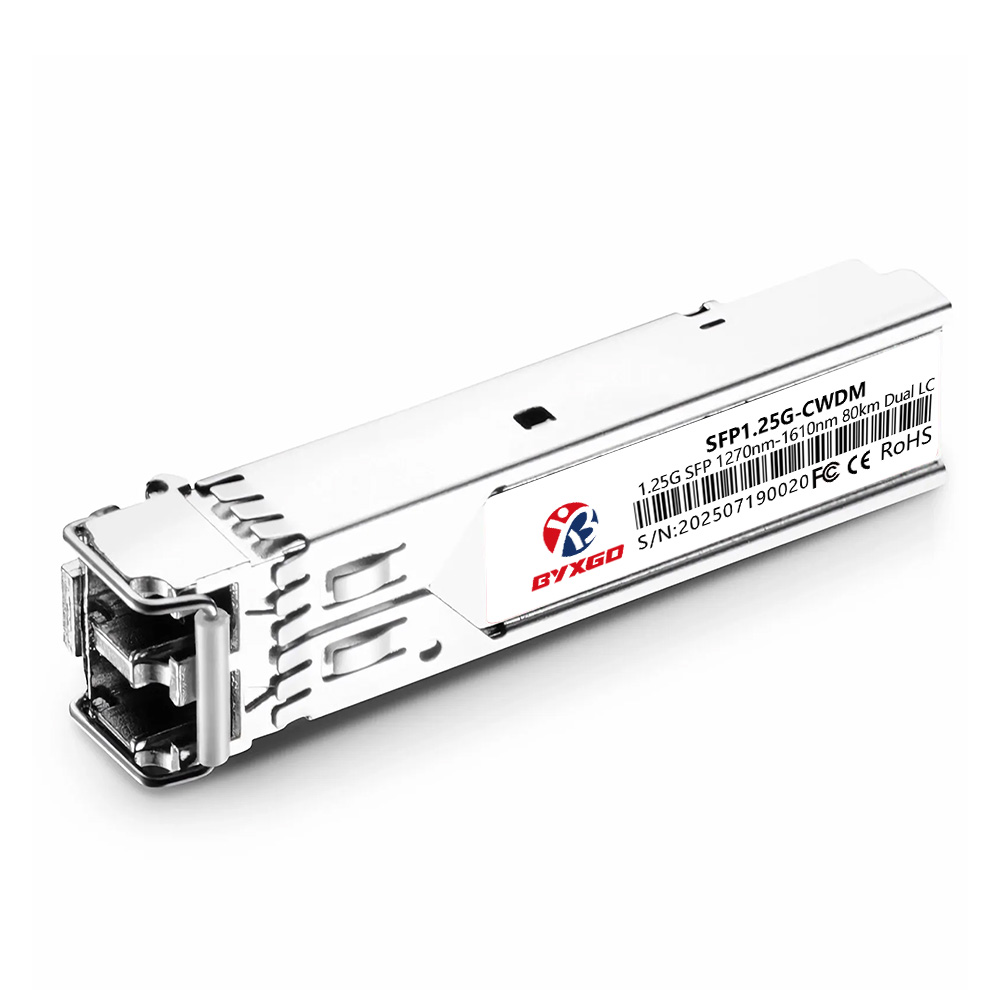

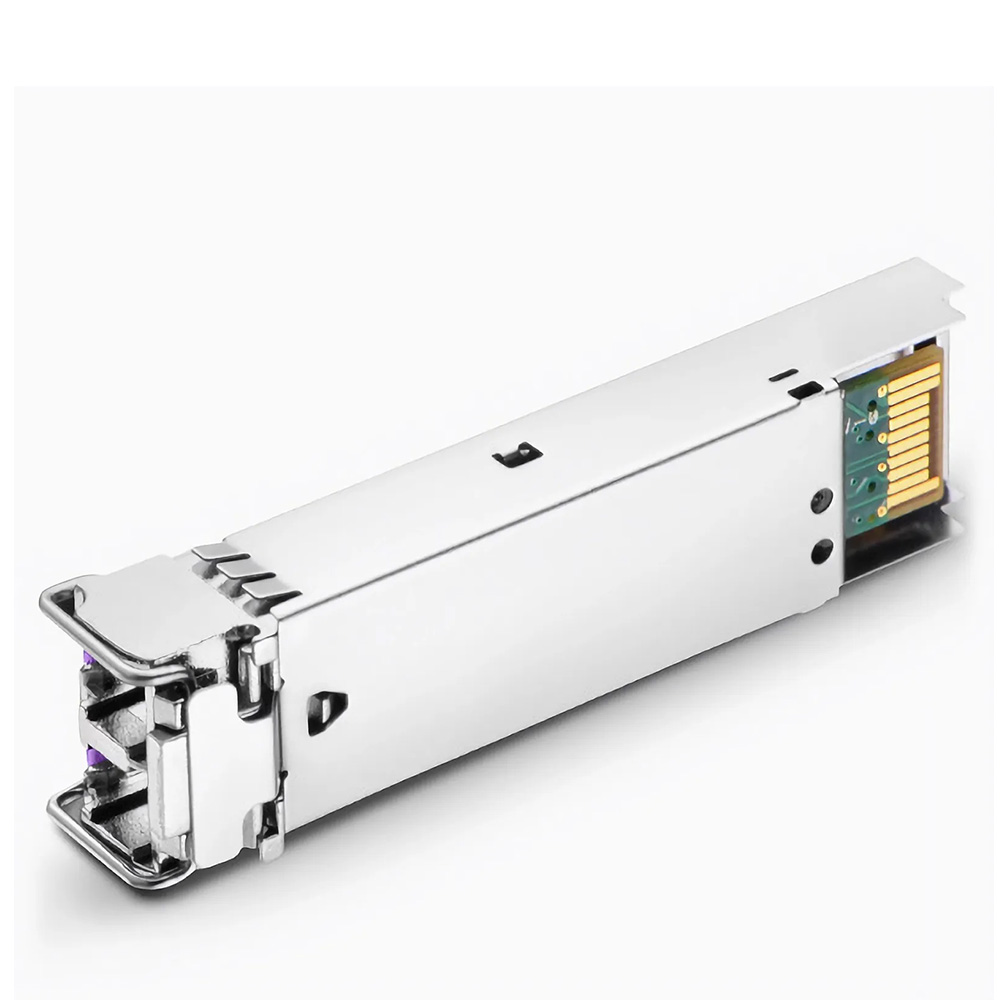

Cisco CWDM-SFP-1270 compatible 1000BASE-CWDM SFP transceiver has a maximum data rate of 1.25 Gbps and can transmit up to 80 km over single-mode fibers using standard LC duplex connectors. The unit operates over the wavelengths of 1270 nm–1610 nm utilizing DFB lasers and PIN photodiodes with DDM functionality to allow for real-time performance monitoring of the device.
The SFP CWDM transceiver is fully compliant with the SFP MSA, IEEE 802.3z, and ITU-T G.694.2 CWDM grid and has a power consumption lower than 1 W. In addition, it has been rated as Class 1 FDA laser safety rated and has wide-temperature tolerance.
This hot-swappable optical transceiver is designed to operate efficiently within various networking environments, including access, metro, and enterprise. It is ideal for enterprise communication links, metropolitan area networks (MANs), service provider (ISP), and enterprise Local Area Network (LAN) and Storage Area Network (SAN) applications and other optical interconnects.
The extensive compatibility of this module has been proven through in-house testing on a wide array of manufacturers’ equipment, including Cisco, Juniper, H3C, Huawei, Arista, Dell, Brocade, and Extreme. Each module is thoroughly tested for optical and interoperability compliance to ensure the most reliable operation in multi-vendor networks.
Specifications
| Part Number | BYXGD-1270-1610-CWDM SFP |
| Vendor Name | BYXGD |
| Form Factor | SFP |
| Data Rate | 1.25 Gbps |
| Wavelength Range | 1270 nm to 1610 nm |
| Transmission Distance | 80 km |
| Connector Type | Duplex LC |
| Cable Type | Single-Mode Fiber (SMF) |
| Operating Temperature | 0 to 70 °C |
| Optical Component | DFB CWDM |
| Transmitter Type | DFB CWDM |
| Receiver Type | APD (1270-1370 nm), PIN (1390-1610 nm) |
| TX Power | 0 to 5 dBm |
| Receiver Sensitivity | -30 to -31 dBm (1270-1370 nm), -28 to -29 dBm (1390-1610 nm) |
| RX Power Range | -30 to -8 dBm |
| Power Consumption | ≤ 1 W |
| Power Budget | 24 dB |
| Modulation Format | NRZ |
| DDM/DOM Support | Yes |
| Bit Error Ratio (BER) | 1E-12 |
| Protocols | SFP MSA, IEEE 802.3z (Gigabit Ethernet), SFF-8472 |
| EMC (Electro Magnetic Compatibility) | Supported |
| Warranty | 5 Years |
