| Model | SD-9 ARC Fiber Fusion Splicer |
| Fiber Cleaver Model (Kit Included) | 9C+ Auto-rotate Blade Fiber Cleaver |
| Applicable Fiber Types | Single-mode (ITU-T G.652 & G.657), Multi-mode (ITU-T G.651), Dispersion-shifted (ITU-T G.653), Non-zero dispersion-shifted (ITU-T G.655) |
| Compatible Fiber/Cable Diameter | 0.25 mm to 3.0 mm (Indoor Cable) |
| Cladding Diameter | 80 to 150 μm |
| Coating Diameter | 0.125 mm to 1 mm |
| Cleaved Length | 8 to 16 mm |
| Splicing Modes | 41 preset modes, up to 100 user-storable modes |
| Typical Splice Loss | SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.05 dB, G.657: 0.03 dB (ITU-T Standard) |
| Return Loss | ≥ 60 dB |
| Lighting | 2 powerful white LEDs |
| Splicing Time | 5 seconds (SM FAST mode) |
| Estimated Splice Loss | Yes |
| Protection Sleeve Length | 20 to 60 mm |
| Heating Tank | 5 preset thermal heating tube lengths: 20/30/40/50/60 mm, max 100 modes |
| Heating Time | 11 seconds |
| Data Storage | Stores 20,000 latest splicing records and 200 images |
| Tension Test | Standard 2.0 N |

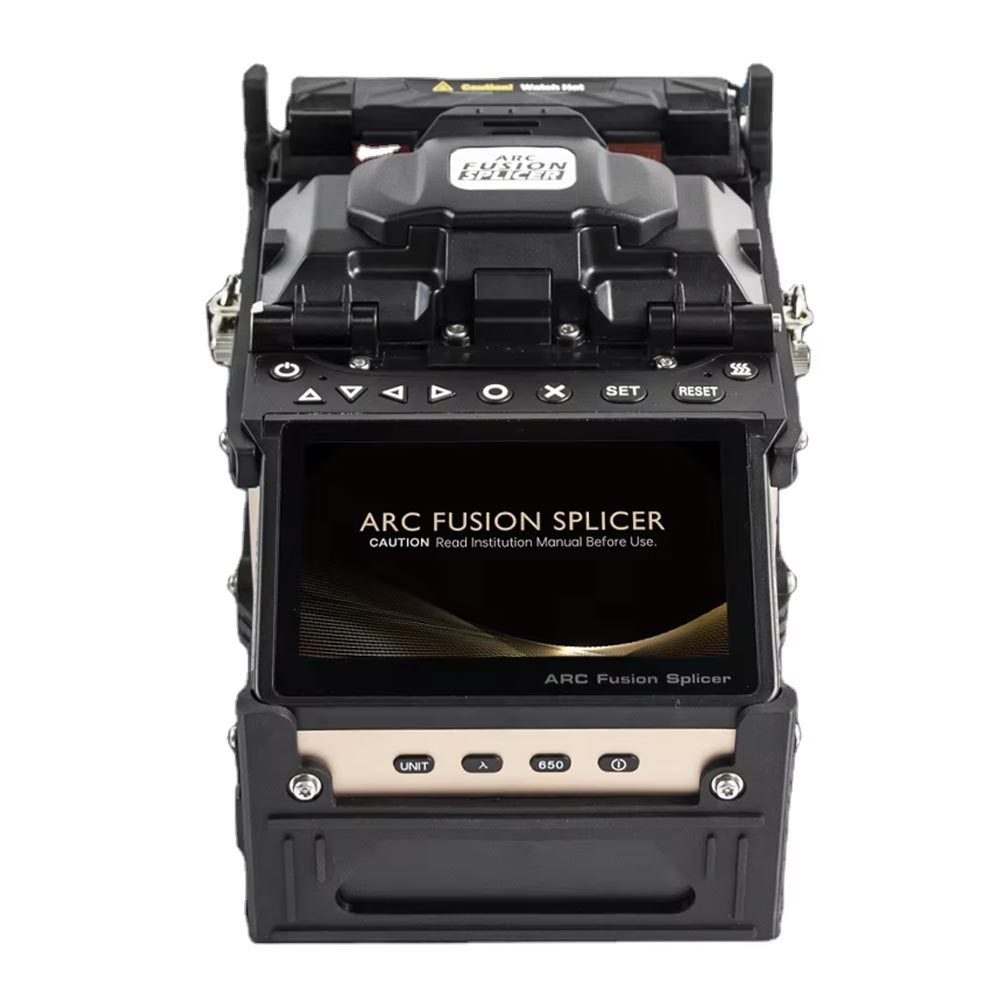

| Display | 4.3-inch high-resolution touch screen |
| Fiber Image Magnification | X, Y, XY, X/Y axis magnification at 380X |

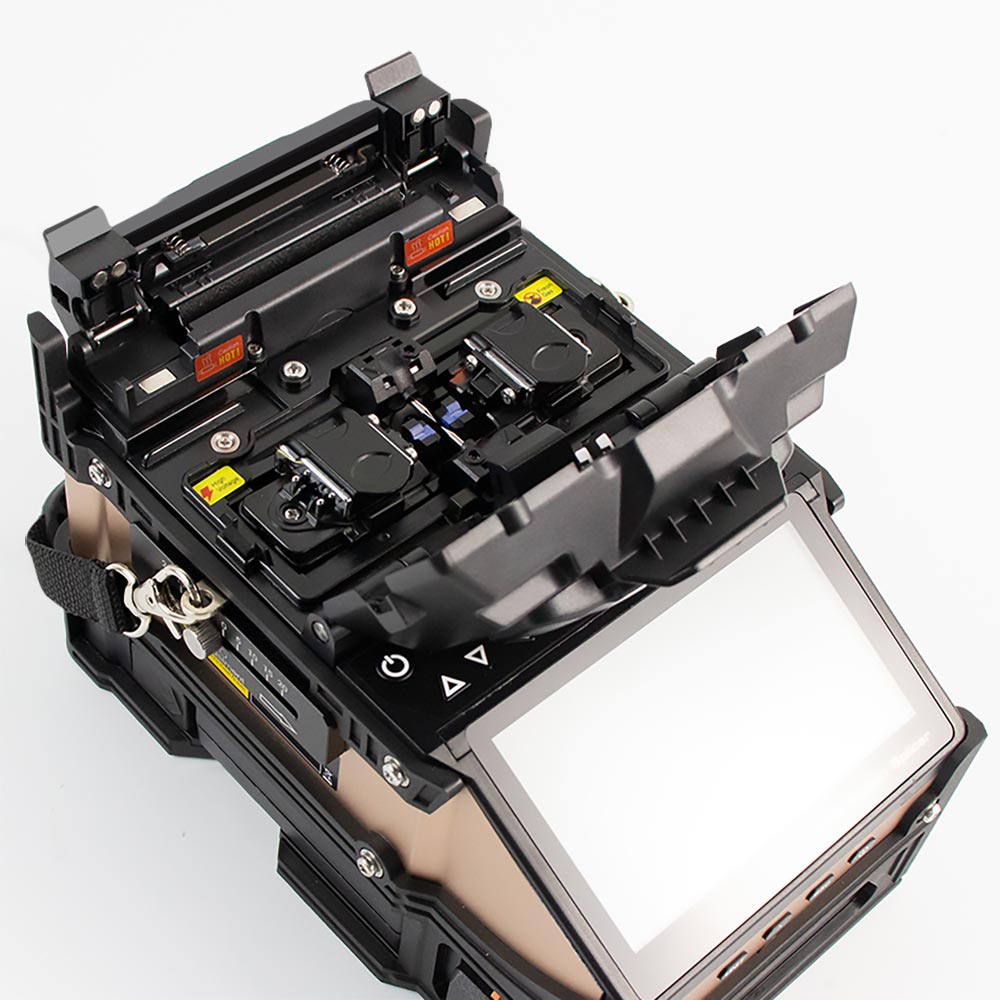

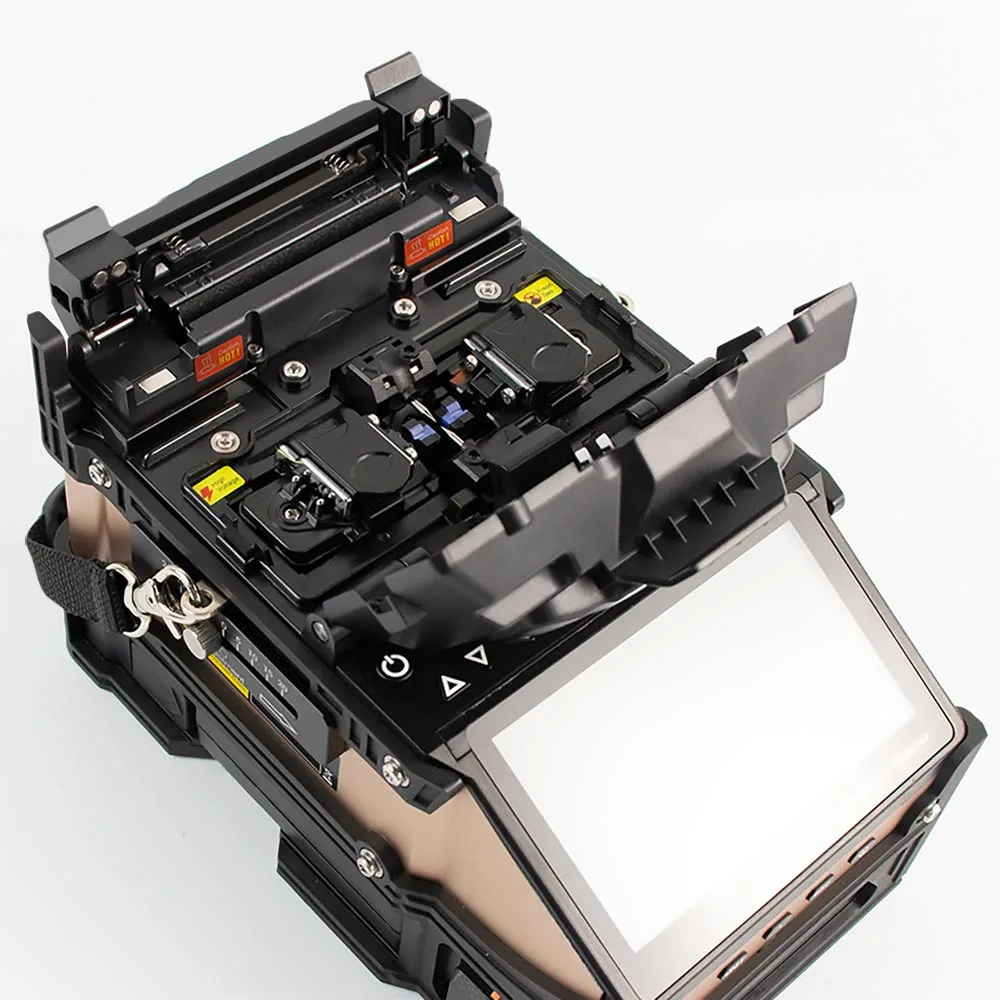

| Fiber Holder | Multi-function free disassembly fiber clamp |
| Power Supply | AC input 100-240 V, DC input 12-15 V |

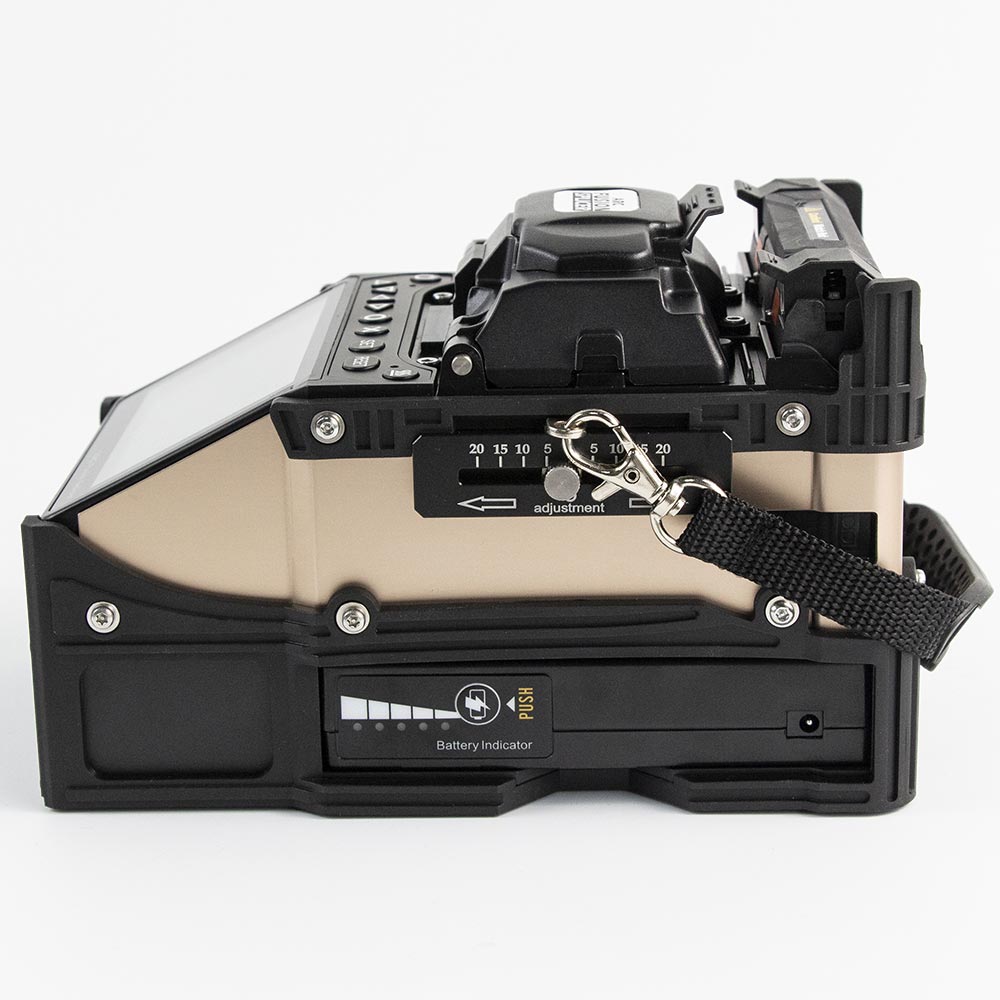

| Battery Capacity | 7200 mAh lithium-ion battery |
| Battery Life (Splicing + Heating) | Approximately 320 cycles |
| Operating Methods | Button and touch screen control |
| Automatic Calibration | Automatic ARC calibration based on air pressure and temperature |
| Electrode Life | 5000 arcs |
| Interface | USB 2.0 |
| Weight | 1.75 kg (including rubber bumper) |
| Dimensions | 135.1 mm (W) × 205.9 mm (L) × 130.4 mm (H) |
| Operating Conditions | Altitude 0-5000 m, humidity 0-95%, temperature -15 to 50°C, max wind 15 m/s |
| Storage Conditions | Humidity 0-95%, temperature -40 to 80°C; battery storage -20 to 30°C |

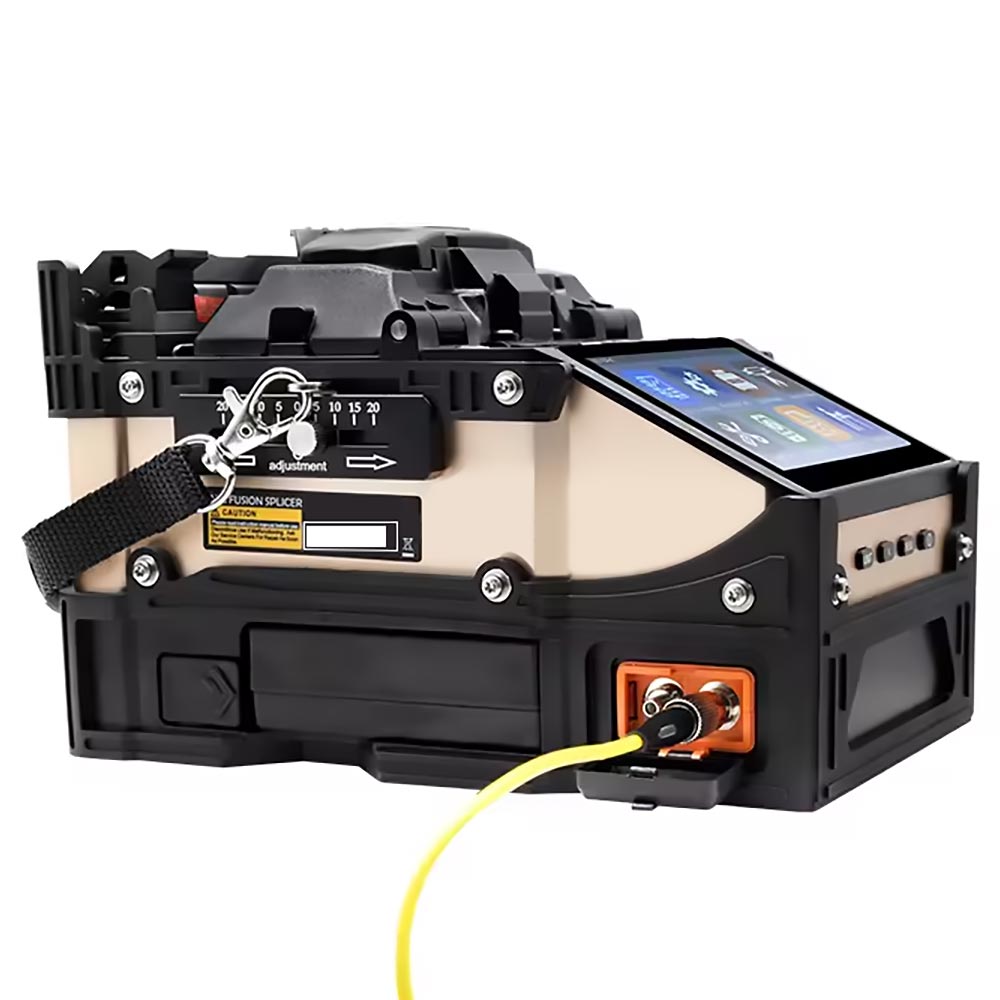

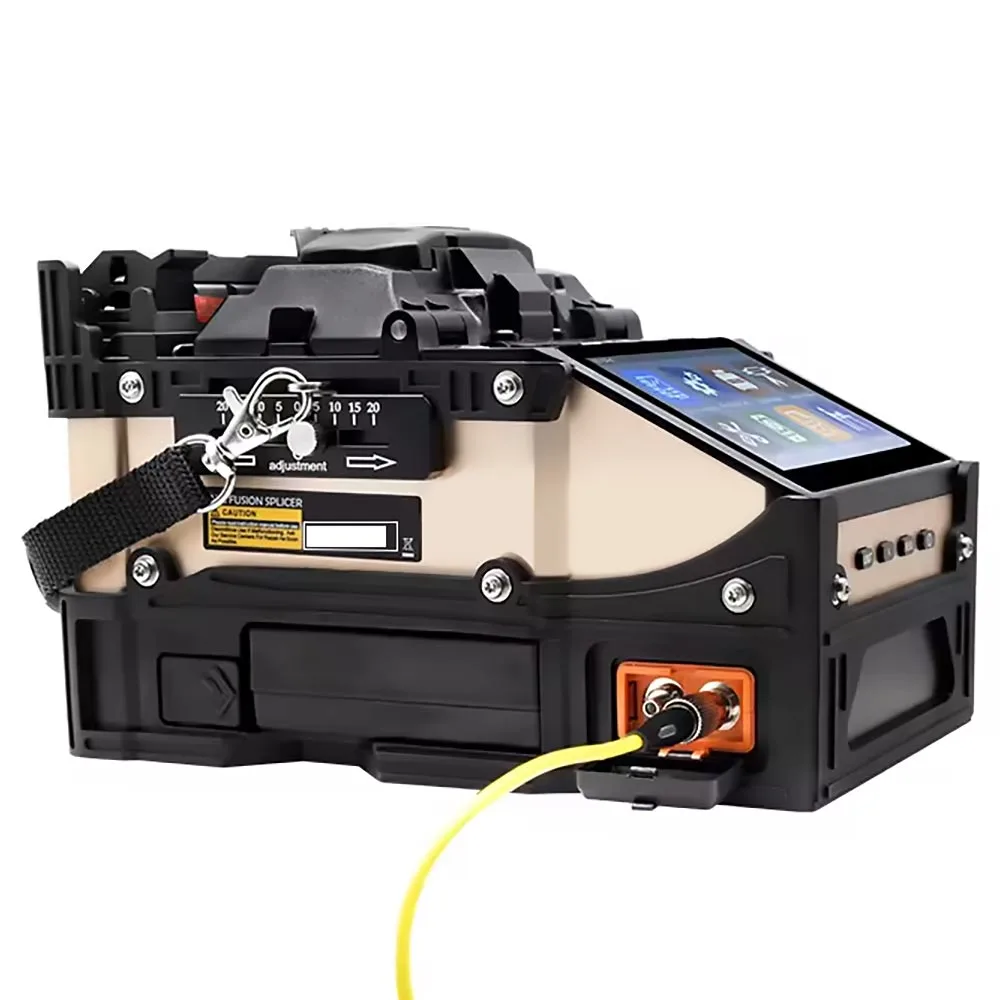

| Visual Fault Locator (VFL) | Power: 15 mW, 2 Hz flashing and constant brightness modes |
| Optical Power Meter | Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm; Range: -50 to +26 dBm; Accuracy: <0.3 dB (-50 to +3 dBm) |
| Fiber Cleaver Features (Kit Included) | Imported tungsten steel blade with 24 cleaving spots; blade life up to 48,000 cleaves; stable cutting angle ≤ 0.5°; cleave length 7-16 mm; automatic blade rotation; fiber collector included; compact size 64×81×60 mm; weight 328 g |
| Working Stool (Kit Included) | Durable waterproof polyethylene stool with large textured seat; designed for field comfort and versatility; can be used as footstool or tool holder |
-18%Hot

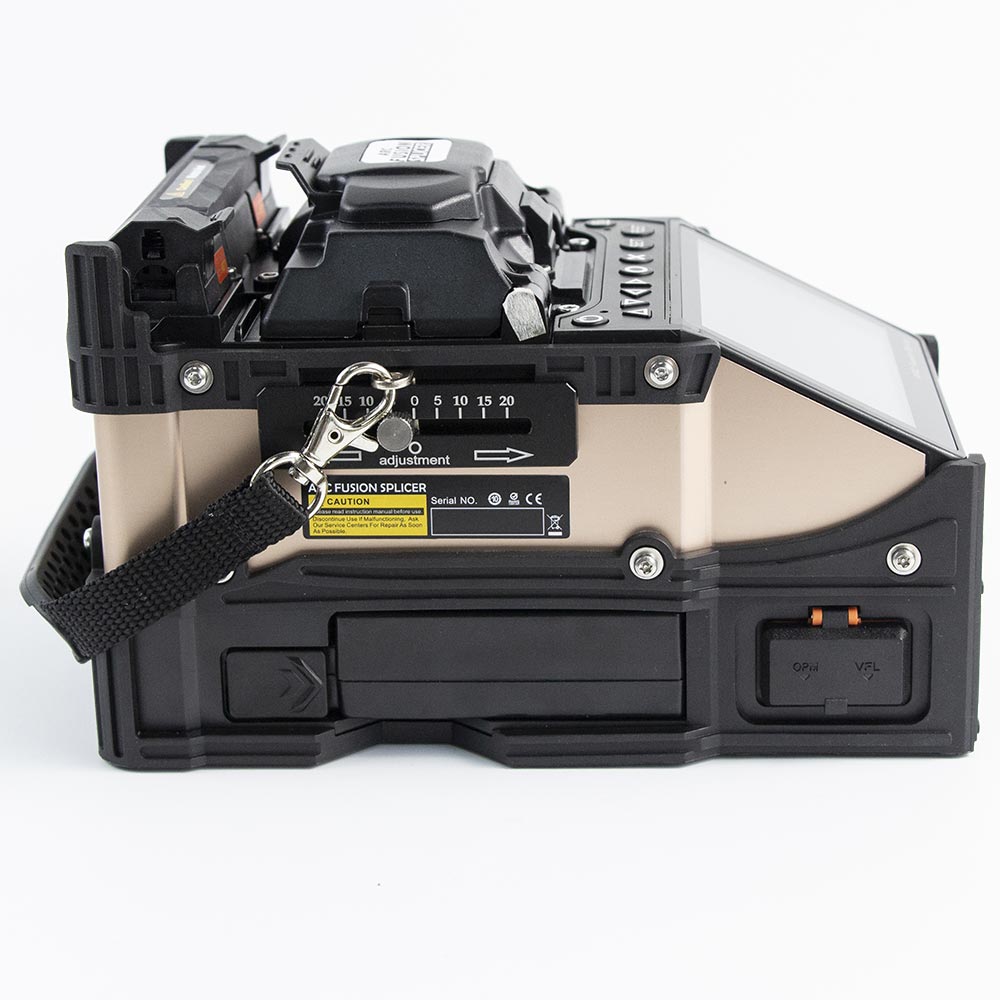

SD-9 Automatic ARC Fusion Splicer with Fiber Core Alignment, 6 Motors, 5s Fast Splicing & 11s Heating, Complete Fiber Fusion Splicer Kit

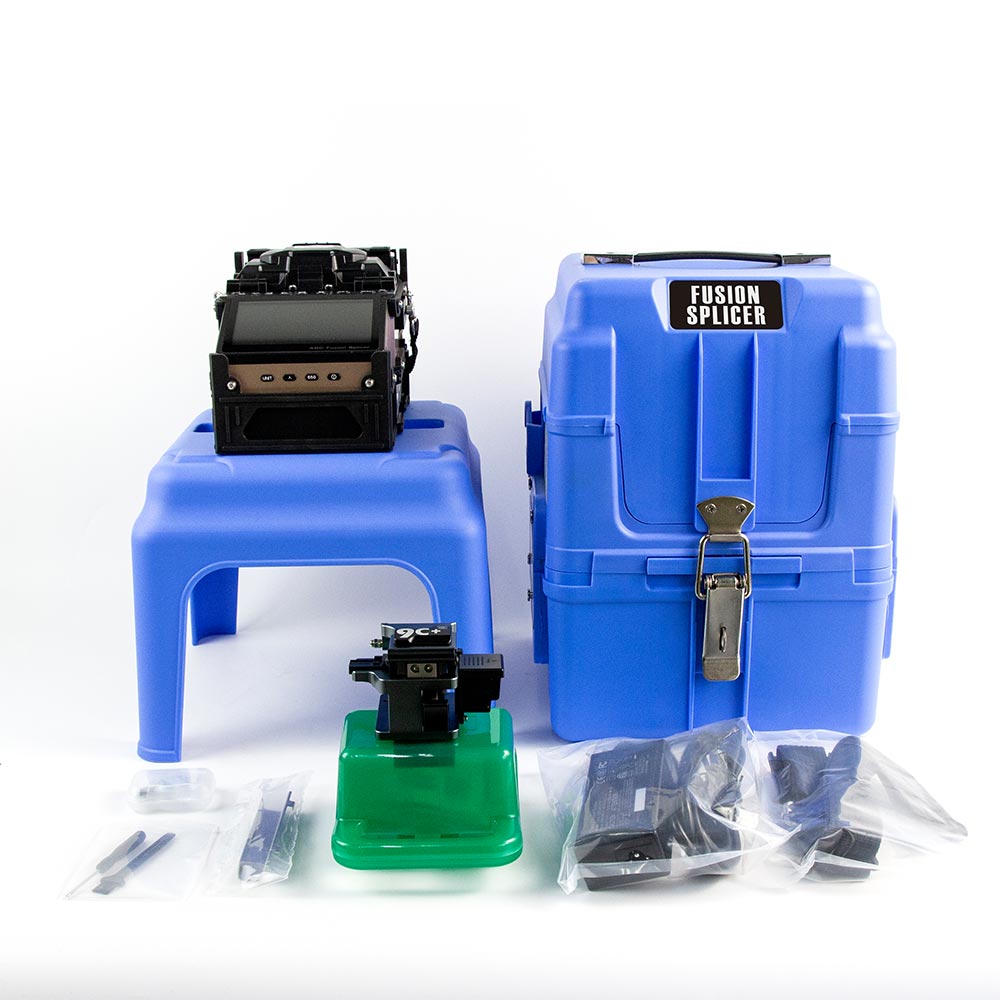

- The complete fusion splicer kit contains an SD-9 splicer, a 9C+ auto-rotate blade fiber cleaver, and a work stool in a multi-function chassis to increase portability and comfort during use.
- This fusion splicer kit is tailored to meet the fast-paced, demanding world of the fiber optic installation market for mainline and FTTX projects.
- The splicing time is only 5 seconds (SM FAST mode), with only an 11-second heating time, increasing efficiency throughout the workday.
- 41 preset splicing modes with 100 user-defined storage modes for various fiber types.
- Single-mode (G.652 & G.657) fibers, multi-mode (G.651), DS (G.653), and NZDS (G.655) fibers can all be spliced in a fiber/cable ranging from 0.25 mm to 3.0 mm in diameter.
- The system features a large 4.3-inch HD touchscreen with up to 380x magnification to inspect the fiber clearly and easily.
- An integrated internal Optical Power Meter and Visual Fault Locator provide on-site confirmation of installed fiber and detection of faults.
- The heavy-duty 7200mAh battery provides over 320 splicing/heating cycles on a single charge, promoting extended use out in the field.
- The multi-function fiber clamp has the advantage of easy disassembly and secure, flexible handling of the fiber.
- The automatic ARC calibration automatically adjusts for air pressure and temperature so that splice quality is consistent from splice to splice.
- Weighing only 1.75 kg, this very lightweight system is the best solution for various field environments.
- The SD-9 all-in-one kit is designed for mainline and FTTX fiber optic projects that provide speed, accuracy, and convenience.
