| Specification | Details |
|---|---|
| Connector Type | SC/UPC to SC/UPC (SC/APC to SC/APC optional); customizable to LC, ST |
| Fiber Mode | Singlemode (OS2, 9/125μm) |
| Fiber Count | Duplex (2 fibers) |
| Cable Diameter | 2.0mm |
| Jacket Material | Flame-retardant OFNR (PVC) |
| Standards Compliance | TIA/EIA 492AAAA, IEC60793-2-10 A1b, RoHS, EIA/TIA 604-2 |
| Insertion Loss | ≤ 0.30 dB |
| Return Loss | ≥ 55dB |
| Ferrule Material | Precision zirconia |
| Bend Insensitive | G.657.A1 fiber, 10mm minimum bend radius |
| Construction | Duplex zipcord, color-coded for easy identification |
| Application | Data centers, telecom rooms, enterprise, plug & play |
| Transmission Distance | Up to 10km @1310nm, up to 40km @1550nm |
| Supported Speeds | 1G/10G/25G/40G/100G/400G Ethernet |
| Available Lengths | 1m (3ft), 2m (7ft), 3m (10ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), custom lengths available |
| Connector Options | LC to LC, LC to SC, LC to ST, SC to SC, SC to ST, ST to ST (customizable) |

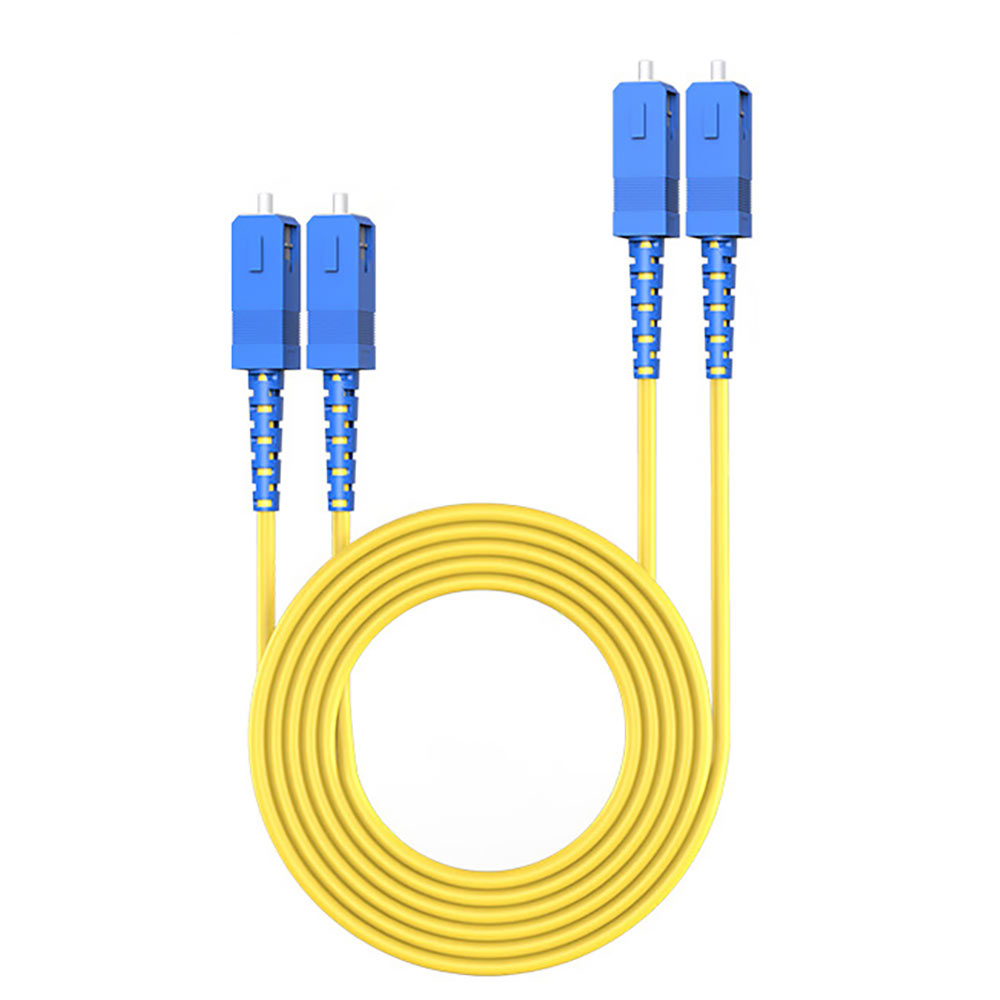

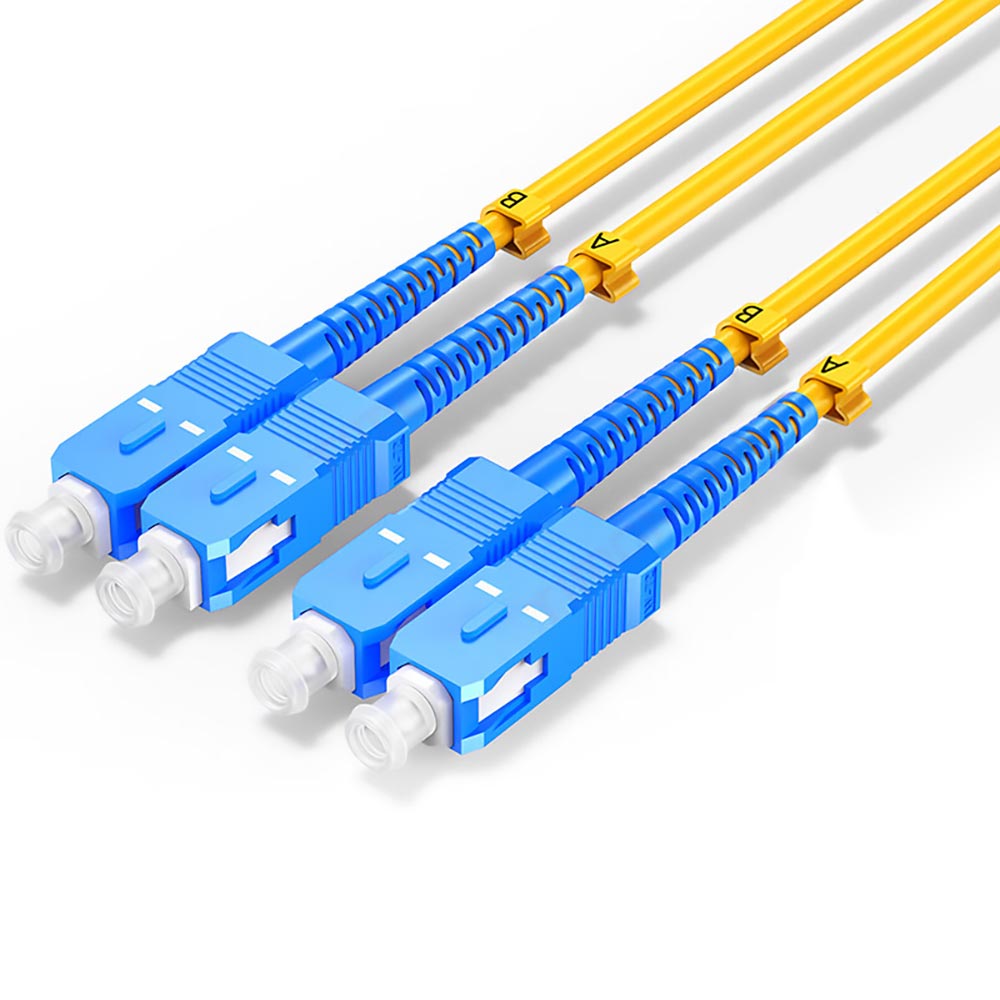

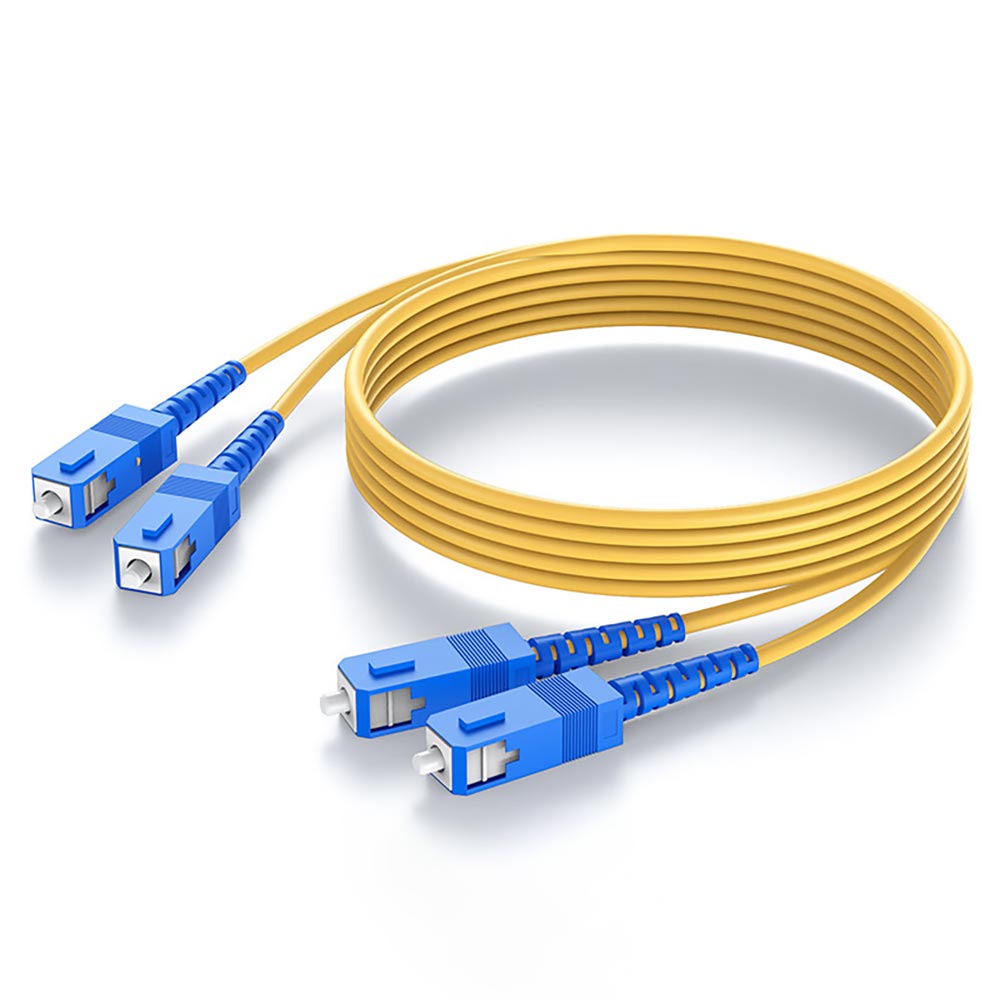

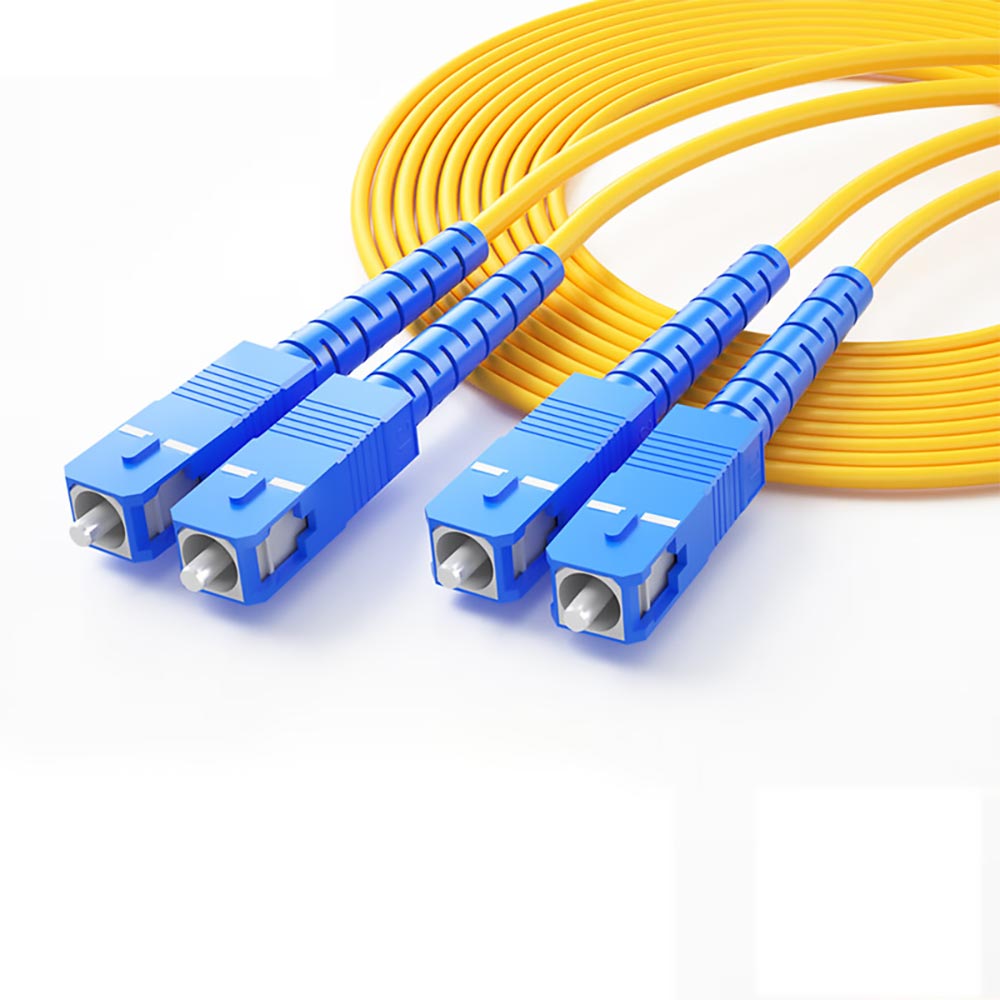

SC/UPC to SC/UPC Duplex Fiber Patch Cable, Single Mode 9/125μm, 2.0mm, OFNR Riser, 2 Fibers
- Singlemode duplex SC to SC fiber patch cords with 9/125μm OS2 fiber, which are capable of stable long-distance transmission.
- Can be configured in either SC/UPC or SC/APC duplex types for different network needs.
- Lengths can be customized: 1m (3ft), 2m (7ft), 3m (10ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), or custom.
- Can be configured in many different connector types: LC to LC, LC to SC, LC to ST, SC to SC, SC to ST, ST to ST. Fully customizable for your application.
- The patch cords are constructed and tested to TIA/EIA 492AAAA and IEC60793-2-10 A1b standards.
- Low insertion loss (≤ 0.30 dB) and high return loss (≥ 55dB) rated for quality performance.

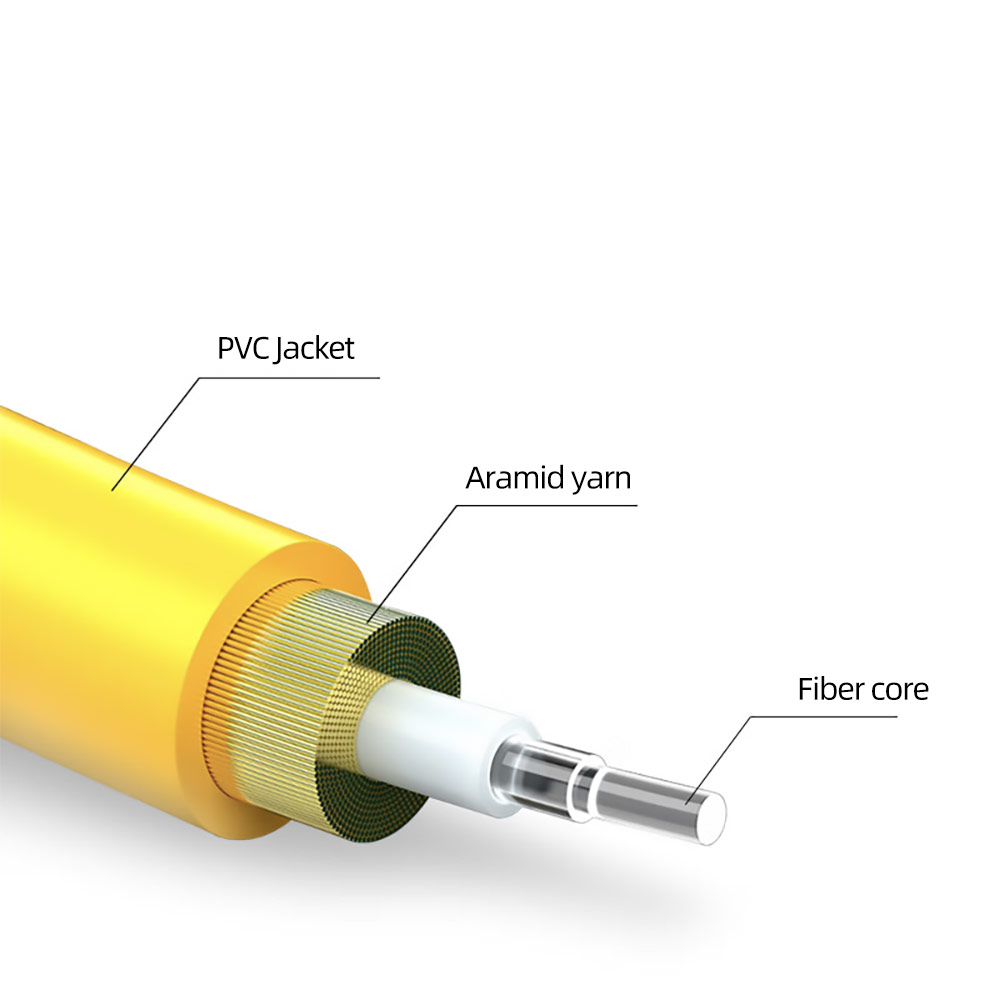

- Flame-retardant OFNR riser-rated PVC jacket can be used in vertical installations and between floors.

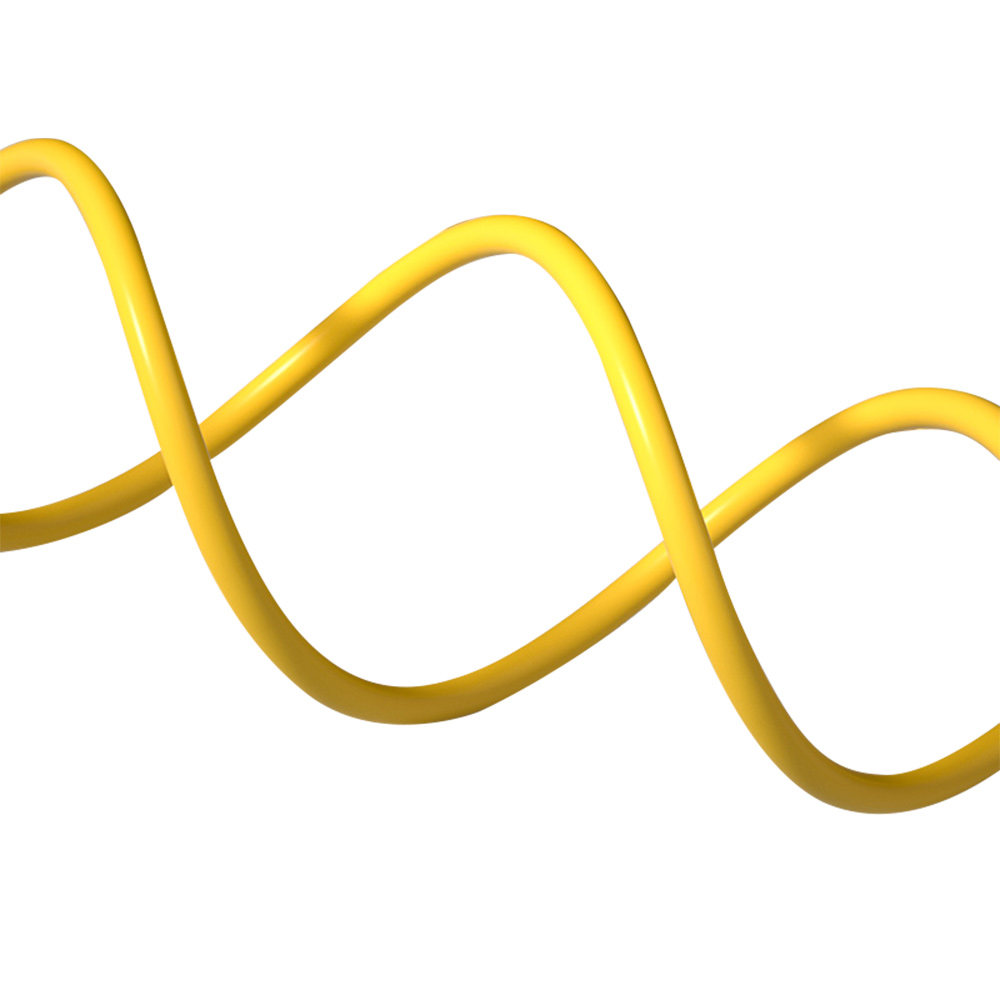

- Bend-insensitive G.657.A1 fiber can be routed easily with a minimum bend radius of 10mm, allow easy routing in tight spaces.
