| Parameter | Specification |
|---|---|
| Fiber Type | Multimode OM3, 50/125μm, SC UPC to FC UPC Duplex Fiber Optic Patch Cable |
| Fiber Count | Duplex (2 fibers) |
| Connector A | SC UPC |
| Connector B | FC UPC |
| Polish Type | UPC to UPC |
| Cable Length | Customizable (1m to 50m typical) |
| Cable Diameter | 2.0 mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 20 dB |
| Attenuation | 3.0 dB/km @ 850 nm; 1.0 dB/km @ 1300 nm |
| Bandwidth | 2000 MHz·km @ 1300 nm; 1500 MHz·km @ 850 nm |
| Maximum Transmission Distance | 300 meters @ 850 nm (10Gb Ethernet) |
| Tensile Strength | ≥ 50 N |
| Jacket Material | LSZH |
| Jacket Color | Aqua (standard for OM3) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS Compliant, IEEE 802.3ae, TIA standards |
| Application | 10 Gigabit Ethernet, Data Centers, SAN, Legacy LANs, Telecom |
SC UPC to FC UPC Duplex Fiber Optic Patch Cable, Multimode OM3 10Gb, 50/125μm, LSZH
- Supports high speed 10Gbps data transmission with OM3 multimode fiber
- Duplex cable design allows simultaneous bi-directional communication

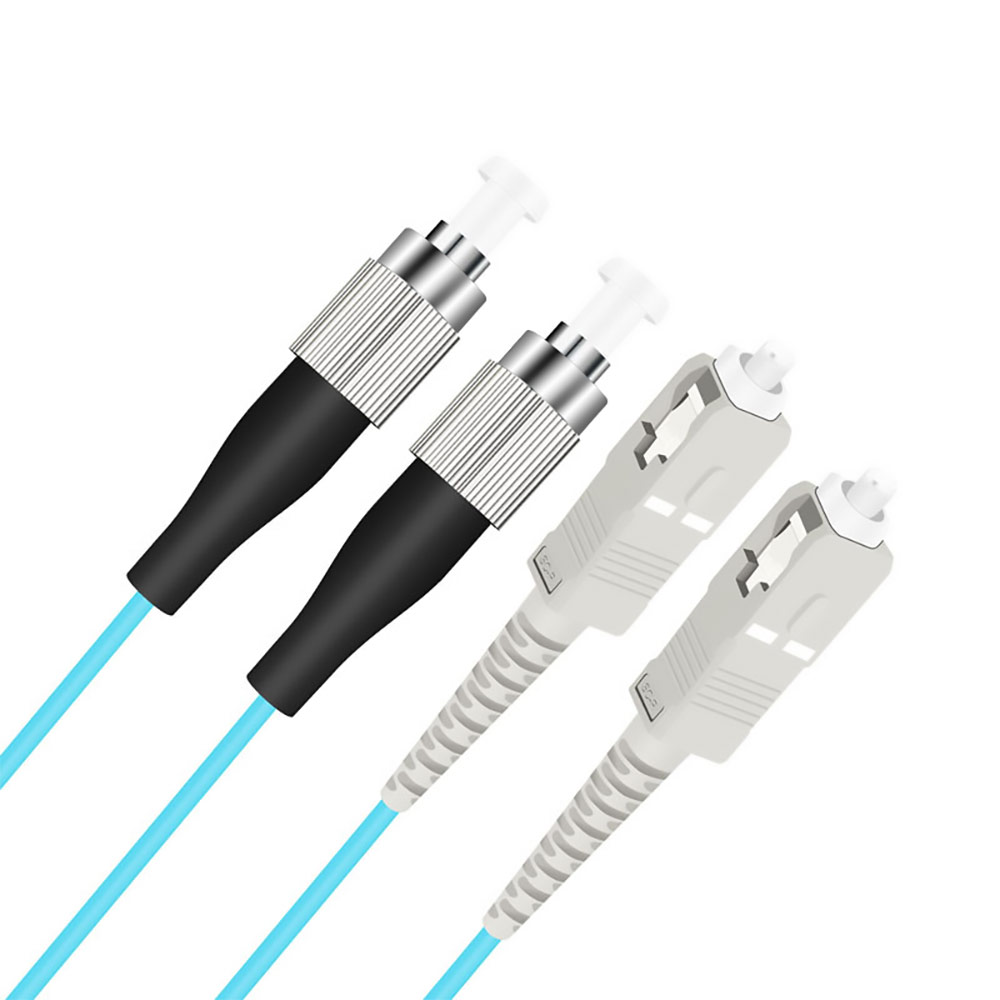

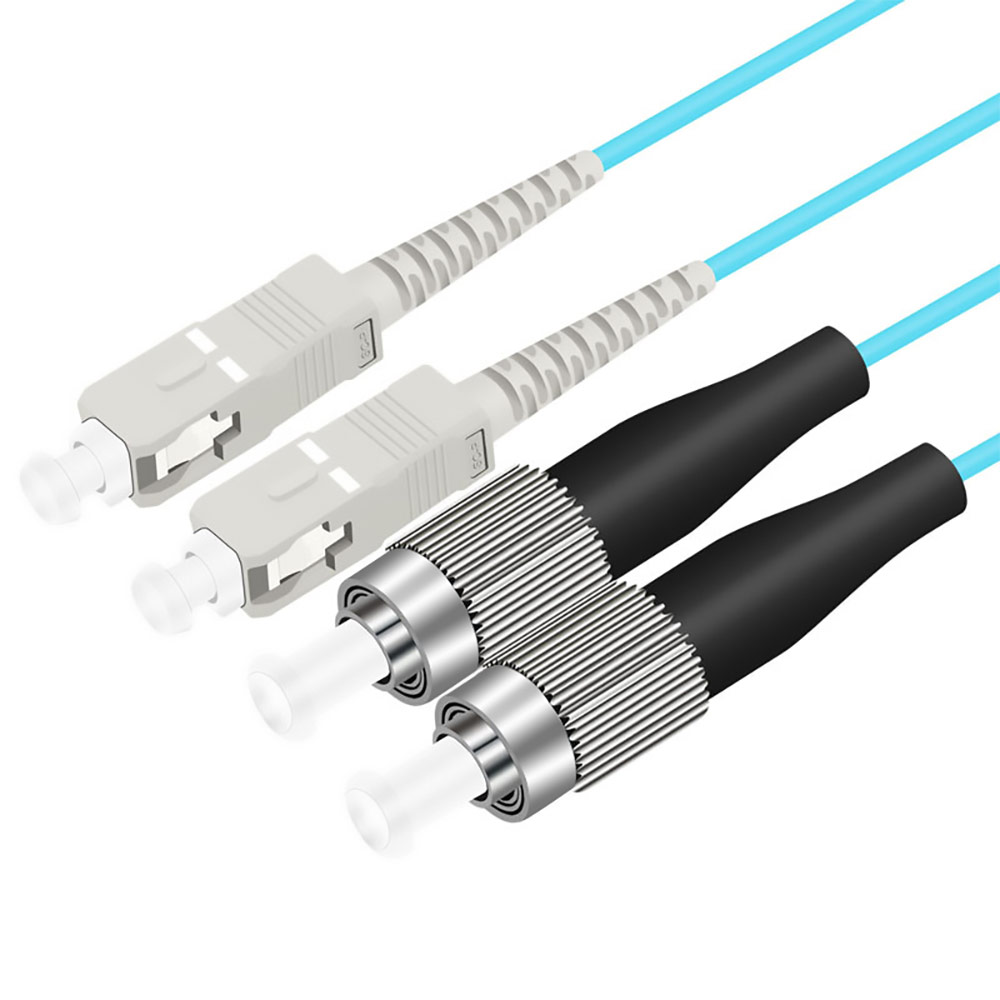

- SC UPC connector on one end, FC UPC connector on the other end for compatibility with a wide range of systems
- Low insertion loss and high return loss ensure signal integrity

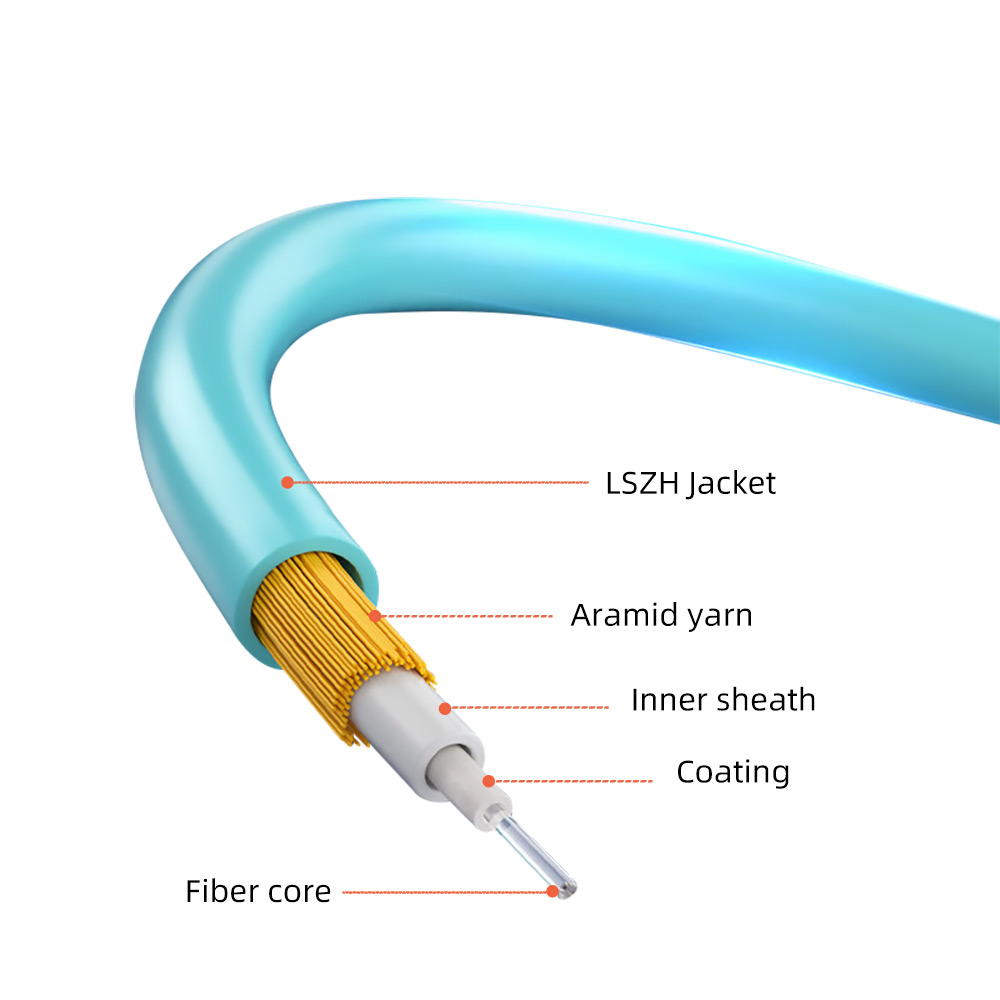

- 50/125μm core/cladding diameter for laser-optimized multimode fiber systems
- LSZH jacket provides enhanced safety, low smoke and halogen-free safe operation
- Aqua jacket color coding for easy identification and compliance with industry standards
- Robust construction, suitable for use in data centers and other demanding environments like telecom
- Compatible with legacy multimode systems which provide seamless upgrades
- Precision ceramic ferrule in connectors guarantees durability and stability
