| Connector Type | SC/UPC Fiber Optic Fast Connector |
| Port Type | SC/UPC |
| Fiber Type | Single-Mode (SM) / Multi-Mode (MM) |
| Polishing Type | SM UPC; MM UPC |
| Ferrule Material | Grade A Zirconia Ceramic Ferrule |
| Product Material | Environmental Protection PBT |
| Applicable Cable | 2.0 × 3.0mm Bow-type Drop Cables |
| Insertion Loss | ≤0.3dB |
| Return Loss | UPC: ≥50dB |
| Pulling Tension | 20N |
| Operating Temperature | -40°C to +75°C |
| Housing Color | Blue + Black |
| Reusability | Multiple reconnection cycles supported |
| End Face Quality | Class A end face with defect-free fiber core |
Hot

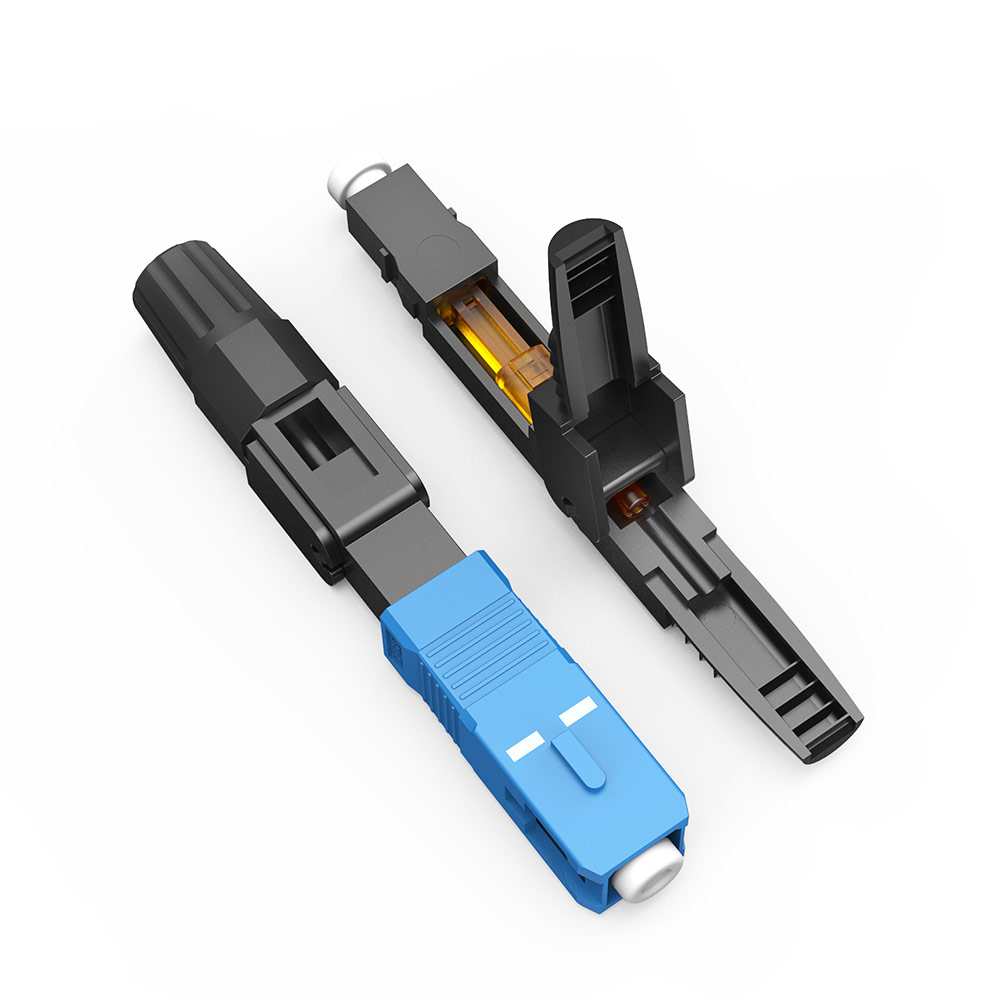

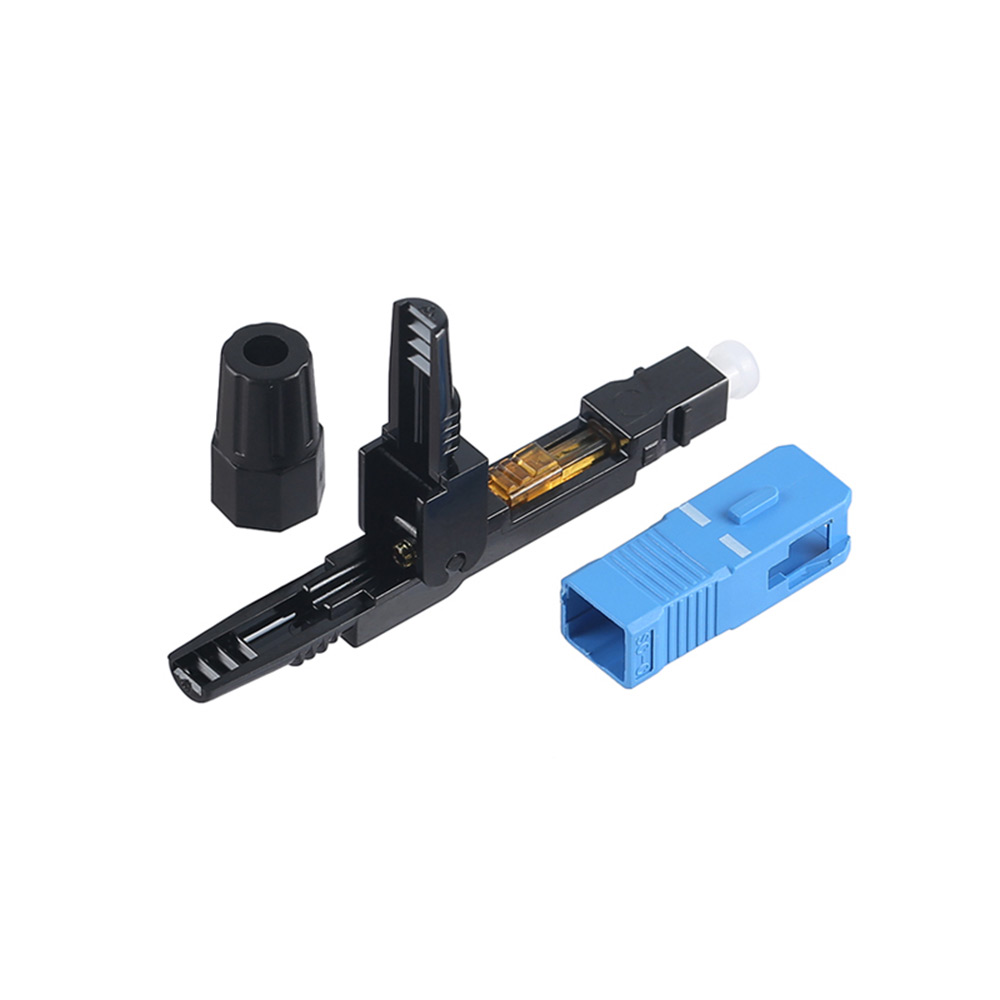

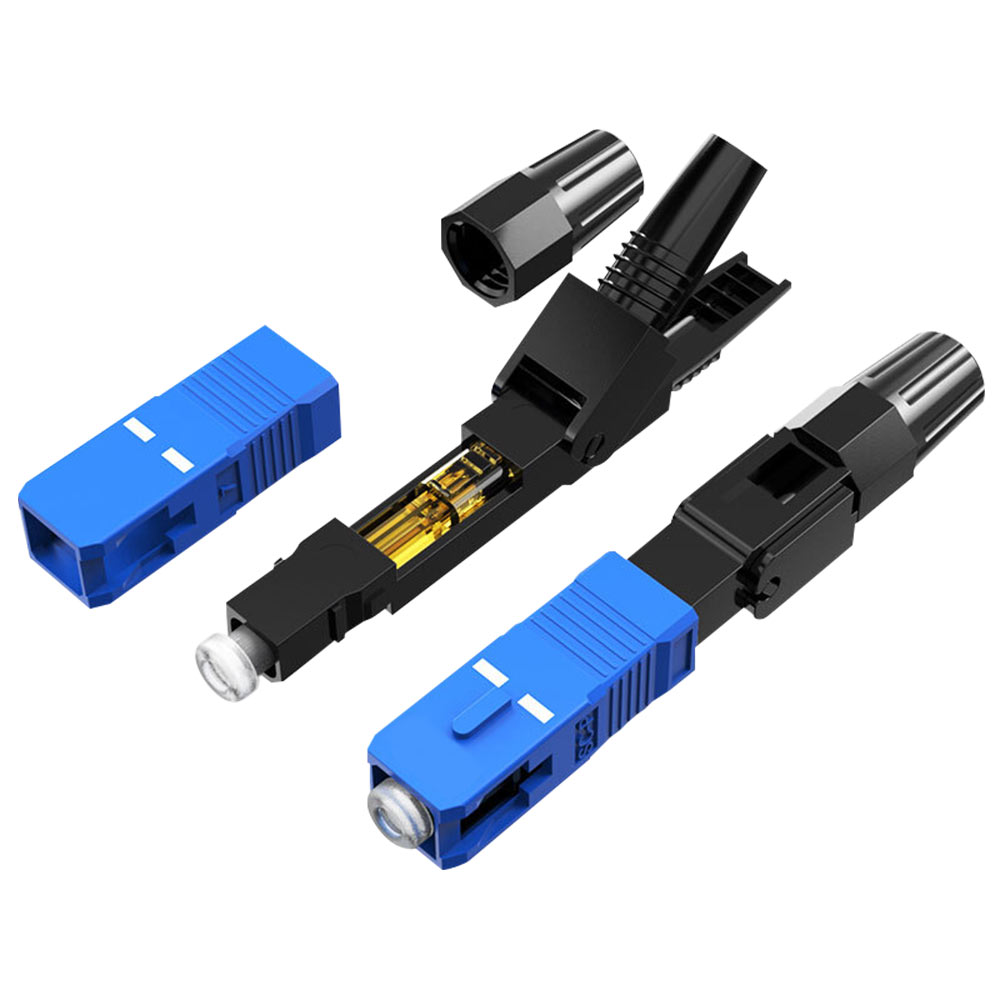

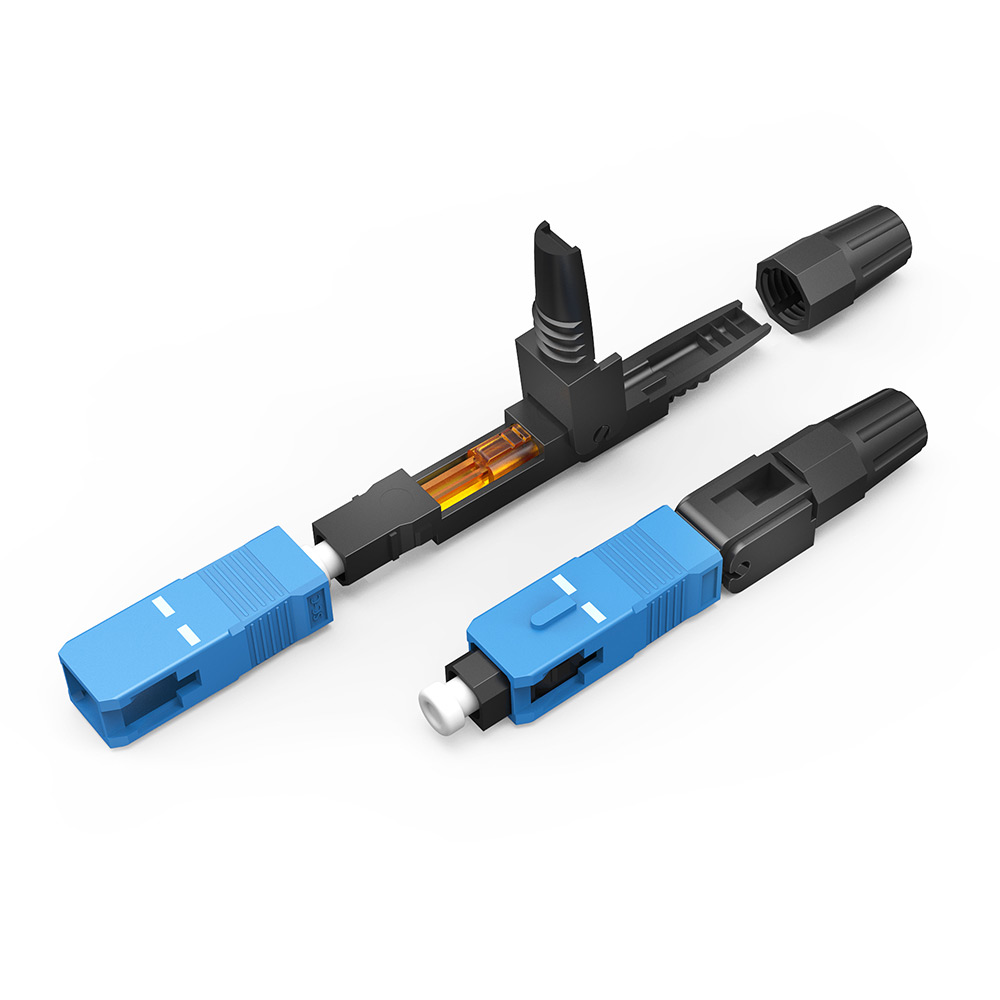

SC/UPC Fiber Optic Fast Connector, Field Assembly Cold Connector for Single-Mode Telecom & CATV Networks
- Tool-FREE INSTALLATION – No fusion splicing, polishing, or special equipment needed for field assembly
- Universal Cable Size Compatibility – Multiple drop cable sizes from 0.9mm to 3.0mm diameter, fits into holder adapter.
- Premium Grade A zirconia Ferrule and sleeve to ensure superior optical performance and durability.
- Low insertion loss of less than 0.35dB.
- High return loss performance ≥50dB for single-mode UPC applications.
- Reusable, 5-10 reconnection cycles make maintenance easy.
- Temperature range from -40°C to +85°C, in less than ideal conditions.
- Mechanical performance of ≥40N tensile strength and fastening strength ≥3N.
- Field ready; ideal for emergency repairs; extension of existing networks; temporary connections.
