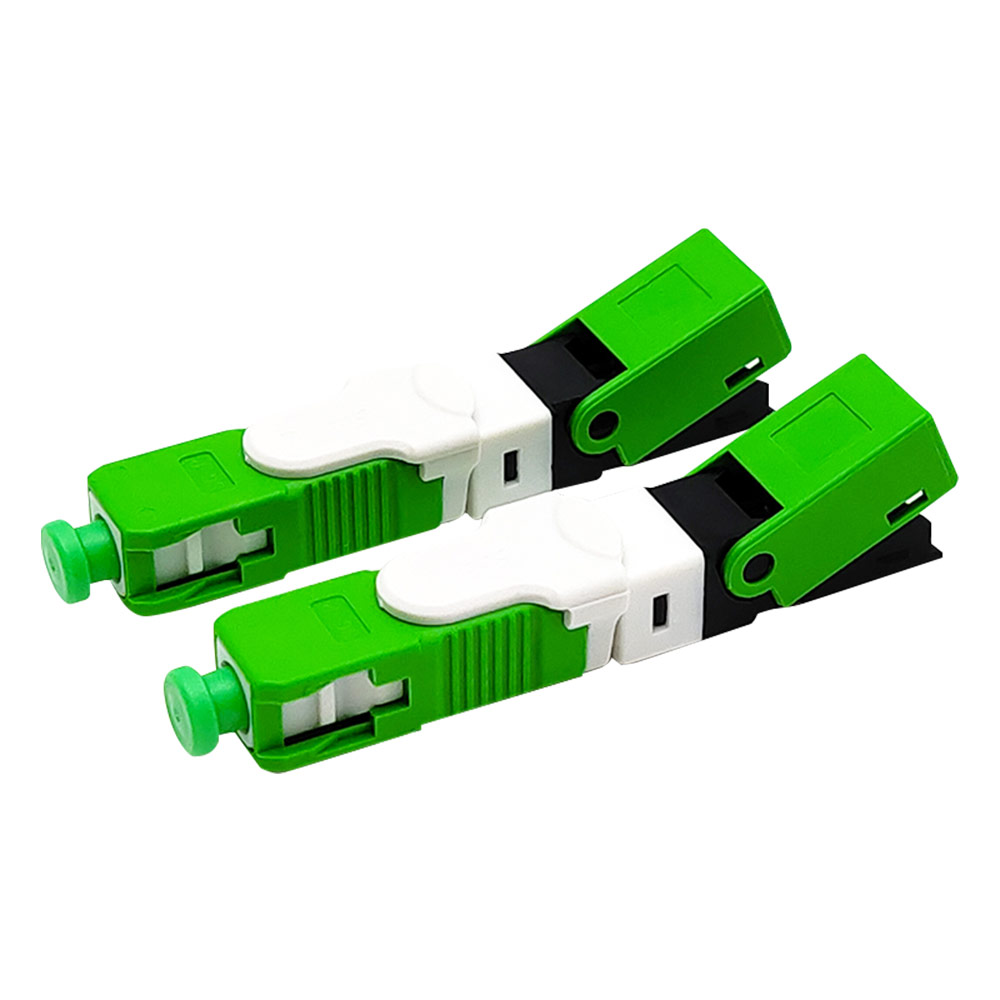

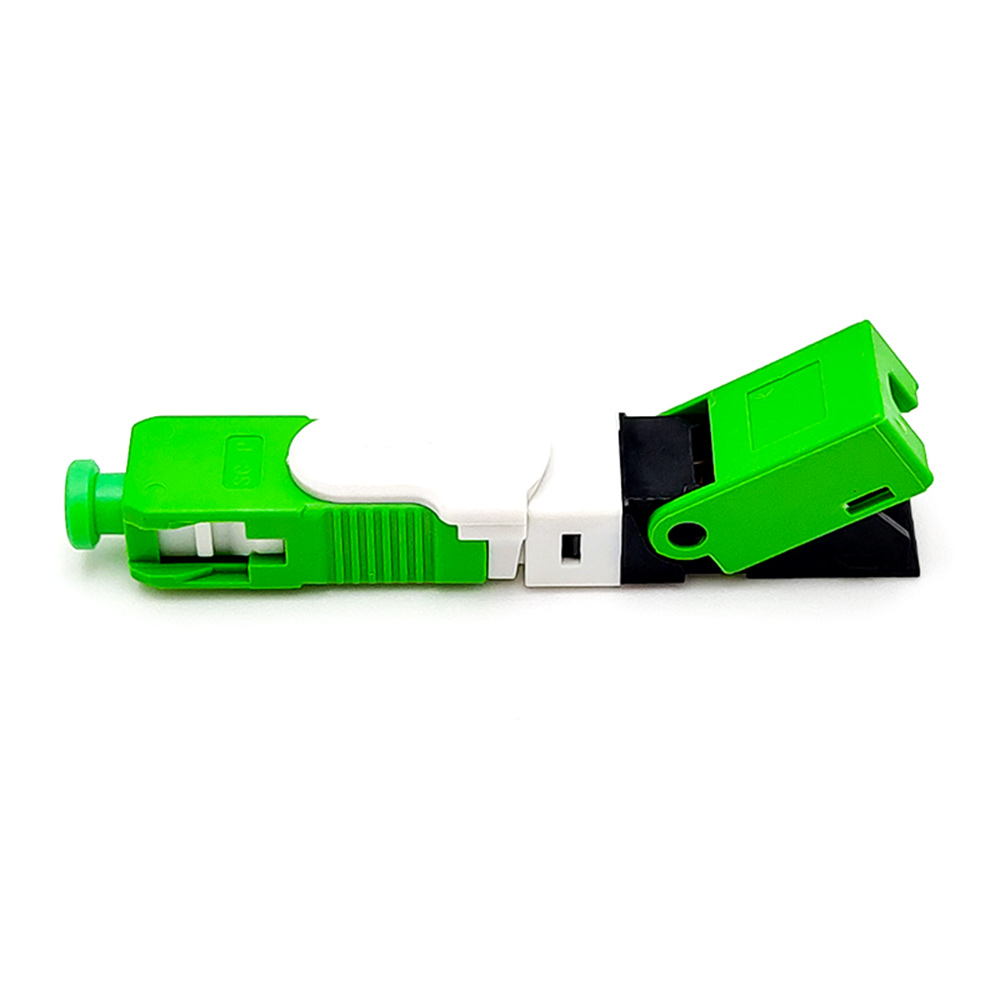

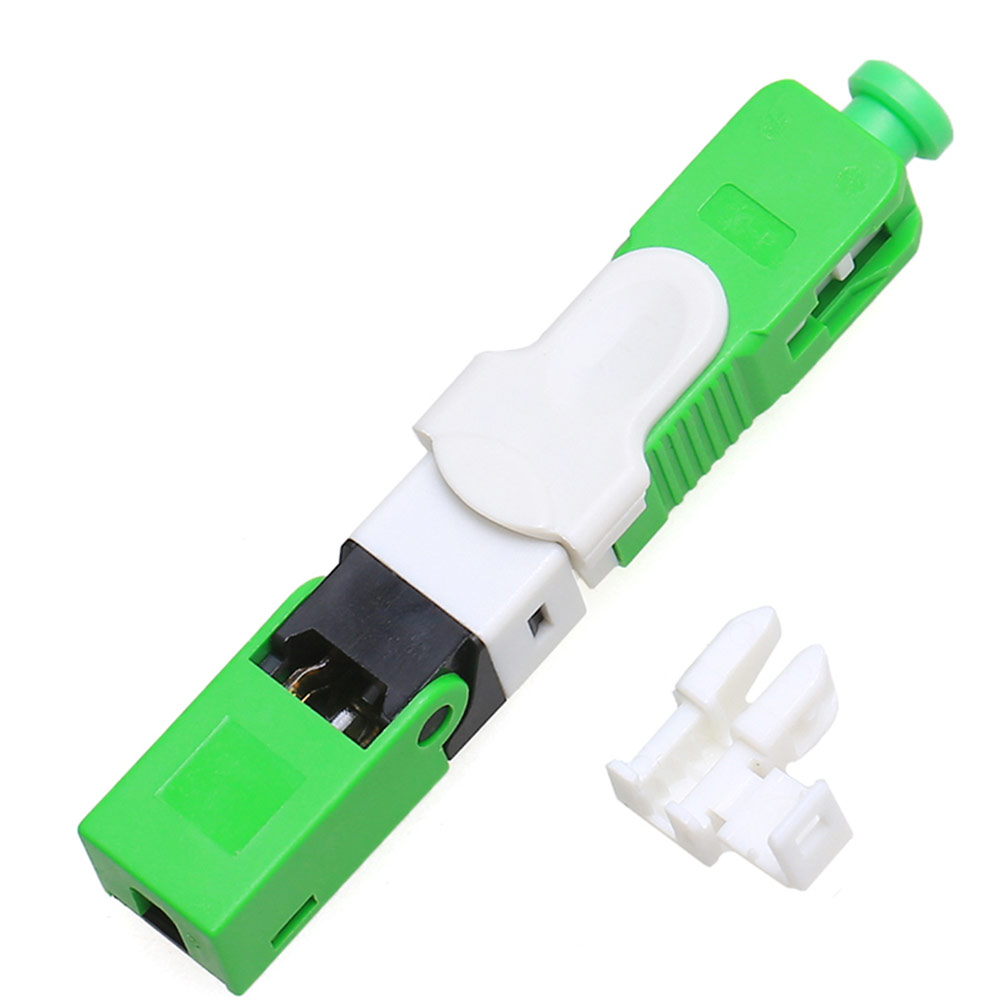

SC/APC Fiber Fast Connector for Single-Mode Fiber Cable

Fast Field Installation: Terminate fibers fast without fusion splicing in less than 100 seconds with no need for epoxy or polishing.
Pre-Installed Factory Stub: Removes the complex preparation steps by including a pre-installed factory stub and index-matching gel.
Dual Cable Compatibility: Works with both 2.0 mm and 3.0 mm drop cables for maximum flexibility in installation.
Optical Performance: ≤0.3dB insertion loss & >65dB return loss for APC connections.
Temperature Range: Provides reliable operation from -40°C to +75°C under harsh environmental conditions.
High Pull Strength: Designed to withstand >50N pulling force for a rugged field installation.
Multiple Fiber Types: Compatible with G657A1, G657A2 and G657B3 single mode fibers (125µm).
Lifetime of Service: Standard optical specifications will be met after 500+ mating cycles.
Compact Design- 52 mm in length fits into standard patch-panels and distribution frames.
Mechanical Splice Technology: Internal splice mechanism ensures a safe and reliable fiber to fiber connection.

Technical Specifications

Parameter	Specification
Connector Type	SC/APC Fiber Fast Connector
Fiber Mode	Single Mode
Optical Fiber Compatibility	SM 9/125μm, G657A1, G657A2, G657B3
Fiber Diameter	125μm
Coating Diameter	250μm
Cable Compatibility	2.0mm × 1.6mm, 3.0mm × 2.0mm Drop Cable
Connector Length	52mm
Installation Time	<100 seconds
