| Product Model | BYXGD PON Power Meter |
| Supported PON Standards | EPON, GPON, XPON |
| Test Wavelengths | 1310±50nm, 1490±15nm, 1550±10nm |
| Isolation at 1310nm | — / >40dB / >40dB |
| Isolation at 1490nm | >40dB / — / >40dB |
| Isolation at 1550nm | >40dB / >40dB / — |
| Measurement Range (1310nm) | -35~+10dBm |
| Measurement Range (1490nm) | -40~+12dBm |
| Measurement Range (1550nm) | -40~+25dBm |
| Measurement Uncertainty | ≤0.5dB |
| Insertion Loss | ≤1.5dB |
| Detector Type | InGaAs |
| Display Resolution | 0.01dB |
| Fiber Type | SM 9/125μm |
| Threshold Setting Groups | 10 groups |
| Optical Interface | FC/UPC (interchangeable with SC, supports SC/APC via adapter) |
| Display | Color LCD |
| Data Storage | ≤10 records |
| Data Interface | Micro USB |
| Power Supply | 3 x AA batteries |
| Battery Life | Standby >20 hours; Measurement >12 hours |
| Auto Power Off | Supported |
| Burst Mode Measurement | Supports 1310nm upstream burst mode |
| Synchronous Multi-Signal Testing | Simultaneous measurement of voice, data, video signals |
| Built-in Filter | Yes, for real-time signal separation |
| Pass/Warning/Fail Judgment | Threshold-based |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -40°C ~ +70°C |
| Relative Humidity | 0~95% non-condensing |
| Dimensions | 186mm x 100mm x 50mm |
| Weight | 150g |

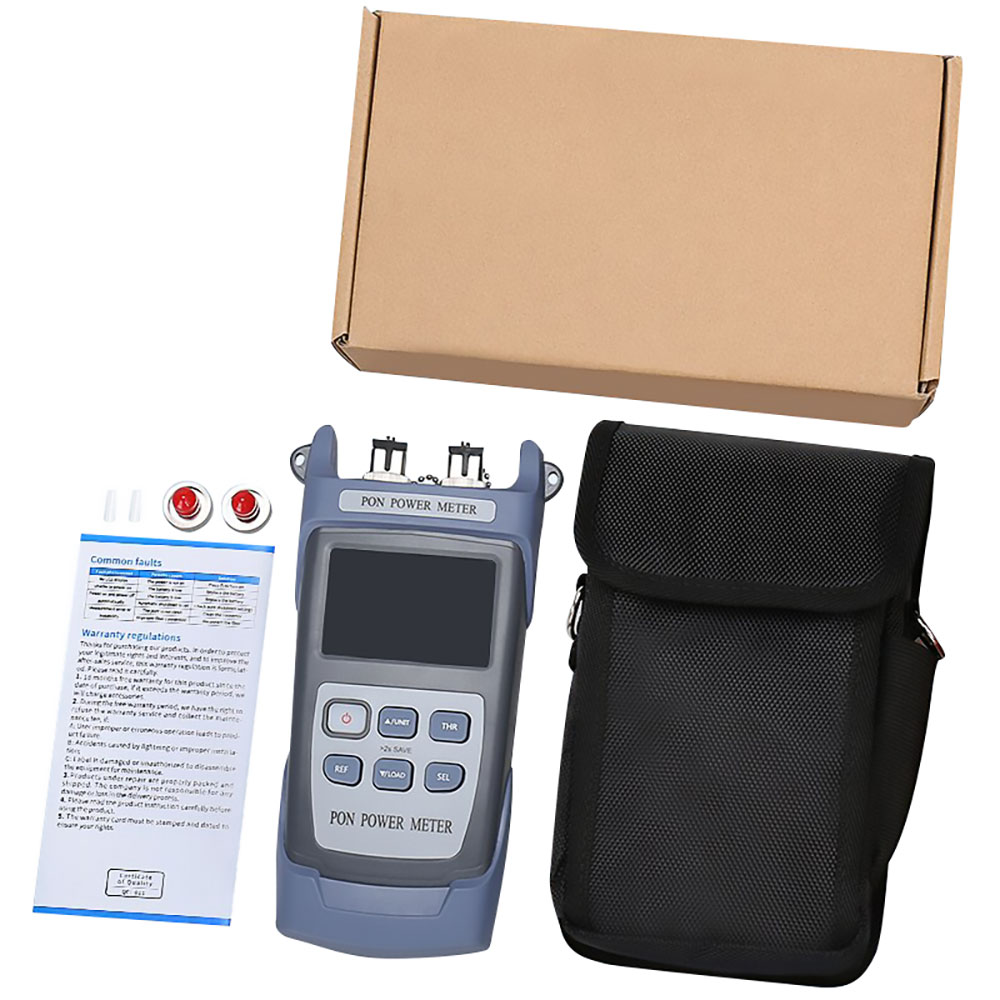

| Standard Accessories | Main unit, manual, carrying case, FC/SC adapters, batteries |

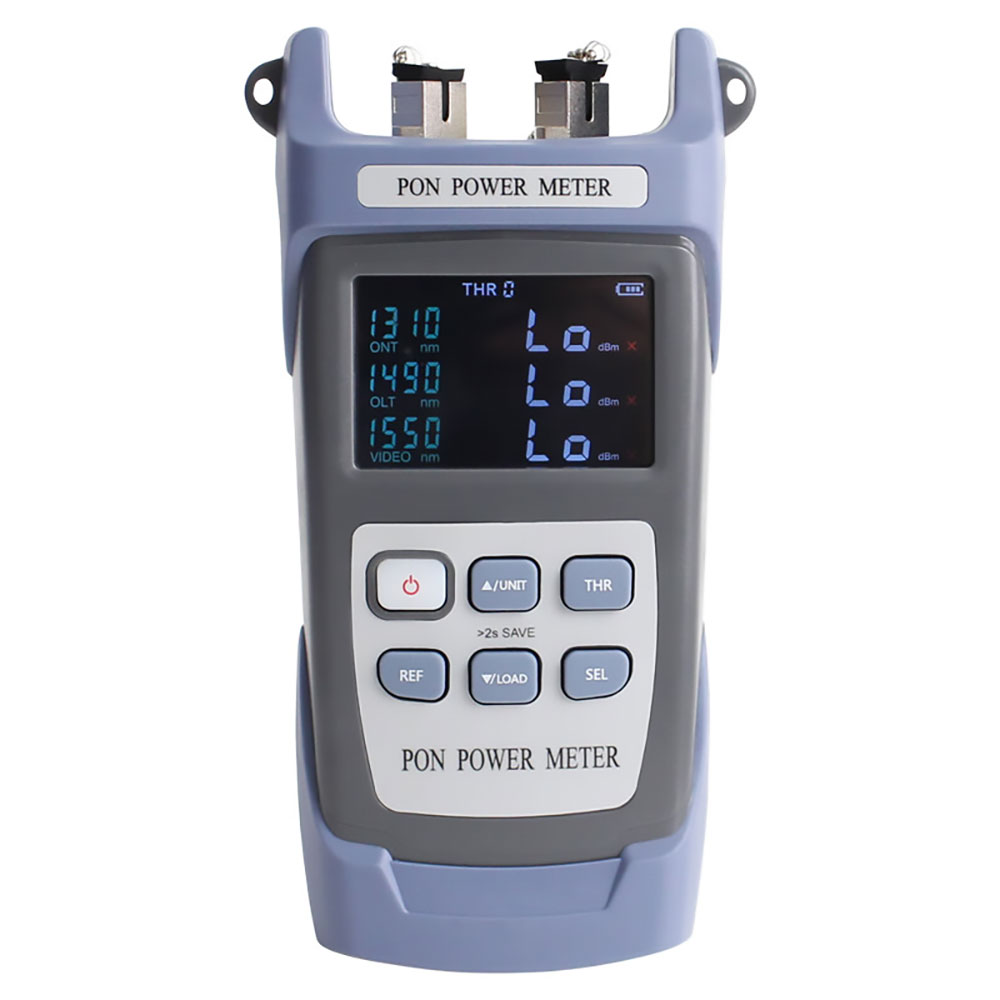

BYXGD PON Power Meter for EPON/GPON/XPON Compatible with SC/APC Fiber Optic Cable
Simultaneous Measurement: Simultaneously measures 1310nm (upstream), 1490nm, 1550nm (downstream) for EPON, GPON, and XPON networks.
High Precision: Measurement uncertainty ≤0.5dB, insertion loss ≤1.5dB.
Wide Measurement Range: -35~+10dBm, -40~+12dBm and -40~+25dBm for different wavelengths.

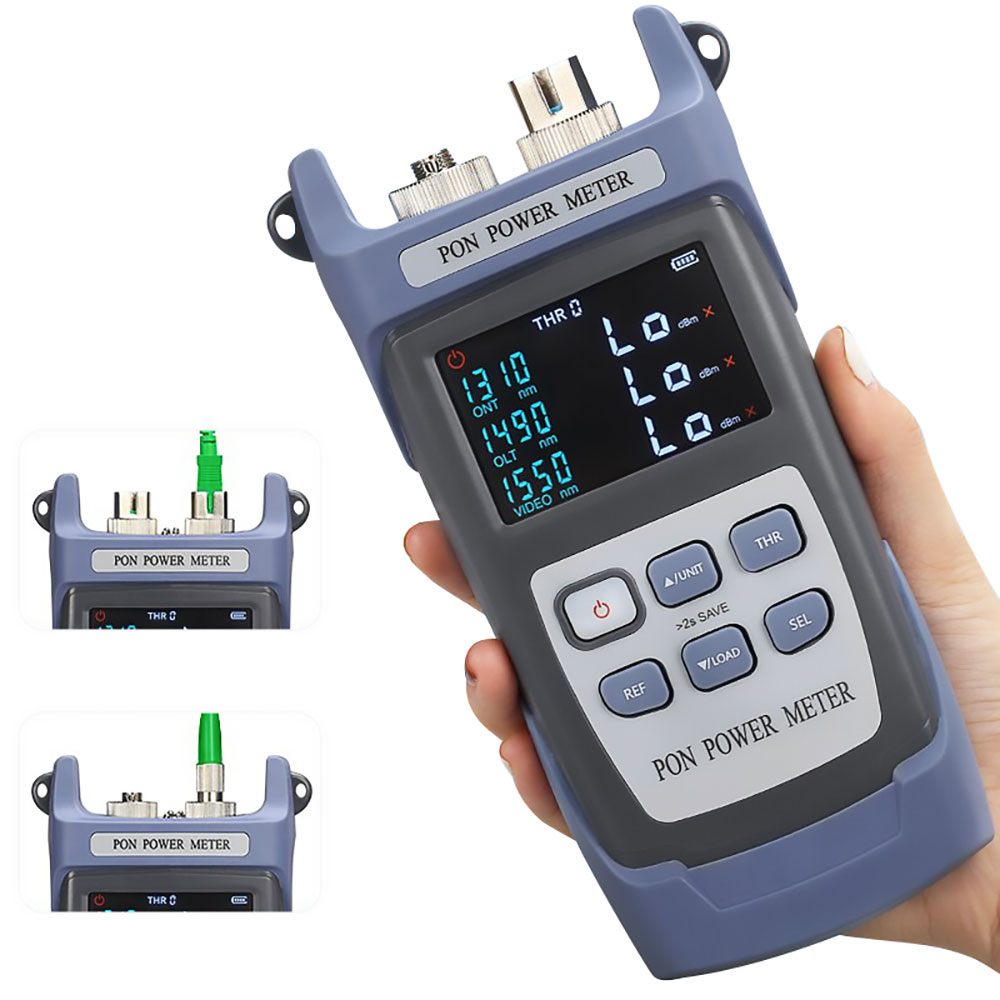

Compatibility with SC/APC: Compatible with FC/UPC and interchangeable SC connectors; easily adjusted for SC/APC cables.

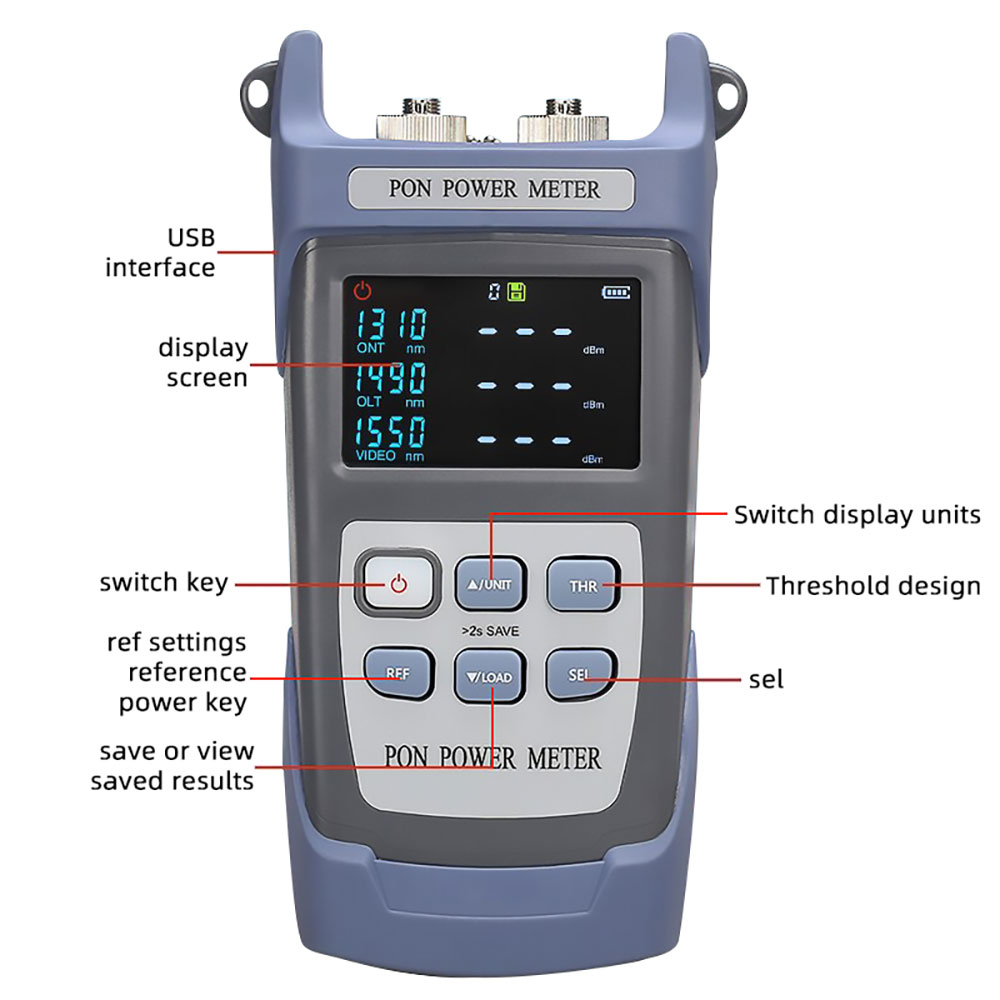

Color LCD Display: Color screen is clear and easy to read.

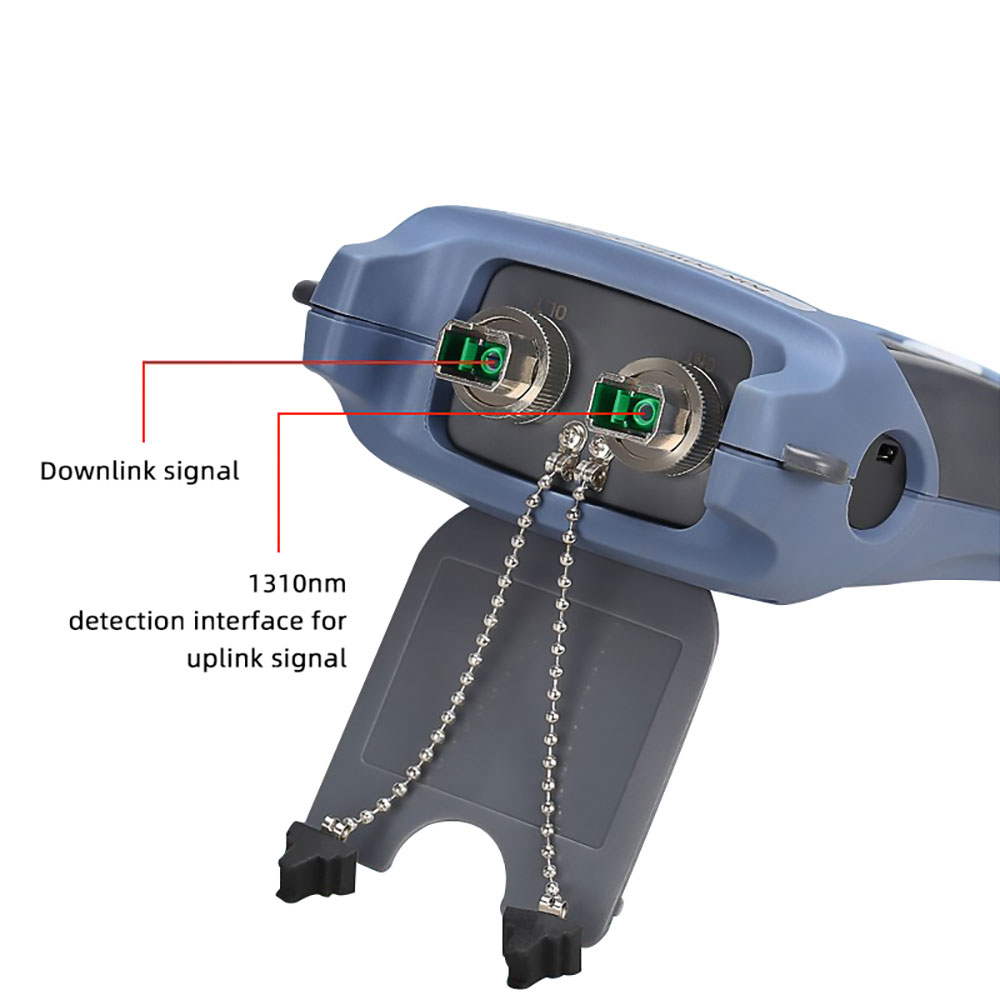

Burst Mode Support: Measures upstream 1310nm burst signals from FTTH (Fiber to the home) deployment.
Threshold Settings: Stores up to 10 threshold groups to organize and help pass/warning/fail judgment.
Data Storage: Stores 10 sets of test results for report and verification.
USB interface: Micro USB port is fast for data transfer and charging.
Long Battery Life: Operates for 12 hours of measurement and 20 hours in standby mode with 3 AA batteries

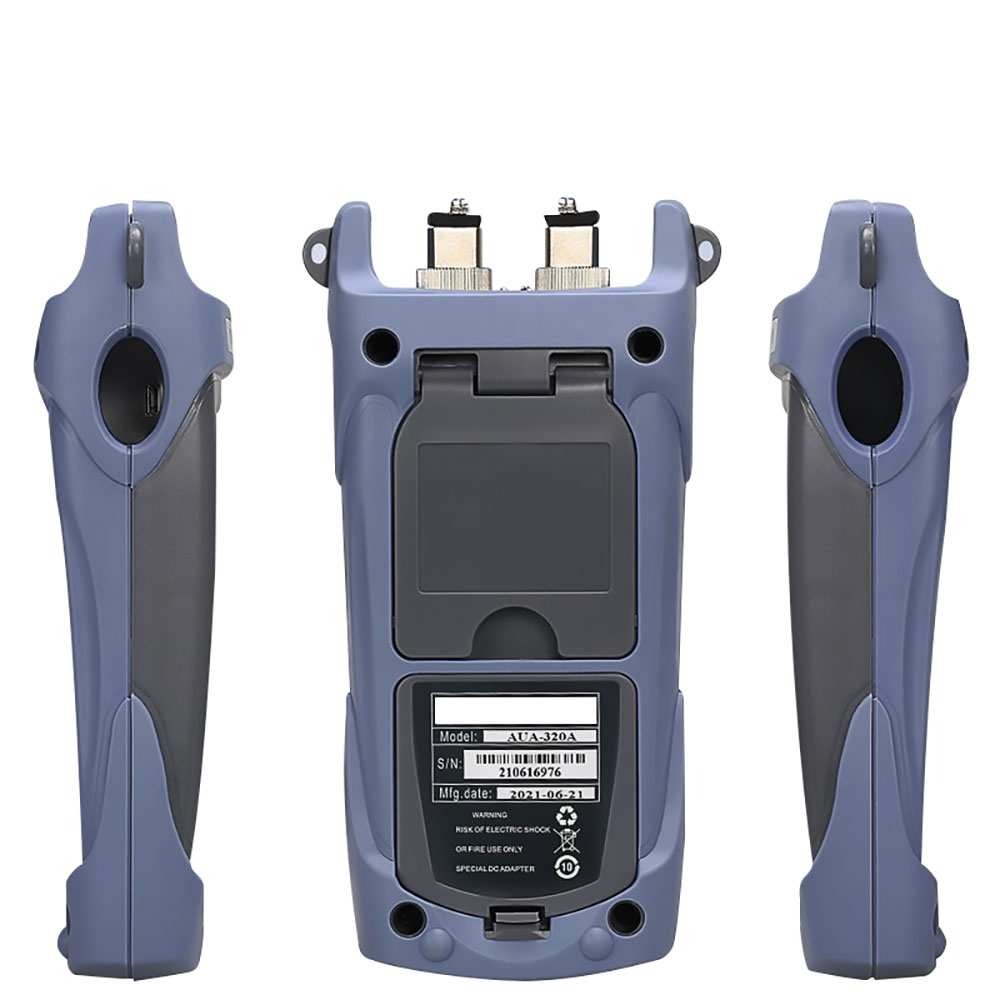

Rugged Design: Compact, and lightweight (150g) for field use in various environments.
Wide Temperature Range: Operates in -10°C to +50°C conditions.
