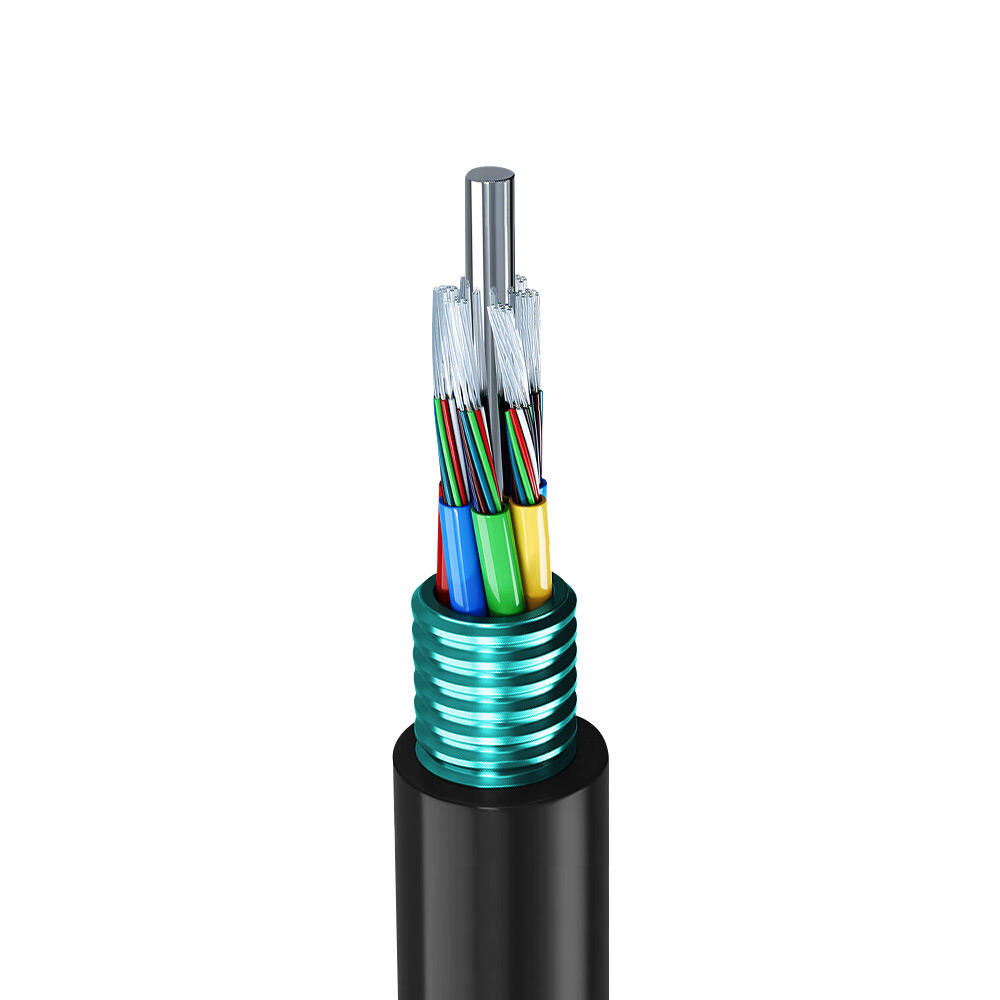

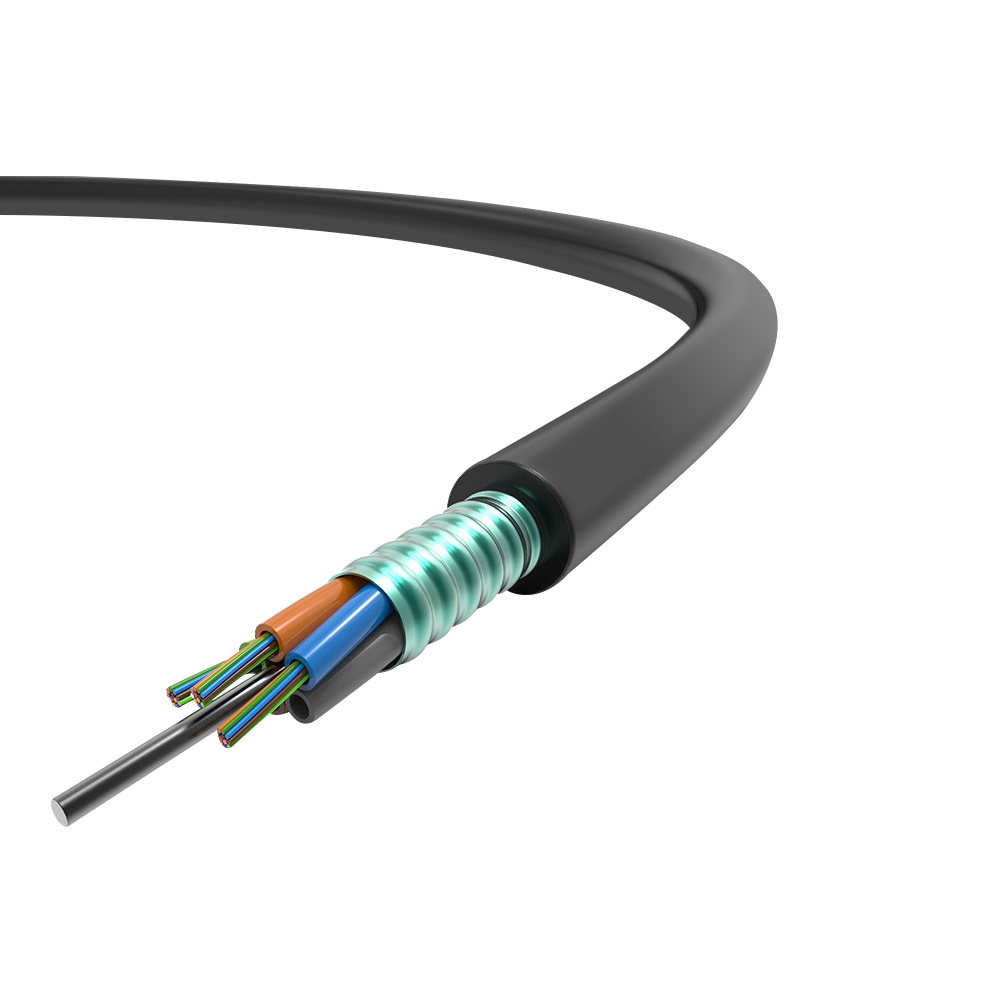

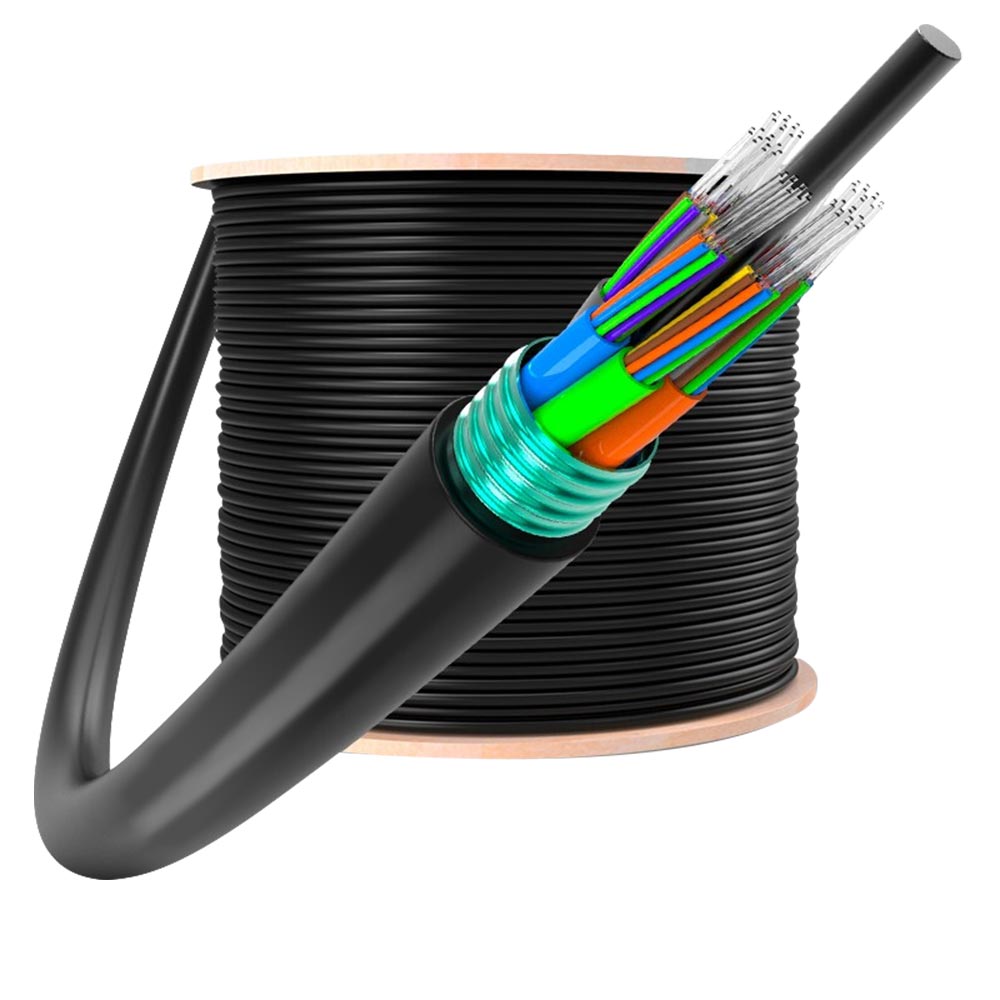

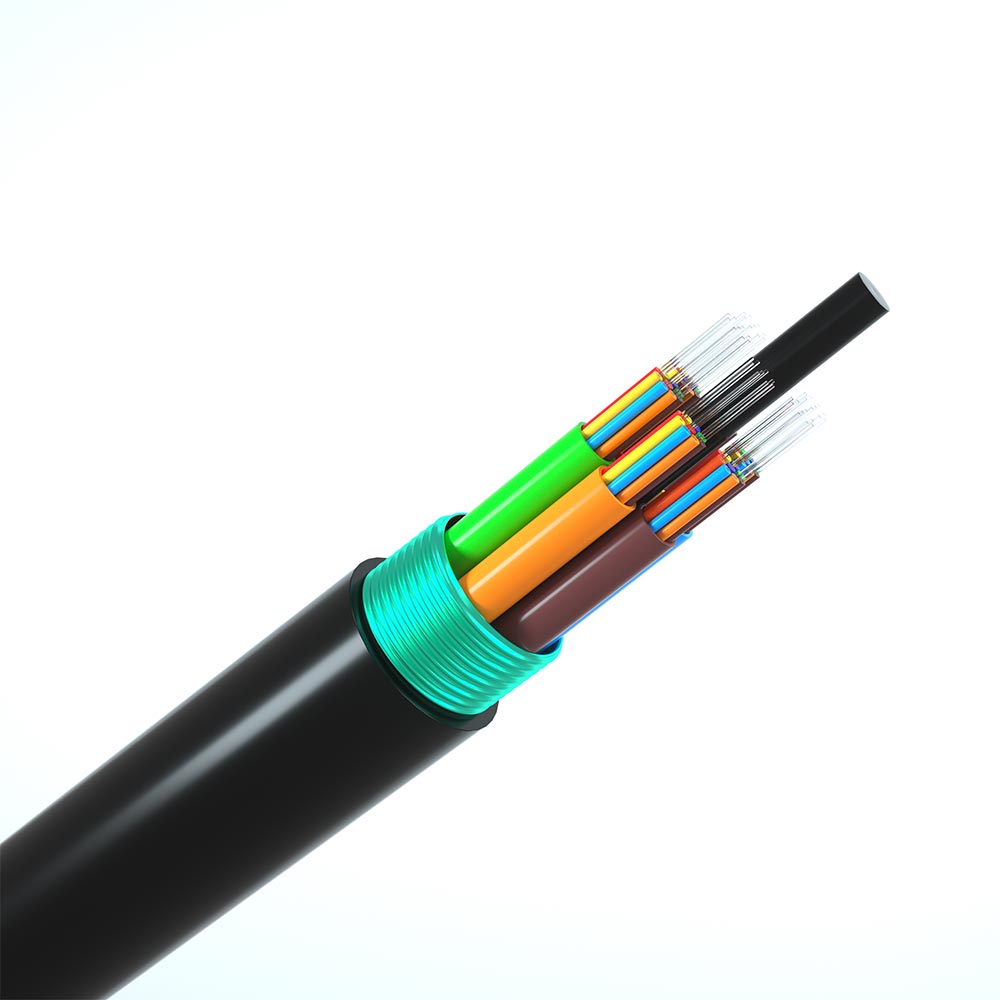

Outdoor GYTS 4 Core Aluminum Armored Aerial Duct Fiber Optic Cable, 2-288 Core Optional, Loose Tube

Armored Cable 4 Core: Strong armor made from aluminum tape offers superior mechanical protection to provide reliable performance in extreme outdoor environments.
GYTS Fiber Optic Cable: Features stranded loose tube design which gives good fiber protection and improved flexibility for differing installation conditions.
Multiple Core Options: Core counts range from 2 to 288 cores, including common 4 core and larger 144 strand fiber options for various network demands.
Aerial & Duct: Specifically designed to work for both aerial hangers and duct cable, ideal for long distance applications and back bone networks.
High Tensile Strength: The cable features steel wire strength member and aluminum armour, which can withstand high tensile strengths in use and extreme weather.
Water Blocking: The water blocking filler compounds and the PE sheath provide good resistance to moisture to ensure long term durability.
UV & Weather Resistant: the outer sheath is UV stabilized for sun, wind and rain fatigue over its working life.
Low Attenuation: High quality optical fiber ensures low loss results in efficient maximum speeds.
Easy Identification: Fiber colors are conveniently marked on the sheath to make installation easier.
Versatile Application: Suitable for telecom applications, data centre operations or FTTx projects that require Armored high capacity fiber connections.

Product Name	Outdoor GYTS Aluminum Armored Aerial Duct Fiber Optic Cable, Loose Tube, 2-288 Core Optional
Fiber Count Options	2, 4, 6, 8, 12, 24, 48, 72, 96, 144, 288 cores (customizable)
Fiber Type	Single Mode (G.652D, G.657A1/A2), Multi Mode (OM1/OM2/OM3/OM4)
Structure	Stranded loose tube, filled with water-blocking gel
Strength Member	Central steel wire
Armoring	Aluminum tape armored
Sheath Material	UV-resistant black PE (Polyethylene)
Installation Method	Suitable for aerial and duct (overhead or pipeline)
Operating Temperature	-40°C to +70°C
Outer Diameter	8.0mm – 18.0mm (varies by fiber count)
Max Tensile Strength	1500N (short term), 600N (long term)
Max Crush Resistance	3000N/100mm (short term), 1000N/100mm (long term)
Minimum Bending Radius	10 x cable diameter (static), 20 x cable diameter (dynamic)
Water Blocking	Full cross-section water-blocking structure
UV & Weather Resistance	Excellent, suitable for outdoor environments
Compliance	IEC 60794, YD/T 901-2009, RoHS compliant
Application	Backbone network, FTTx, data center, telecom, outdoor aerial and duct installation

Cable Type	Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Tensile Strength (N) (Short-term / Long-term)	Crush Resistance (N/100mm) (Short-term / Long-term)
GYTS	2–30	10.0	110	1500 / 600	1000 / 300
	32–36	10.7	132	1500 / 600	1000 / 300
	38–60	11.4	139	1500 / 600	1000 / 300
	62–72	12.0	165	1500 / 600	1000 / 300
	74–96	13.8	204	2000 / 600	1000 / 300
	98–120	15.3	240	2000 / 600	1000 / 300
	122–144	17.0	284	2500 / 600	1000 / 300
	146–216	17.1	285	2500 / 600	1000 / 300
	218–288	19.5	350	3000 / 1000	1000 / 300
