Outdoor ADSS Fiber Optic Cable – Single Mode, 6/12/24/48/64 Core, PE Outer Sheath

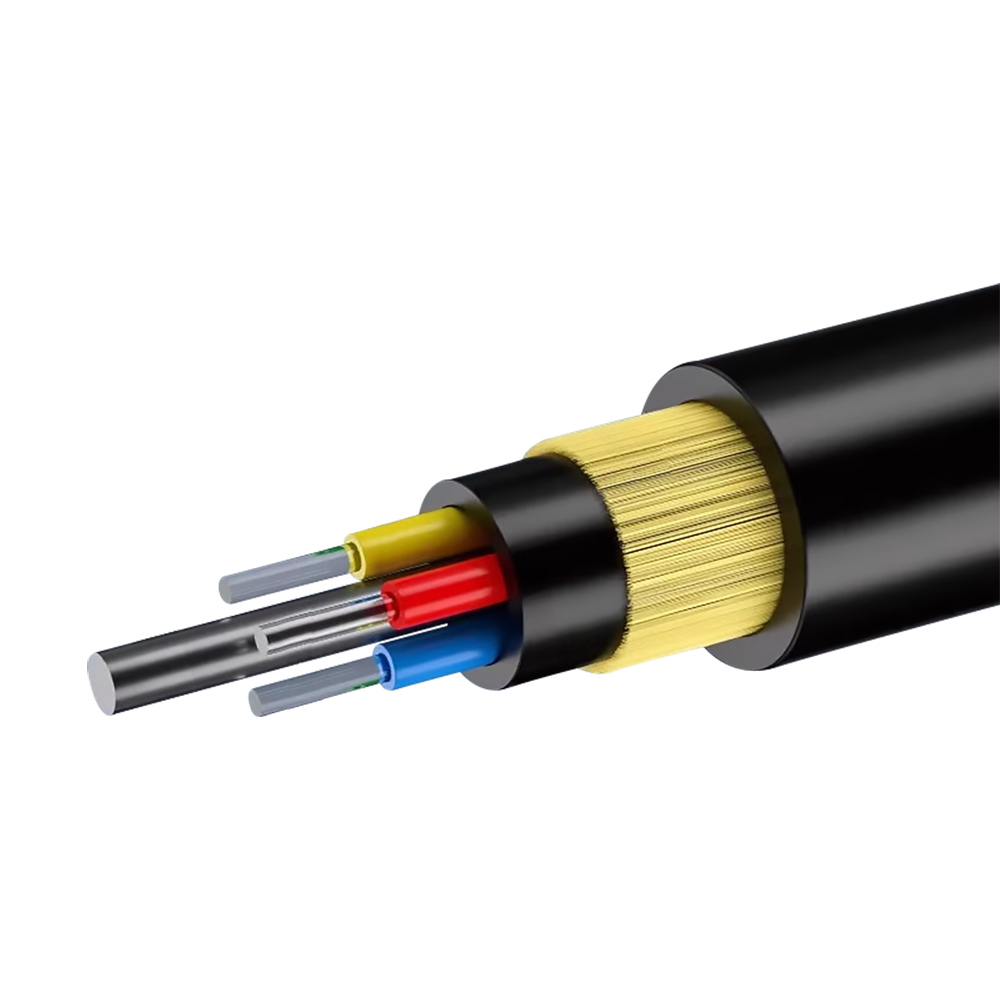

The fully self supporting structure of the ADSS, together with its non-metallic central strength member, allows aerial deployment without any additional support structures.

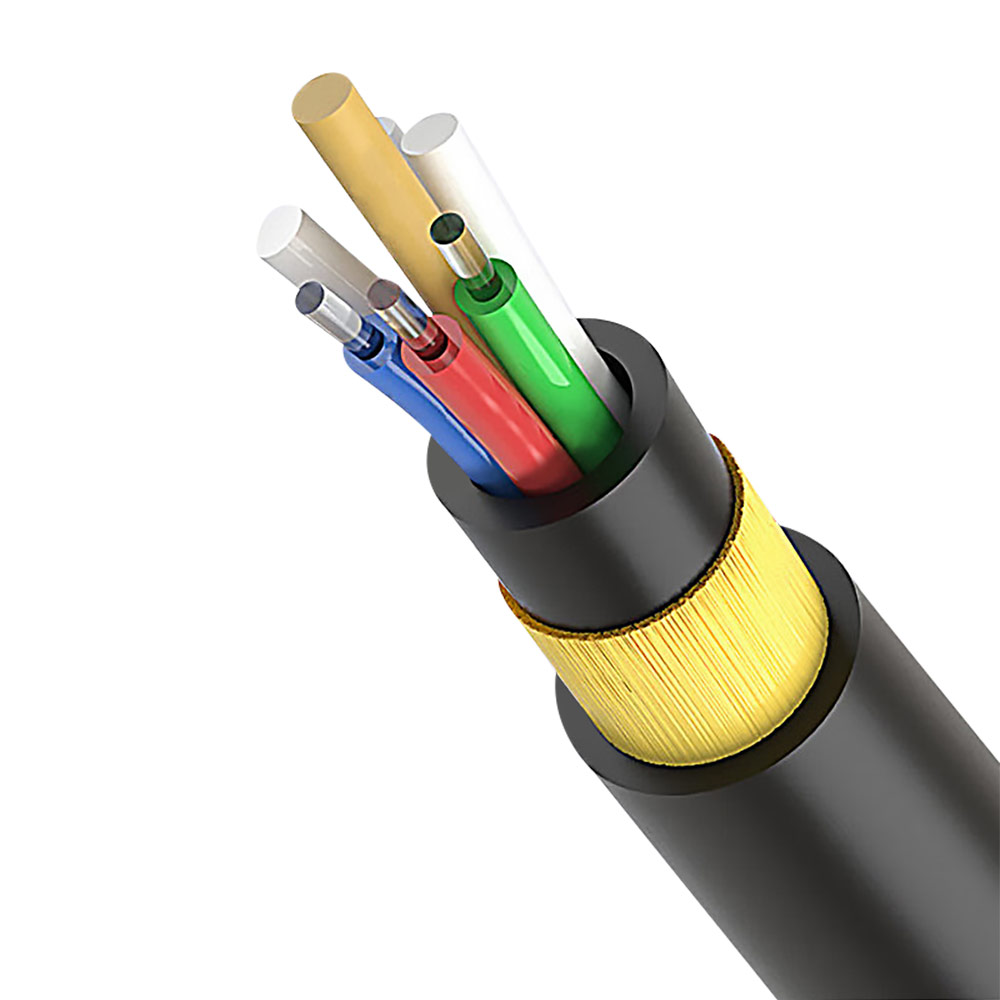

The use of aramid yarn reinforcement and a central rod made from FRP provides the ADSS with high tensile strength and excellent mechanical durability as well as stretching and bending resistance.
The double outer sheath of PE and AT protects the cable from water, UV radiation, corrosion and wear and tear. This prolongs the cable’s operational life.
The loose tube contains water-blocking gel and tape to prevent moisture ingress and to ensure reliable performance even under extreme weather conditions.
The ADSS uses high quality G.652D single mode optical fibers with excellent low attenuation (≤0.22 dB/km at 1550nm), delivering fast, stable, low-loss data transmission across long distances.
The loose tube extruded from PBT material protects the optical fiber from external forces, including microbending of the optical fiber when installed.
The ADSS cable operates in a wide temperature range, from -40°C to +70°C, allowing any network to be deployed in various climate conditions.
The ADSS cable passes the mechanical and environmental tests in accordance with IEC (tensile load, crush, impact, bending, torsion, water penetration), ensuring reliable behavior even in challenging outdoor conditions.
The ADSS is offered in several core counts (6, 12, 24, 48, 64) to accommodate a diverse range of network requirements.

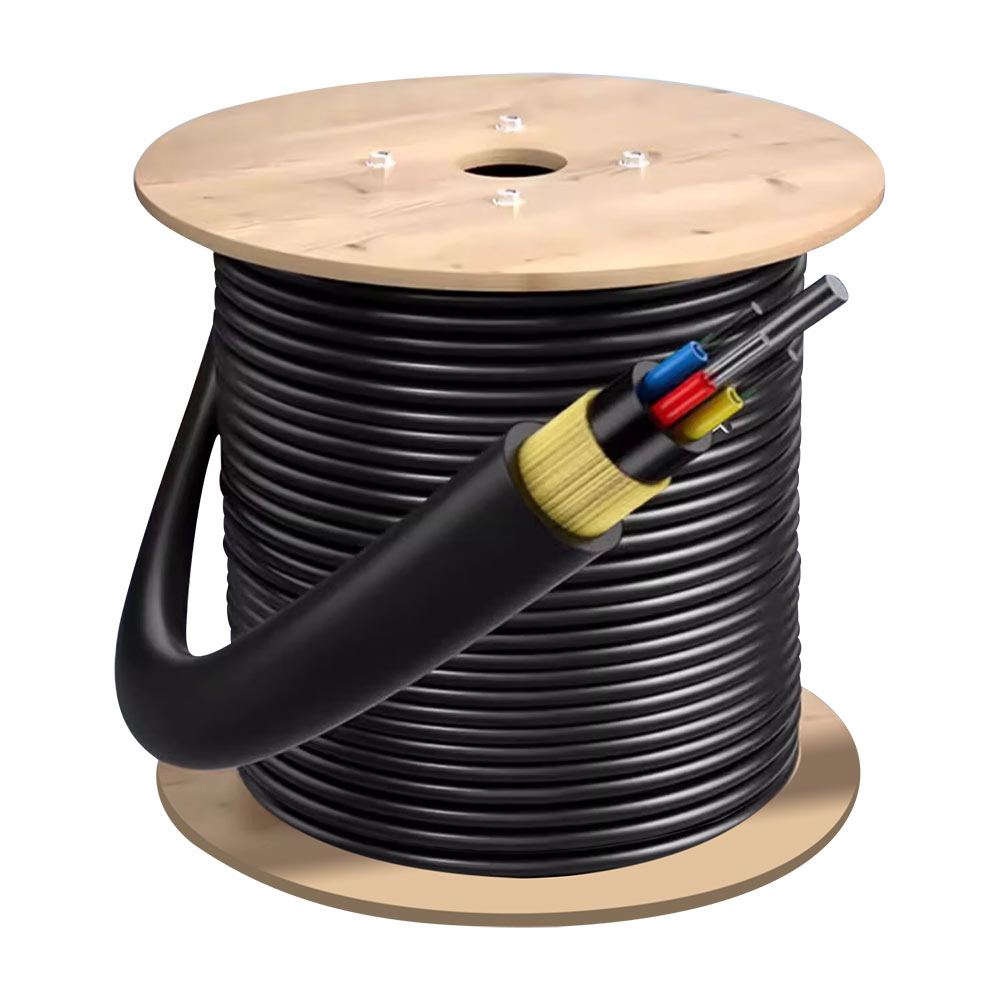

The ADSS cable is lightweight and easy to install. It is an ideal cable for outdoor telecommunications deployment, including base station and surveillance network applications.

Price range: $0.49 through $6.00

Categories: Fiber Optic Cables, Outdoor Fiber Optic Cables

Description

Parameter	Specification
Product Type	Outdoor ADSS (All-Dielectric Self-Supporting) Fiber Optic Cable
Fiber Type	Single Mode G.652D / G.657A
Fiber Count Options	4, 6, 12, 24, 48, 64 cores (also available up to 144 cores)
Fiber Diameter (Core/Cladding)	9 µm / 125 µm
Coating Diameter	245 ± 5 µm
Attenuation	≤ 0.36 dB/km @1310 nm; ≤ 0.22 dB/km @1550 nm
Chromatic Dispersion	≤ 3.5 ps/(nm·km) @1310 nm; ≤ 18 ps/(nm·km) @1550 nm; ≤ 22 ps/(nm·km) @1625 nm
Zero Dispersion Wavelength	1300–1324 nm
Zero Dispersion Slope	≤ 0.092 ps/(nm²·km)
Mode Field Diameter	9.2 ± 0.4 µm @1310 nm
Core-Clad Concentricity Error	≤ 0.5 µm
Proof Test Level	≥ 0.69 GPa

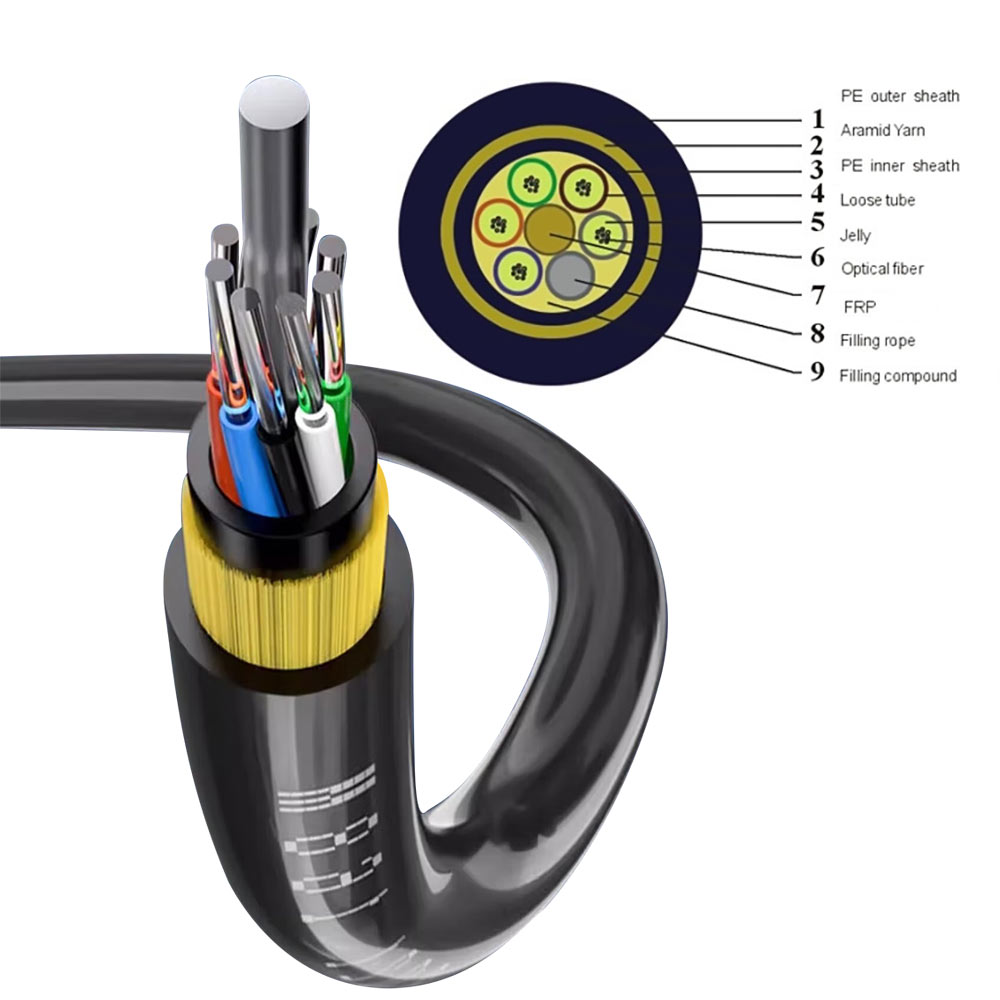

Loose Tube Material	PBT (Polybutylene Terephthalate)
Loose Tube Diameter	2.0 ± 0.1 mm (varies slightly with core count)
Tube Filling Compound	Water-blocking gel (thixotropic jelly)
Central Strength Member	Non-metallic FRP rod, diameter approx. 1.6–2.7 mm
Strength Member Reinforcement	Aramid yarn for tensile strength and durability
Inner Sheath Material	Polyethylene (PE)
Outer Sheath Material	Double-layer PE/AT (Anti-Tracking) black sheath with UV, water, and corrosion resistance
Outer Sheath Thickness	Approx. 1.5–2.0 mm
Cable Diameter	10.0 ± 0.3 mm (6-24 cores); up to 12.0–13.5 mm for higher core counts
Cable Weight	Approx. 66–110 kg/km depending on core count
Maximum Span Length	Up to 1000 m typical, can reach 1200 m+ depending on installation conditions
Tensile Strength (Short-Term)	1500 N to 5000 N (model dependent)
Tensile Strength (Long-Term)	600 N to 4000 N
Crush Resistance	≥ 300 N/100 mm (short term), up to 3400 N/10 cm in some models
Bending Radius	Static: 10× cable diameter; Dynamic: 20× cable diameter
Operating Temperature Range	-40°C to +70°C
Installation Temperature Range	-20°C to +60°C
Storage/Transport Temperature	-50°C to +70°C
Water Penetration	No leakage after 24-hour water immersion test
UV Resistance	Excellent, due to PE/AT sheath with added UV stabilizers
Rodent Resistance	Available with rodent-repellent outer sheath options
Mechanical Test Standards	IEC 60794 series: tensile load, crush, impact, bending, torsion, water penetration tests
Certifications	CCC, RoHS, CE
Color	Black outer sheath
Typical Applications	Outdoor aerial telecom, base stations, surveillance networks, power line installations, harsh environment use
