| Fiber Type | OM4 50/125μm Multimode Loose Tube Fiber Optic Cable |
| Core Count Options | 4, 6, 8, 12, 24 |
| Cable Construction | Loose tube, gel-filled (non-dripping, silicon-free), E-glass strength member |
| Outer Jacket Material | LSZH (Low Smoke Zero Halogen), flame retardant |
| Jacket Color | Erika Violet or Magenta (easy identification) |
| Supported Data Rates | 10Gbps (up to 550m), 40Gbps/100Gbps (up to 125m), backward compatible with 1G/4G/8G/16G/25G |
| Bandwidth @ 850nm | ≥ 4700 MHz·km (Effective Modal Bandwidth), ≥ 3500 MHz·km (Overfilled Launch) |
| Bandwidth @ 1300nm | ≥ 500 MHz·km |
| Attenuation @ 850nm | ≤ 3.0~3.5 dB/km |
| Attenuation @ 1300nm | ≤ 1.0~1.5 dB/km |
| Cladding Diameter | 125 ± 1.0 μm |
| Core Diameter | 50 ± 2.5 μm |
| Cable Diameter | Approx. 6.5mm (4 cores), 6.6mm (6 cores), 7.0mm (8/12 cores), 8.5mm (24 cores) |
| Cable Weight | 34kg/km (4 cores), 36kg/km (6 cores), 39kg/km (8 cores), 43kg/km (12 cores), 63kg/km (24 cores) |
| Minimum Bend Radius | 20x cable diameter (installation), 10x cable diameter (operation) |
| Tensile Strength | 800N (≤12 cores, install), 1100N (>12 cores, install); 400N (≤12 cores, working), 550N (>12 cores, working) |
| Crush Resistance | 1000N (installation), 300N (operation) |
| Operating Temperature | -20°C to +60°C (typical), installation -5°C to 40°C, storage -40°C to 80°C |
| Water & UV Resistance | Yes, suitable for direct burial, duct, and outdoor use |
| Rodent Protection | Armoured version available |
| Fire Safety Compliance | IEC 60332-1, IEC 60754-1/2, IEC 61034, EN 13501-6, Euroclass Cca-s1a-d0-a1 |
| Standards Compliance | ISO/IEC 11801, EN 50173, TIA/EIA-568, IEC 60793-2-10 (A1a.3), ITU-T G.651, RoHS |
| Fiber Color Coding | Standard IEC/EN color coding |
| Connector Compatibility | Compatible with LC, SC, MPO/MTP, and other standard multimode connectors |

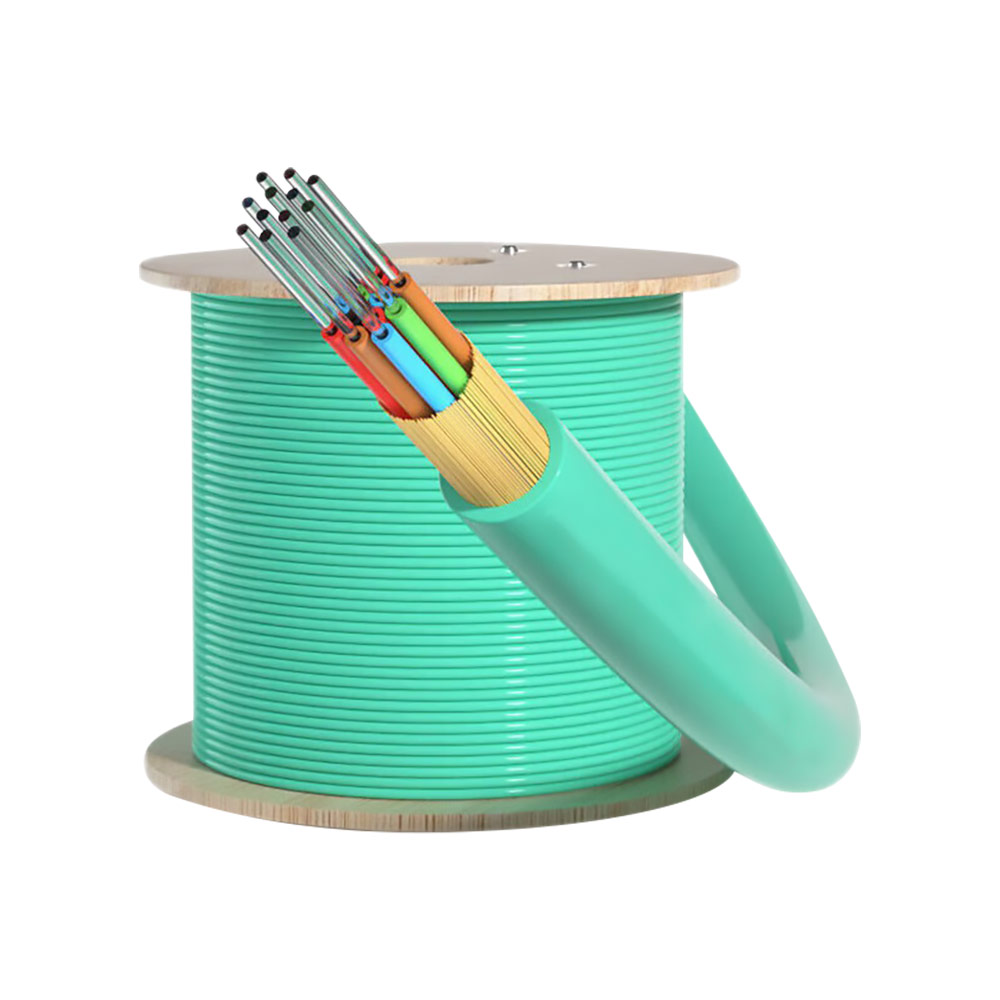

| Custom Lengths | Available by the meter, sequential meter marking |
| Warranty | Up to 25 years |
Hot

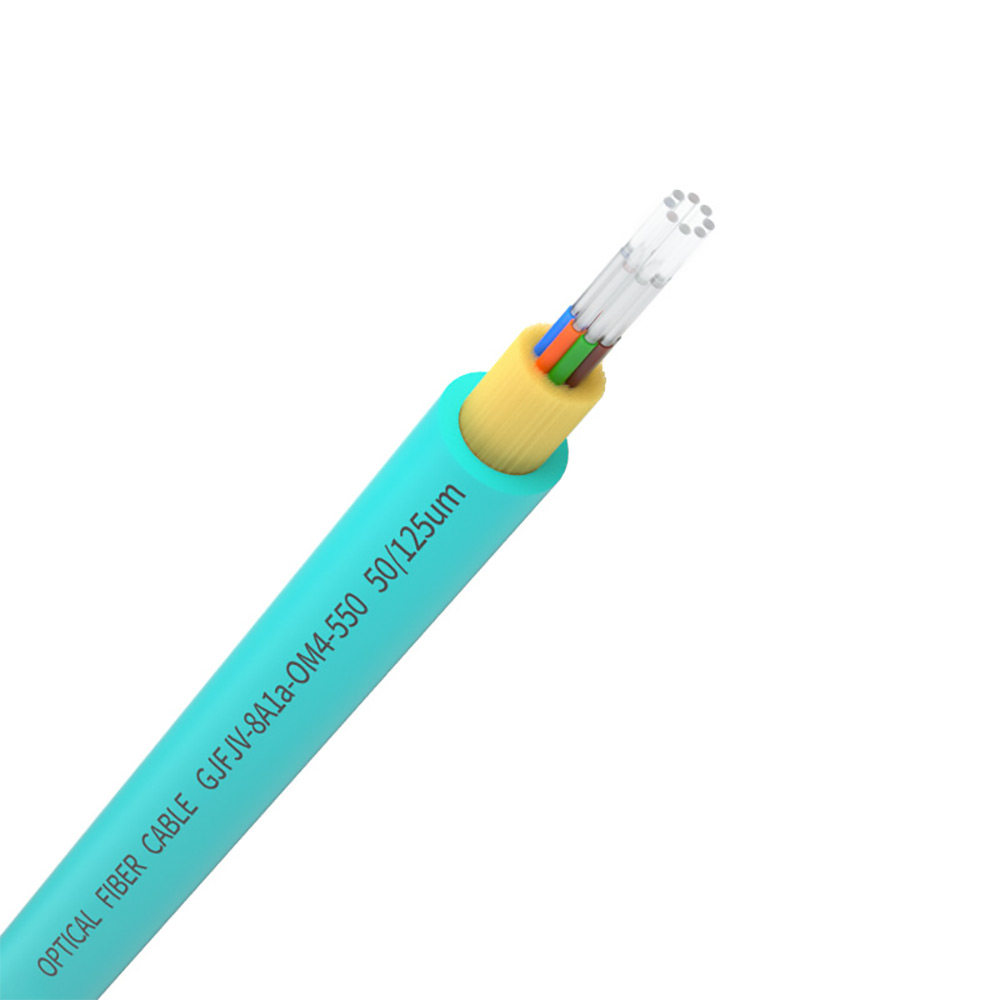

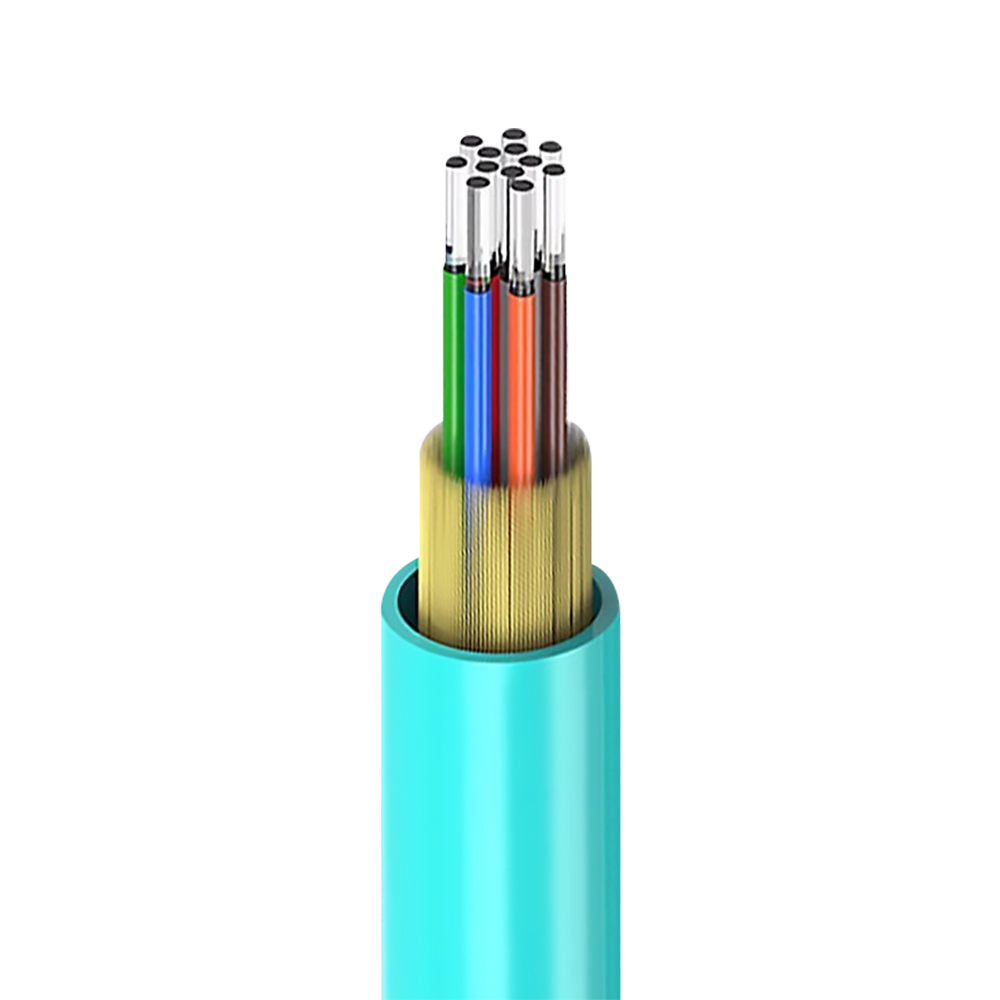

OM4 50/125 Multimode Loose Tube Fiber Optic Cable, 10/40/100Gbps, LSZH Jacket
- Multiple Core Options: Available in 4, 6, 8, 12, or 24 fiber cores, allowing you to select the correct capacity to suit your network needs while selecting the correct cable.
- High Speed Transmission: 10Gbps up to 550m and fully compatible with 40/100Gbps applications, ideal for high-bandwidth environments.
- OM4 50/125μm Fiber: Provides more bandwidth and lower attenuation for quality reliable high-performance data transfer.

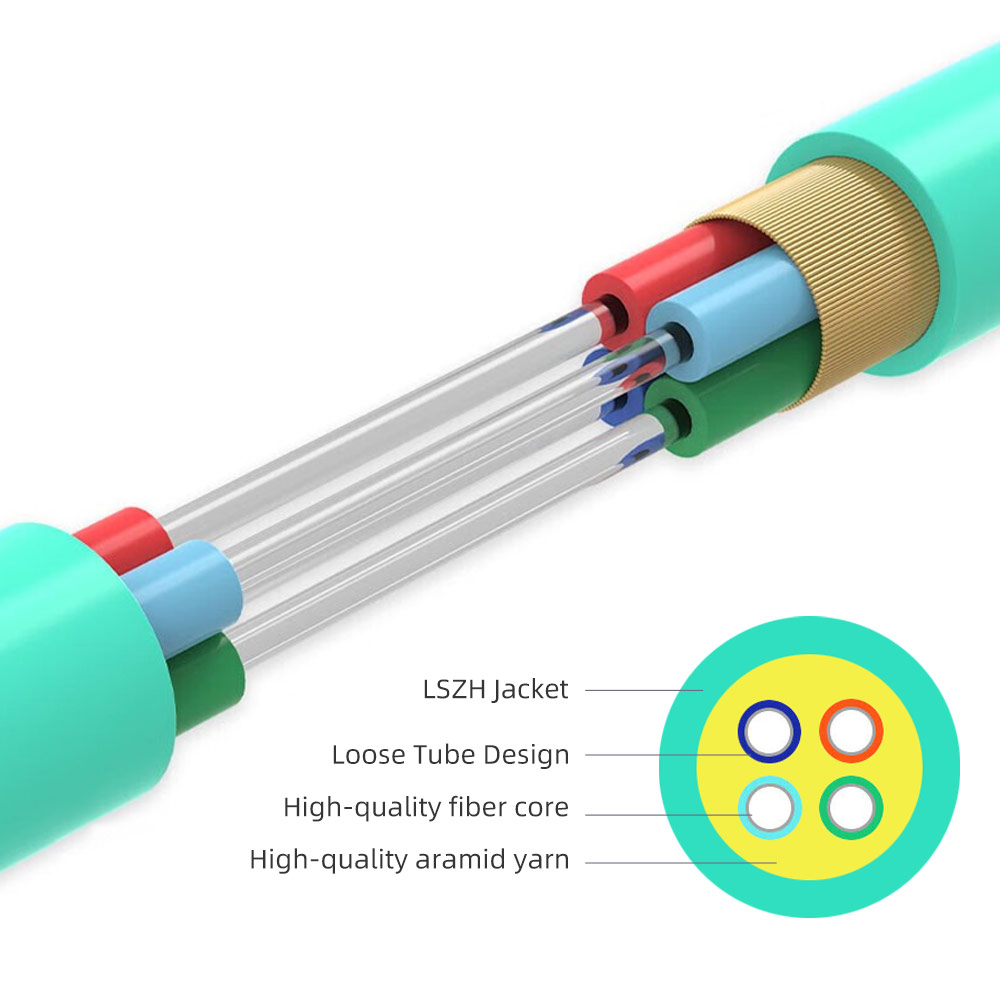

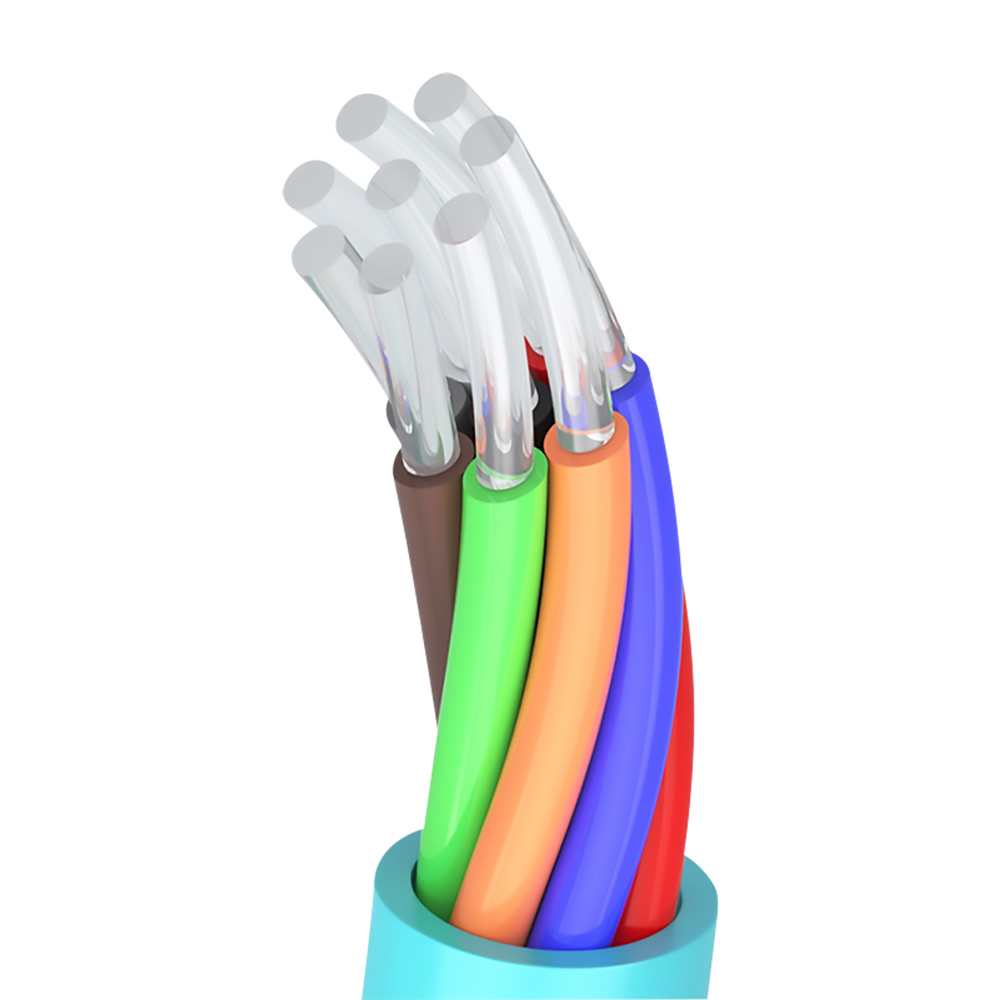

- Loose Tube Design: Gel-filled, non-dripping and silicon-free tubes are used to protect the fibers from moisture and hardness and can be used for indoor and outdoor installations.
- LSZH Outer Jacket: A Low Smoke Zero Halogen material that limits toxic emissions and enhances the fire resistivity qualities in sensitive areas.
- Flexible & Easy to Install: Cable is lightweight, compact and bend-insensitive for easier installations in confined areas.
- Rugged & Durable: Armoured cable versions offer added protection against rodent issues as well as harsh environments.
- Water & UV Resistant: Direct burial suitable, duct or simply exposed locations ensure long-term viability.
- Flame Retardant: No additional materials to consider. Successfully meets IEC and EN fire standards for peace of mind when in service.
- Custom Lengths: Cut to your length for flexibility—eliminating waste.
