| Model | OM3 24 Core Loose Tube Fiber Optic Breakout Cable |
| Fiber Type | OM3 Multimode, 50/125μm |
| Fiber Count | 24 cores (other options: 4/6/8/12/24) |

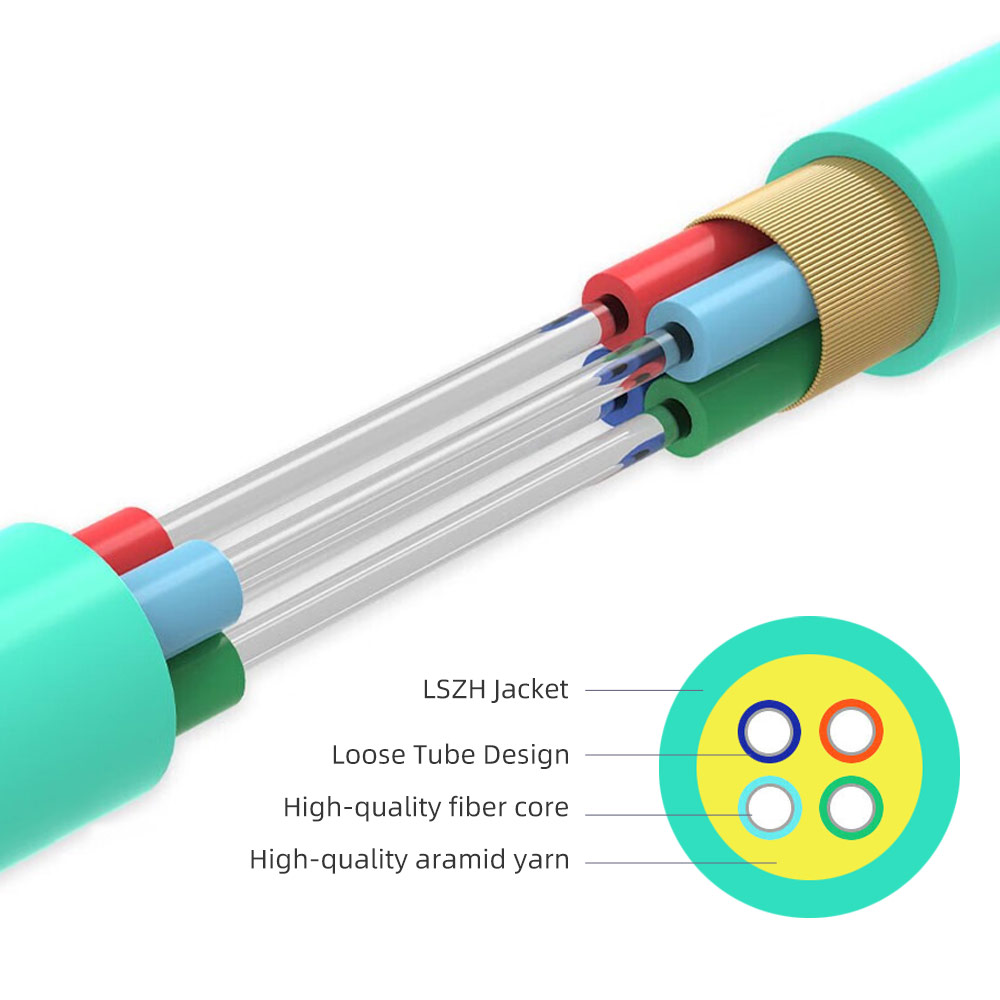

| Construction | Loose tube, tight-buffered, breakout structure |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Outer Jacket Color | Aqua (Pantone 325C) |
| Strength Member | Aramid yarn (Kevlar) |
| Tight Buffer Diameter | 0.9 mm |
| Cable Diameter | Typically 4.6 ± 0.2 mm (varies by core count) |
| Compliance Standards | TIA/EIA-492 AAAC-B, IEC 60793-2-10 Type A1a.2, ISO/IEC 11801 OM3, ITU G.651.1 |
| Core Diameter | 50.0 ± 2.5 μm |
| Cladding Diameter | 125 ± 1.0 μm |
| Coating Diameter | 245 ± 7 μm |
| Core Non-Circularity | <5.0% |
| Cladding Non-Circularity | ≤1.0% |
| Core-Clad Concentricity | ≤1.0 μm |
| Coating-Clad Concentricity | ≤10 μm |
| Maximum Attenuation @ 850nm | ≤2.4 dB/km |
| Maximum Attenuation @ 1300nm | ≤0.6 dB/km |
| Bandwidth (Overfilled Launch) @ 850nm | ≥1500 MHz·km |
| Bandwidth (Overfilled Launch) @ 1300nm | ≥500 MHz·km |
| Numerical Aperture | 0.200 ± 0.015 |
| Macrobending (2 turns, 7.5mm radius) | ≤0.2 dB @ 850nm, ≤0.5 dB @ 1300nm |
| Macrobending (2 turns, 15mm radius) | ≤0.1 dB @ 850nm, ≤0.3 dB @ 1300nm |
| Optimized Data Rate | 10Gbps up to 300m, 40Gbps up to 100m |
| Tensile Strength (Long/Short Term) | 60N / 100N |
| Crush Resistance (Long/Short Term) | 100N/100mm² / 500N/100mm² |
| Minimum Bend Radius (Install/Long Term) | 20× cable diameter / 10× cable diameter |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Application | Indoor backbone, horizontal cabling, data center, equipment room |
| Fiber Color Coding | Blue, Orange, Green, Brown, Gray, White (for 6C); standard color code for 24C |
| Print Legend | ELITE 24C OPTICAL CABLE-300M/10G OM3 OPTICAL FIBER LSZH |
