| Specification | Details |
|---|---|
| Product Name | MTP OM4 Female to MTP OM4 Female Patch Cable |
| Fiber Count | 12 fibers (also available in 8, 24, 48 fibers) |
| Fiber Type | OM4 50/125μm Multimode |
| Polarity | Type B (Reversed) |
| Connector Type | MTP Female to MTP Female (US Conec) |
| Polish Type | UPC (Ultra Physical Contact) |
| Jacket Type | LSZH (Low Smoke Zero Halogen) |
| Jacket Diameter | 3.0 mm |
| Wavelength | 850/1310 nm |
| Attenuation @ 850 nm | ≤2.3 dB/km |
| Attenuation @ 1310 nm | ≤0.6 dB/km |
| Insertion Loss MPO | 0.35 dB Max (0.15 dB Typical) |
| Return Loss MPO | ≥20 dB |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | -10°C to +70°C |
| Installation Tensile Load | 66 N |
| Long Term Tensile Load | 50 N |
| Minimum Bend Radius | 7.5 mm |
| Fiber Color | Violet/Magenta |
| Glass Fiber Manufacturer | YOFC |
| Length Options | 1 to 50 meters |
| Standards Compatibility | 100GBASE-SR4, 40GBASE-SR4, and other high-density standards |
Hot

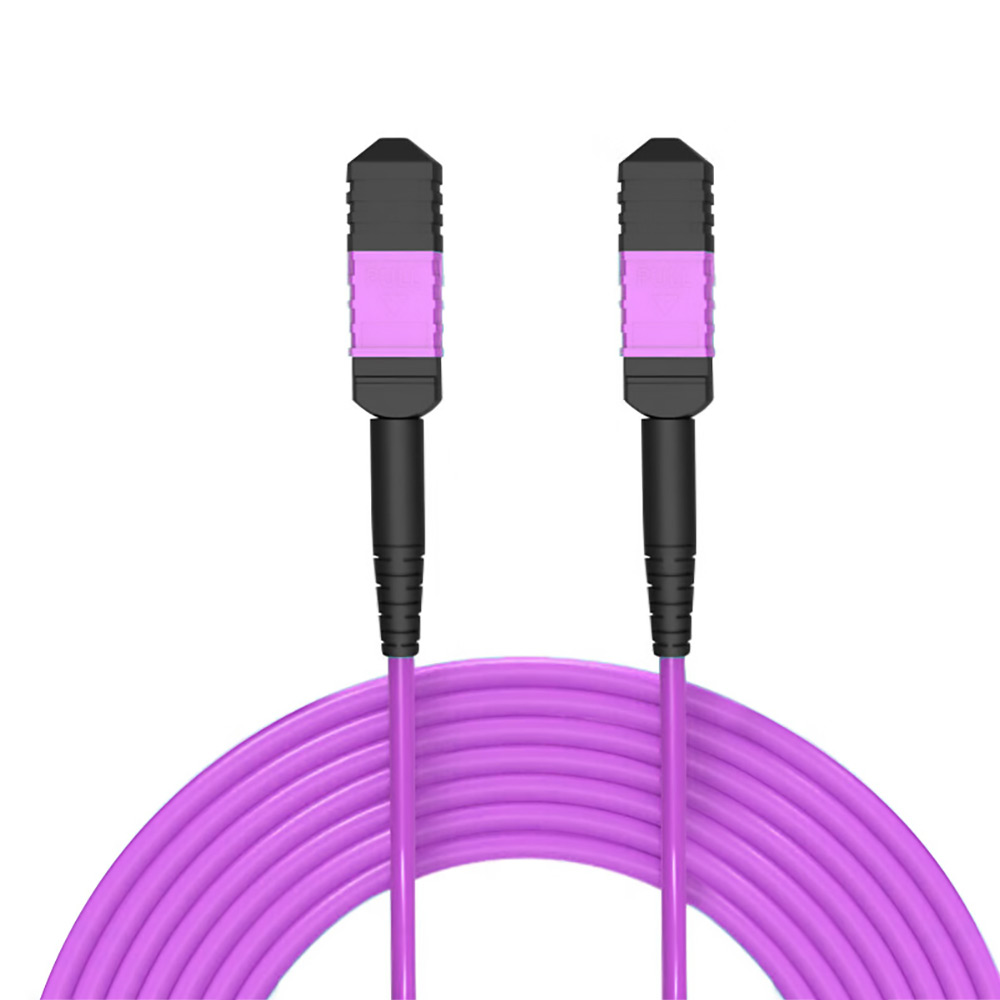

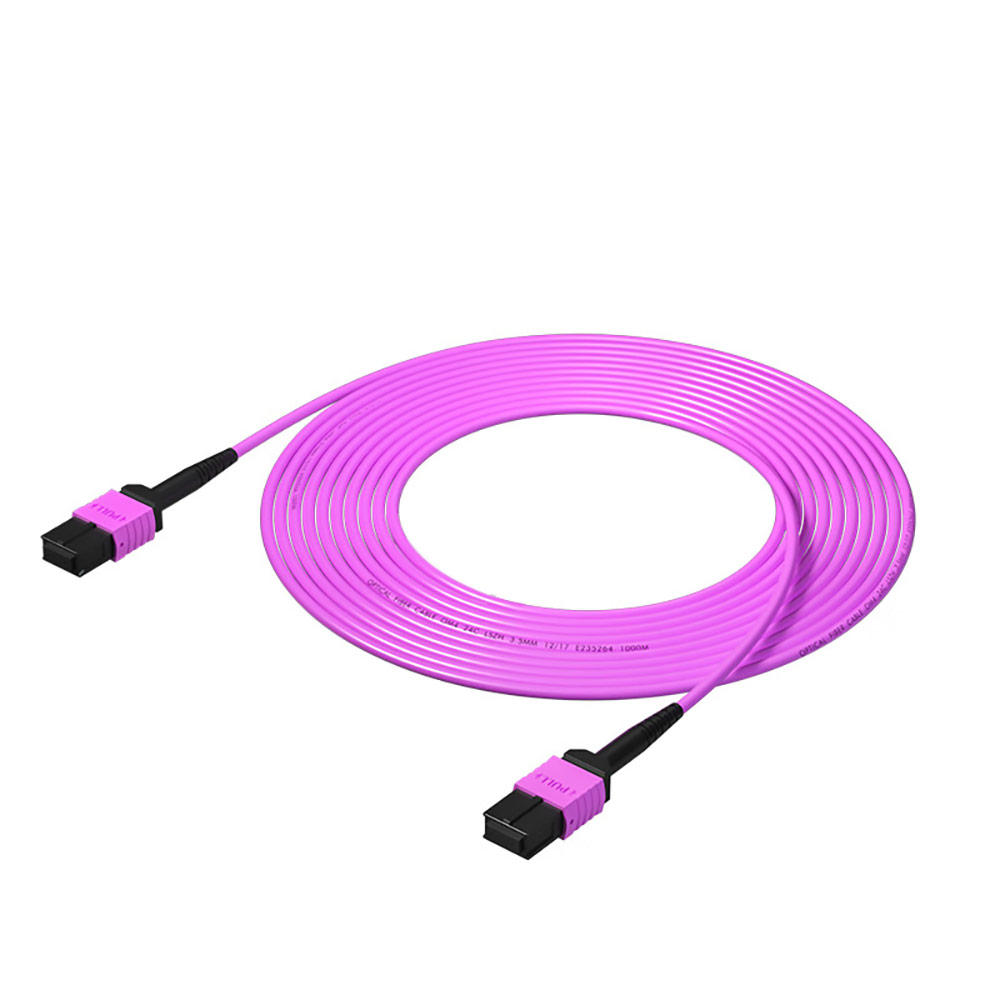

MTP to MTP OM4 12 Strand Multi-Fiber Patch Cable, Type B, Female-Female, LSZH, UPC, 100G

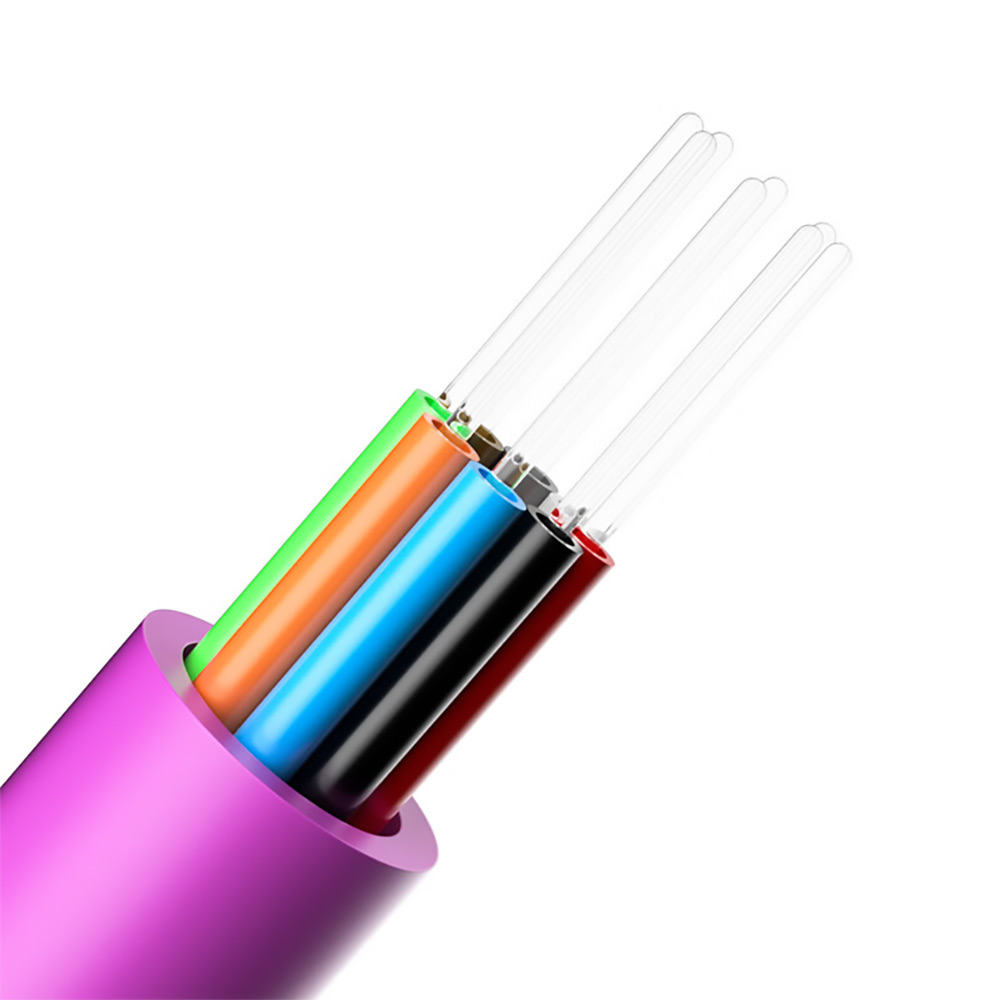

- 12-Strand OM4 Fiber: This high-performance OM4 fiber allows for ultra-fast data transmission while providing higher bandwidth for enhanced functionality to support 100G solutions.
- Type B Polarity (Reversed): Ensures proper signal alignment for parallel optics systems and also protects the integrity of the network.

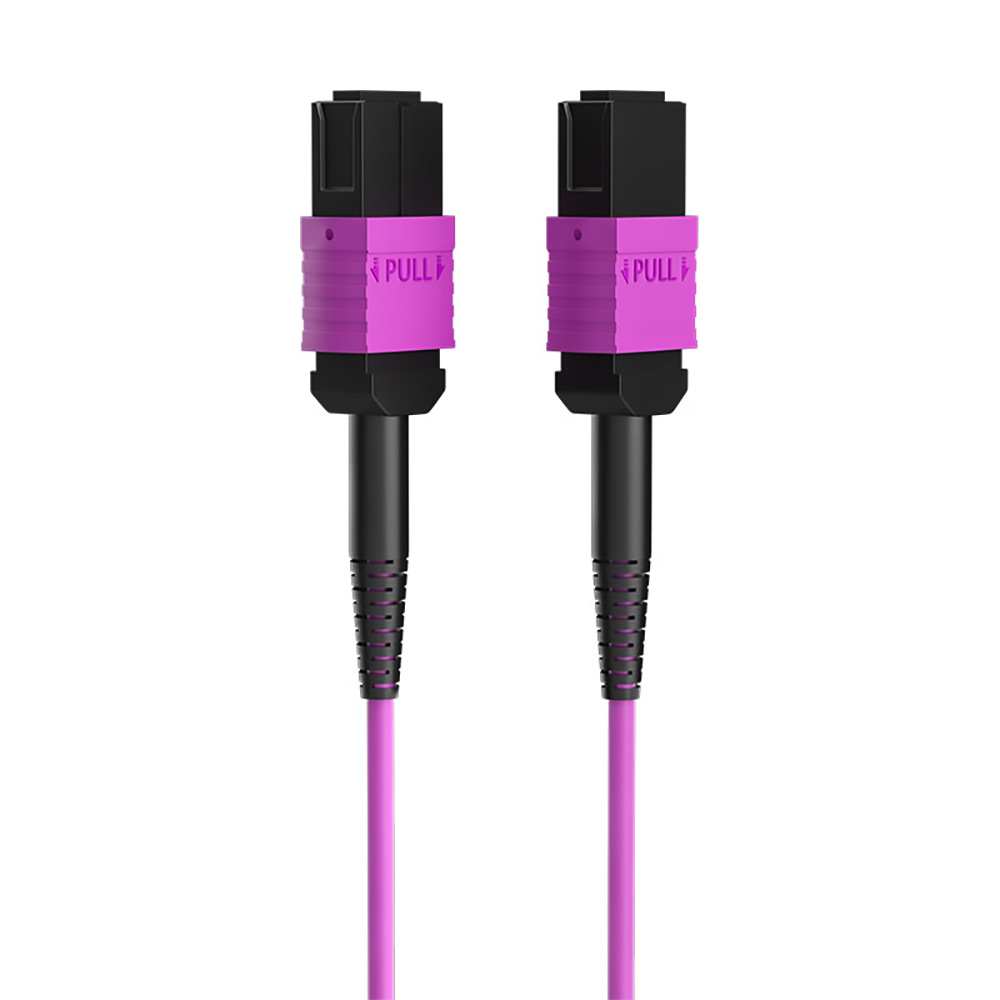

- MTP Female to MTP Female Connectors: Designed for high-density environments, these connectors offer easy and plug-and-play connections.
- UPC Polish: The Ultra Physical Contact polish dramatically reduces back reflection (helps with signal quality and loss).
- Flexible Lengths: The cable is available in custom lengths from 1 meter to 50 meters to easily deploy at any length you need.
- Multiple Fiber Counts: Available in multiple counts including 8, 12, 24, or even 48 fibers for network expansion.
- Optimized for 100G and 40G Networks: the fiber can support 100GBASE-SR4, 40GBASE-SR4, or any high-density standard.
- High-Quality Construction: Very durable in construction to support the demands of a data center environment while still providing stability.
- Natural Fiber Distribution: The product is designed with a natural distributed OM4 cable to blend seamlessly with any existing distribution.
