| Specification | Details |
|---|---|
| Product Type | MTP/MPO Female Multi-Fiber Patch Cable |
| Fiber Count | 12 strands (also available in 8, 24, 48 strands) |
| Fiber Type | OM4 Laser-Optimized Multimode Fiber (LOMMF) |
| Core/Cladding Diameter | 50/125 µm |
| Polarity | Type B (Method B) – reversed polarity for correct Tx/Rx signal alignment in parallel optics |
| Connector Type | MTP/MPO Female to MTP/MPO Female (no pins, single push-on enclosure) |
| Connector Polish | UPC (Ultra Physical Contact) polish on both ends |
| Insertion Loss | Typical ≤0.30 dB; Maximum 0.50 dB |
| Return Loss | Typical ≥25 dB |
| Jacket Material | OFNP (Optical Fiber Non-conductive Plenum) – plenum-rated for fire safety compliance |
| Jacket Color | Aqua (standard for OM4 multimode fiber patch cables) |
| Bandwidth | 3500 MHz·km @ 850 nm; 4700 MHz·km @ 1300 nm |
| Supported Network Speeds | 1G, 10G, 40G, 100G Ethernet |
| Maximum Transmission Distance | 100GBase-SR10: 150 meters; 40GBase-SR4: 150 meters; 10GBase-SR: 400 meters; 1GBase-SX: 550 meters |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Compliance | RoHS Compliant; ANSI/TIA/EIA-455-171-A-2001 attenuation standards |
| Quality Control | Fully tested and inspected by qualified fiber optic technicians |
| Warranty | Lifetime warranty |
| Length Options | Custom lengths from 0.5 meters up to 300+ meters |
| Applications | Data centers, high-density network environments, telecommunications, enterprise networks |
| Connector Compatibility | Compatible with MTP® (US Conec registered trademark) connectors and QSFP28 transceivers |
-31%

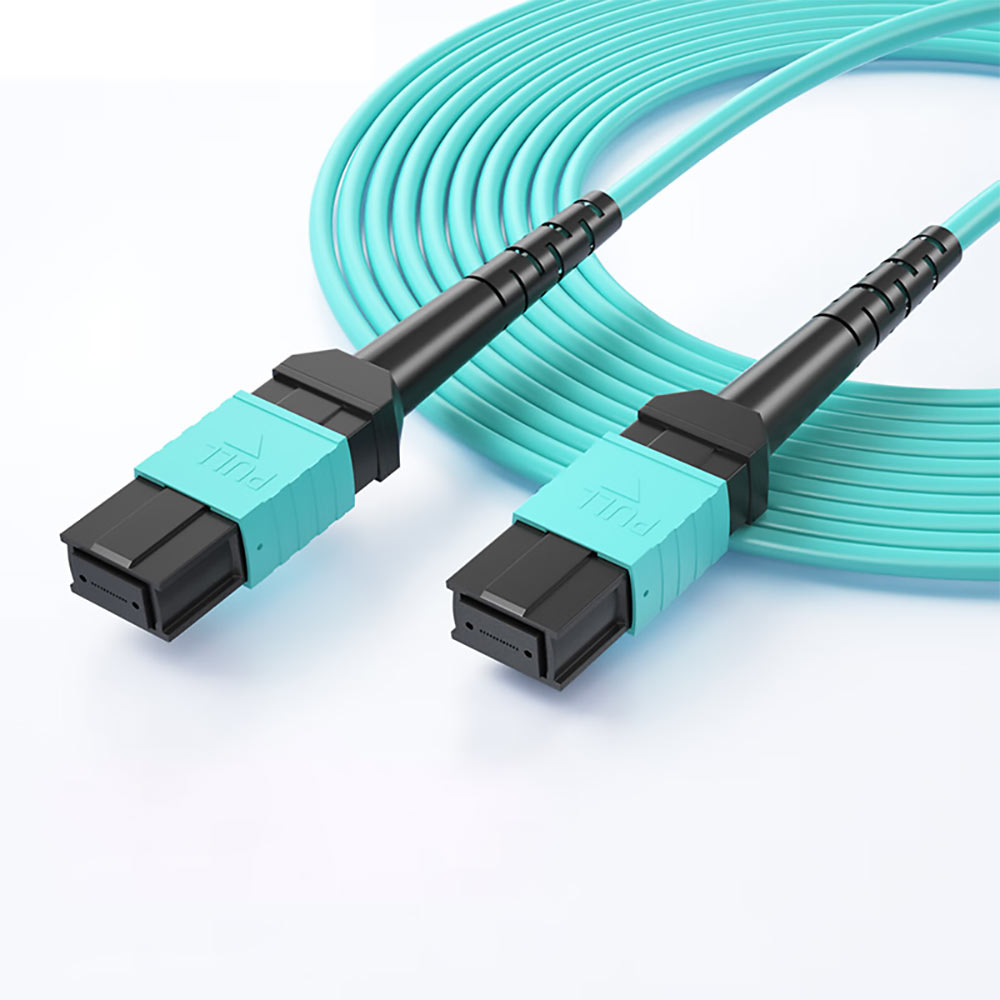

MTP/MPO to MTP/MPO 12 Strand Female Multi-Fiber Patch Cable, OM4, Type B, OFNP, 100G
- 12 Strand Female MTP/MPO Connectors: Space saving, high density fiber connectivity.
- OM4 Multimode Fiber: Optimized for 850nm, high bandwidth and extended reach.
- Type B Polarity: Correctly aligns transmit and receive signals for parallel optics.
- OFNP Plenum Rated Jacket: Fire safety rating suitable for installations in plenum spaces.
- Low Insertion Loss: High level of precision guarantees low signal loss and improved performance.

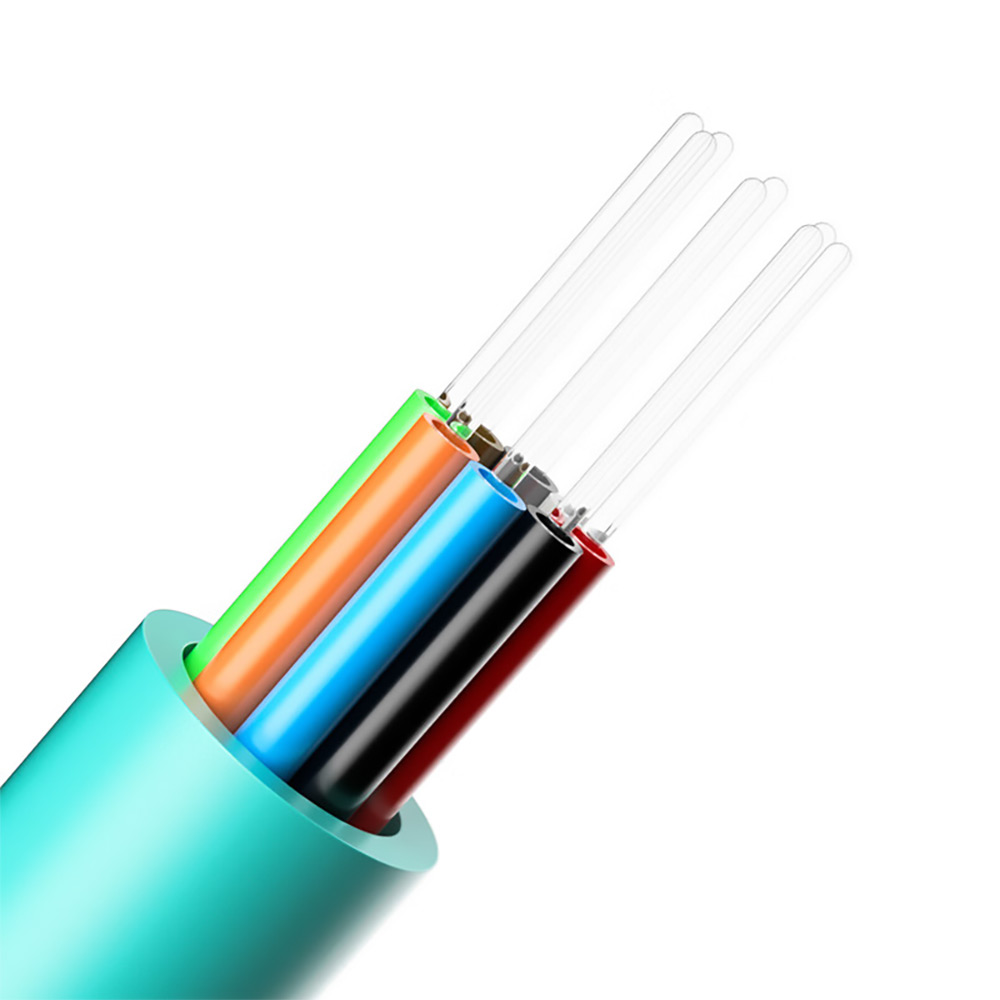

- Flexible Fiber Counts: Available in 8, 12, 24 and 48 strands for various application and network requirements.
- 100G Ethernet Ready: Compatible with the next generation of high-speed data center applications.
- Durable Construction: Long lasting and stable design for long term reliability.
- Custom Lengths Available: Custom length means more ease of installation.
Price range: $145.00 through $279.00
