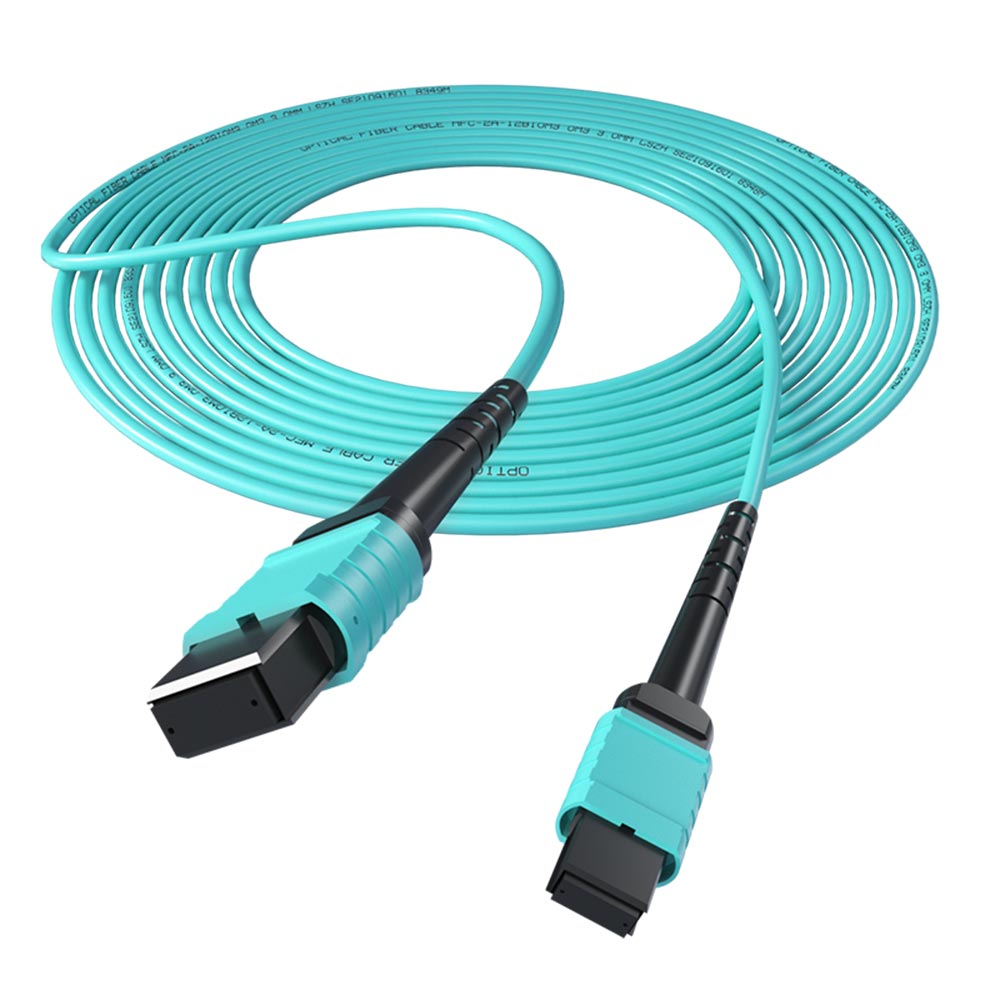

MPO to MPO Patch Cable, OM4, 8/12/24/48 Fiber, Type B, Female to Female, LSZH, 40G/100G MPO Cable

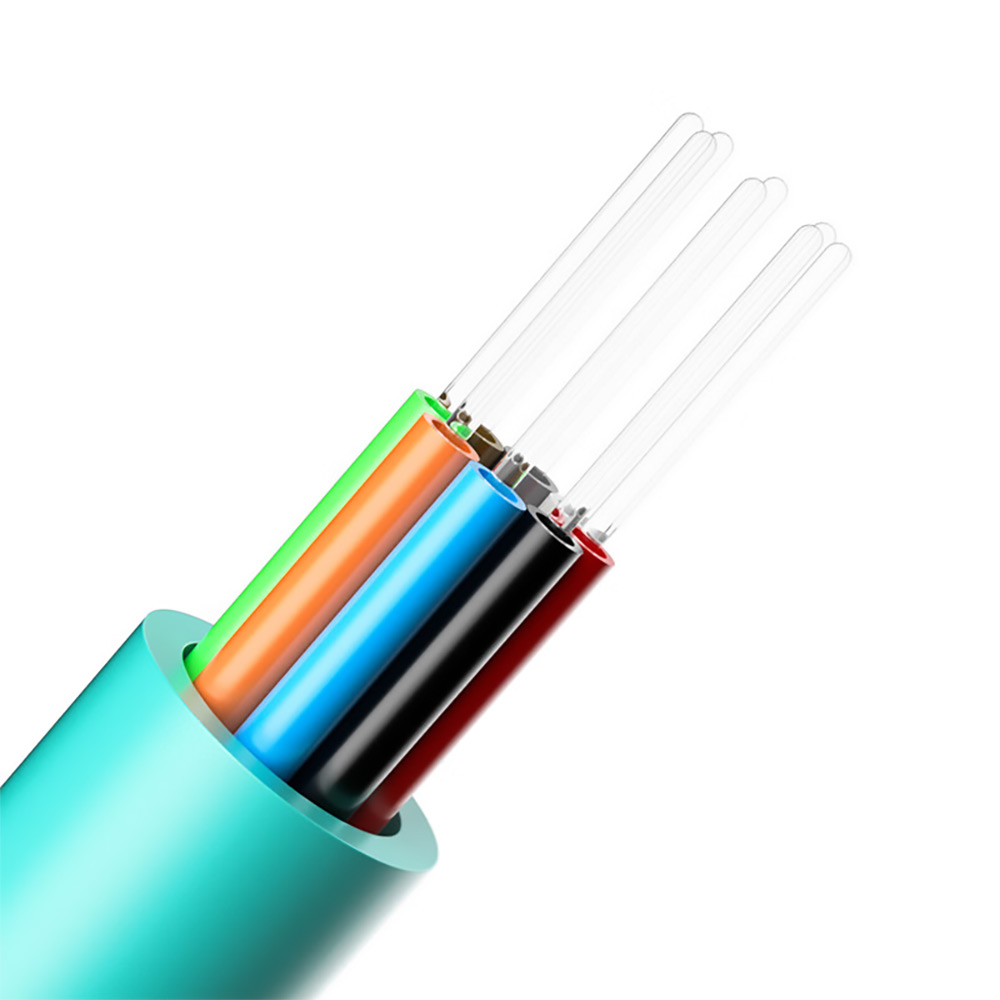

Our OM4 multimode fiber is engineered with a high-quality 50/125μm core/cladding that is optimized for 40G and 100G data transmissions.
It is available in 8, 12, 24 and 48 fiber counts to meet market needs.
The cable has Type B (Reversed) polarity, ensuring correct signal alignment when connected to any MPO port.

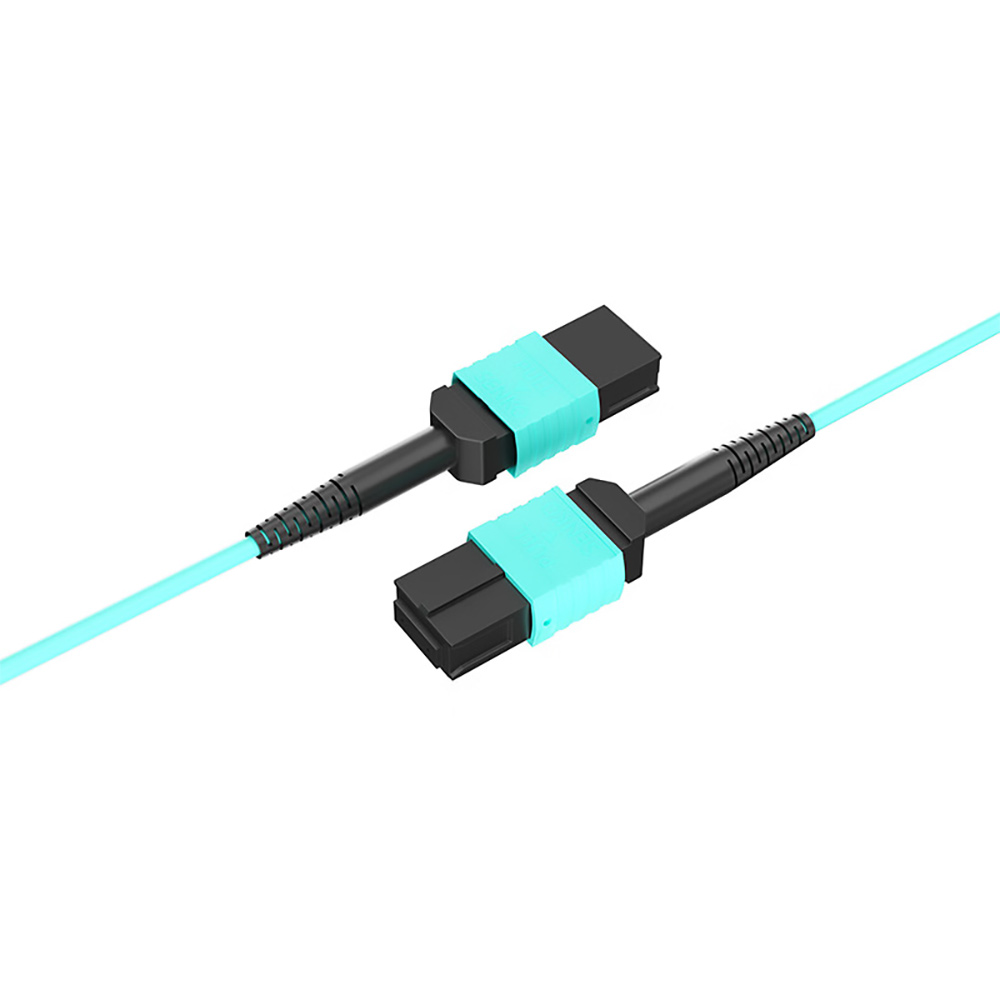

Female to female MPO connectors with UPC polish ensure low insertion loss and high return loss.
The cable has an LSZH jacket for fire safety by reducing the amount of toxic smoke if the jacket is ignited.
The cable is manufactured to the highest precision level for reliable performance in data centers or other high-density environments.

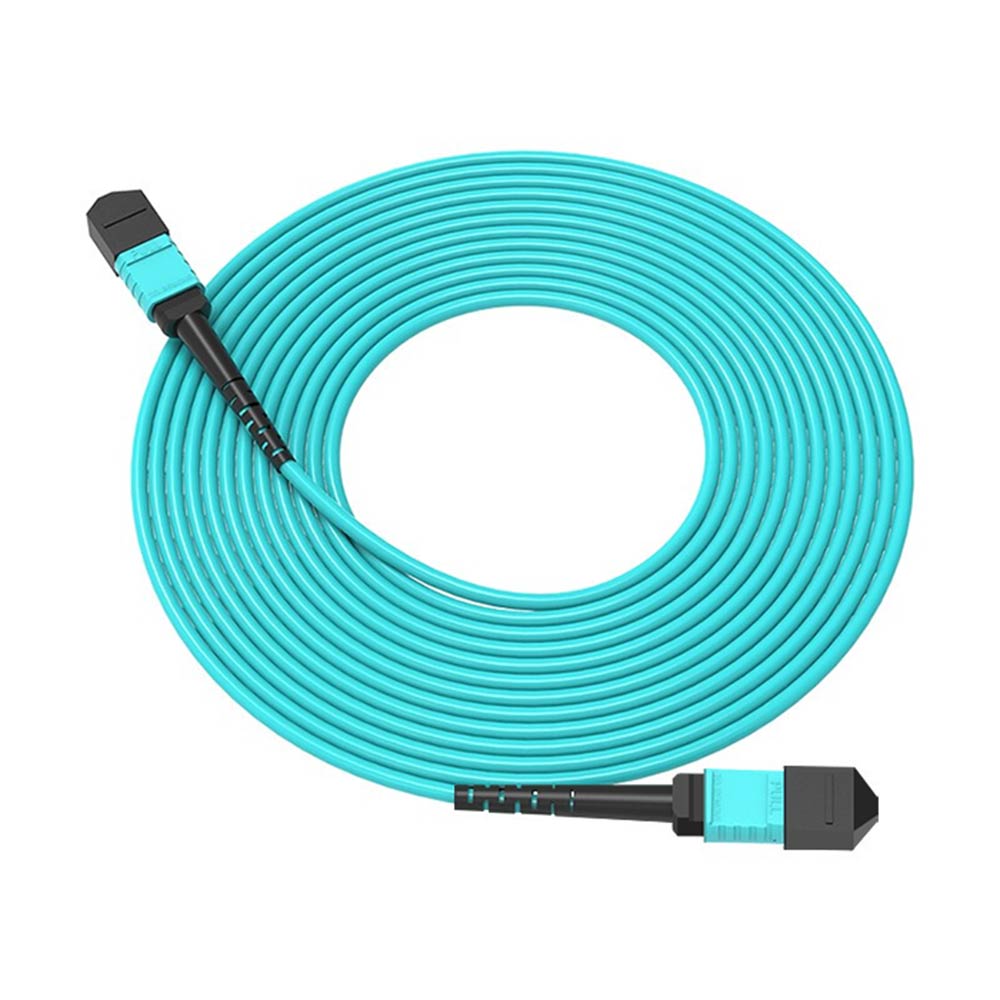

The cable is available in different lengths ranging from 1 meter to 50 meters offering flexibility for termination needs.

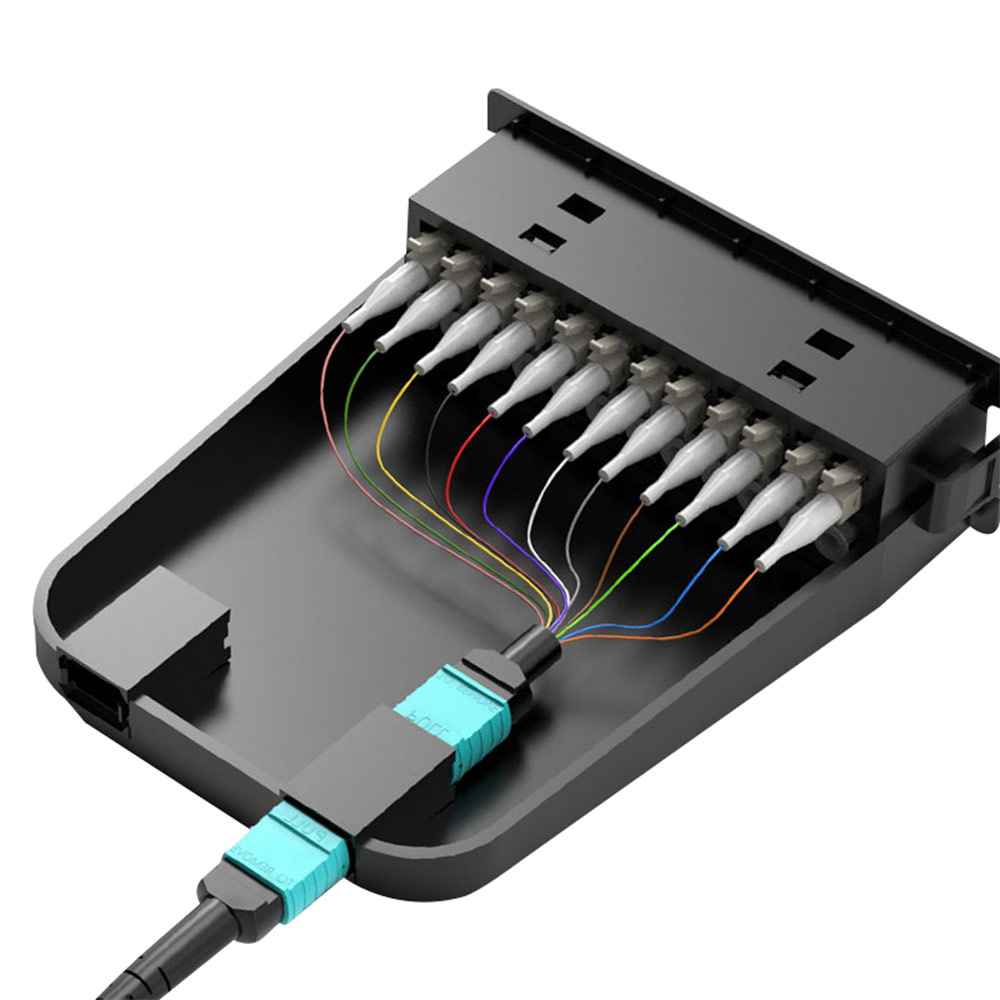

The patch cable is compatible with MPO enabled devices that require high-speed backbone and aggregation links.
This cable is rugged and provides a flawless cabling solution suitable for the most demanding networking and applications.
The OM4 MPO patch cables are designed and constructed for enterprise markets, telecoms and data center applications that need efficient and fast optical fiber cabling solutions.
This MPO to MPO OM4 patch cable addresses performance, safety and flexibility needs required for today’s modern high-speed fiber networks.

Specification	Description
Fiber Type	OM4 Multimode Fiber
Connector Type	MPO Female to MPO Female
Fiber Count	8, 12, 24, 48 Fibers Available
Polarity Type	Type B (Reversed)
Cable Jacket	LSZH
Polish Type	UPC (Ultra Physical Contact)
Cable Length Options	1-50 Meters (Custom Lengths Available)
Wavelength	850nm, 1300nm
Insertion Loss	≤0.7dB (Typical)
Return Loss	≥20dB
Application	40G/100G Ethernet, Data Centers, LAN, SAN, Telecommunications, High-Density Cabling
Compliance	RoHS Compliant, Industry Standard Compliant
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Cable Diameter	3.0mm, Customizable
Fiber Grade Options	50/125μm
Jacket Color Options	Aqua (OM3), Violet/Erika Violet (OM4)
Connector A	MPO Female
Connector B	MPO Female
Durability	≥500 Mating Cycles
Material	High-Quality Fiber Optic Material
Standards Met	IEC 61754-7, TIA/EIA-604-5

MPO Connector Performance
