The Mini FTTH 1 Pair Gigabit Ethernet Fiber Media Converter lets you convert Fiber to Ethernet without a hassle. This small design tool signals fast data transfers on 10/100 Mbps Ethernet and 1.25 Gbps Fiber.

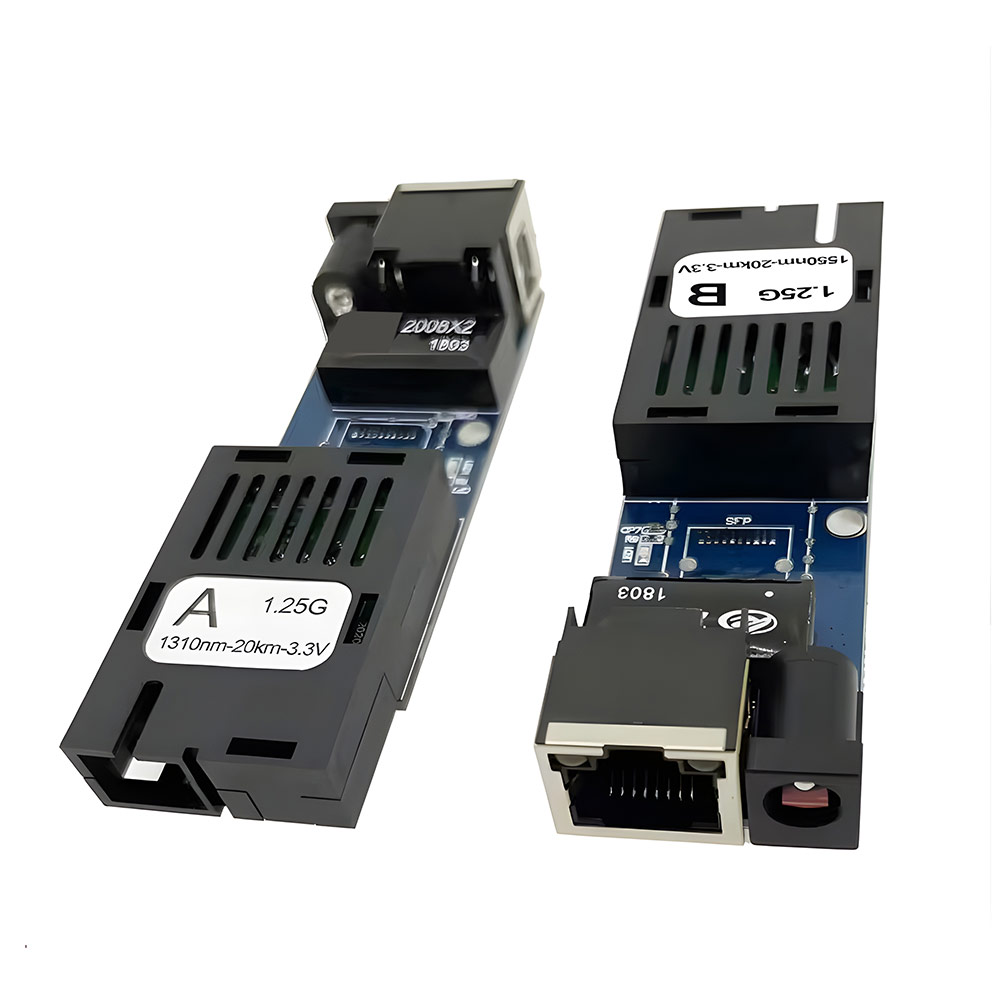

The Mini FTTH has two RJ45 ports and one SC fiber connector to easily bring copper and fiber together. The Mini FTTH will also extend your fiber lines up to 25 km!
The Mini FTTH will transfer Ethernet to fiber and back to Ethernet and also complies with multiple industry standards including IEEE 802.3 and IEEE 802.1p QoS to help traffic management and stability. The store-and-forward architecture, large MAC table, and large memory help to reduce latency and packet loss and ensure seamless network operation.
The Mini FTTH runs across wide temperature and humidity ranges while being power-managed and protected from lightning. Its small and light footprint means that it can be installed in most locations and OEM/ODM support lets us design it to your project specs.
With an MTBF greater than 100,000 hours and a 2-year warranty, the Mini FTTH Fiber Media Converter is your peace of mind for fiber optic expansion.
| Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX/FX, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.1d Spanning Tree |
| Ethernet Ports | 2 x RJ45 ports, 10/100 Mbps, 1000m transmission distance (CAT5e/CAT6) |
| Fiber Port | SC connector, 1.25 Gbps data rate, wavelengths: 850nm/1310nm/1490nm/1550nm, 25km single-mode transmission |
| Switching | Store-and-forward, 8K MAC table, 1 Mbit buffer, 1518 bytes jumbo frame, 5.6 Gbps bandwidth, <150μs latency |
| Power | Input: AC 100-240V 50/60Hz, Working voltage: 5V DC, Consumption: 1.5-2.5W |
| Distance | Copper: 1000m, Fiber: 25km |
| Reliability | MTBF: >100,000 hours, Warranty: 2 years |
| Environment | Operating: -10°C to 55°C, Storage: -40°C to 70°C, Humidity: 5-90% (non-condensing) |
| Size & Weight | 97 x 70 x 26mm, 0.6kg |
| Services | OEM/ODM available |
