Brand | BYXGD Miller CFS-3 Fiber Optic Stripping Tool |
Model | Miller CFS-3 Fiber Optic Stripping Tool |
Tool Type | Three-hole fiber optic stripper |
Stripping Range | 125 µm to 3 mm |
Stripping Holes & Functions | – Large hole: strips 2 mm to 3 mm fiber jackets |
– Middle hole: strips 900 µm to 250 µm buffer coatings | |
– Small hole: strips 250 µm buffer coating to 125 µm bare fiber | |
Material | High carbon steel, forged and heat-treated for hardness and wear resistance |
Surface Finish | Blackened surface treatment for corrosion resistance |
Handle | Ergonomic non-slip rubber handle for secure and comfortable grip |
Length | 160 mm |
Weight | 113 g |
Color Options | Yellow, Red, Blue (three colors available) |
Application | Designed for stripping fiber optic cables including fiber jackets and buffer coatings |
Miller CFS-3 Fiber Optic Stripping Tool, Carbon Steel, Non-Slip

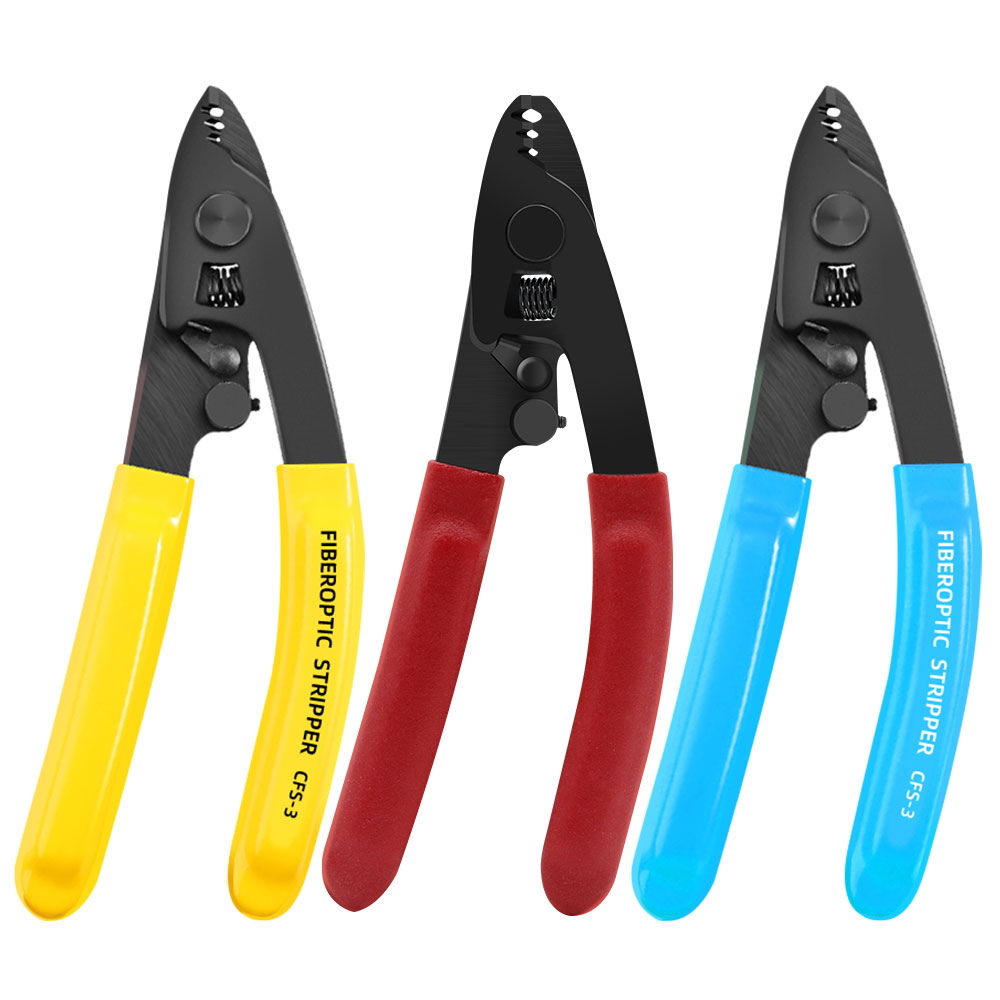

Choose from 3 bright colors (Yellow, Red, and Blue) for easy visibility and personal preference.
A three-hole stripping design specifically dimensioned for easy and precise stripping usage:
The largest hole strips fiber jackets from 2mm to 3mm in diameter.
The middle hole strips buffer coatings from 900µm to 250µm.
The smallest hole strips buffer polymer coatings to bare fiber from 250µm to 125µm.
Capable of quickly and effectively stripping without breaking the fiber.
Factory-set jaws with no adjustments are necessary; just strip.
Each stripping blade is pre-tensioned for minimal hand fatigue with the spring-loaded automatic reset.
Single-handed stripping trigger to operate fast and easy!
The jaw opening is adjustable by screw for customized stripping options.
Ergonomic non-slip rubber comfort grip handle for long-term use.
Safety lock to keep the tool closed when not in use, to protect the blades as well as for safety.
Constructed from high-quality forged carbon steel with blackened surface treatment for superior hardness, wear resistance, and corrosion protection.
