| Specification Item | Details |
|---|---|
| Product Name | LSZH QS Cable – GJYXCH FTTH Steel Butterfly Fiber Optic Cable |
| Models Available | GJYXCH-1B6, GJYXCH-2B6, GJYXCH-4B6 |
| Fiber Count | 1, 2, 4 fibers |
| Fiber Type | Single-mode 9/125 μm G.657A1 optical fiber |
| Fiber Color Coding | Standard ITU-T color code (Red for 1 fiber; Blue, Orange for 2 fibers; multicolor for 4 fibers) |

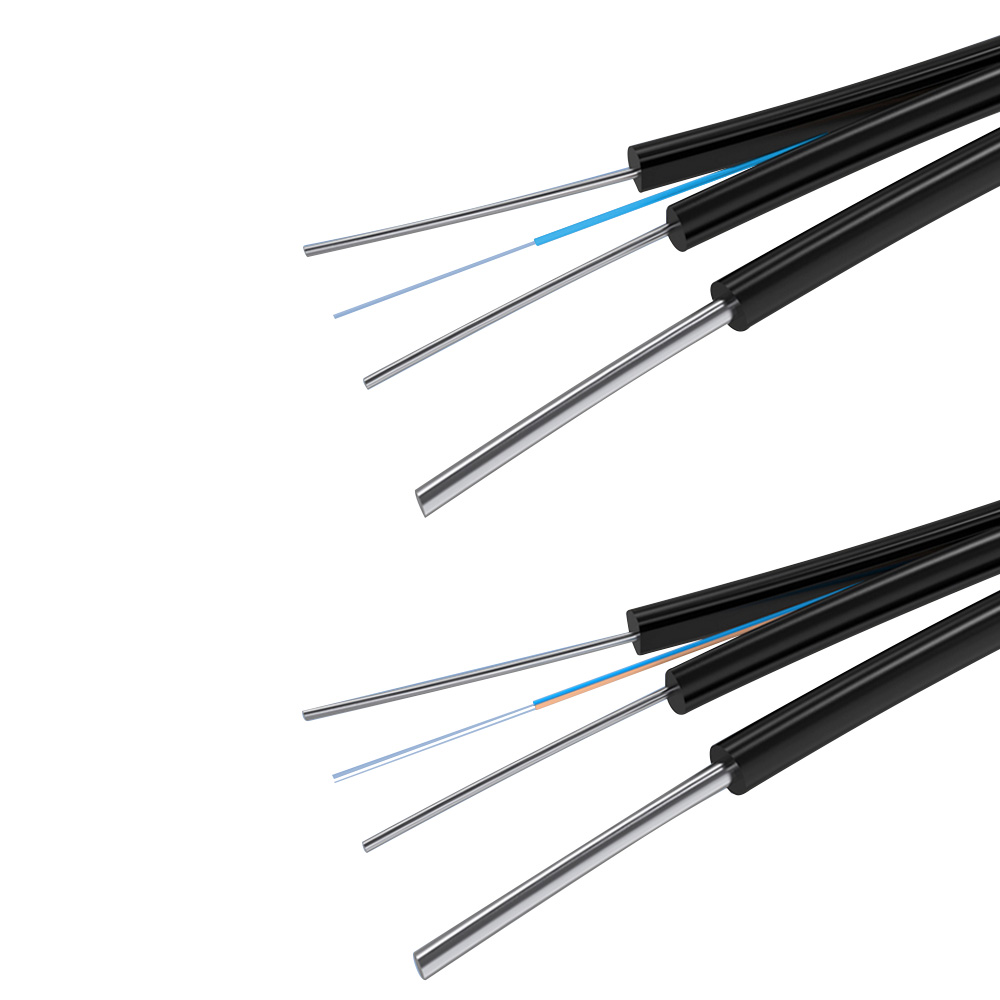

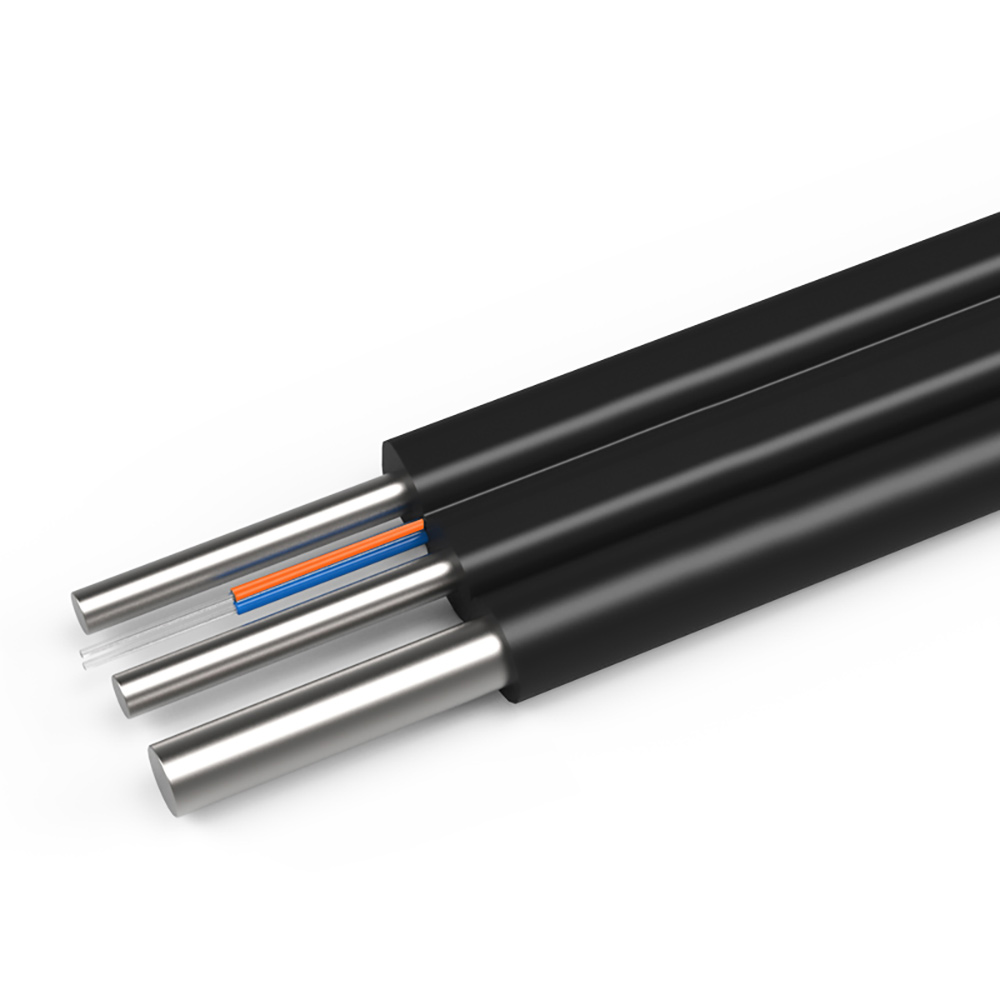

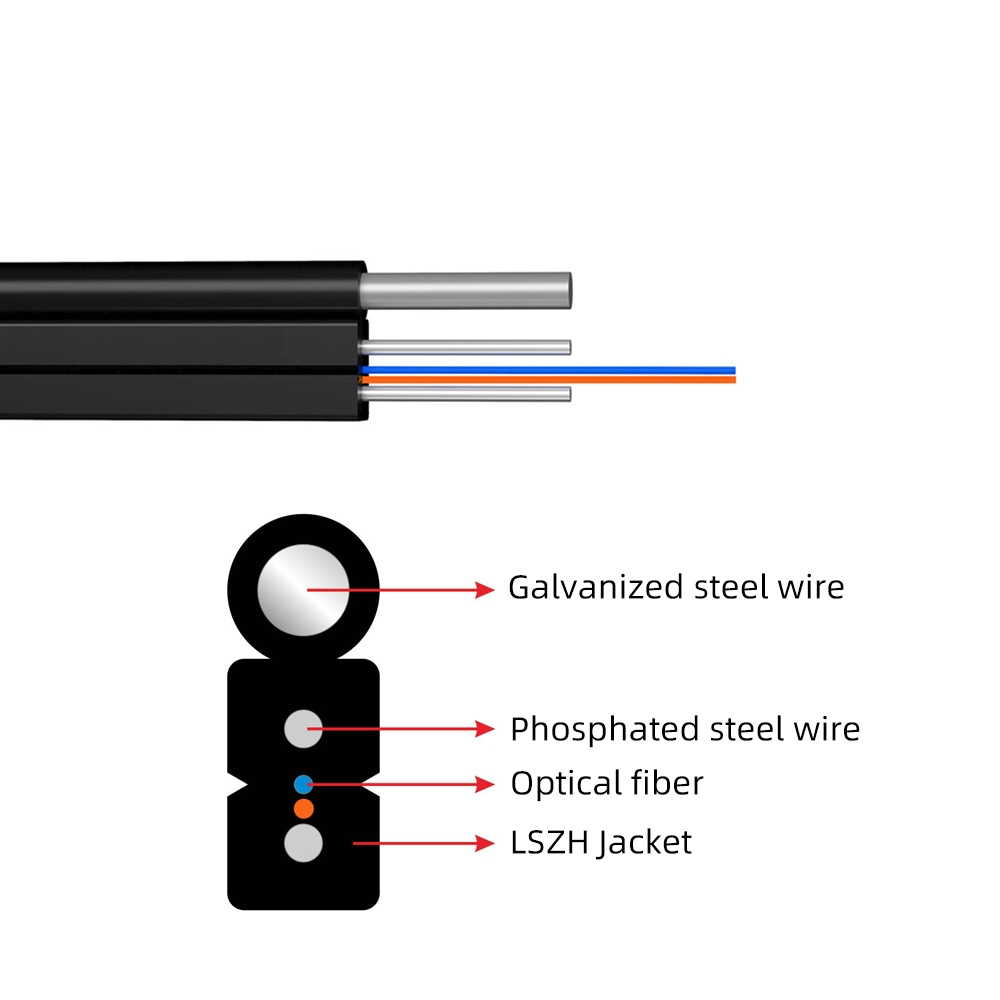

| Cable Structure | Butterfly design with steel self-supporting strength member |
| Cable Dimensions (mm) | Approx. 5.2 ±0.2 (width) × 2.0 ±0.2 (thickness) |
| Cable Weight (kg/km) | Approx. 19.5 kg/km |
| Outer Jacket Material | LSZH (Low Smoke Zero Halogen) jacket for fire safety and environmental protection |
| Sheath Color | Black |
| Minimum Bending Radius | Static: 10 × cable diameter (~52 mm); Dynamic: 25 × cable diameter (~130 mm) |
| Minimum Bending Radius (Excluding Messenger Wire) | Static: 10 mm; Dynamic: 25 mm |
| Attenuation (dB/km) | ≤ 0.4 at 1310 nm, ≤ 0.3 at 1550 nm |
| Short-Term Tensile Strength | ≥ 600 N |
| Long-Term Tensile Strength | ≥ 300 N |
| Short-Term Crush Resistance | ≥ 2200 N/100 mm |
| Long-Term Crush Resistance | ≥ 1100 N/100 mm |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +70°C |
| Installation Temperature Range | -10°C to +50°C |
| Flame Retardant Standards | Complies with IEC 60332-1 and CPR (Construction Products Regulation) standards |
| Environmental Resistance | UV resistant, moisture resistant, suitable for indoor and outdoor environments |
| Mechanical Protection | Steel self-supporting strength member provides high tensile strength and mechanical robustness |
| Application | FTTH networks, aerial and duct installations, broadband, telecommunications |

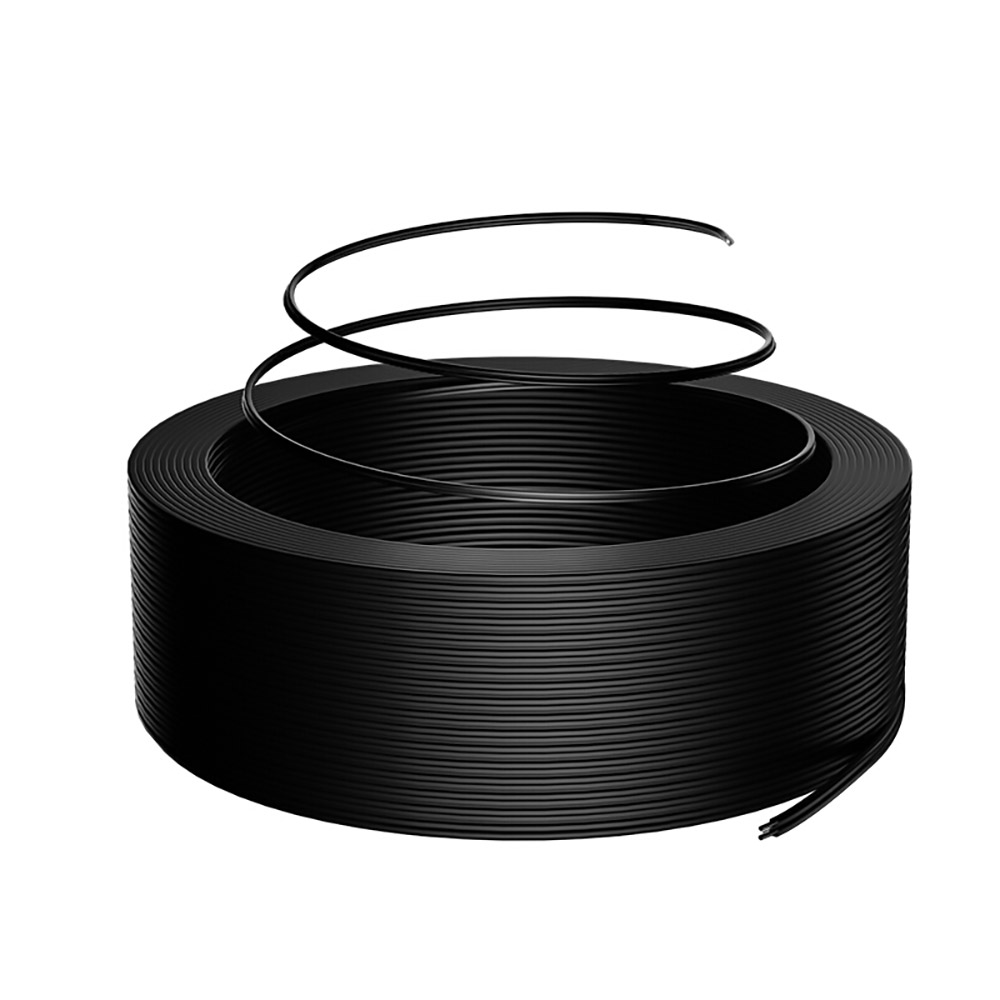

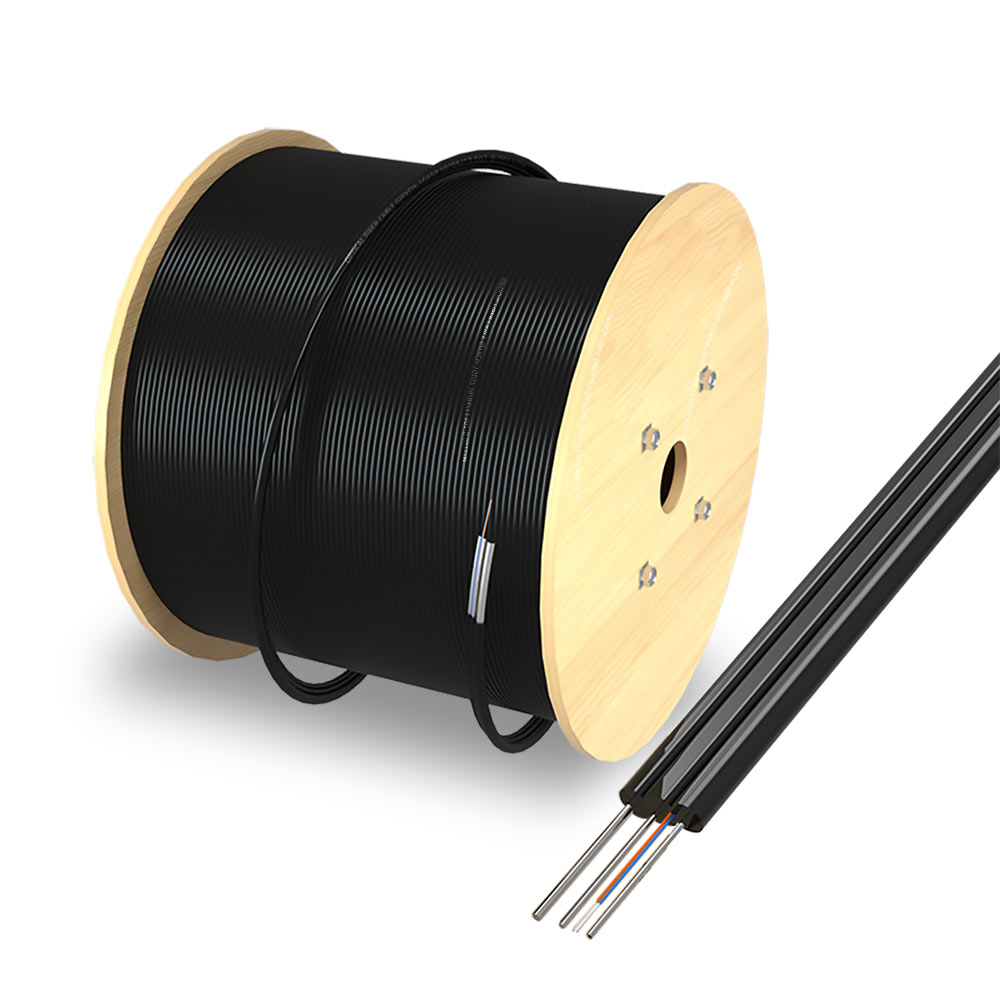

| Packaging | 1 km per roll, packed in boxes approx. 31×31×32 cm, weight approx. 20.5 kg per box |
| Compliance | RoHS compliant, meets international fiber optic cable standards |
-89%
LSZH QS Cable – GJYXCH FTTH Steel Butterfly Fiber Optic Cable for Indoor/Outdoor
- The presence of a steel LSZH QS (Quick self-supporting) strength member allows for aerial installation without requiring other supports.
- The LSZH jacket offers an improvement in fire safety by reducing the generation of toxic smoke and harmful halogen emissions as verified by Low Smoke Zero Halogen cable manufacturers.
- The butterfly design enables easier separation and management of fibers with FTTH capabilities focused on what’s necessary for high density of fiber application.
- Each cable uses G657A1 fiber, which has low bend loss, offering high-performance signal transmission characteristics.
- The fiber optic cable can be used indoors and outdoors and offers strong weather resistance for various environmental conditions.
- High mechanical strength offers protection against environmental stresses, mechanical damage and ensures long-term durability.
- The compact, lightweight design is easy to handle, reducing installation time and labor costs.
- The high tensile strength also ensures long aerial spans.
- It ensures consistent, high speed fiber optic performance for broadband, telecom, and data networks.
- Available in multiple models offered include GJYXCH-1B6, GJYXCH-2B6 and GJYXCH-4B6 with various as well as model specific characteristics.
Price range: $0.28 through $229.00
