| LSZH Fiber Optic Cable Parameter | Specification |
|---|---|
| Cable Model | GJXH-1B6 / GJXH-2B6 / GJXH-4B6 |
| Fiber Count | 1, 2, or 4 fibers |
| Fiber Type | Single-mode 9/125 µm G.657A2 bend-insensitive fiber |
| Fiber Color Code | 1F: Red; 2F: Blue, Orange; 4F: Blue, Orange, Green, Brown |
| Cable Dimension (Width × Thickness) | 3.0 mm (±0.1) × 2.0 mm (±0.1) |
| Cable Weight | Approx. 10.0 kg/km |
| Sheath Material | Low Smoke Zero Halogen (LSZH), black color |
| Strength Member | Steel wire reinforcement, diameter approx. 0.45 mm |

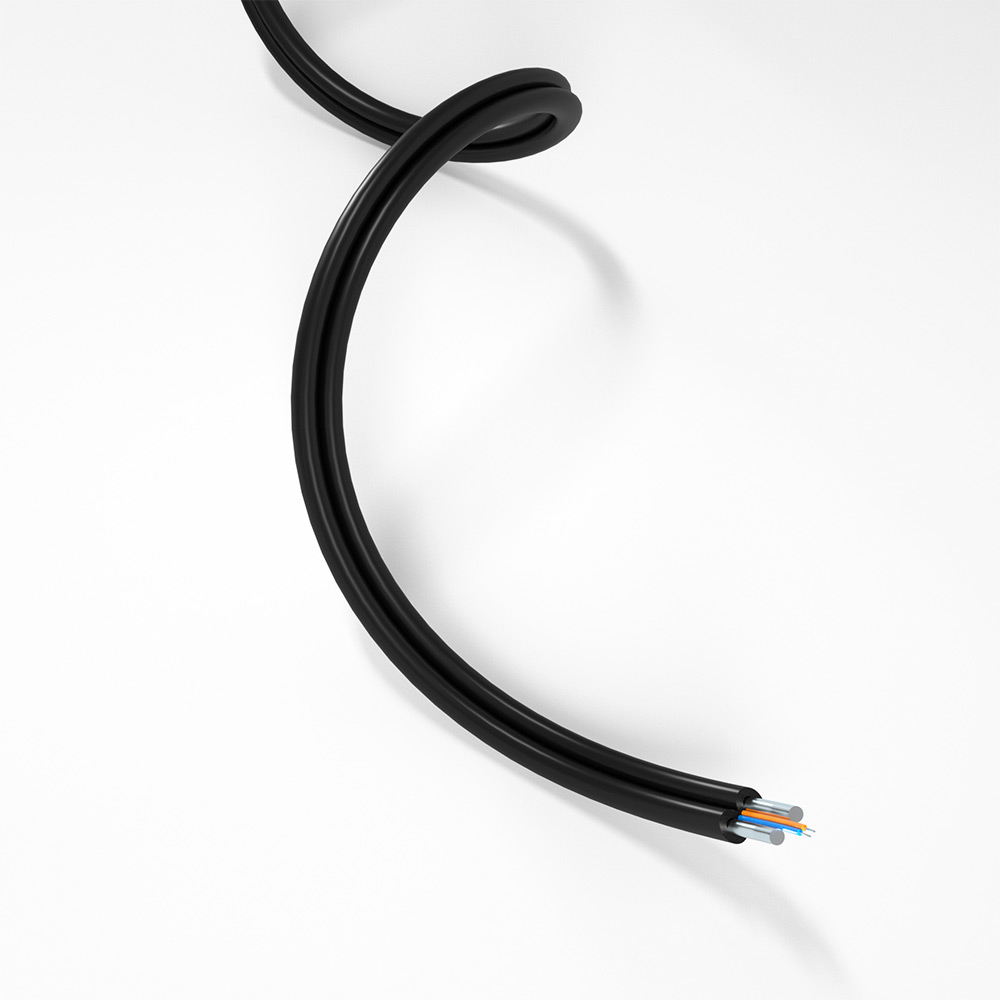

| Minimum Bending Radius | 10 mm (Static), 25 mm (Dynamic) |
| Attenuation (Optical Loss) | ≤ 0.4 dB/km @ 1310 nm, ≤ 0.3 dB/km @ 1550 nm |
| Tensile Strength | Short-term: 200 N; Long-term: 100 N |
| Crush Resistance | Short-term: 2200 N/100 mm; Long-term: 1100 N/100 mm |
| Operating Temperature Range | -20 °C to +60 °C |
| Storage Temperature Range | -40 °C to +70 °C |

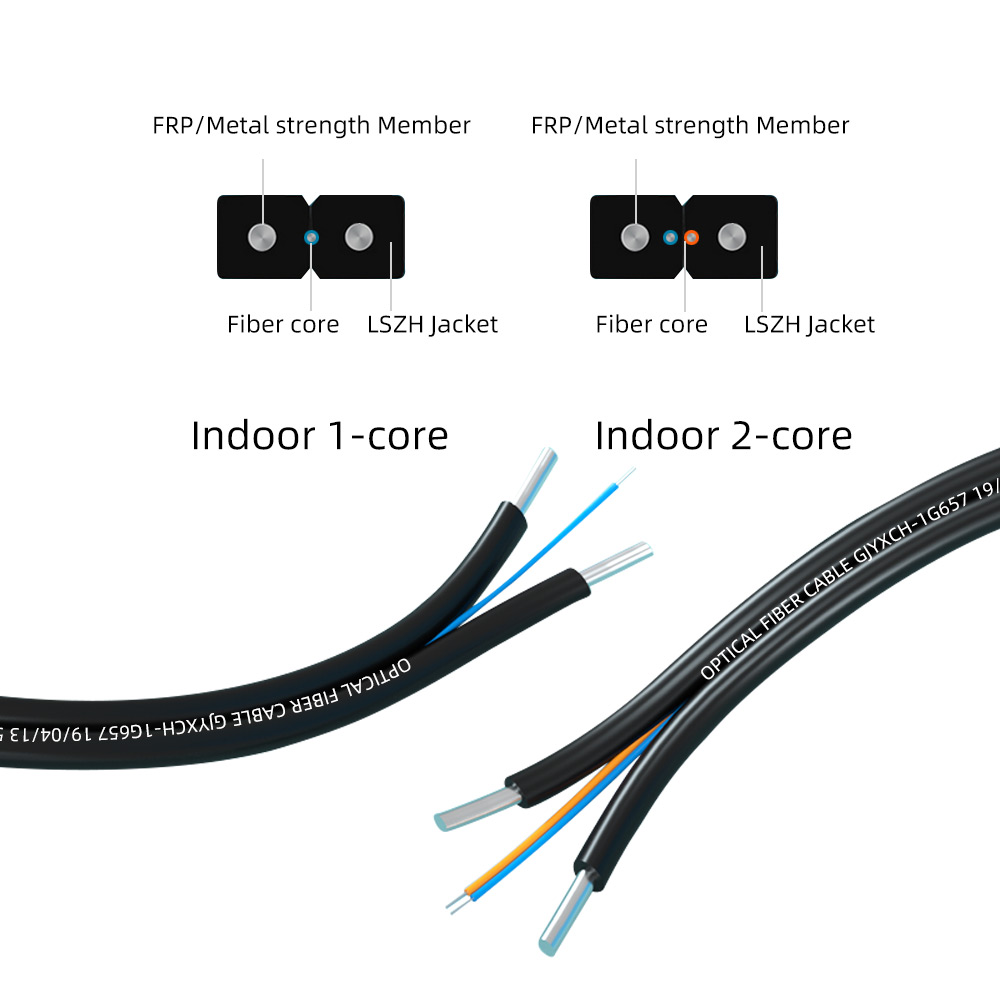

| Cable Structure | Central optical fiber unit with two parallel steel wire strength members on both sides; flat profile |
| Jacket Marking | Laser printed for identification |

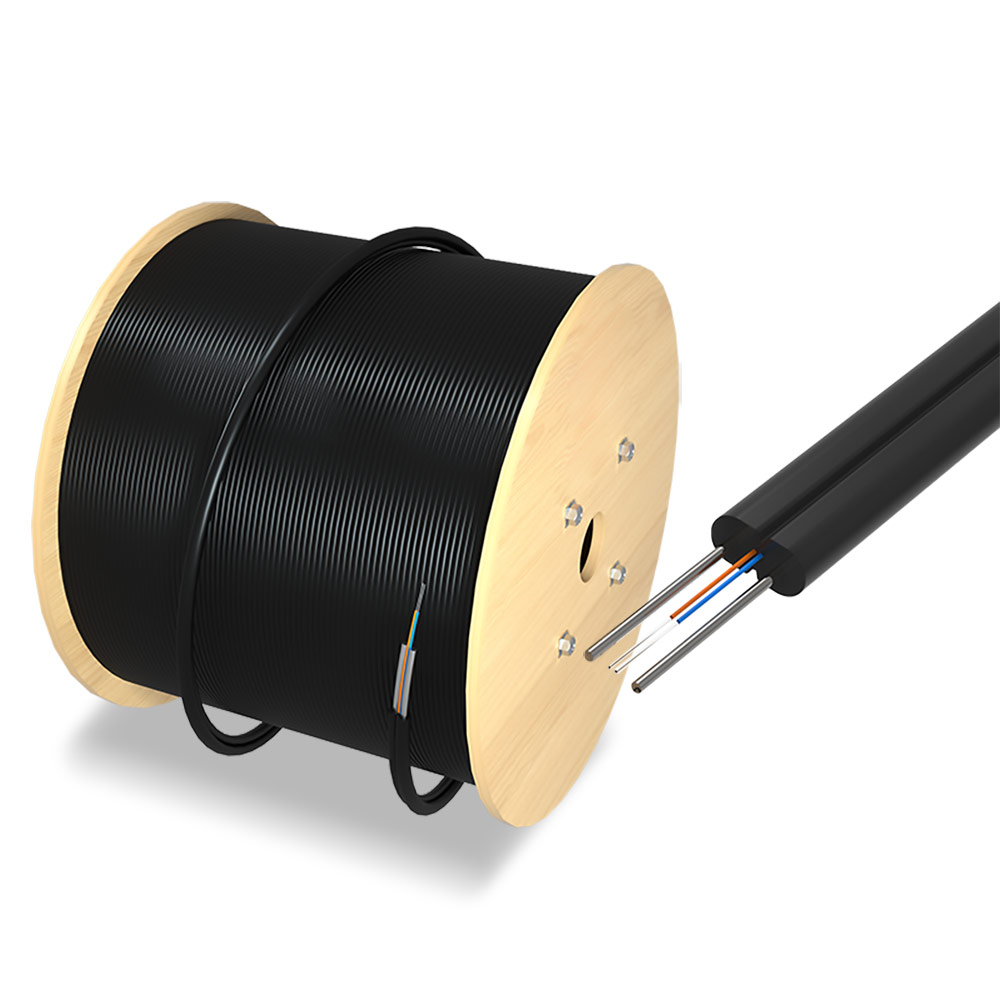

| Packaging | Available in 1 km or 2 km reels; packed on drums with carton box |
| Application | Indoor FTTH drop cable for fiber-to-the-home, LAN, and indoor network connections |

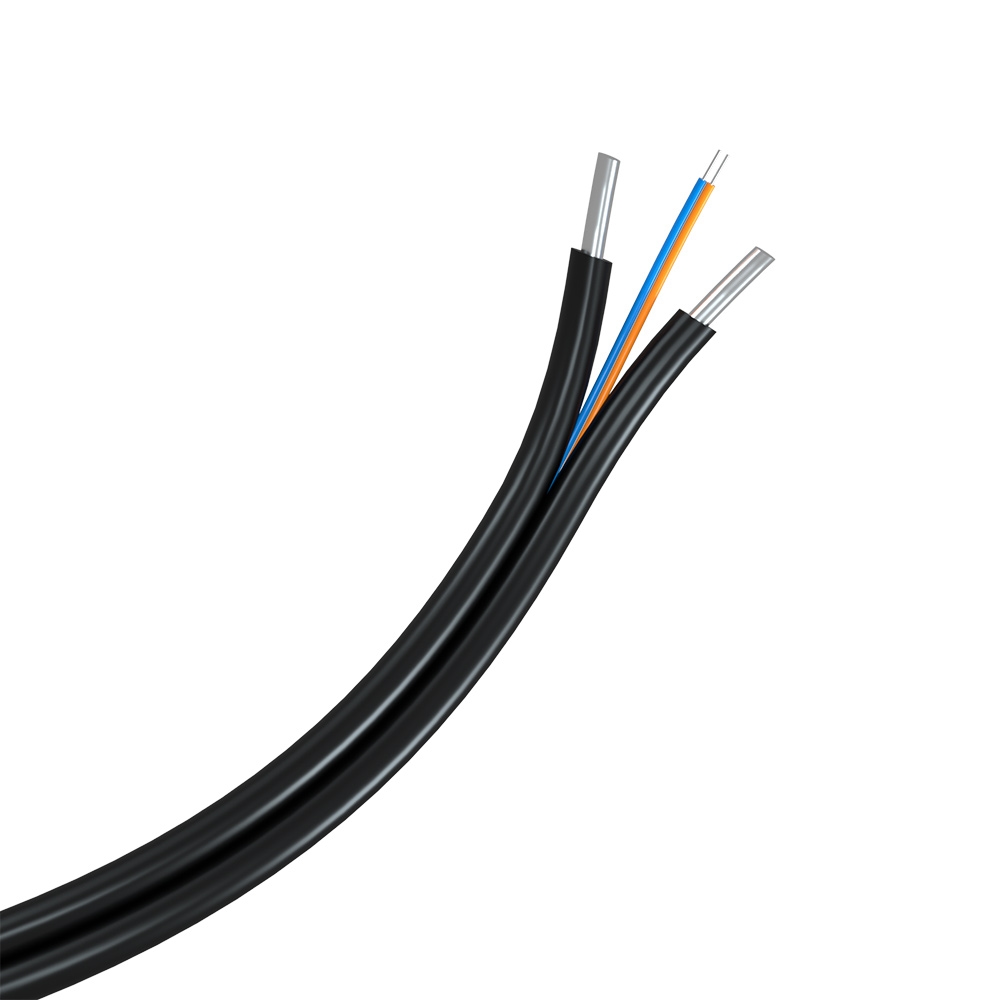

LSZH Fiber Optic Cable – Steel Butterfly GJXH-1,2,4B6 FTTH Indoor Drop Cable
- Low Smoke Zero Halogen Jacket: Provides excellent life-safety value by producing minimal smoke and no dangerous halogen gases when burned, making it perfect for indoor installations.
- Steel Butterfly: Gives excellent protection while increasing mechanical performance to ensure dependability in Fiber To The Home applications.
- G.657A1 Optical Fiber: Utilizes bend insensitive fiber with a low attenuation fiber to minimize signal loss in tight bends.
- Indoor Drop Cable: Designed to be specifically utilized in the indoor environment while connecting terminal devices to drop points in any given space.
- Compact and Lightweight: Allows easy installation in tight spaces, including ducts, conduits and risers.
- High Mechanical Performance: Offers steel wire tensile strength for tension and pressure resistance.
- Excellent Environmental Performance: Provides strong protection from wet and temperature variations for longevity.
- Multiple Fiber Counts: Available in 1, 2 or 4 fiber configuration to provide scalability options for any network need.
- Flame Retardant: Meets fire safety ratings for the indoor cabling environment.
