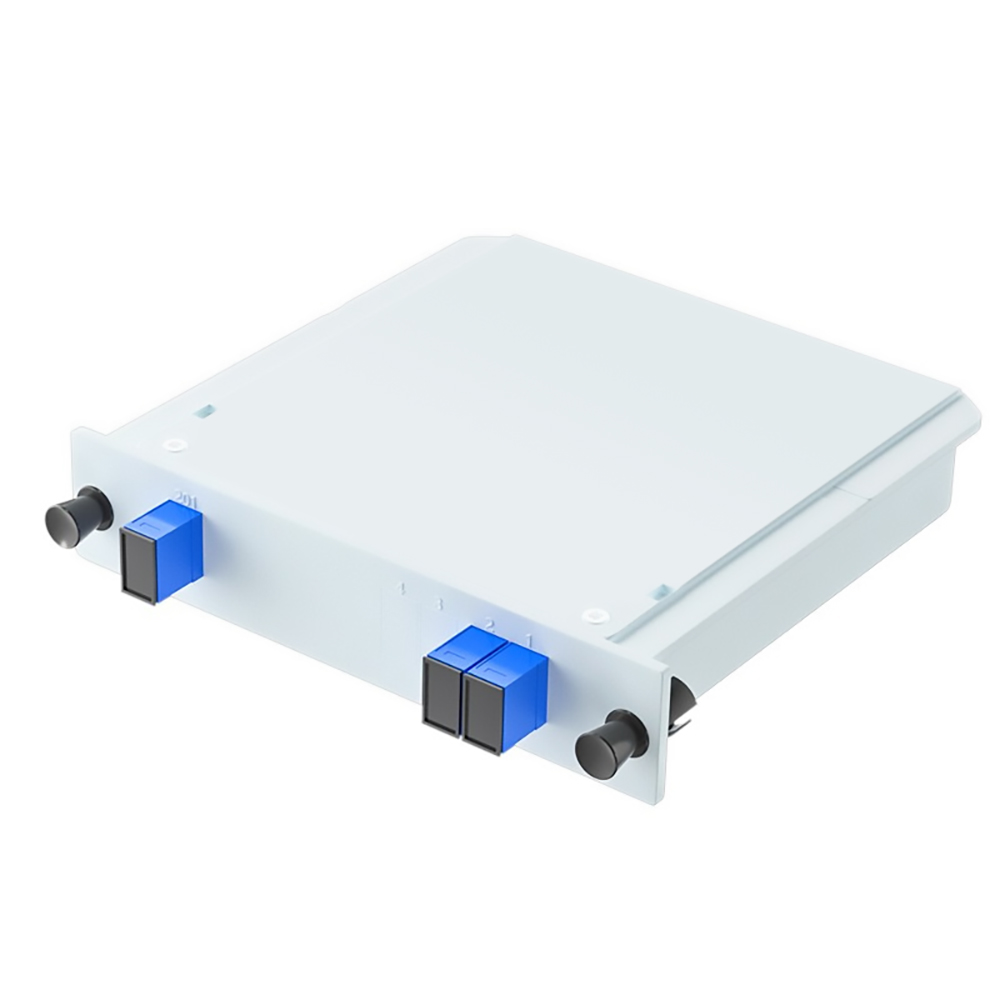

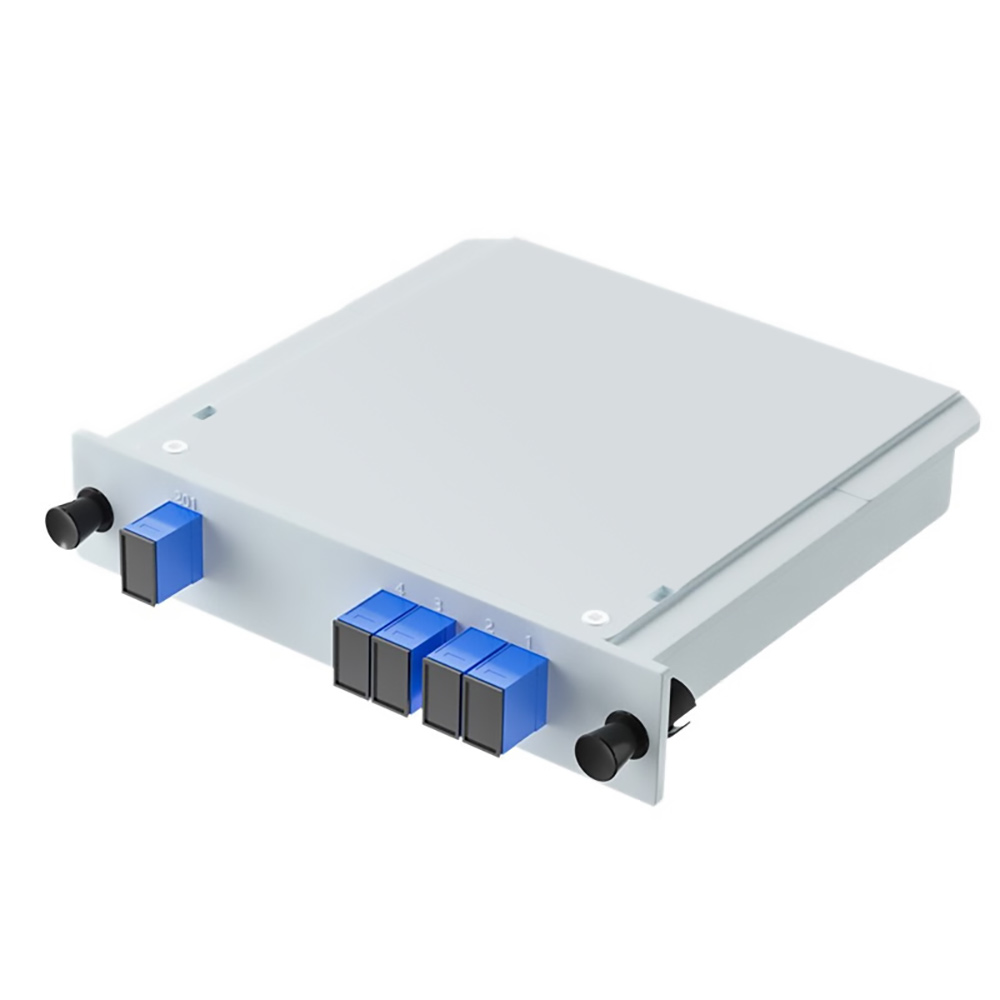

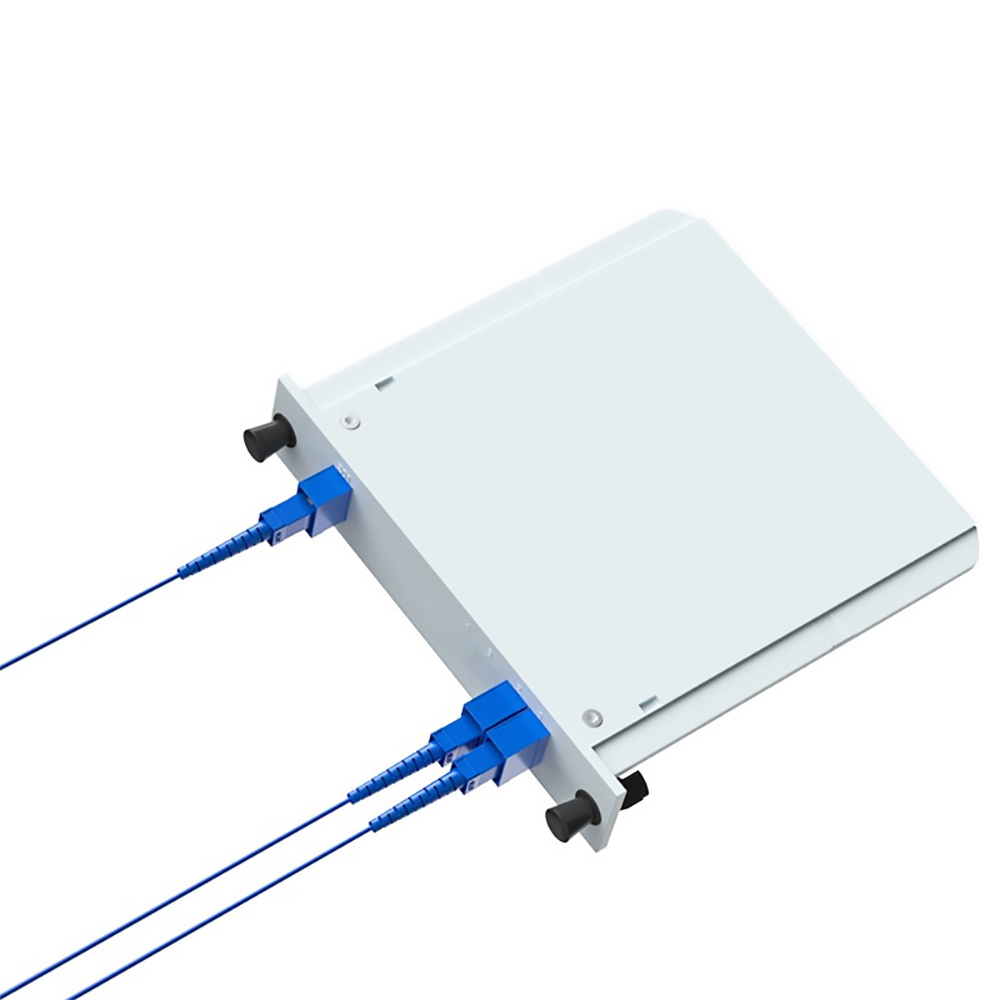

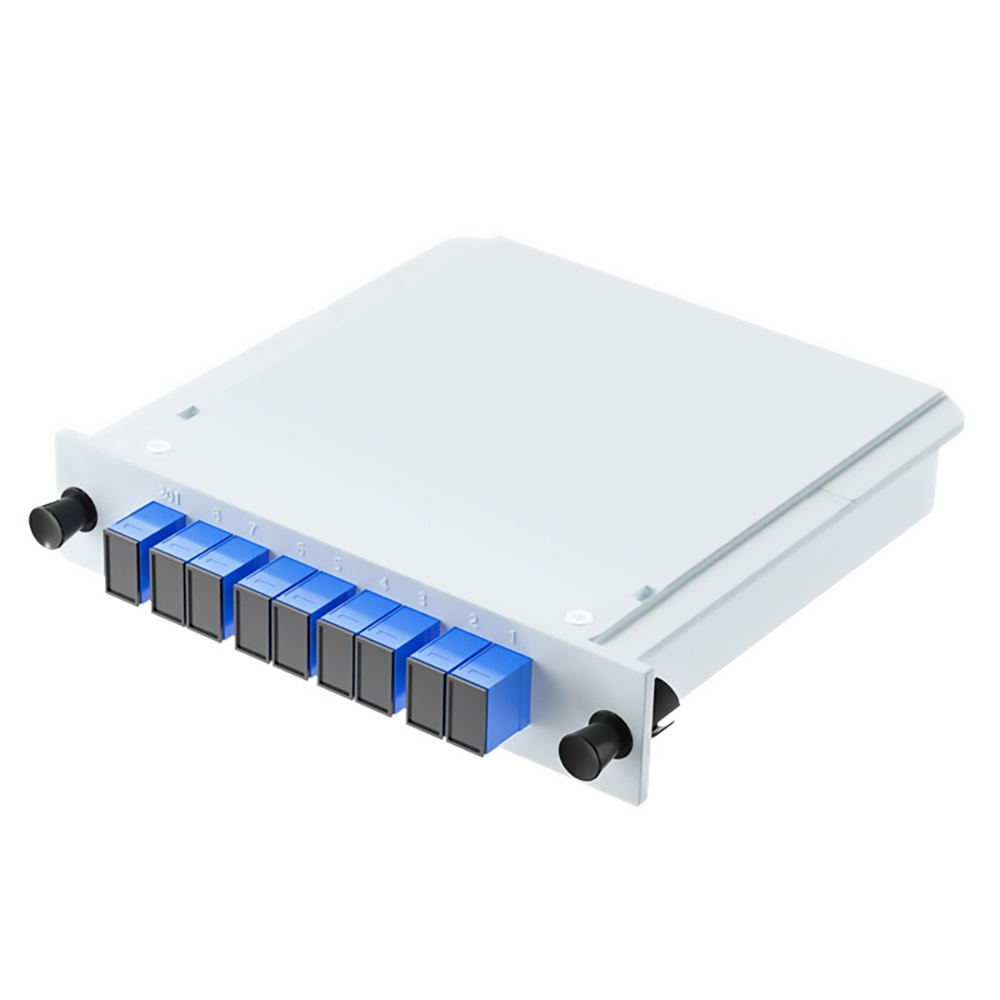

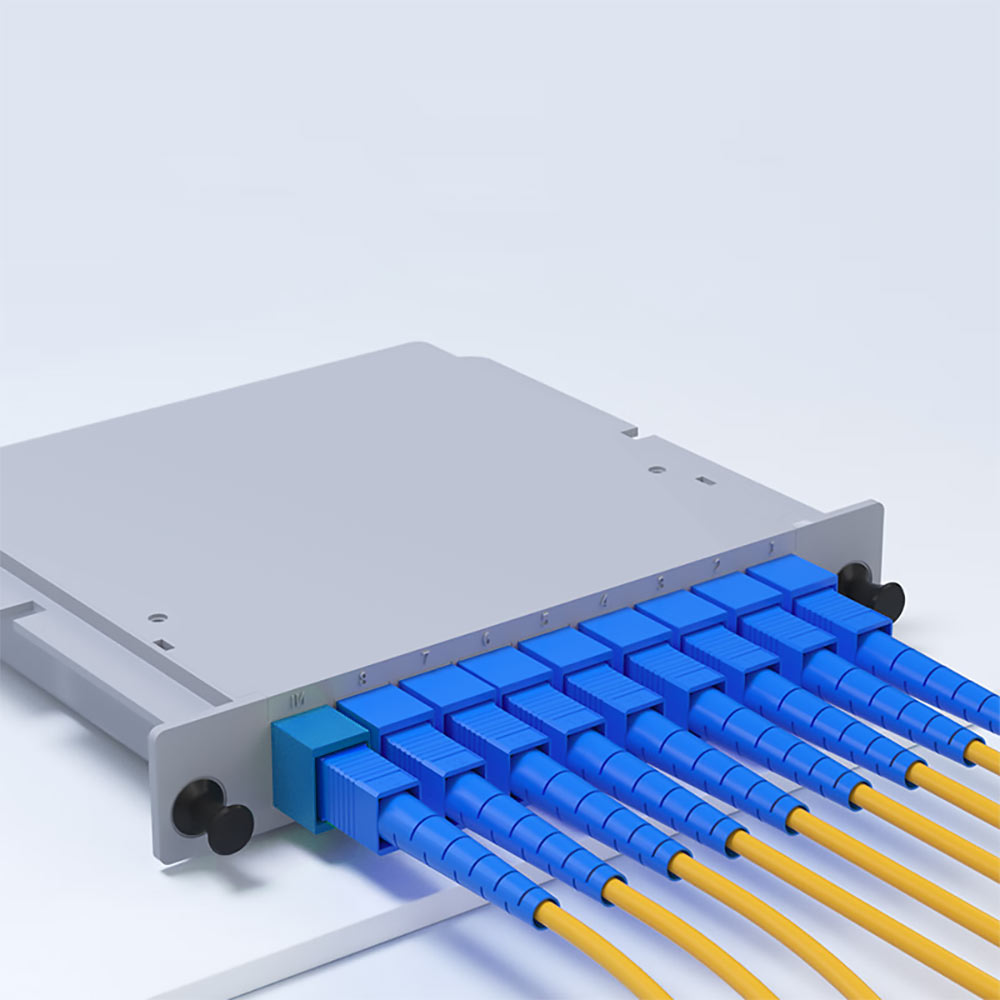

LGX Cassette PLC Splitter Module SC/UPC – 1×2 to 1×32

Wide Operating Wavelength: Covers the full range from 1260nm to 1650nm for EPON and PON systems for multi-wavelength capabilities
Low Insertion Loss: Ensures low attenuation of the optical signal with an insertion loss of 3.8 dB (1×2) to 16.5 dB (1×32) for an overall high quality signal
Low Polarization Dependent Loss (PDL): Typically ≤ 0.3 dB, ensuring stable operation regardless of polarization changes.
High Return Loss: ≥50 dB for UPC connectors and ≥55dB for APC connectors to reduce back reflections and maintain critical signal quality.
Compact and Modular: Standard LGX cassette format that is simple to place in an optical distribution frame or cabinet to save space and ease installation.
Reliable Environmental Stability: -40°C to 85°C operational range for both Indoors and Outdoors Applications.
Compliance and Quality: Telcordia GR-1221/1209, RoHS, ISO9001, CE, and FCC compliance certification for best in class ruggedization and compatibility with various manufacturers.
Multiple Split Ratios Available: 1×2 through 1×32 outputs for a variety of network architectures and options.
Connector Options: Standard SC/UPC connectors with custom lengths of fiber and various types such as G657A1 or G652D, for additional deployment flexibility.

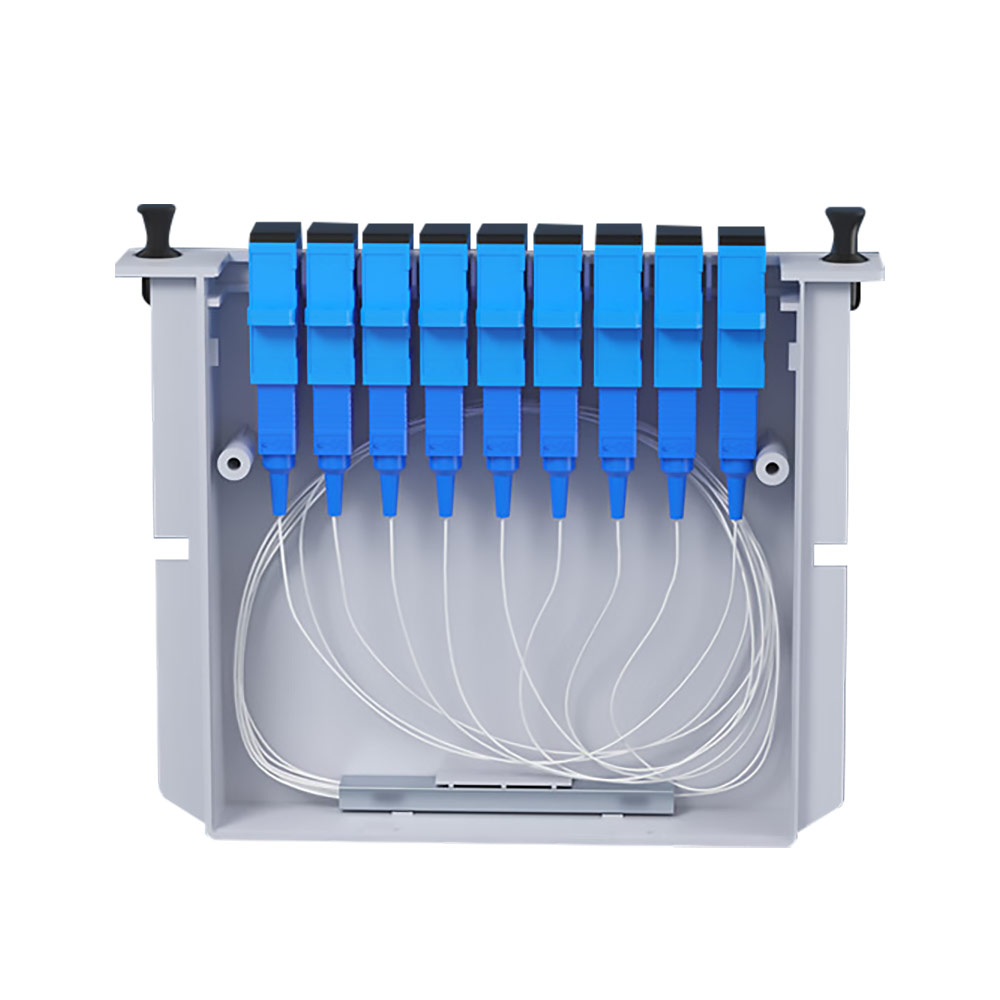

Plug-and-play installation: Pigtails are pre terminated and cassettes are packaged in an easy configuration that does not require field splicing. These factors reduce deployment time and labor cost.

Description

The SC/UPC LGX Cassette PLC Splitter Module is a high-performance, standard optical splitter designed for the fiber optic networks of FTTx, PON, CATV systems, and data communication applications. Available in several split ratios from 1×2 up to 1×32, this splitter module efficiently splits a single optical signal into multiple outputs with low loss and high signal quality.

The module fits in a standard LGX cassette, making it easy to install and integrate with optical distribution frames and cabinets. The SC/UPC connectors provide low insertion loss and high return loss to support stable network performance, while the module is designed to operate in harsh environments and temperature ranges and complies with several domestic and international standards such as Telcordia GR-1221/1209, RoHS, ISO9001, CE, and FCC.

This splitter module works with various fiber types (G657A1 or G652D), and features pigtails that are pre-terminated at the factory for quick plug-and-play installation, lowering labor costs and shortening installation and deployment time. All in all, this LGX Cassette PLC Splitter Module simply provides better overall performance and flexibility whether you need to expand your network capacity or distribute a signal.

Split Ratios	1×2, 1×4, 1×8, 1×16, 1×32
Operating Wavelength	1260 nm – 1650 nm
Insertion Loss	1×2: ≤3.8 dB 1×4: ≤7.0 dB 1×8: ≤10.5 dB 1×16: ≤14.0 dB 1×32: ≤16.5 dB
Return Loss	UPC: ≥50 dB APC: ≥55 dB
Polarization Dependent Loss (PDL)	≤0.3 dB
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Fiber Type	G657A1 or G652D
Connector Type	SC/UPC
Cable Length	Typically 900 mm pigtail
Housing	LGX Cassette
Standards Compliance	Telcordia GR-1221/1209, RoHS, ISO9001, CE, FCC
Packaging	Pre-terminated cassette with pigtails
