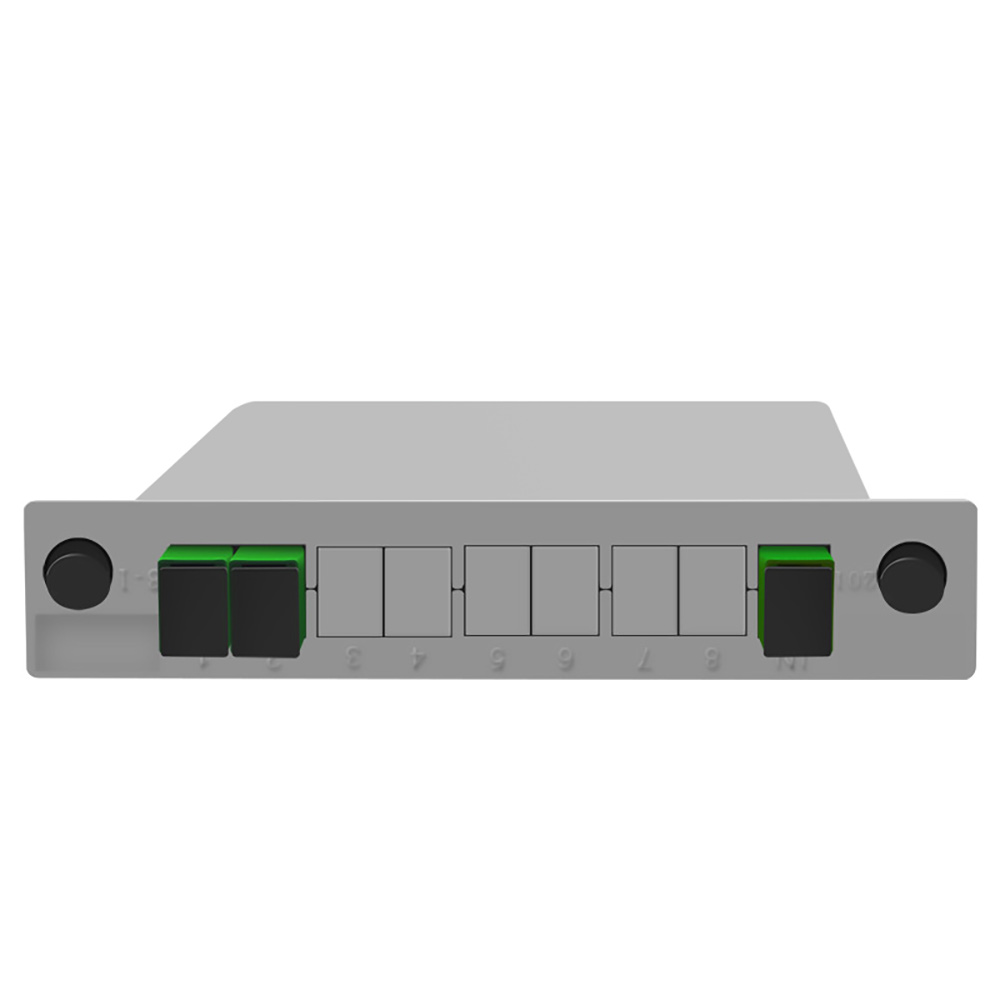

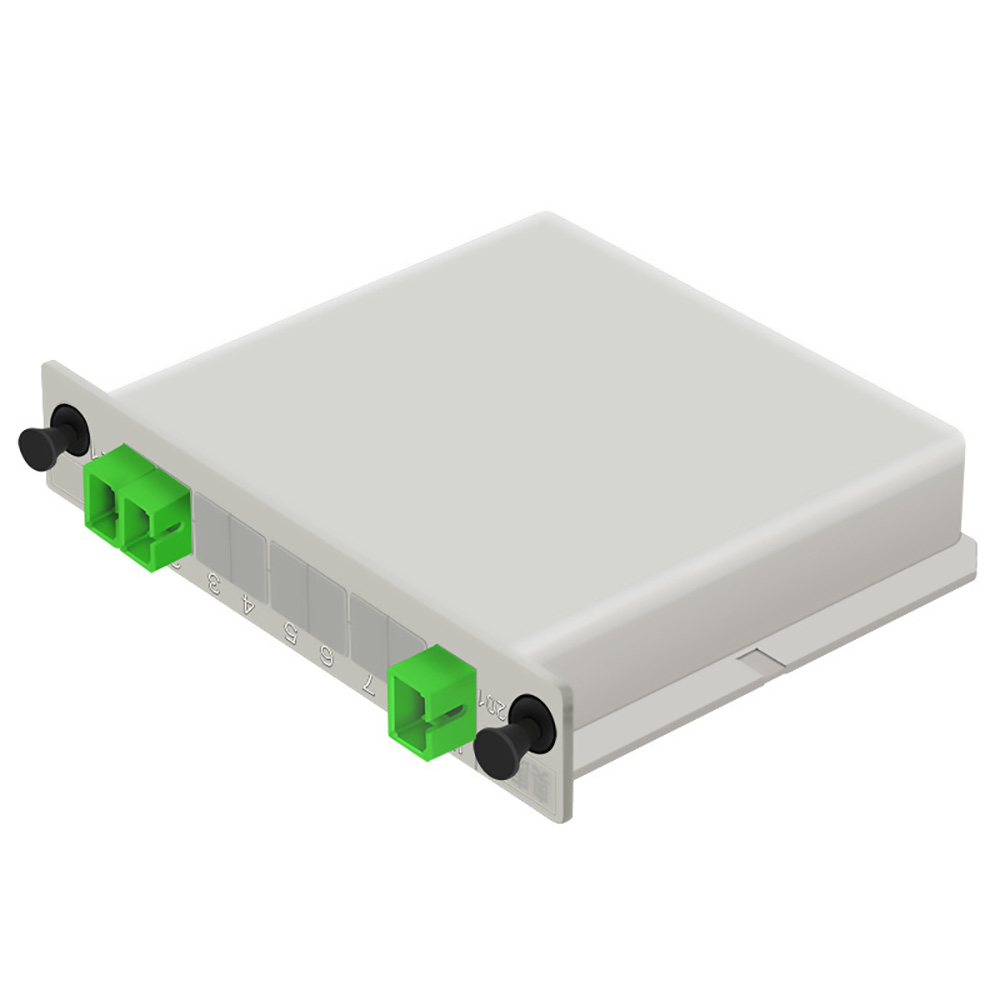

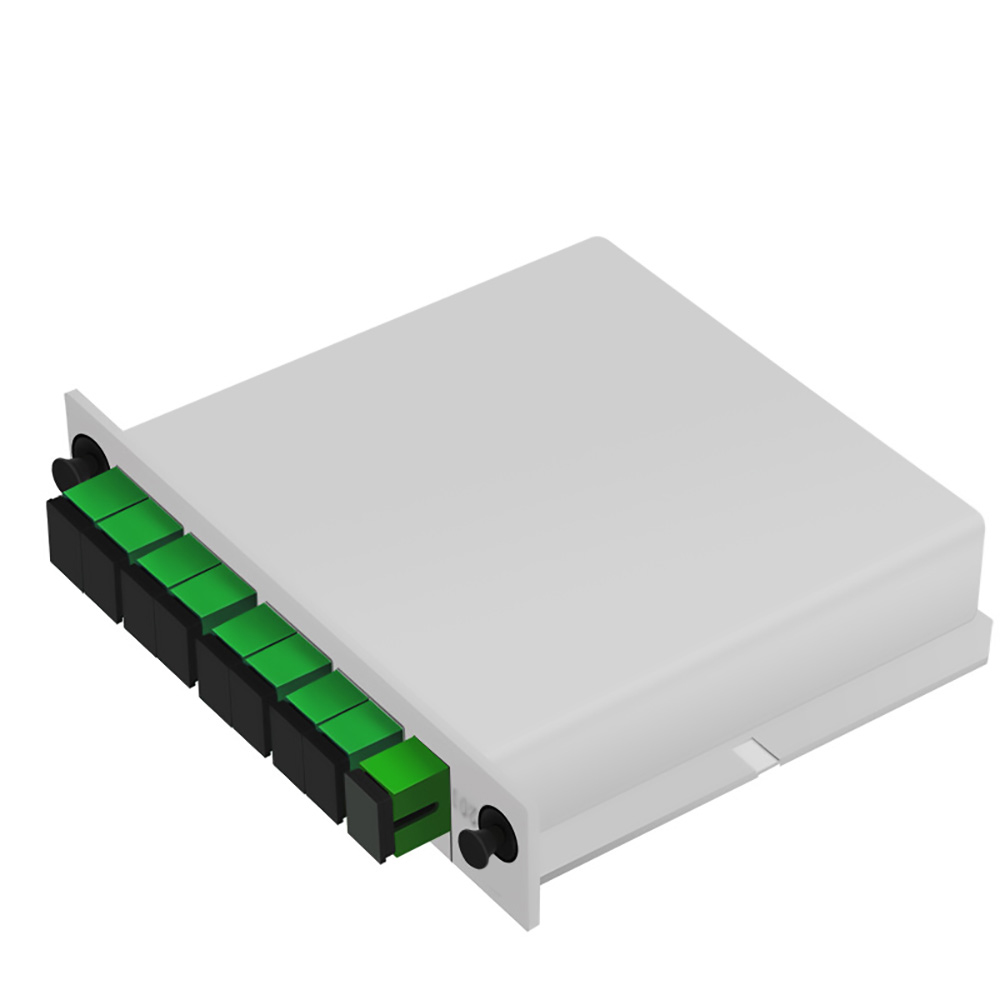

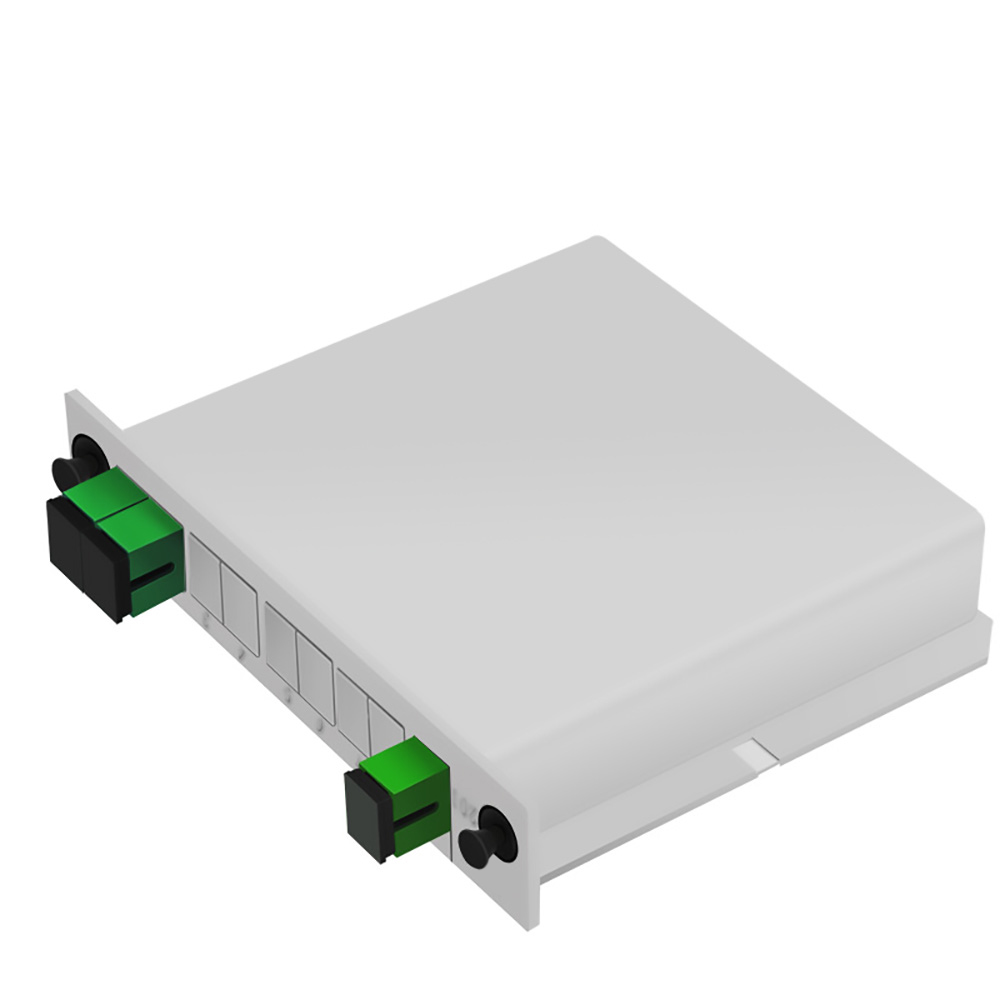

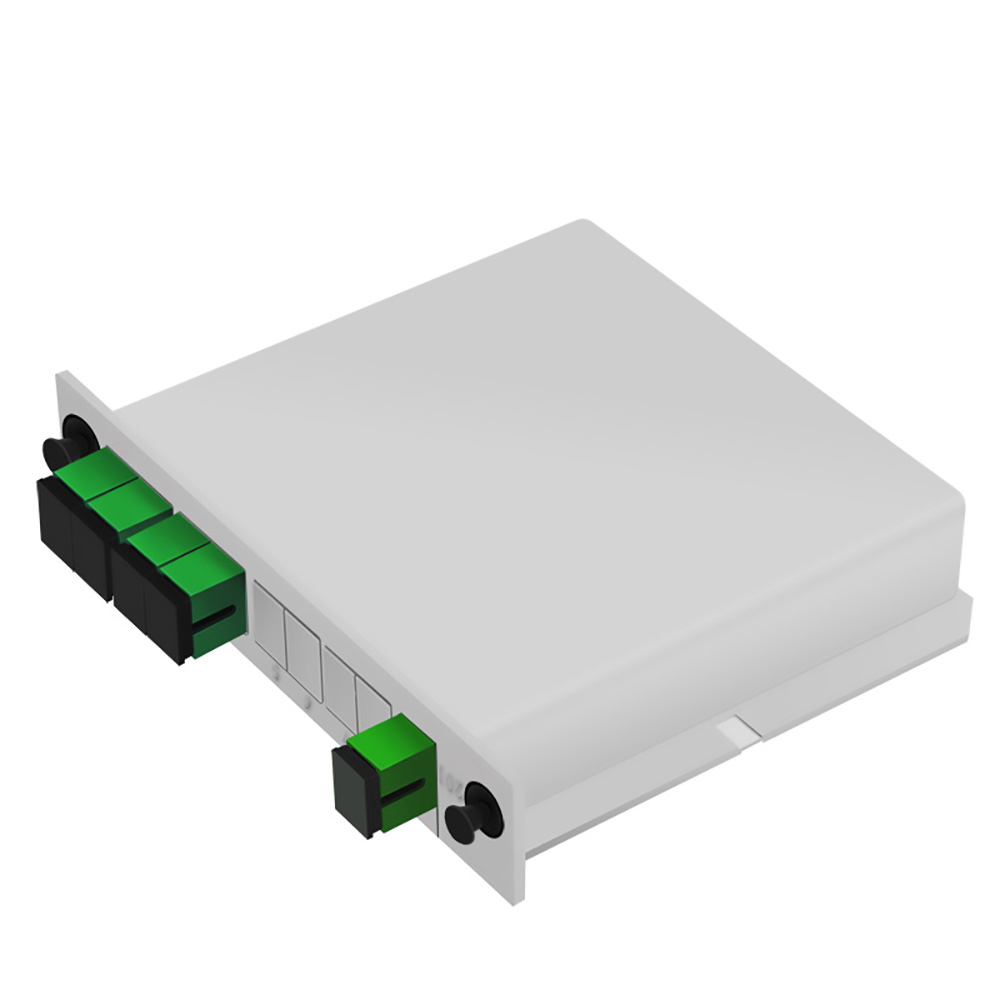

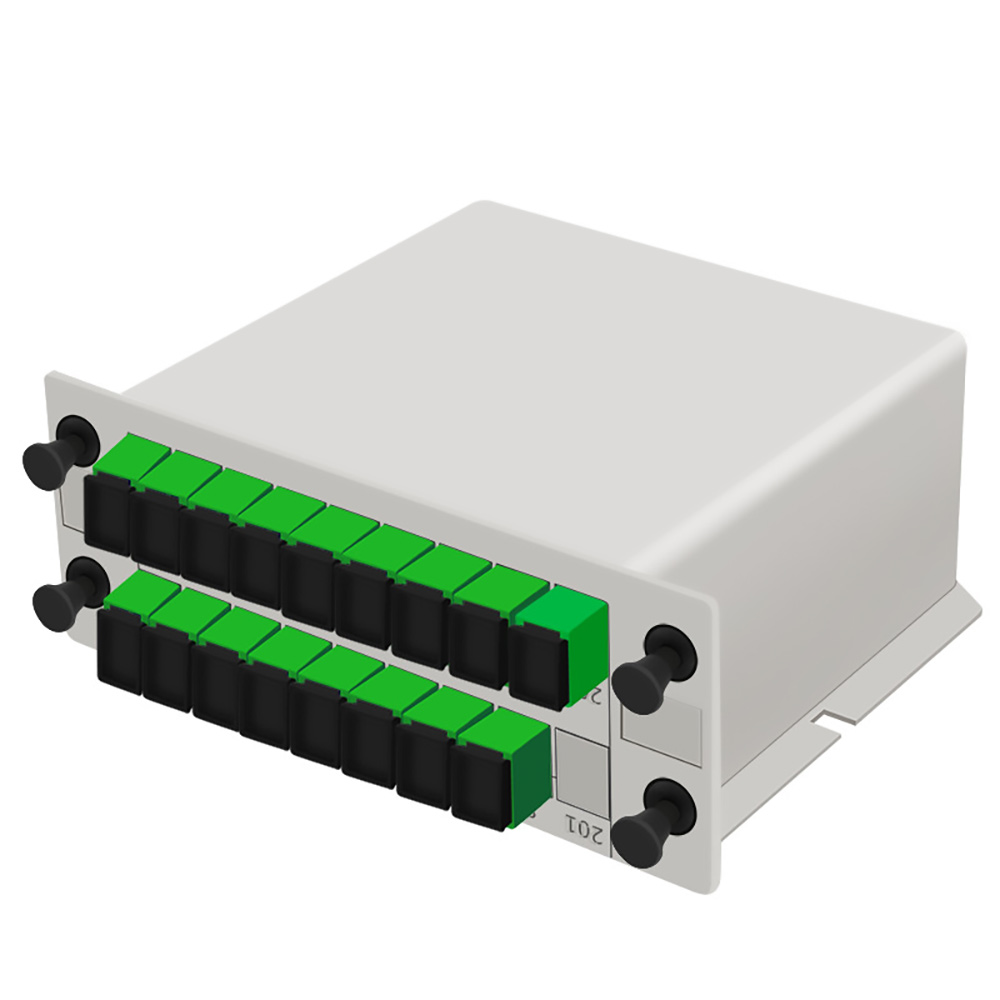

LGX Cassette PLC Splitter – 1×2, 1×4, 1×8, 1×16, 1×32 SC/APC, Singlemode

Range of Configuration: Provides split ratios of 1×2, 1×4, 1×8, 1×16, and 1×32 to address various network needs.
High Precision PLC Technology: Provides low insertion loss and excellent channel uniformity resulting in even power delivery.
Compact LGX Cassette Design: LGX cassette design fits all standard LGX panels and is easy to install and space saving in ICT fiber optic distribution frames.
SC/APC Connectors: Low back reflection and stable optical performance for singlemode networks.
Wide Wavelength Range: Works well across the 1260nm to 1650nm wavelength range for telecommunication and CATV applications.
Sturdy Reliability: Built to meet the Telcordia and IEC standards to ensure long-term reliability and longevity.
Low Polarization Dependent Loss: Minimizes distortion to bring superior quality for data transmission.
Plug-and-Play Installation: The pre-terminated connectors and cassette design allow for quick deployment and ease of maintenance.
Wide Operating Temperature: Works well in indoor environments with reliable operation from -40°C to +85°C.

Description

The LGX Cassette PLC Splitter represents a high-quality optical splitter that allows for reliable fiber delivery in optical networks. The splitter is commonly designed in split ratios of 1×2, 1×4, 1×8, 1×16 and 1×32, offering flexible solutions for installations in FTTH (Fiber To The Home), GPON (Gigabit Passive Optical Network), CATV (Cable TV), etc. The LGX Splitter uses compact and effective planar lightwave circuit (PLC) technology, that offers uniform power distribution, and low insertion loss with low channel uniformity. The LGX cassette format easily mounts into a standard LGX panel, providing easy access for installation and maintenance. The LGX PLC Splitter is provided with SC/APC connectors to achieve low back reflection and stable optical performance in the wavelength spectra of 1260nm to 1650nm.

The splitter is manufactured to the Telcordia and IEC specifications assure long term reliability and stability protection against environmental influences. It is designed to operate under environmental conditions from -40°C to +85°C. The LGX Splitter is an effective and robust product for high-density and scalable network applications requiring consistent and reliable optical splitters.

Specifications Table

Parameter	Specification
Model	LGX Cassette PLC Splitter
Split Ratios Supported	1×2, 1×4, 1×8, 1×16, 1×32
Connector Type	SC/APC
Fiber Type	Single-mode fiber (SMF)
Operating Wavelength	1260nm – 1650nm
Insertion Loss	Typical values vary by split ratio: – 1×2: ≤ 0.7 dB – 1×4: ≤ 1.3 dB – 1×8: ≤ 3.0 dB – 1×16: ≤ 7.0 dB – 1×32: ≤ 10.5 dB
Uniformity	≤ 0.6 dB
Return Loss	≥ 55 dB
Polarization Dependent Loss (PDL)	≤ 0.2 dB
Directivity	≥ 55 dB
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Housing Type	LGX Cassette
Compliance Standards	Telcordia GR-1209, GR-1221; IEC 61753-1; RoHS compliant
Applications	FTTH, GPON, CATV, broadband access networks, LAN, WAN
Dimensions	Standard LGX cassette size for easy integration
Environmental Protection	Suitable for indoor use
