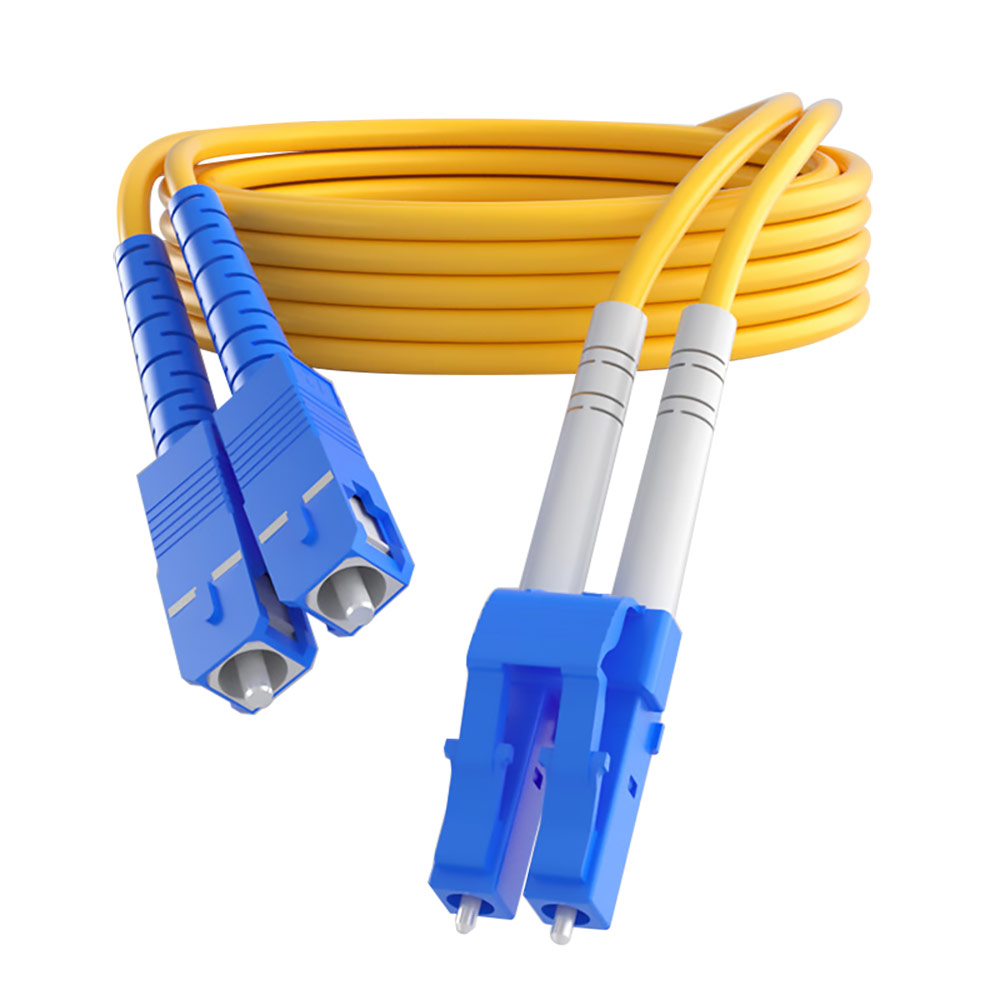

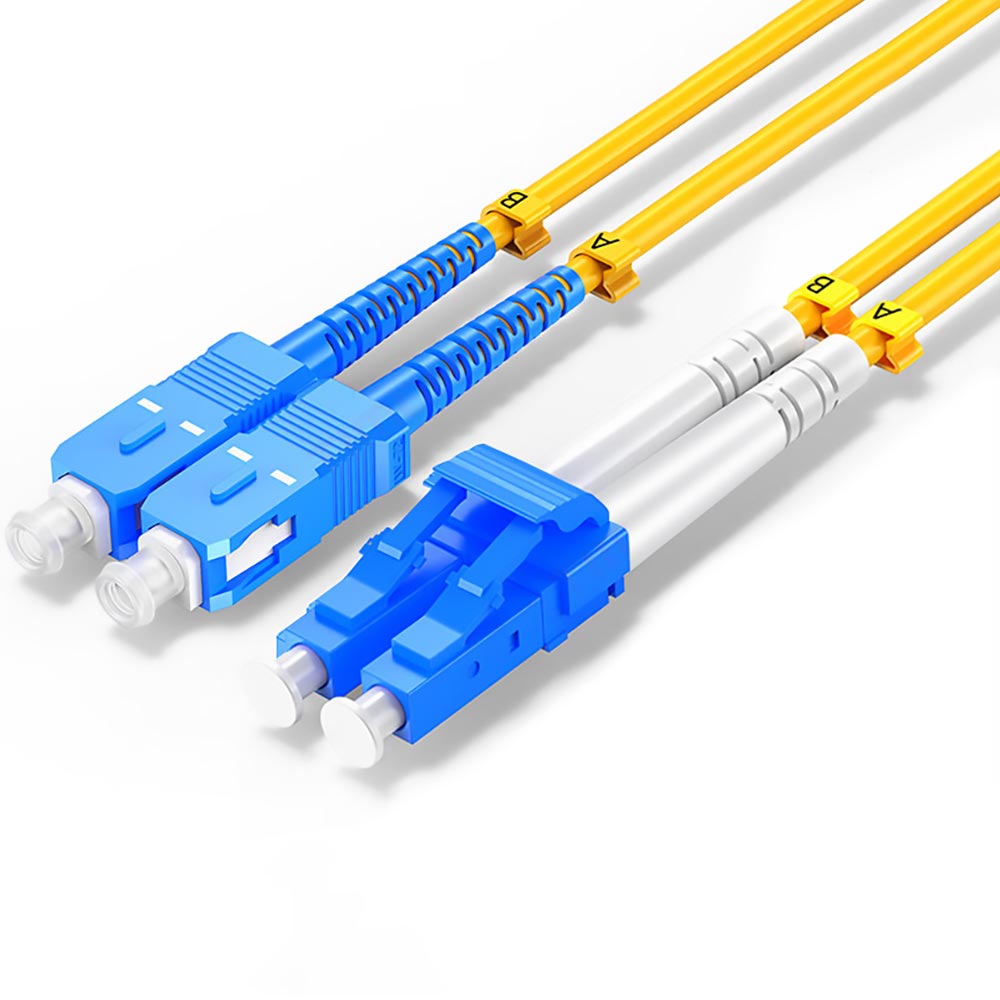

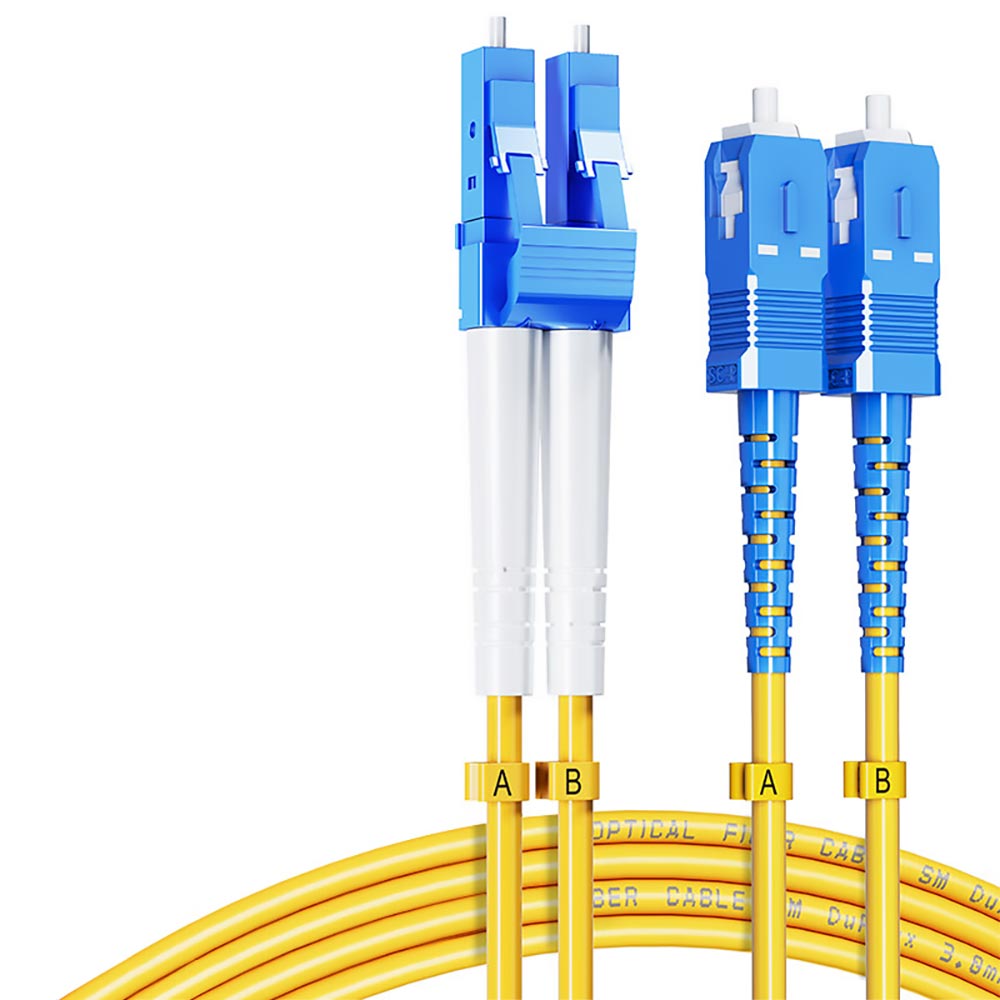

LC/UPC to SC/UPC Duplex Fiber Patch Cable, Single Mode (OS2), PVC/LSZH, 2.0mm

  • Single Mode OS2 fiber (G.652.D / G.657.A1 / G.657.A2) provides low loss and is rated for long haul performance up to 40km at 1550nm.
  • The bend insensitive fiber with a minimum 10mm bend radius offers less signal loss when routing during both installation and maintenance.
  • Zirconia ceramic ferrule connectors (LC 1.25mm, SC 2.5mm) have ultra low insertion loss of ≤0.3 dB and high return loss of ≥55 dB for better performance.
  • Duplex construction with a color coded yellow jacket for OS2 allows for easy labeling and organized cabling.
  • Safety and compliance protocols are met with dual jacket options made from PVC or LSZH for indoor riser or plenum use.
  • Durable construction with a tensile strength of ≥1000N and operating temperatures of -40°C to +85°C provides better performance when installed in harsh conditions.
  • The pre-terminated product will arrive plug and play, simplifying deployment and reducing installation time.
  • It is compatible with Ethernet applications ranging from 1G to 400G.
  • Available in custom lengths and connector types, it has many more options for networking needs.

Description

SpecificationDescription
Fiber TypeLC/UPC to SC/UPC Duplex Fiber Patch Cable, Single Mode OS2 (G.652.D / G.657.A1 / G.657.A2)
Core/Cladding Diameter9/125 µm
Connector ALC UPC Duplex, 1.25 mm ceramic ferrule
Connector BSC UPC Duplex, 2.5 mm ceramic ferrule
Insertion Loss≤ 0.30 dB
Return Loss≥ 55 dB
Repeatability≤ 0.1 dB
Interchangeability≤ 0.2 dB
Tensile Strength≥ 1000 N
Operating Wavelength1310 nm to 1550 nm
Maximum Transmission DistanceUp to 10 km at 1310 nm; up to 40 km at 1550 nm
Cable Jacket MaterialPVC (Flame-retardant OFNR) or LSZH
Cable Jacket ColorYellow
Cable Diameter2.0 mm
Bend RadiusMinimum 10 mm (bend insensitive fiber)
Operating Temperature-20°C to +85°C
Storage Temperature-40°C to +85°C
Durability<0.1 dB typical change after >500 matings
Flammability RatingUL94 V-0 (PVC), Riser rated (OFNR)
ComplianceIEC 61754-20 (LC), IEC 61754-4 (SC), TIA standards, RoHS

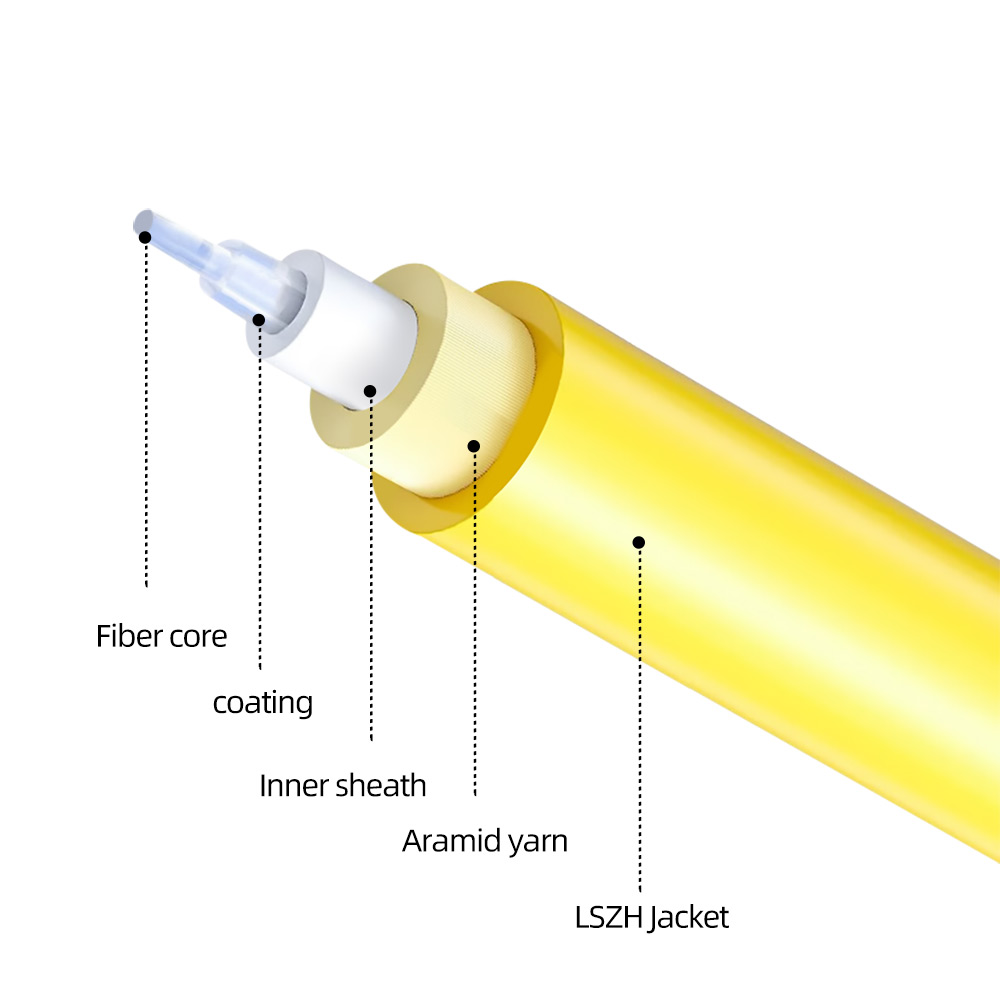

Cable StructureDuplex zipcord construction to reduce crimping damage
Typical ApplicationsTelecom, GPON, EPON, GBIC, data centers, enterprise networks, 1G to 400G Ethernet connections
Length OptionsStandard: 1m, 2m, 3m, 5m, 7m, 10m, 15m; Custom lengths available
OEM/ODM OptionsCustom printing, labeling, colors, lengths available
