| Specification | Details |
|---|---|
| Fiber Type | Multimode OM3 (50/125 µm) |
| Cable Type | Duplex Fiber Patch Cable |
| Connector Type | LC UPC to SC UPC |
| Cable Diameter | 2.0 mm |
| Cable Color | Aqua (standard OM3 color) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Rating | OFNR (Riser) |
| Performance | Supports 10 Gigabit Ethernet (10GBase-SR, 10GBase-LRM) |
| Standards Compliance | ITU-T G.651.1, TIA/EIA 492AAAC, IEC60793-2-10 A1a.2a, RoHS |
| Bandwidth | 1500 MHz-km at 850 nm, 500 MHz-km at 1300 nm |
| Attenuation | Max 2.3 dB/km at 850 nm, Max 0.6 dB/km at 1300 nm |
| Operating Temperature | -20°C to +70°C |
| Minimum Bend Radius | 5.0 cm (installation), 3.0 cm (long-term) |
| Connector Features | 125 micron zirconia ceramic ferrules, UPC polished faces, easy-removable clips on LC and SC |

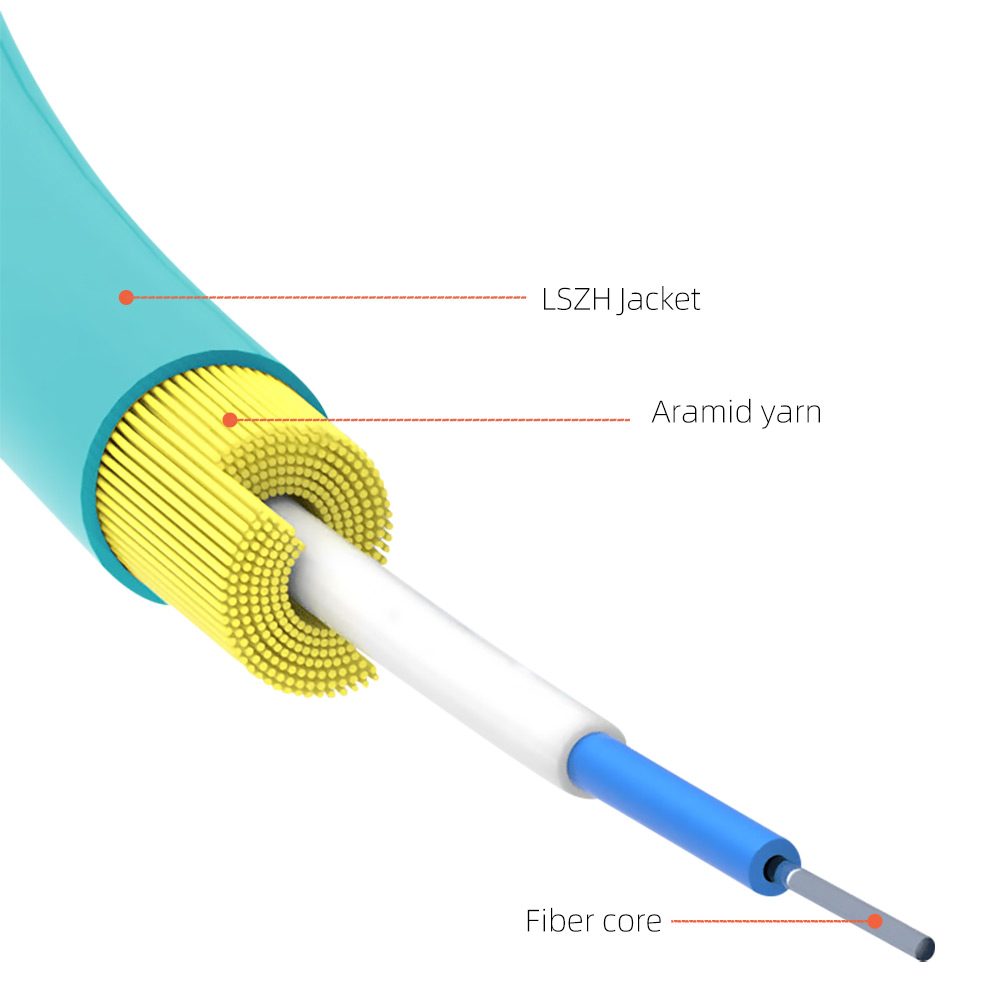

| Cable Construction | Tight-buffered, zipcord reinforced |
| Length Options | 0.2m (0.65ft), 0.5m (1.6ft), 1m (3ft), 1.5m (5ft), 2m (7ft), 3m (10ft), 4m (13ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), 20m (66ft), 25m (82ft), 30m (98ft), 50m (164ft) |
| Additional Variants | FC-FC OM3, SC-SC OM3, SC-FC OM3, SC-LC OM3, LC-FC OM3, LC-LC OM3 |
Hot

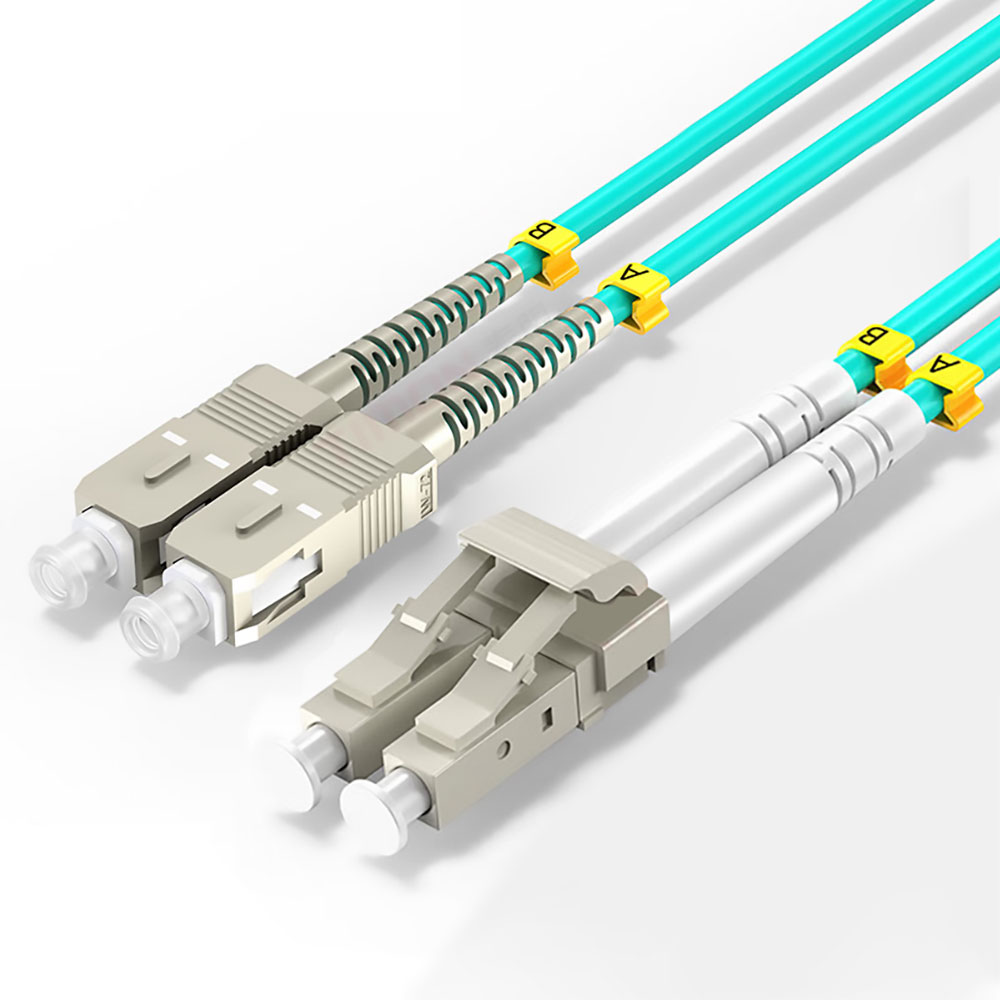

LC UPC to SC UPC Duplex Fiber Patch Cable, Multimode OM3, 10G, LSZH, 10m (33ft), 2.0mm
- OM3 Laser Optimized Multimode Fiber: Specifically optimized for data centers and LANs that require 10 Gigabit Ethernet with high bandwidth and low attenuation.

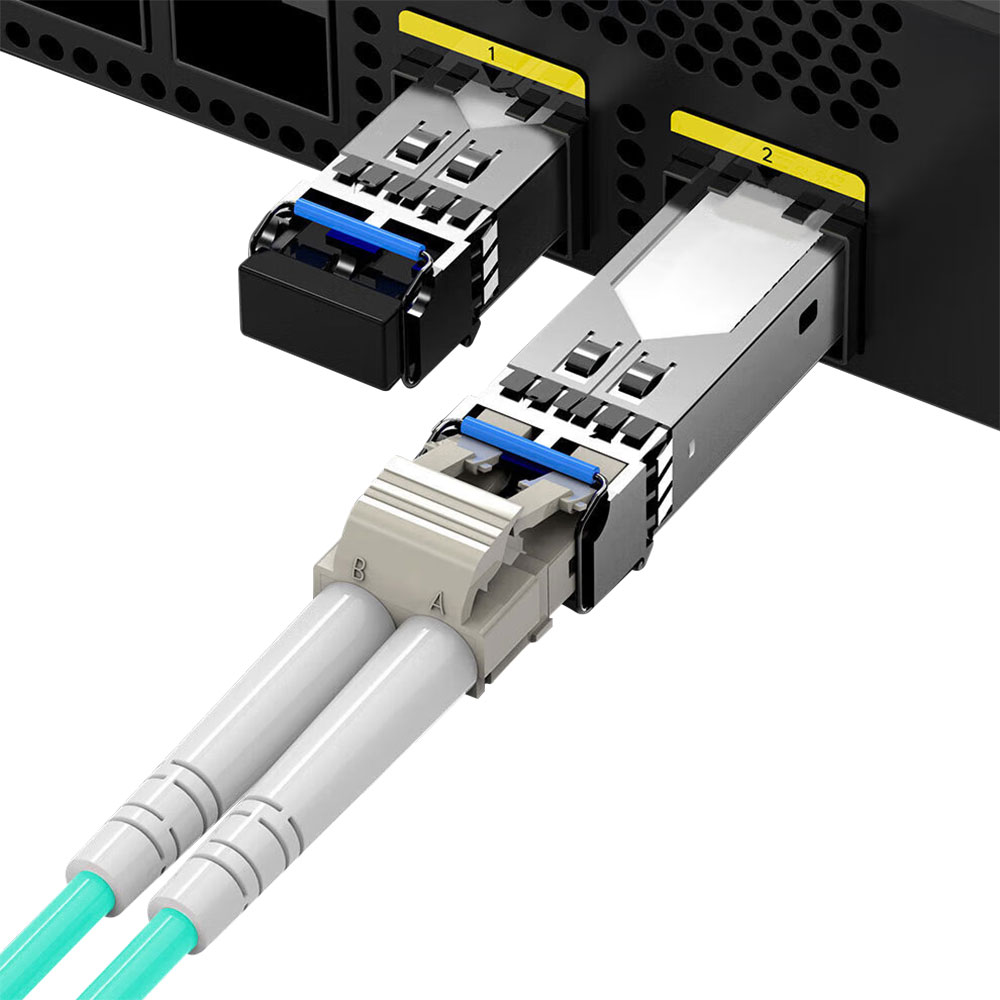

- Compatible with 10G Transceivers: 10G Base-SR, 10G Base-LRM, SFP or QSFP transceivers for reliable 10G networks.
- Standards Compliant: In compliance with ITU-T G.651.1, TIA/EIA 492AAAC, IEC60793-2-10 A1a.2a and RoHS environmental regulations.
- Unique Aqua Jacket with 3.0mm Outer Diameter: The OM3 is offered in a unique aqua color for ease of identification and a cable diameter of 3.0mm.
- High Bandwidth & Low Attenuation: It offers a maximum bandwidth of 1500 MHz-km with 2.3 dB/km attenuation at 850nm, and 500 MHz-km with 0.6 dB/km attenuation at 1300nm.
- Regarding Operating Temperature: The OM3 is rated to operate in an operating temperature from -20°C to +70°C.
- Bend Radius Requirements: Minimum installation bend radius requirement (5.0 cm) and long term bend radius requirement (at least 3.0 cm) for best signal transmission.

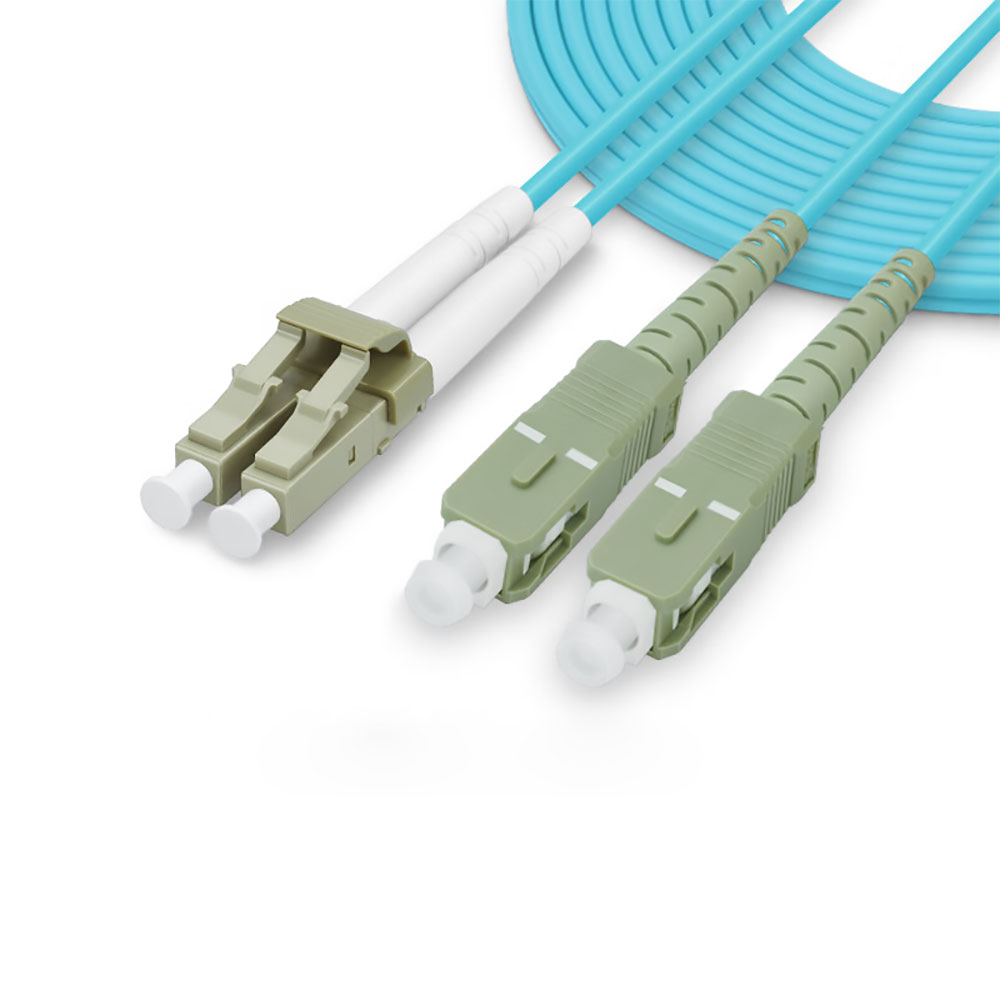

- LC & SC Connector: LC connectors are manufactured with 125 micron zirconia ceramic ferrules with UPC polished connector faces, duplex assemblies have snap-off clips for fast secure installation.
- Duplex Cable Type: Two cables twisted together to allow bi-directional signal for best transfer rates.
