| Parameter | Specification |
|---|---|
| Fiber Type | Singlemode (OS2) LC/UPC to SC/APC Patch Cables |
| Number of Fibers | 2 (Duplex) |
| Core Diameter | 9 µm |
| Cladding Diameter | 125 µm |
| Cable Mode | Singlemode |
| Cable Jacket Material | LSZH |
| Cable Diameter | 2.0 mm |

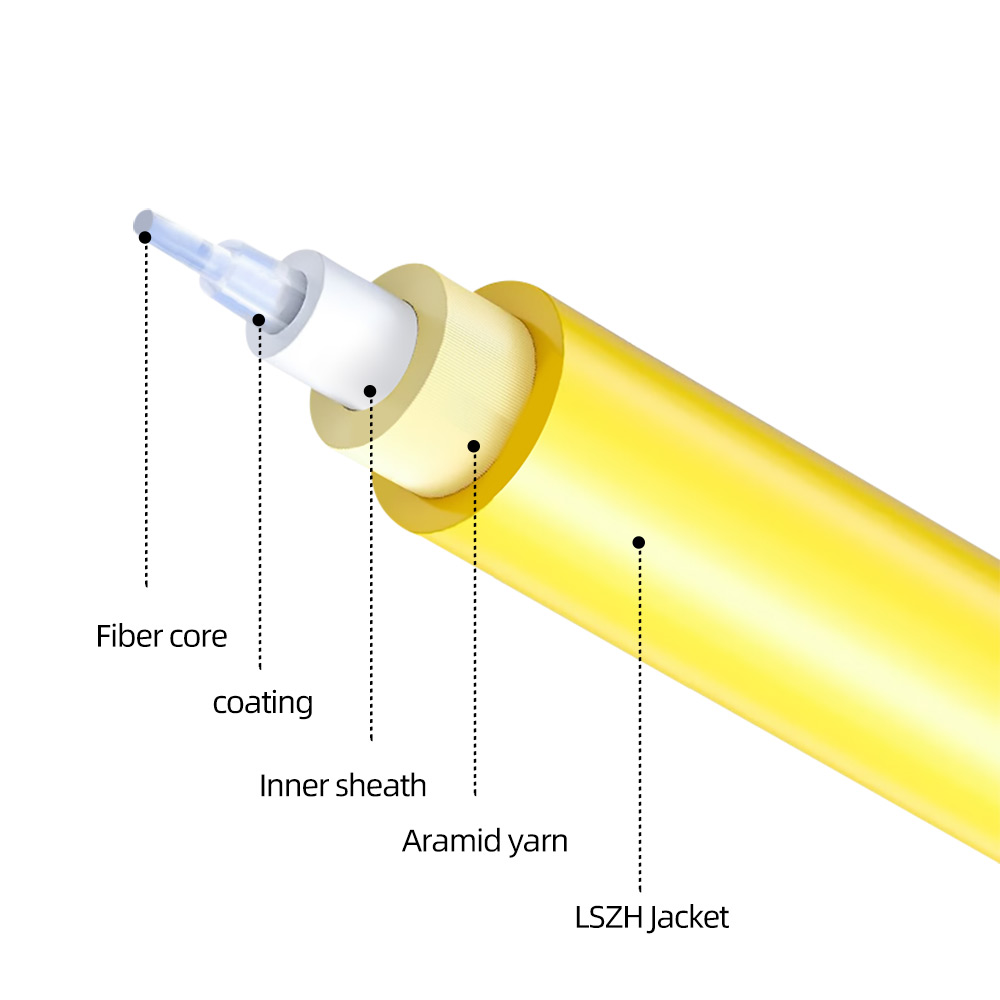

| Cable Construction | Tight Buffered Duplex Cable |
| Connector Type (End A) | LC/UPC |
| Connector Type (End B) | SC/APC |
| Connector Ferrule Material | Zirconia Ceramic |
| Connector Ferrule Diameter | 1.25 mm (LC), 2.5 mm (SC) |
| Connector Dimensions (LC) | 10.75 mm (H) x 12.5 mm (W) x 50 mm (D) with duplex clip |
| Connector Dimensions (SC) | 10.6 mm (H) x 26 mm (W) x 58 mm (D) with duplex clip |
| Insertion Loss (Typical) | 0.30 dB |
| Insertion Loss (Maximum) | 0.50 dB |
| Return Loss (Typical) | ≥ 55 dB |
| Operating Temperature Range | -20°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Cable Jacket Rating | OFNR |
| Compliance | ROHS Compliant, Industry Standards Compliant |
-50%

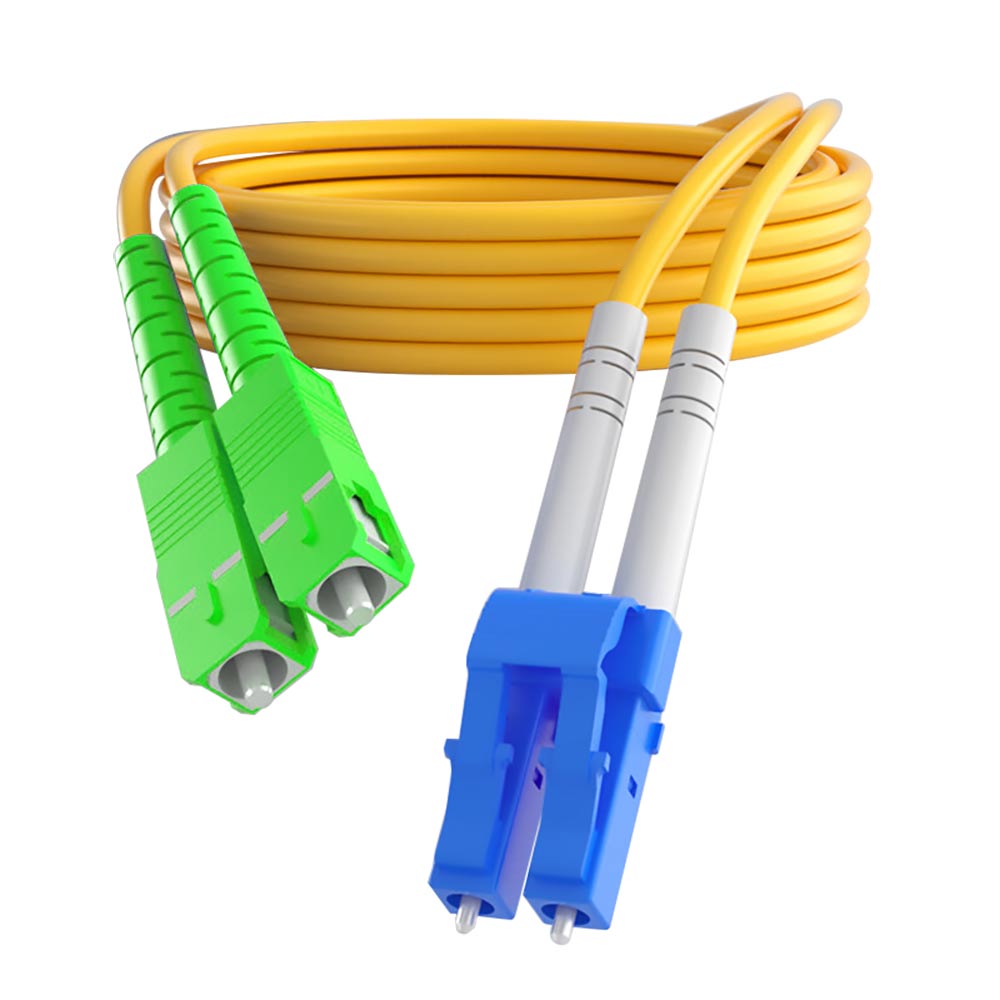

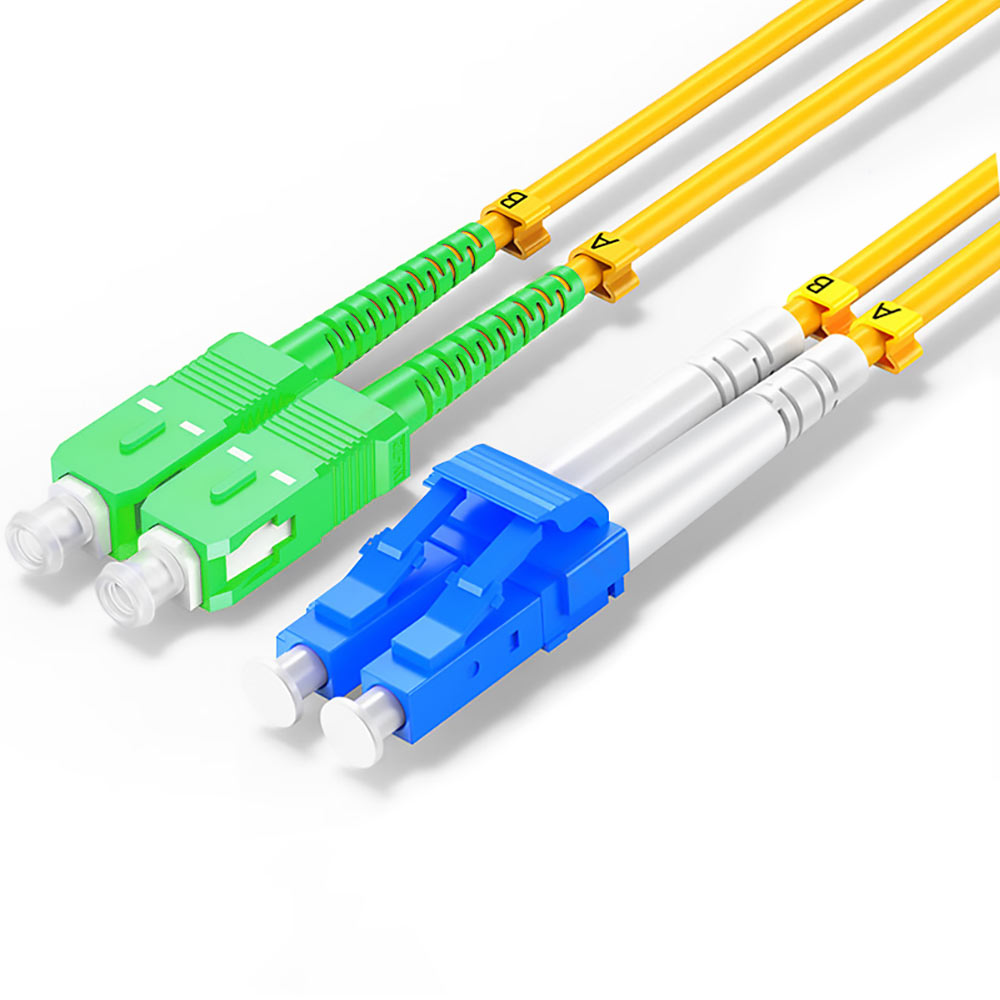

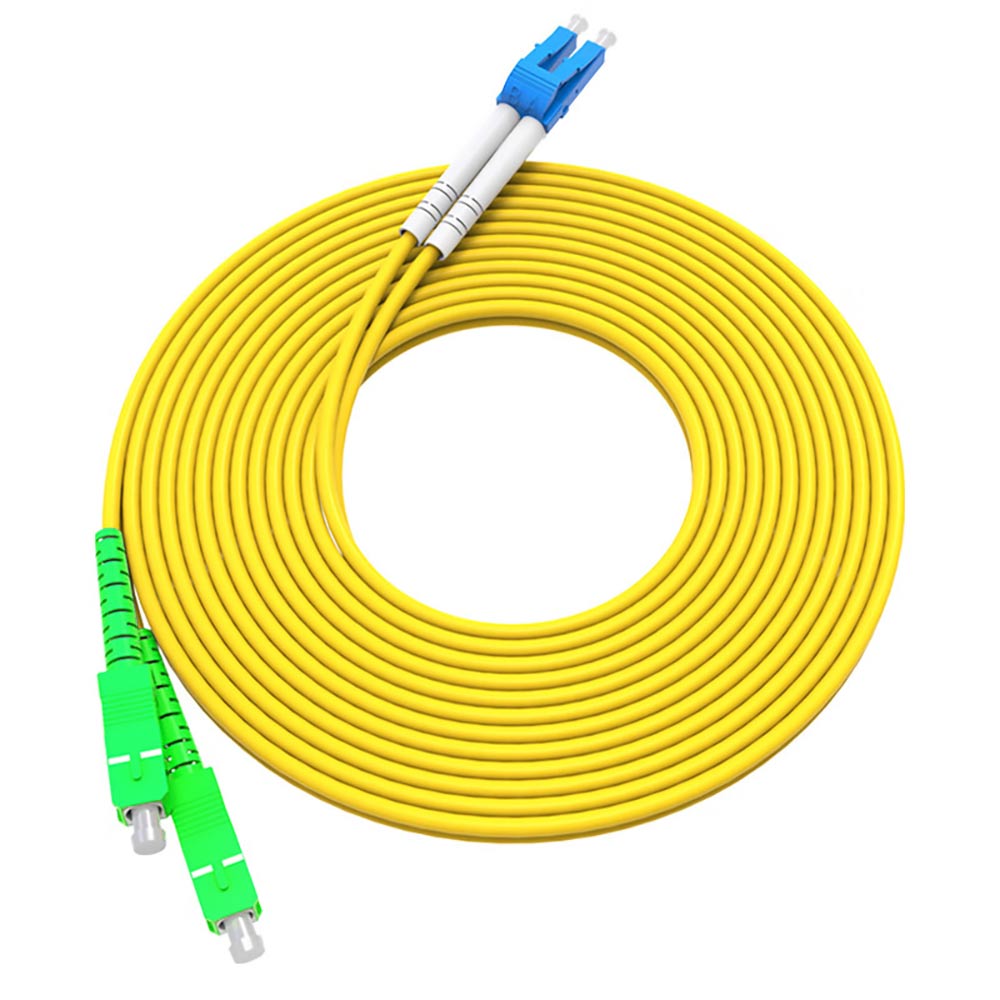

LC/UPC to SC/APC Patch Cables, Duplex Single Mode (OS2), 2 Fibers, 9/125µm

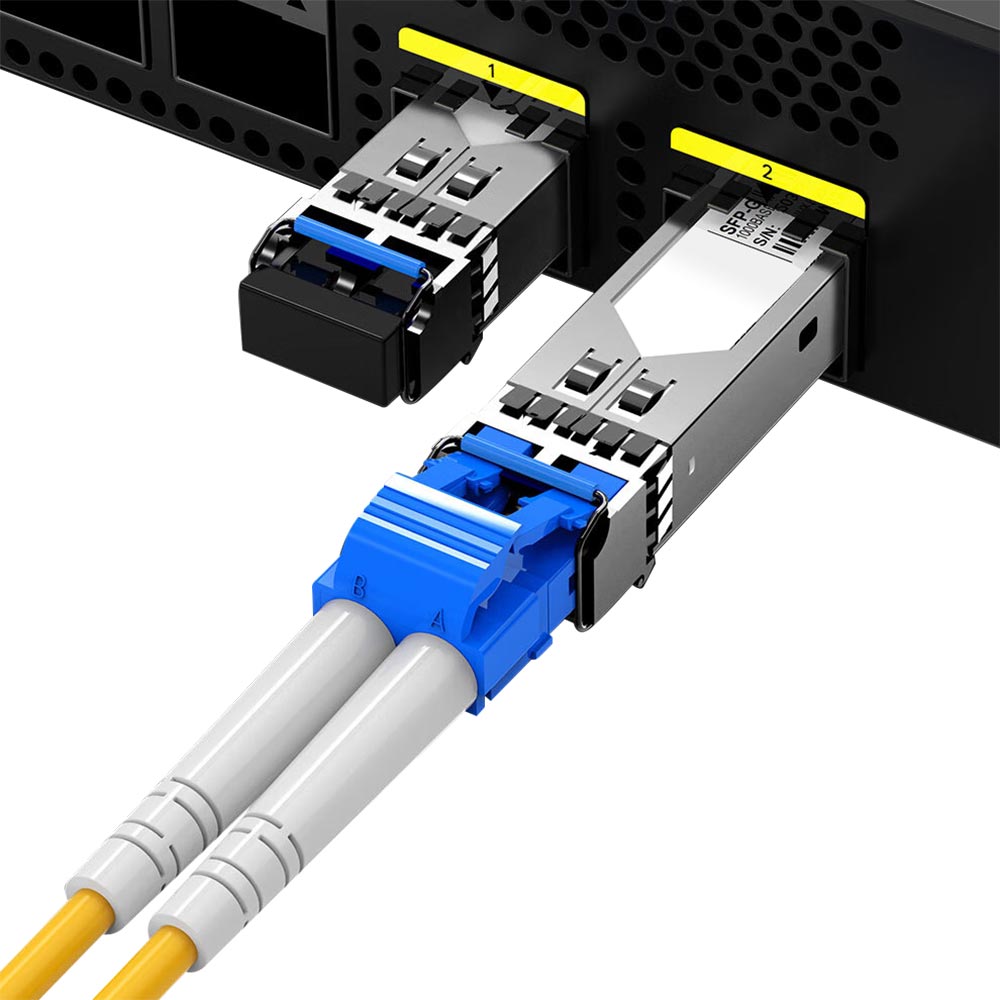

- LC Connectors: Small size for high-density environments, no-pull design with a secure latch for stable rack mounting using 1.25mm zirconia ferrule.
- SC Connectors: Equipped with a 2.5mm pre-radius zirconia ferrule for quick patching using the push-pull design, and also available with reusable duplex clip for duplex patching.
- FC and ST Connectors: Durable threaded coupling (FC) or bayonet connection (ST) for reliability in telecom installations and for traditional fiber use in the field.
- Low Insertion and Return Loss: Typical insertion loss of 0.30 dB with return loss as high as -55 dB maintaining signal integrity.
- Pull-Proof Jacket: Protects the fiber from strain, pulls and installation, increasing usable cable life.
- Immunity to Electrical Interference: The fiber design eliminates electromagnetic interference, thus maintaining stable data transmission.
- 100% Optically Tested: Rigorous inspection and insertion loss tests are performed on each cable for quality and reliability.
Price range: $6.50 through $16.90
