| Specification | Details |
|---|---|
| Product Name | LC UPC to LC UPC Duplex Fiber Patch Jumper Cable |
| Length Options | 0.2m (0.65ft), 0.5m (1.6ft), 1m (3ft), 1.5m (5ft), 2m (7ft), 3m (10ft), 4m (13ft), 5m (16ft), 7m (23ft), 10m (33ft), 15m (49ft), 20m (66ft), 25m (82ft), 30m (98ft), 50m (164ft) |
| Fiber Type | Multimode OM3 (Laser Optimized Multimode Fiber) |
| Core/Cladding Diameter | 50/125 µm |
| Bandwidth | 1500 MHz-km @ 850 nm, 2000 MHz-km @ 1300 nm |
| Network Speed | Supports 10 Gigabit Ethernet (10Gb/s) |
| Connector Type | LC UPC to LC UPC Duplex, 1.25mm ceramic ferrule |
| Polish Type | UPC (Ultra Physical Contact) |
| Cable Diameter | 2.0mm Tight-Buffered |
| Jacket Material | LSZH (Low Smoke Zero Halogen) / OFNR (Riser rated) |
| Jacket Color | Aqua (standard for OM3/OM4 multimode cables) |
| Minimum Bend Radius | 7.5mm |
| Construction | Duplex Zipcord |
| Insertion Loss | Typical ≤ 0.3 dB, Max ≤ 0.5 dB |
| Return Loss | ≥ 25 dB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Standards Compliance | ANSI/TIA/EIA-455-171-A-2001, RoHS Compliant |
| Applications | Data centers, telecom, enterprise networks, high-speed LANs |

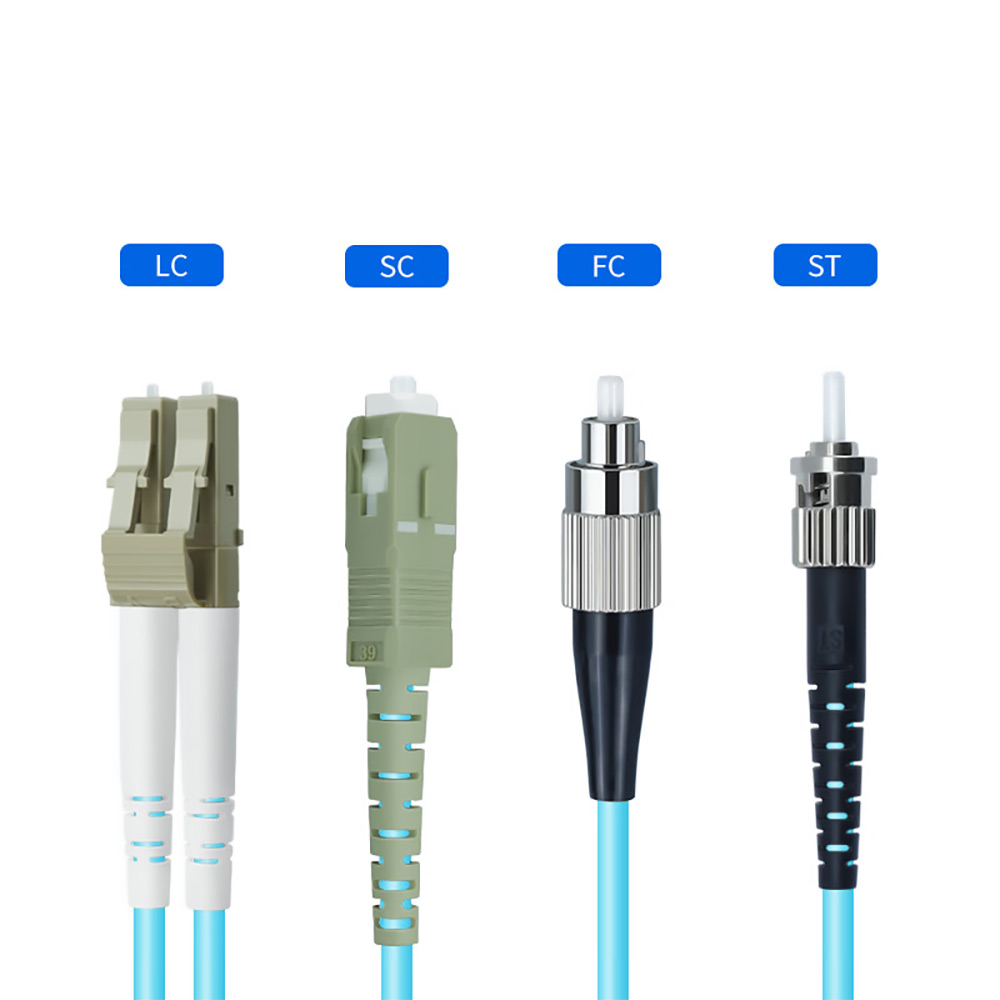

| Other Available Models | FC-FC OM3, SC-SC OM3, SC-FC OM3, SC-LC OM3, LC-FC OM3, LC-LC OM3 |

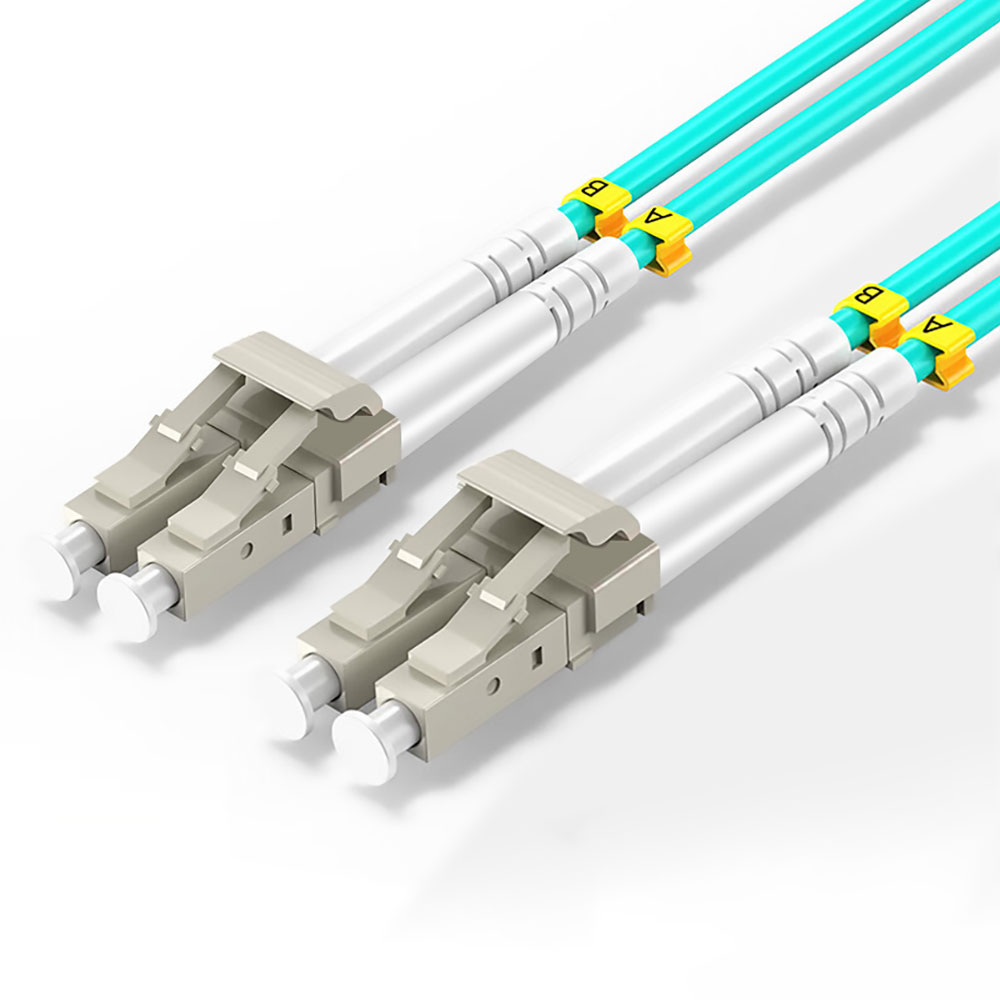

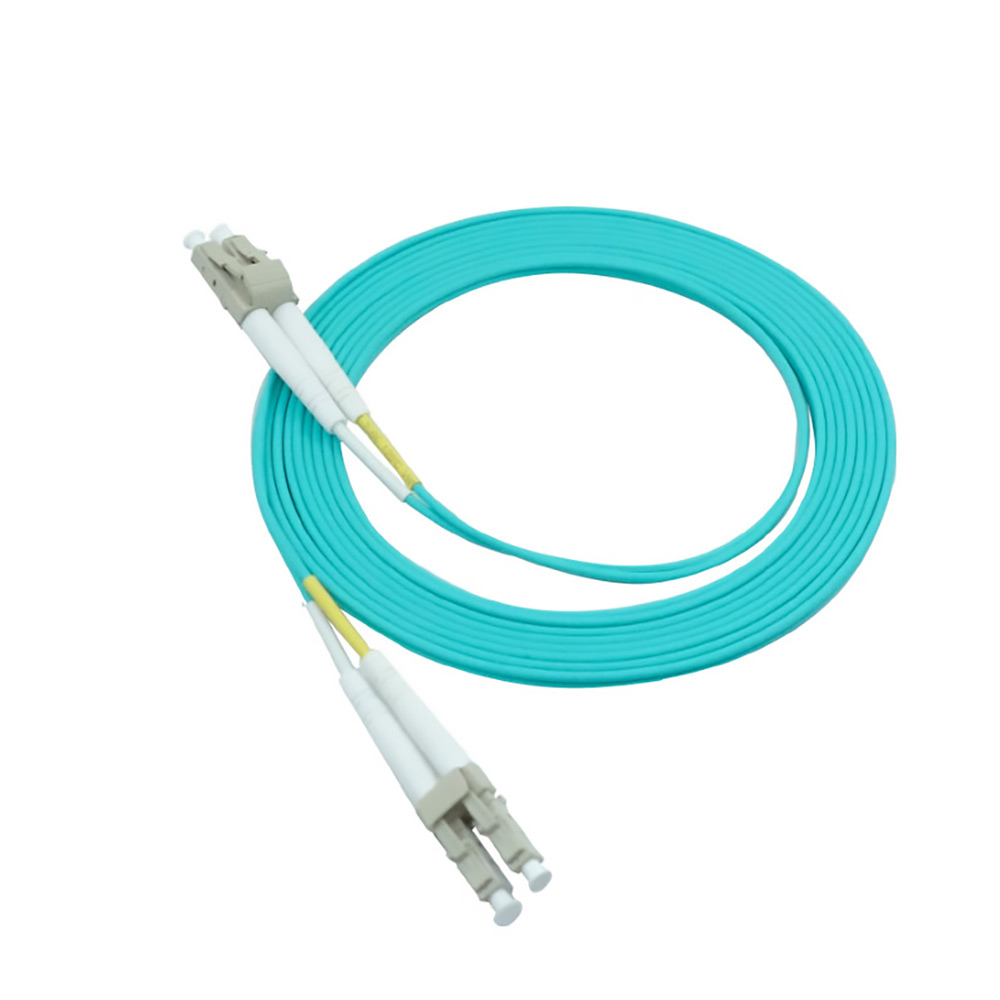

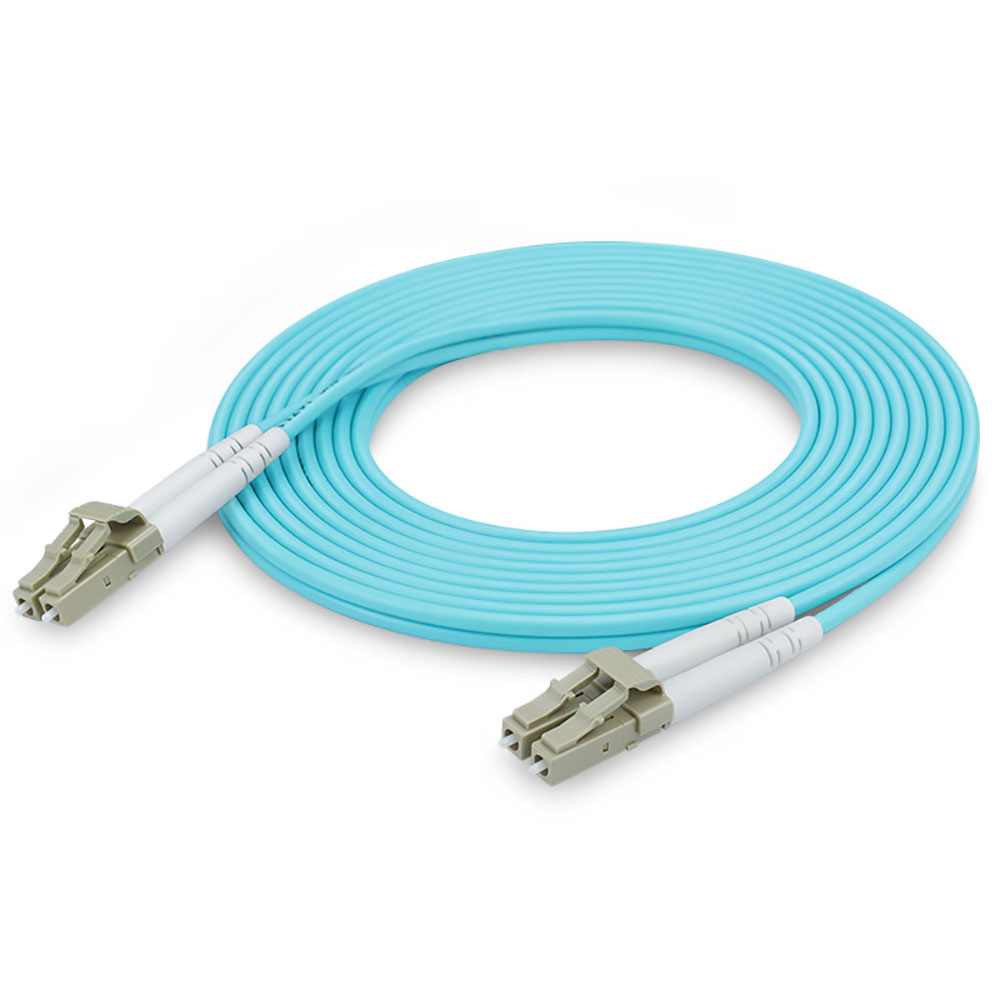

LC UPC to LC UPC Duplex Fiber Patch Jumper Cable, 2m (7ft), Multimode OM3, 10Gb, LSZH, 50/125, 2.0mm, Tight-Buffered
- Multimode OM3 fiber with a data transmission capacity of 10Gbps.

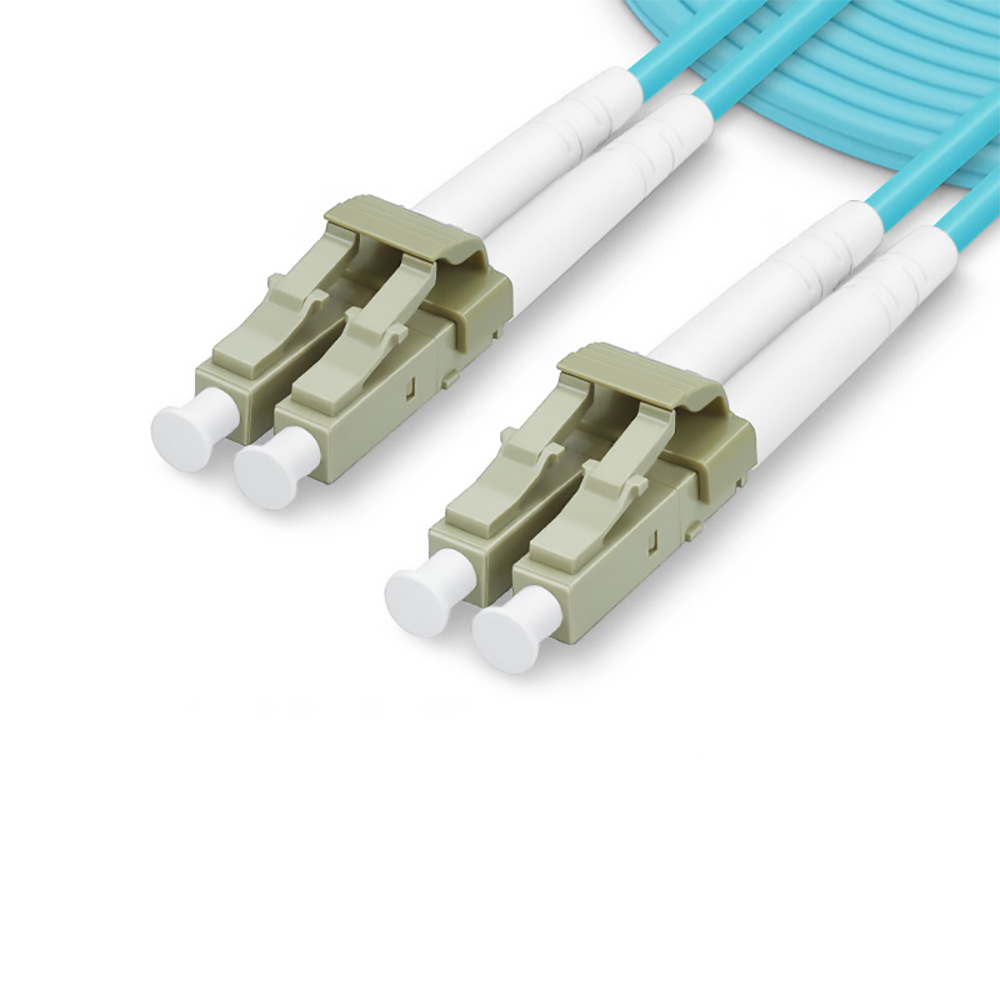

- LC UPC to LC UPC duplex connectors ensure low insertion loss and reliable connections.
- 2-meter length; other available lengths range from 0.2m (0.65ft) to 50m (164ft), providing flexibility for deployment.

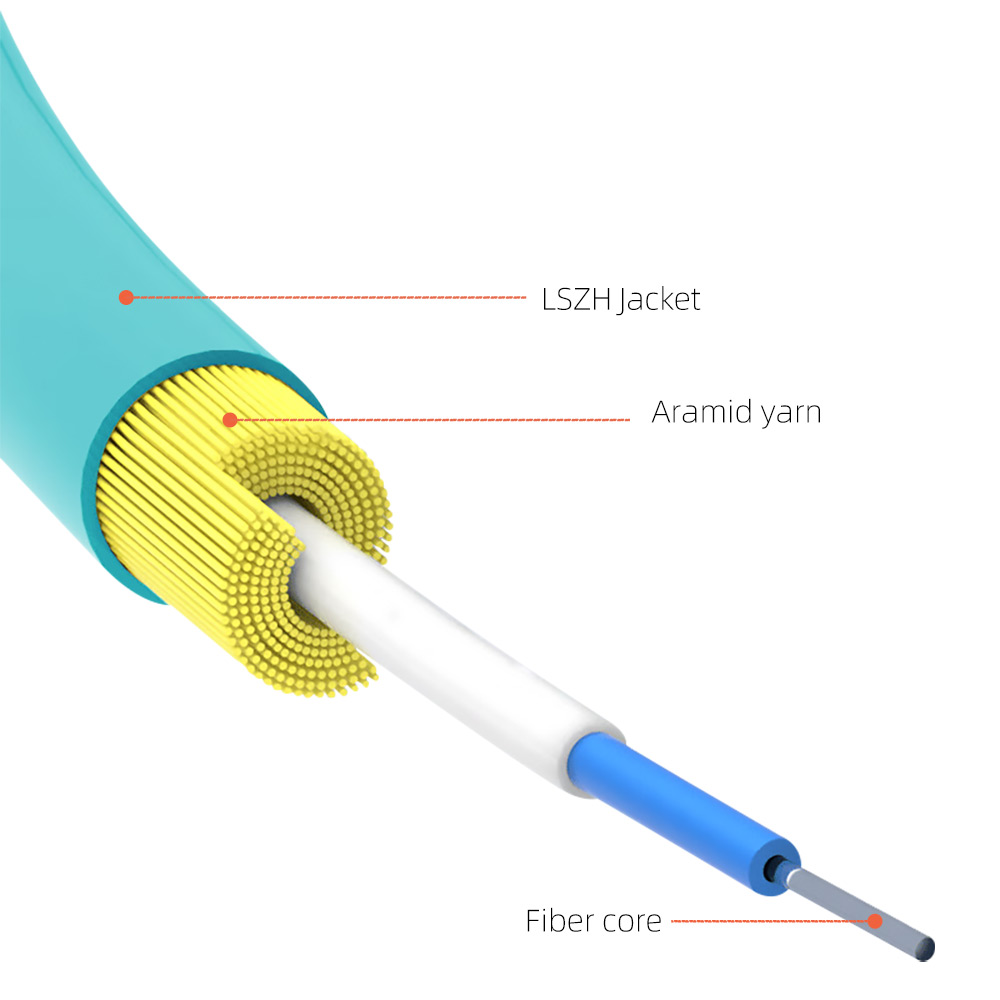

- 2.0mm tight-buffered cable design provides durability, flexibility, and ease of installation.
- LSZH jacket provides flame retardancy, low smoke emission, and halogen-free safety for indoor telecom and data center environments.
- 50/125µm core/cladding diameter is optimized for 10 Gigabit Ethernet networks.
- Bend-insensitive fiber with a minimum bend radius of 7.5mm for optimal performance in tight spaces.
- Precision zirconia ferrule connectors ensure stable, low-loss optical performance.
- Color-coded aqua jacket provides easy identification of cable.
- Duplex zipcord cable construction reduces the risk of fiber damage from crimping or crushing.
