| Product Type | LC UPC Simplex to LC UPC Simplex Single Mode Fiber Patch Cord |
| Fiber Type | OS2 Single Mode, 9/125μm (9μm core, 125μm cladding) |
| Connector Type | LC UPC to LC UPC, Simplex, 1.25mm ceramic ferrule |
| Fiber Count | 1 (Simplex) |
| Cable Jacket | OFNR (Optical Fiber Nonconductive Riser), PVC, flame-retardant |
| Outer Diameter | 2.0mm |
| Fiber Grade | G.657.A1 bend-insensitive (compatible with G.652.D) |
| Color | Yellow |
| Minimum Bend Radius | 10mm |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Compliance | RoHS, UL, ANSI/TIA/EIA-455-171-A |
| Application | 1G/10G/25G/40G/100G/400G Ethernet, data centers, telecom rooms, enterprise networks |
| Length Options | 1m, 2m, 3m, and custom lengths available |
| Quality Assurance | Factory tested for optical performance and reliability |

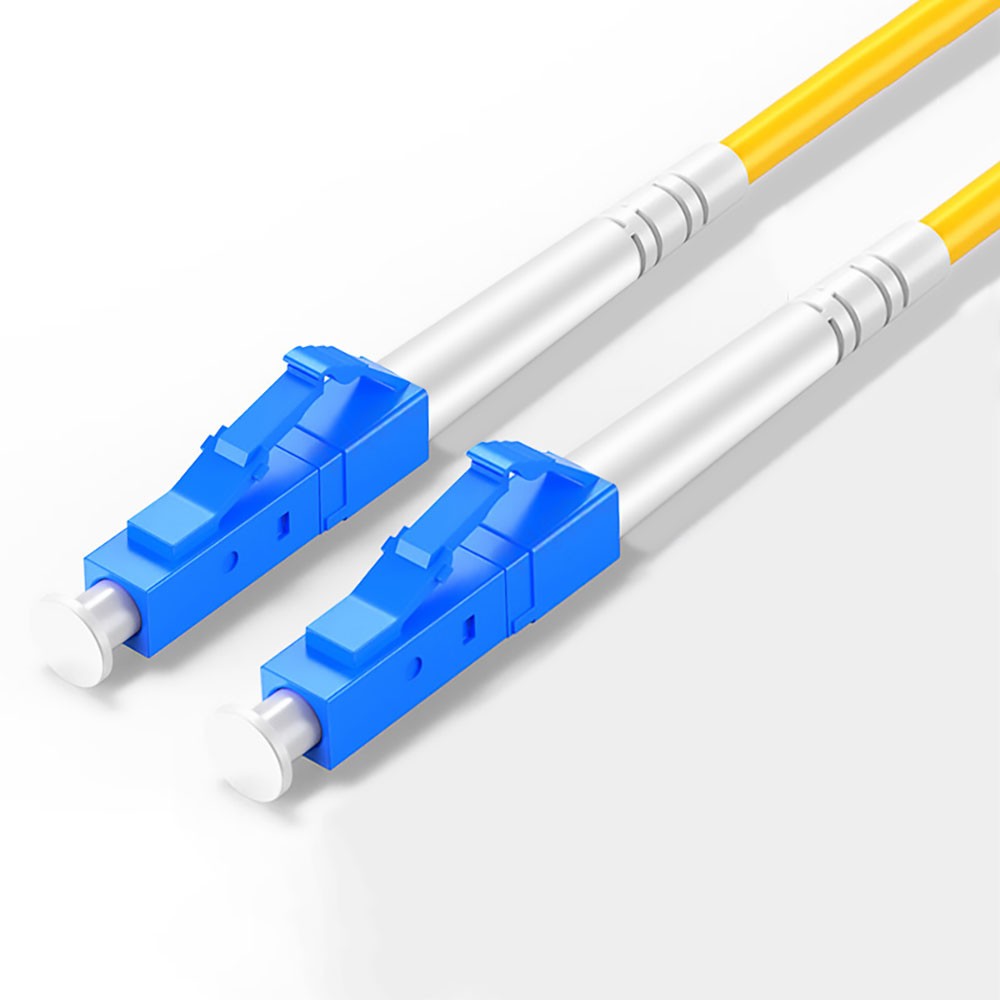

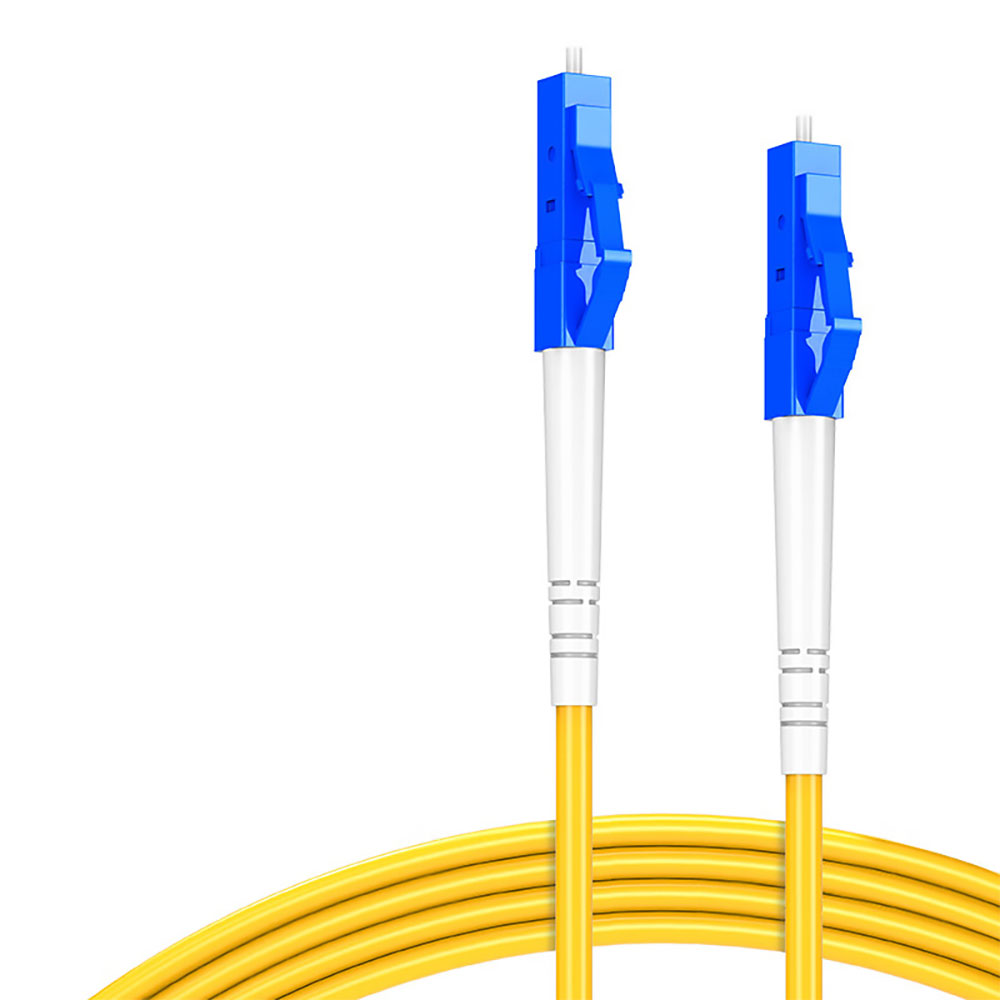

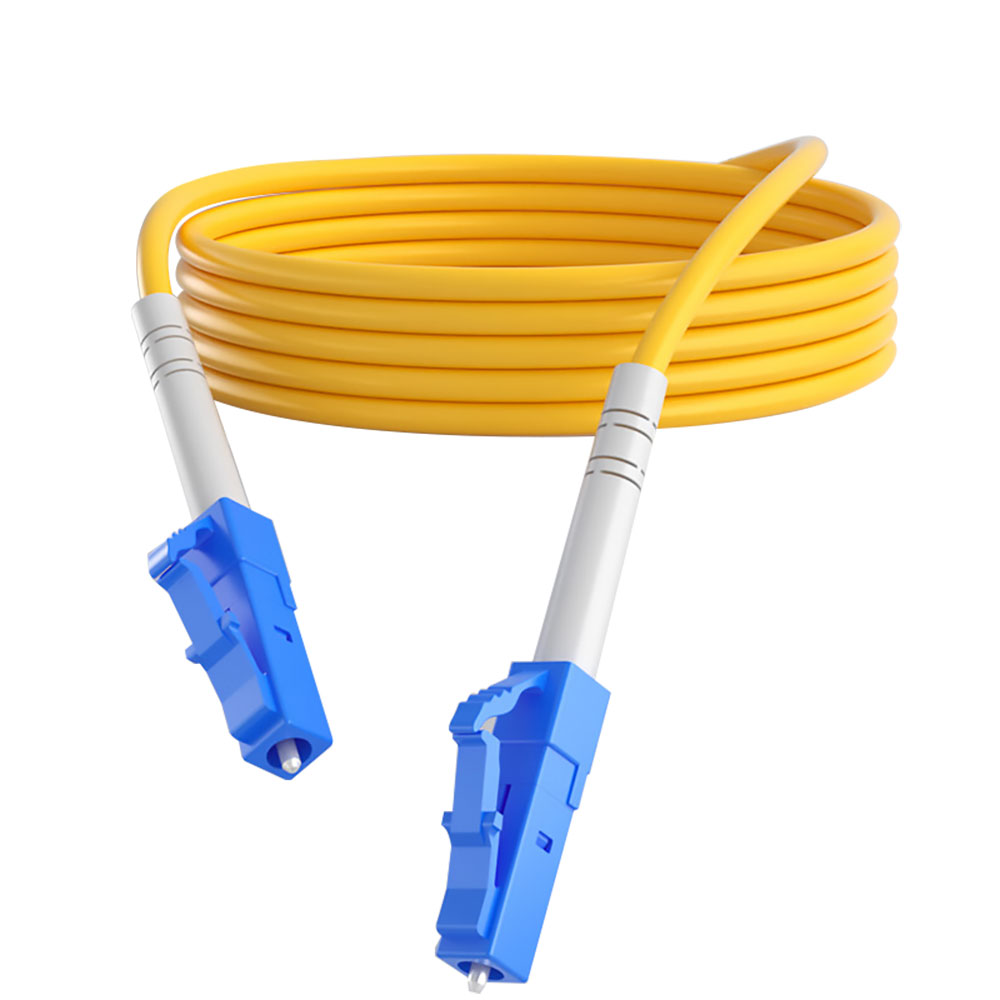

LC UPC Simplex to LC UPC Simplex Single Mode Fiber Patch Cord, 9/125, OFNR, 2.0mm
- Supporting 1G/10G/25G/40G/100G/400G Ethernet, this fiber patch cable is a great option for your modern high-speed needs.
- Simplex fiber optic cable design for efficient one-way data transmission, which is ideal when point-to-point connections in a data center or telecommunications room.
- Built with 9/125 single mode fiber that will maintain low loss and provide reliable long-distance performance.
- This fiber patch also features LC UPC connectors on both sides which provides a secure, reliable connection to devices with very low loss.

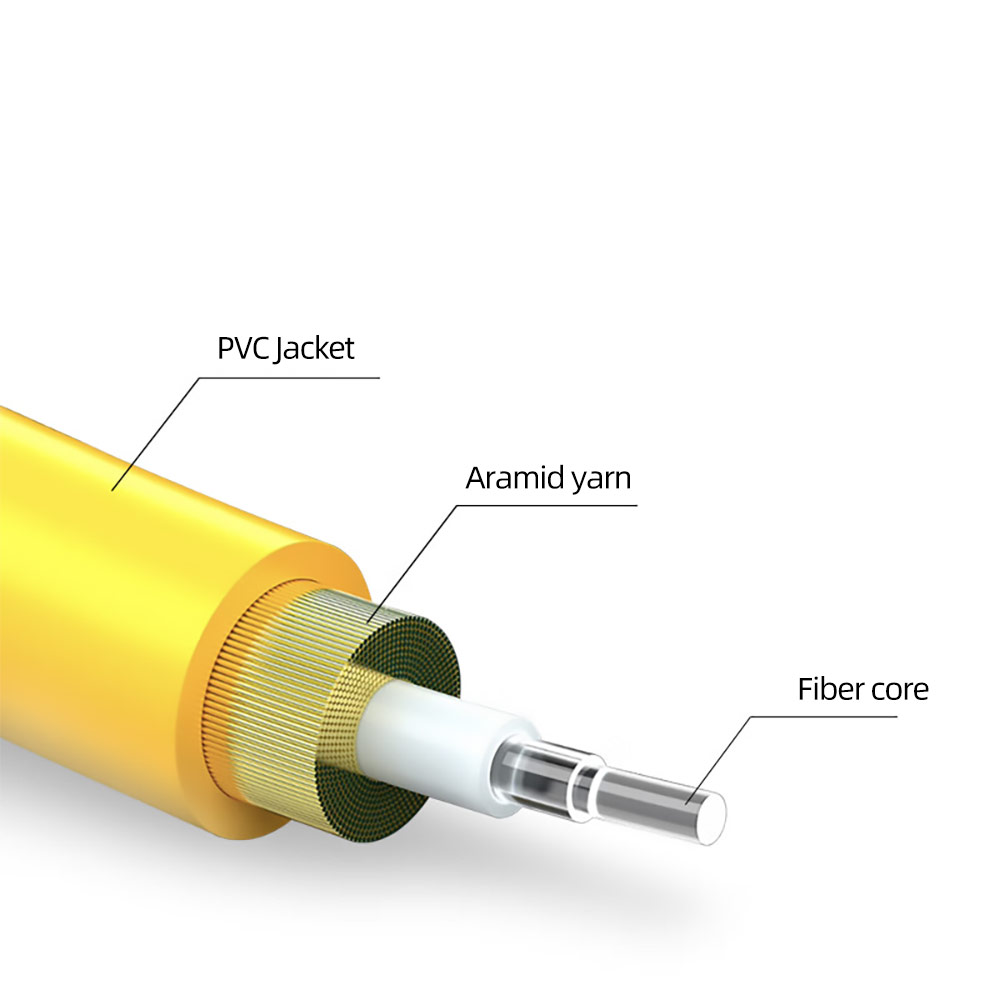

- The jacket is 2.0mm OFNR rated which is flame retardant and provides the flexibility necessary for installation in a riser space.
- This fiber cord is factory tested to ensure it has the quality and durability you expect from a product.

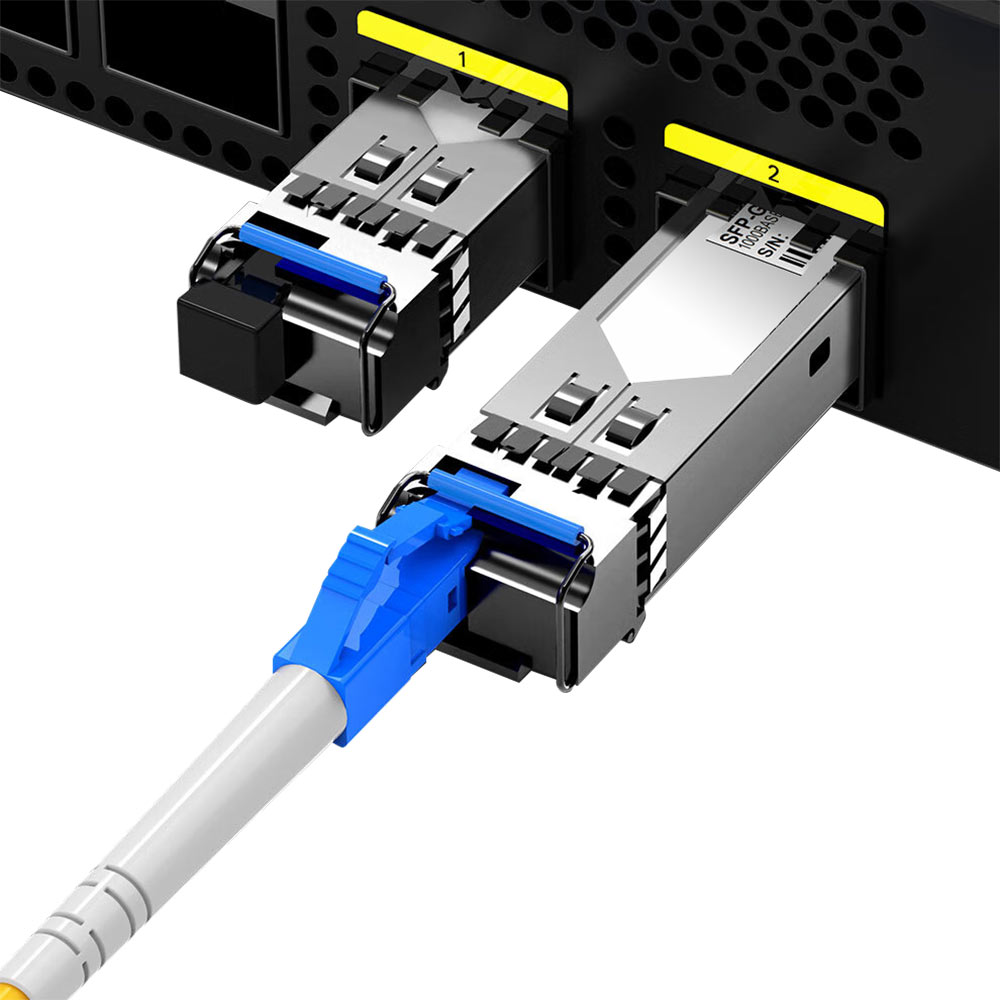

- The LC-LC single mode configuration easily integrates with all of your standardized networking devices.
- Return loss is always excellent and the cable will maintain superb integrity for any application.
- With an overall diameter of only 2mm, this LC-LC single mode patch cord is designed to fit into the small spaces common in modern data centers.
