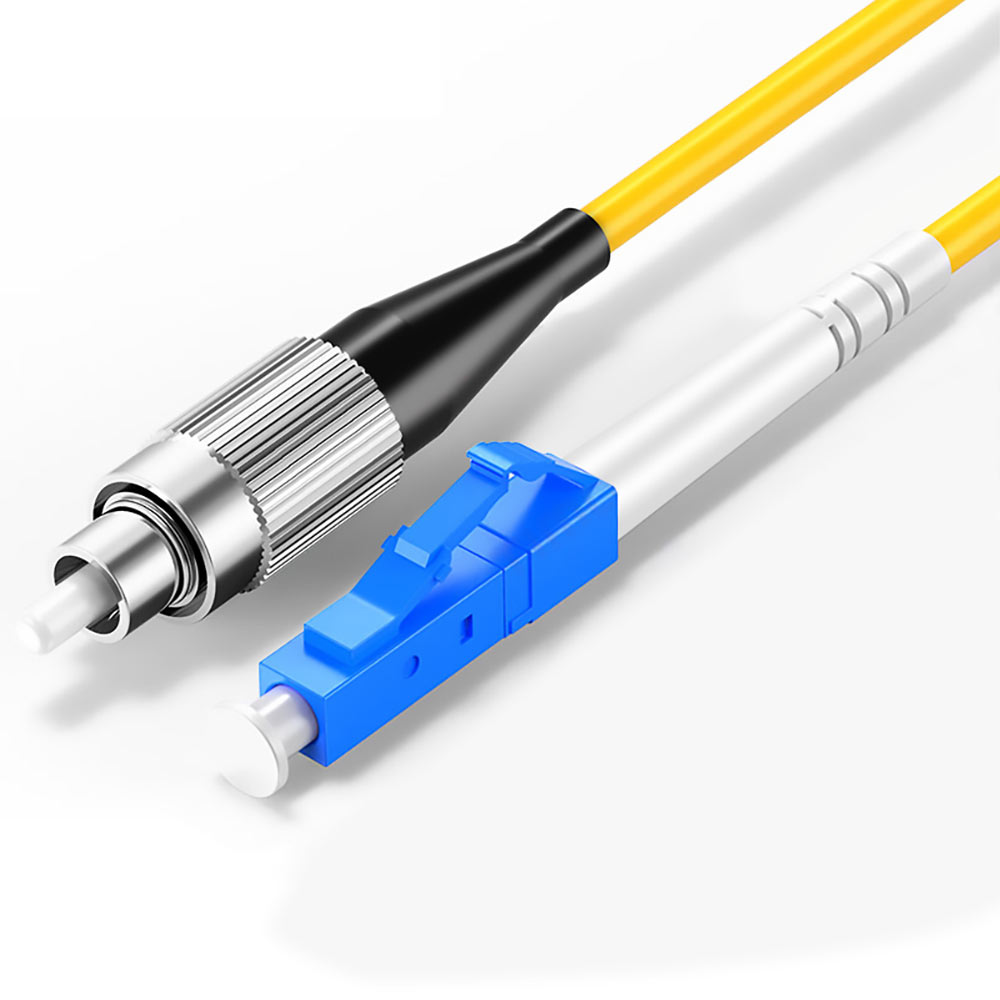

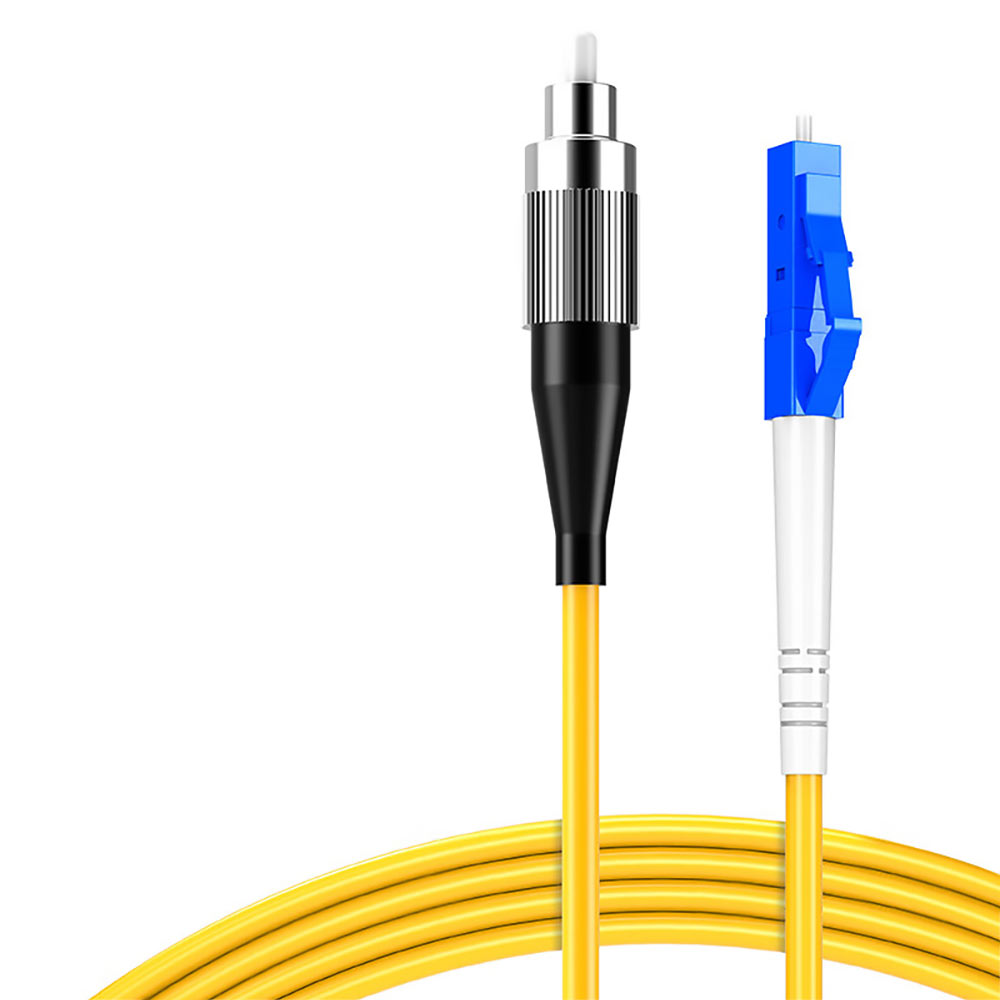

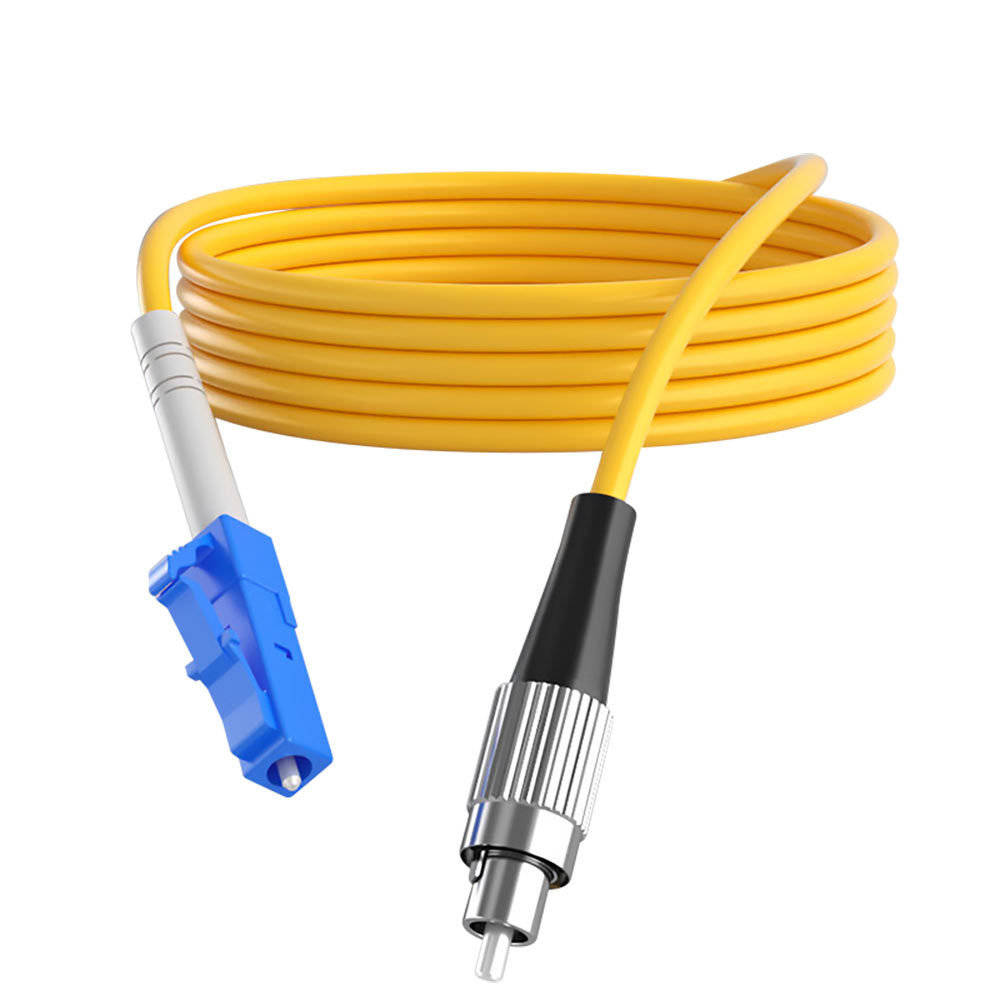

LC UPC Simplex to FC UPC Simplex Fiber Patch Cable, Single Mode, Telecom Grade

  • High Quality Single Mode Fiber: Features quality OS2 9/125µm fiber with low attenuation and high transmission performance for long haul telecom applications.
  • Connector Type: An LC UPC simplex connector on one end and a FC UPC simplex connector on the other creates reliable and precise connections.
  • Telecom Grade Performance: Meets rigorous telecom specifications for durability and low signal loss.
  • Low Insertion Loss & High Return Loss: Minimal signal loss and reflection ensures maximum network efficiency.
  • Durability Jacket Choices: LSZH or PVC jacket provides flame resistance and environmental protection.
  • Simplex Configuration: One fiber enables point-to-point connection, simplifying the installation process.
  • 2.0mm Cable Diameter: Slim and flexible cable design for routing in tight spaces without weakening the cable.
  • Precision Polished Connectors: UPC polish ensures stable low back reflection connectivity.

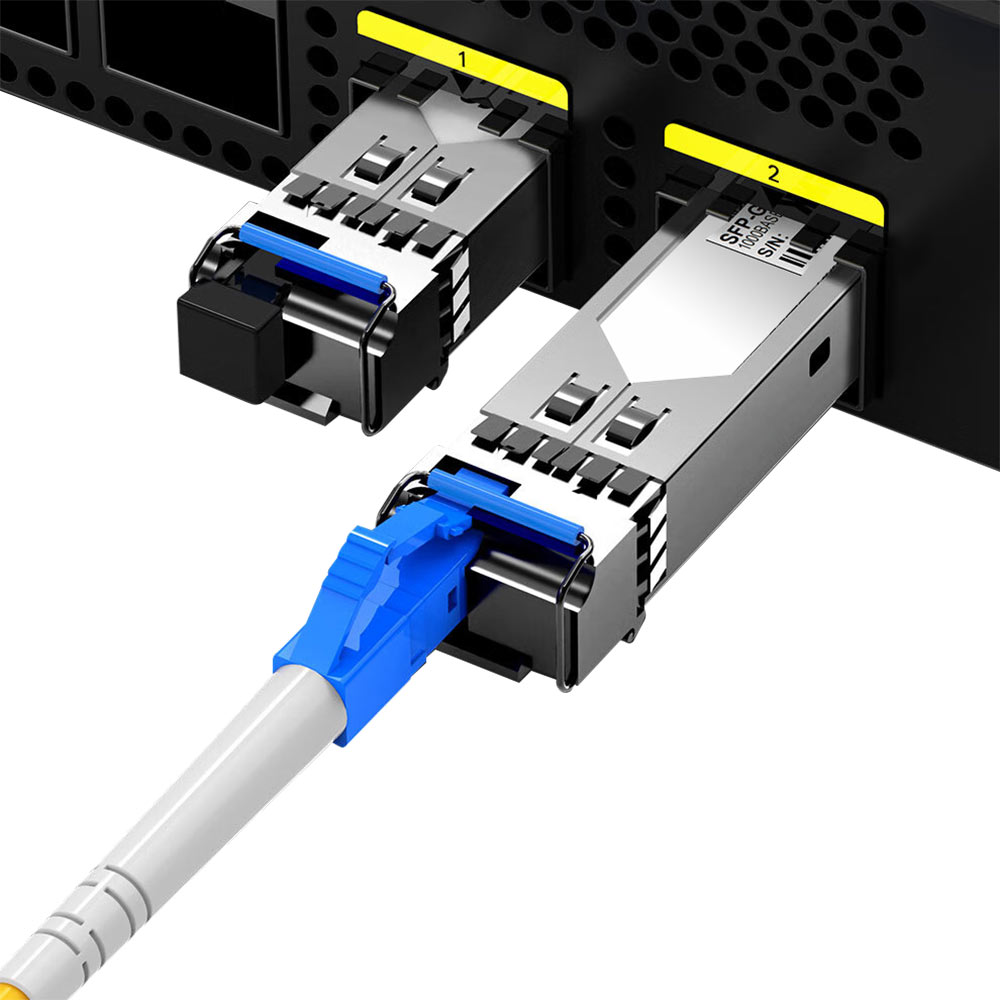

  • Broad Compatibility: Fits many varieties of telecom, data center and optical networking systems.

Description

Product NameLC UPC Simplex to FC UPC Simplex Fiber Patch Cable, Single Mode, Telecom Grade
Fiber TypeSingle Mode OS2 (9/125 µm)
Fiber StandardITU-T G.657.A1 Bend Insensitive Fiber
Core Diameter9 µm
Cladding Diameter125 µm
Cable ModeSimplex
Connector ALC UPC Simplex
Connector BFC UPC Simplex
Connector Ferrule MaterialPrecision Zirconia Ceramic
Connector PolishUPC (Ultra Physical Contact)
Insertion Loss≤ 0.3 dB typical
Return Loss≥ 50 dB
Cable Jacket MaterialRiser (OFNR) or LSZH
Cable Diameter2.0 mm
Cable ColorYellow

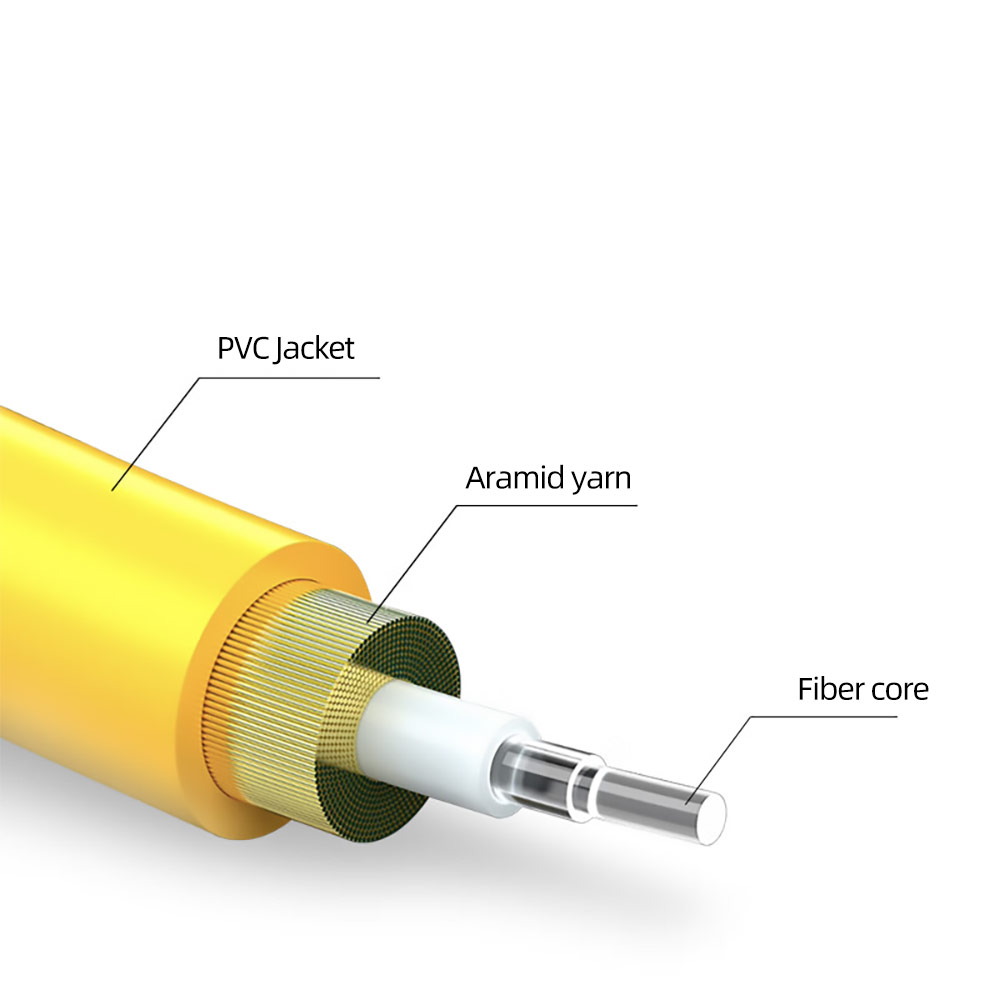

Cable StructureTight Buffered
Minimum Bend Radius10 mm
Operating Temperature-20°C to +70°C
Storage Temperature-40°C to +80°C
Tensile StrengthLong Term: 60 N (simplex, 2.0 mm OD); Short Term: 100 N
Typical Attenuation1310 nm: ~0.36 dB/km; 1550 nm: ~0.22 dB/km
Length OptionsCustomizable, commonly 1m, 2m, 3m, up to 30m+
Compliance & StandardsTIA-604 (FOCIS), IEC 61754, IEC 60793-2-10, IEC 61300-3-35, YD/T1272.1-2003
ApplicationsTelecom networks, data centers, FTTx, LAN/WAN, CATV, high-speed optical communication
PackagingIndividually tested, labeled with measured insertion loss
