| Fiber Type | Singlemode OS2 (9/125 µm) Bundle Fiber Optic Pigtail |
| Fiber Count | Customized bundle from 4 to 96 simplex fibers |

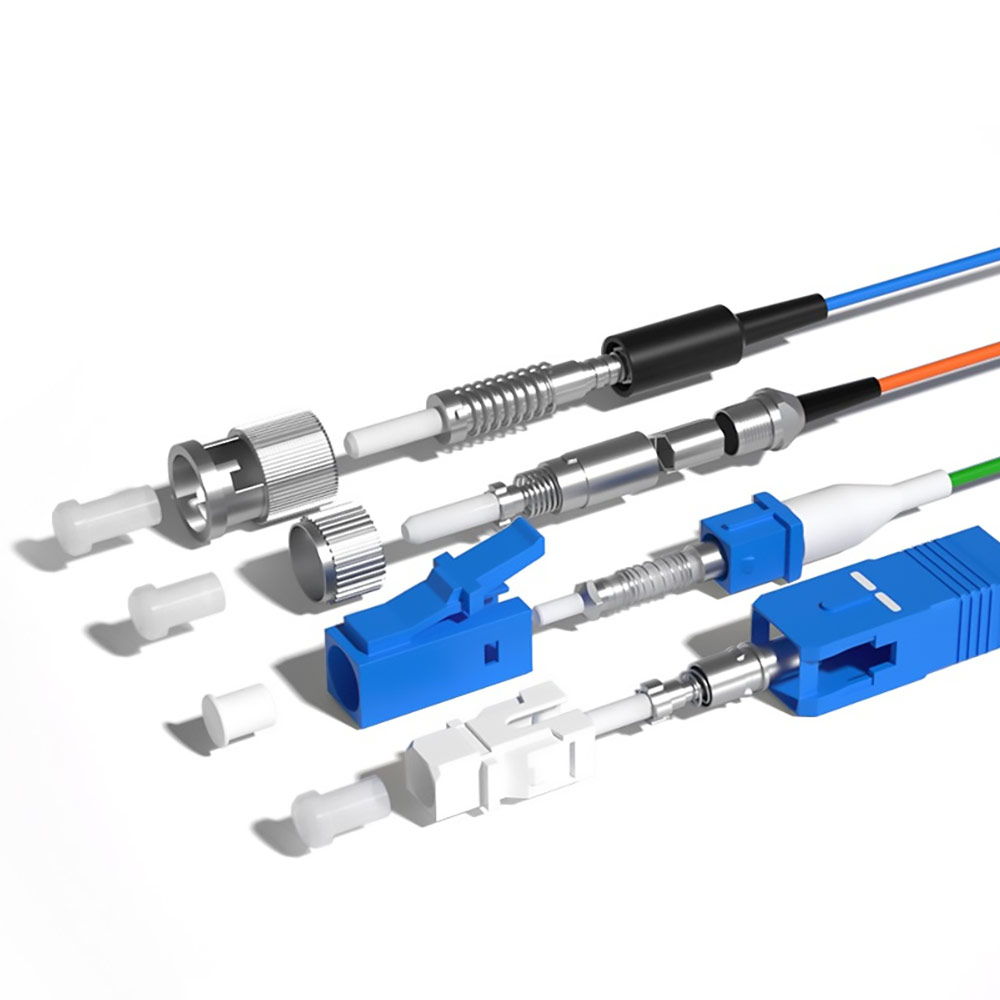

| Connector Types | LC, SC, FC, ST, LSH (E2000), ESCON, DIN, D4, MU, MTRJ, SMA (customizable) |
| Polish Type | UPC or APC |
| Cable Length Options | 1m, 2m, 3m, 5m or customized length |
| Cable Diameter | 0.9mm or 2.0mm |
| Cable Jacket Material | 0.9mm: PVC (Unrated)/LSZH 2.0mm: Plenum (OFNP)/LSZH/Riser (OFNR) |
| Insertion Loss | ≤ 0.2 dB |
| Return Loss | UPC≥50dB, APC≥60dB (LC/SC/ST/FC) UPC≥55dB, APC≥75dB (LSH) |
| Tensile Strength | 5 N for 0.9mm cable, 70 N for 2.0mm cable |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Compliance | RoHS |
| Jacket Color | Yellow |
| Testing | 100% optical inspection for insertion loss and return loss |
| Applications | Telecom networks, Data centers, FTTH, LAN, Optical fiber communications, CATV, Test equipment |
| Splicing Compatibility | Supports fusion and mechanical splicing |

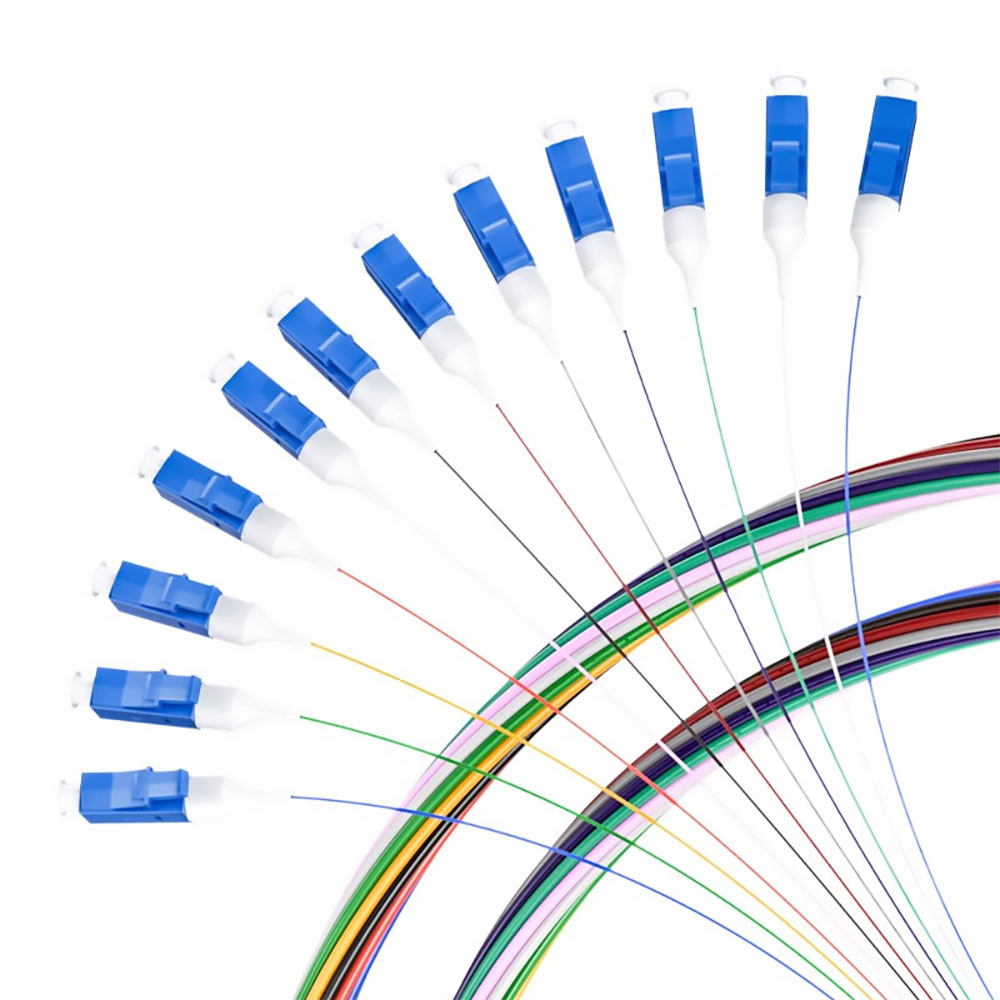

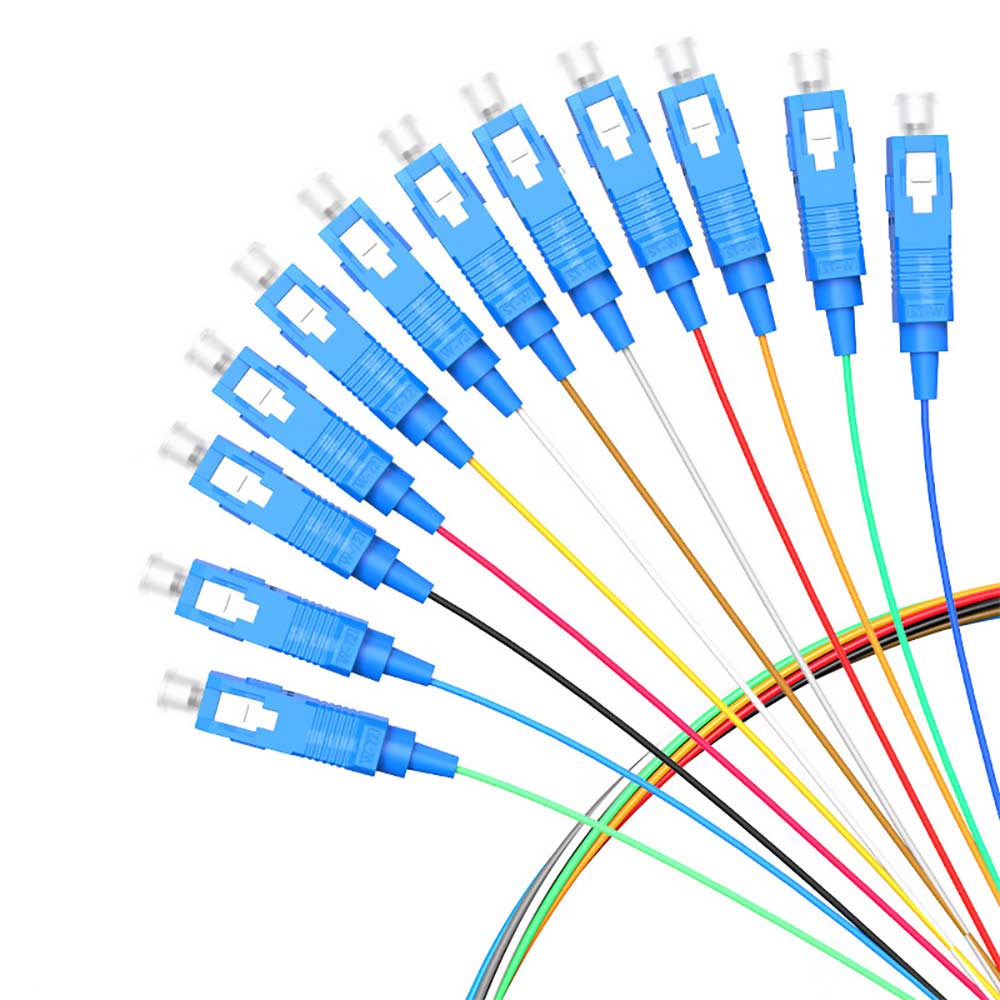

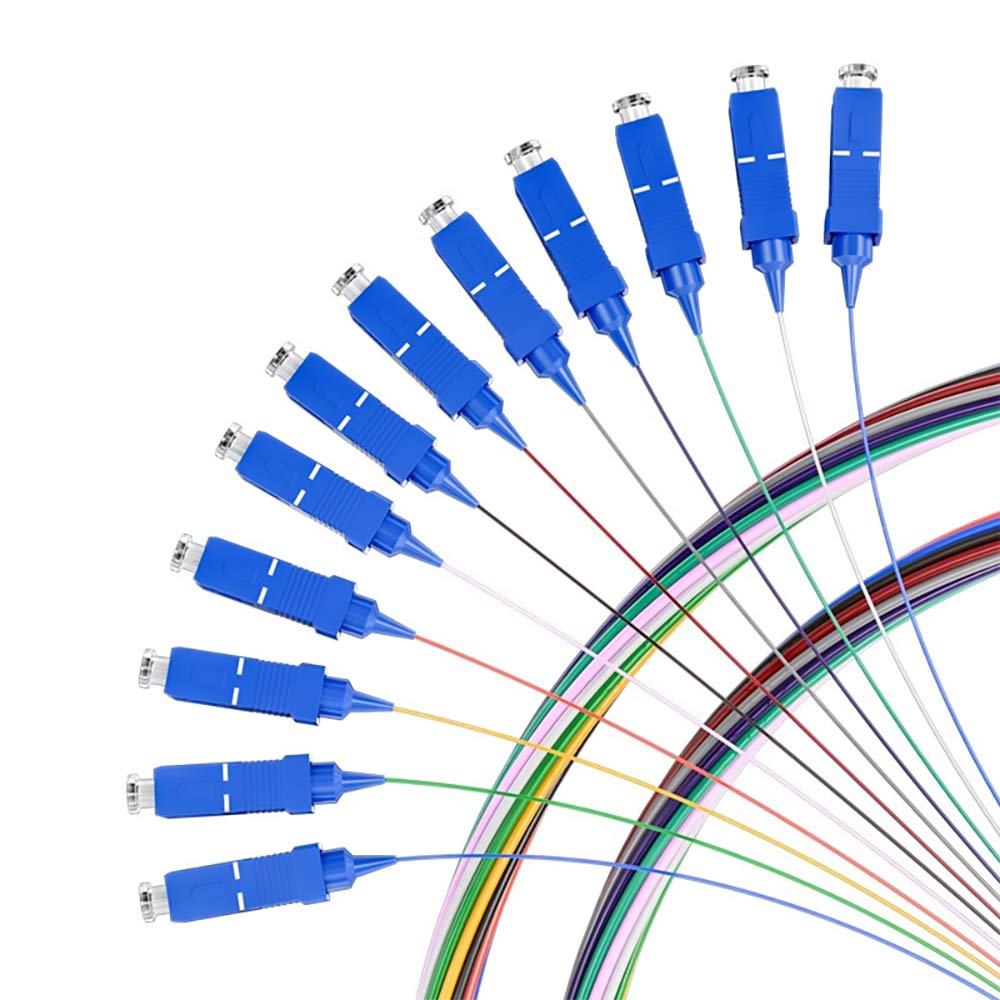

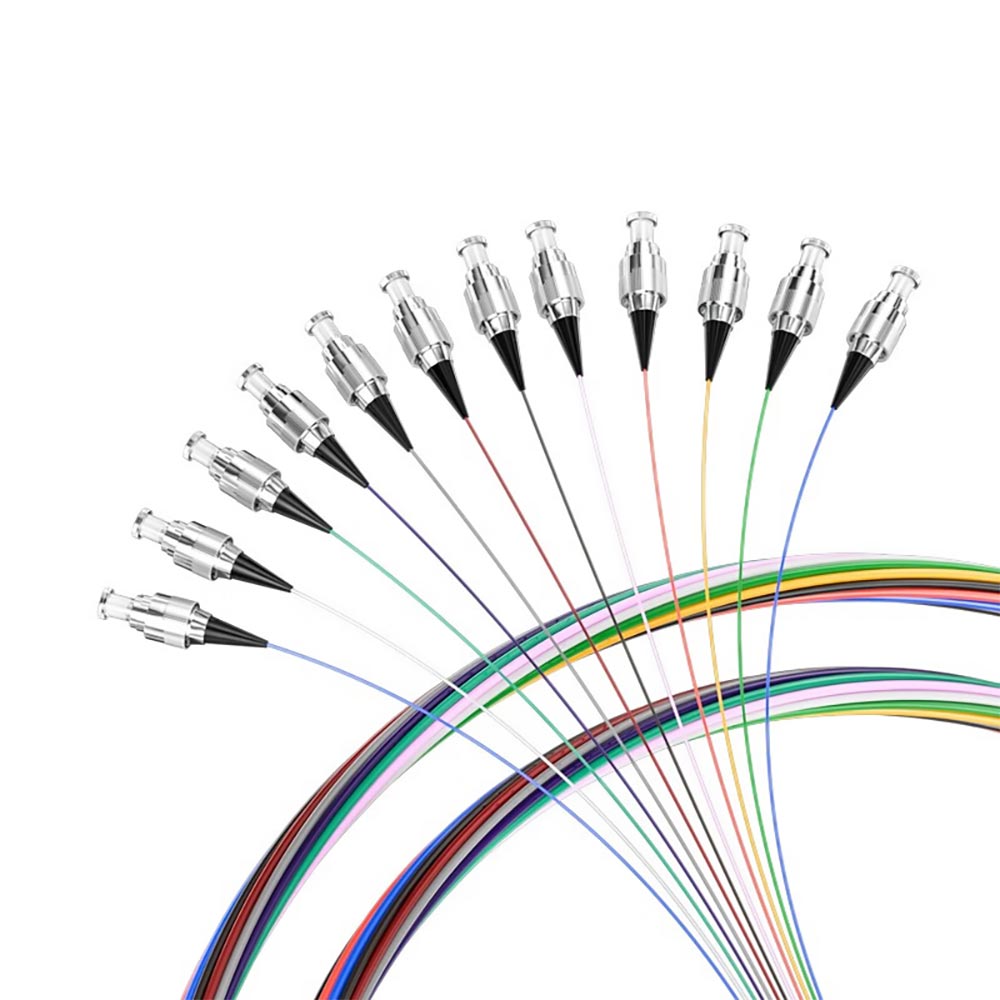

LC/SC/FC/ST/LSH Bundle Fiber Optic Pigtail, Customized 4-96 Simplex OS2 Single Mode Fibers for ODF
- High Quality Single Mode OS2 Fiber Optic Pigtail: Provides low attenuation and superior performance for long distance communications.
- Fiber Count is customizable: Available in 4 – 96 simplex fiber bundles, making it ideal for a range of network scale requirements.
- Multiple connector options: Compatible with LC, SC, FC, ST and LSH connectors to meet your specific equipment connection requirements.
- Precision polished connectors: Provide a low insertion loss and high return loss which will ensure signal integrity.
- Durable construction: Heavy duty cable jacketing and a protective design for reliable operation in harsh environments.
- Easy installation: Pre-terminated pigtails will simplify splicing and reduce deployment time in Optical Distribution Frames (ODF).
- Space efficient: The bundle design allows for efficient fiber management while saving rack space.
- Widely utilized: Perfect for telecom, data centers, FTTH and enterprise networks.
- Rigorous quality control: Manufactured under rigorous standards to ensure consistency and durability.
