| Connector Type | LC APC to SC UPC Single Mode Fiber Patch Cable |
| Fiber Type | OS2 fiber, 9/125 µm core/cladding diameter |
| Cable Jacket Rating | OFNR flame-retardant PVC jacket, suitable for vertical riser installations |
| Cable Diameter | 2.0 mm ± 0.2 mm, tight-buffered design |

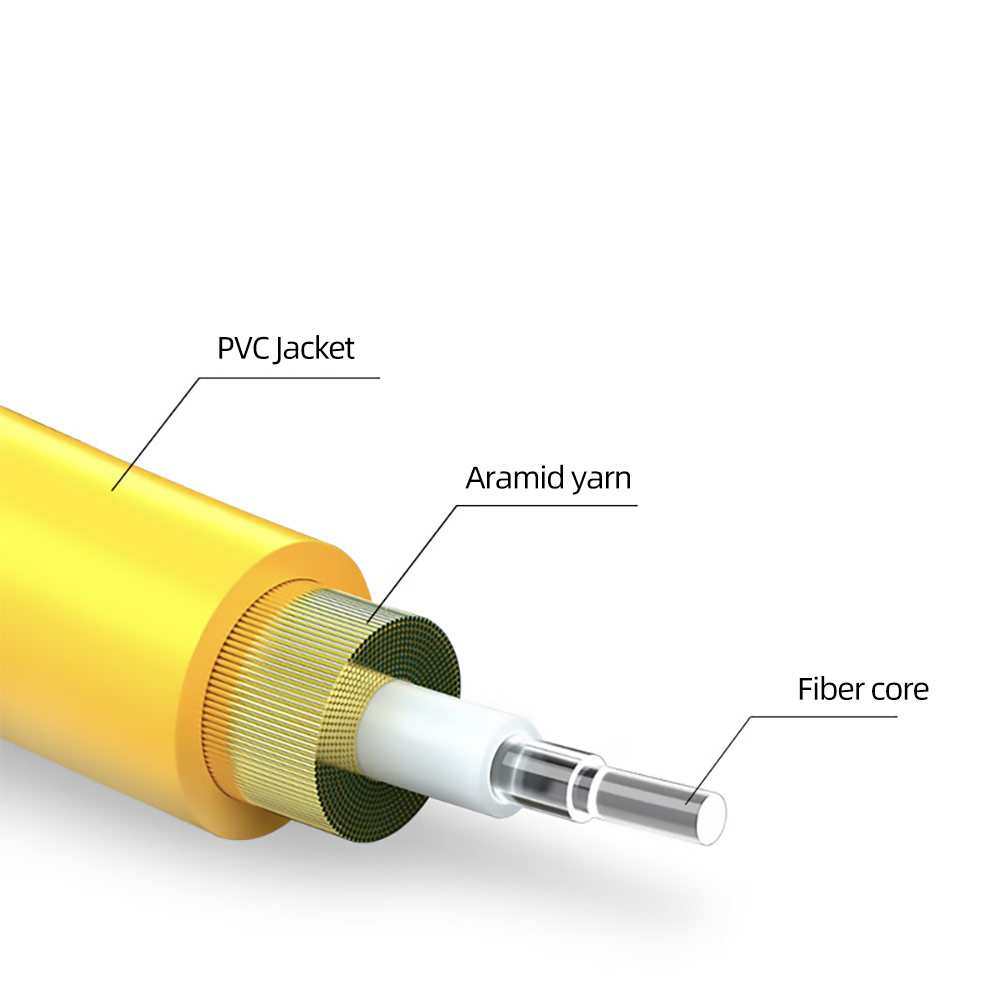

| Fiber Construction | Tight-buffered fiber with 900 µm coating for enhanced mechanical protection |
| Minimum Bend Radius | 10 mm (per ITU-T G.657.A1 standard for bend insensitive fiber) |
| Ferrule Material | High-precision zirconia ceramic ferrules, 1.25 mm for LC, 2.5 mm for SC |
| Insertion Loss | Typical ≤ 0.3 dB per mated pair |
| Return Loss | LC APC: ≥ 60 dB (due to 8° angled polish); SC UPC: ≥ 50 dB |
| Operating Wavelengths | 1310 nm and 1550 nm |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Cable Color | Yellow |
| Jacket Material | Flame-retardant PVC compliant with UL OFNR standards |
| Cable Weight | Approx. 6 kg/km |
| Tensile Strength | ≥ 100 N (during installation) |
| Crush Resistance | ≥ 1000 N/100 mm |
| Cable Lengths Available | Standard lengths: 1m, 2m, 3m, 5m, 10m, 15m, 20m, or custom lengths |
| Standards Compliance | ANSI/TIA-568.3-E, IEC 61754, Telcordia GR-326, RoHS Compliant |
| Testing & Quality Assurance | 100% tested for insertion loss, return loss, and continuity using Fluke Versiv™ or equivalent testers |
| Applications | Ideal for Gigabit Ethernet, 10G/40G/100G Ethernet, FTTx, data centers, telecom networks |
| Additional Features | EMI, LSZH optional versions available |
Hot

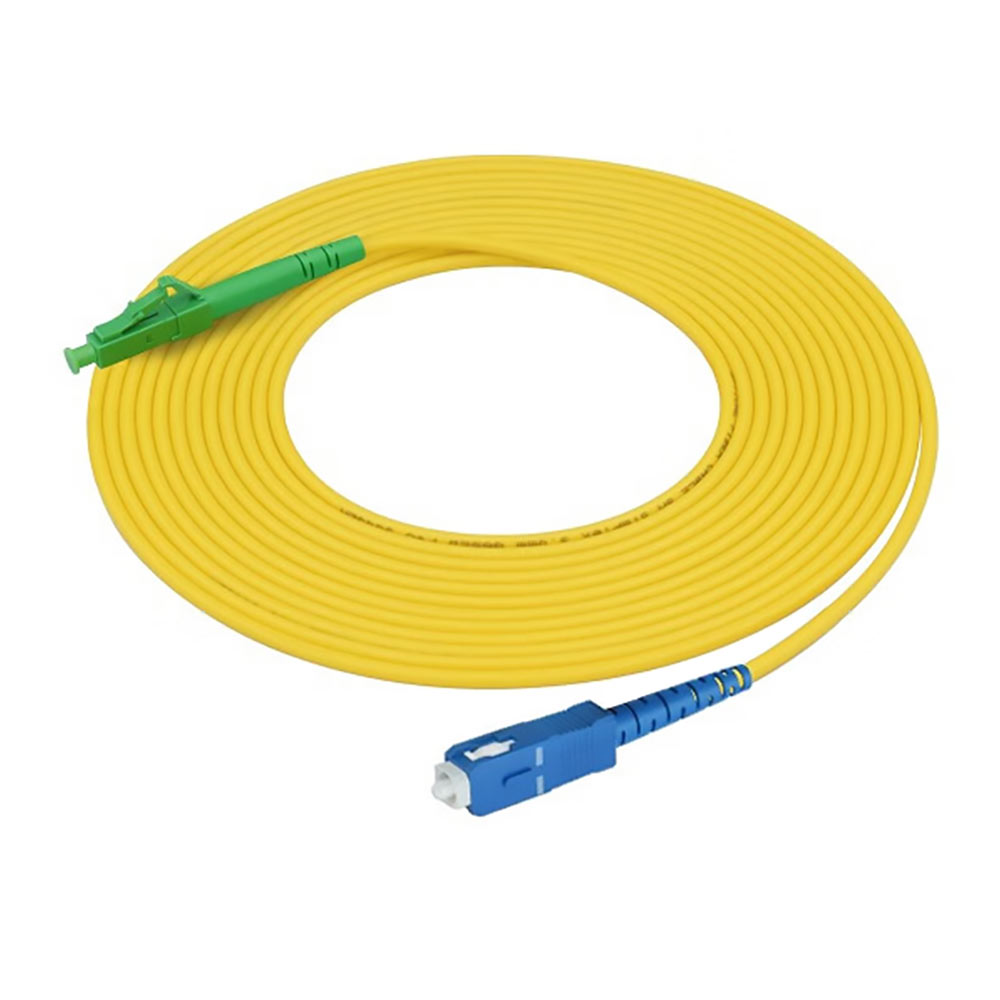

LC APC to SC UPC Single Mode Fiber Patch Cable, Riser (OFNR), 2.0mm, Tight-Buffered

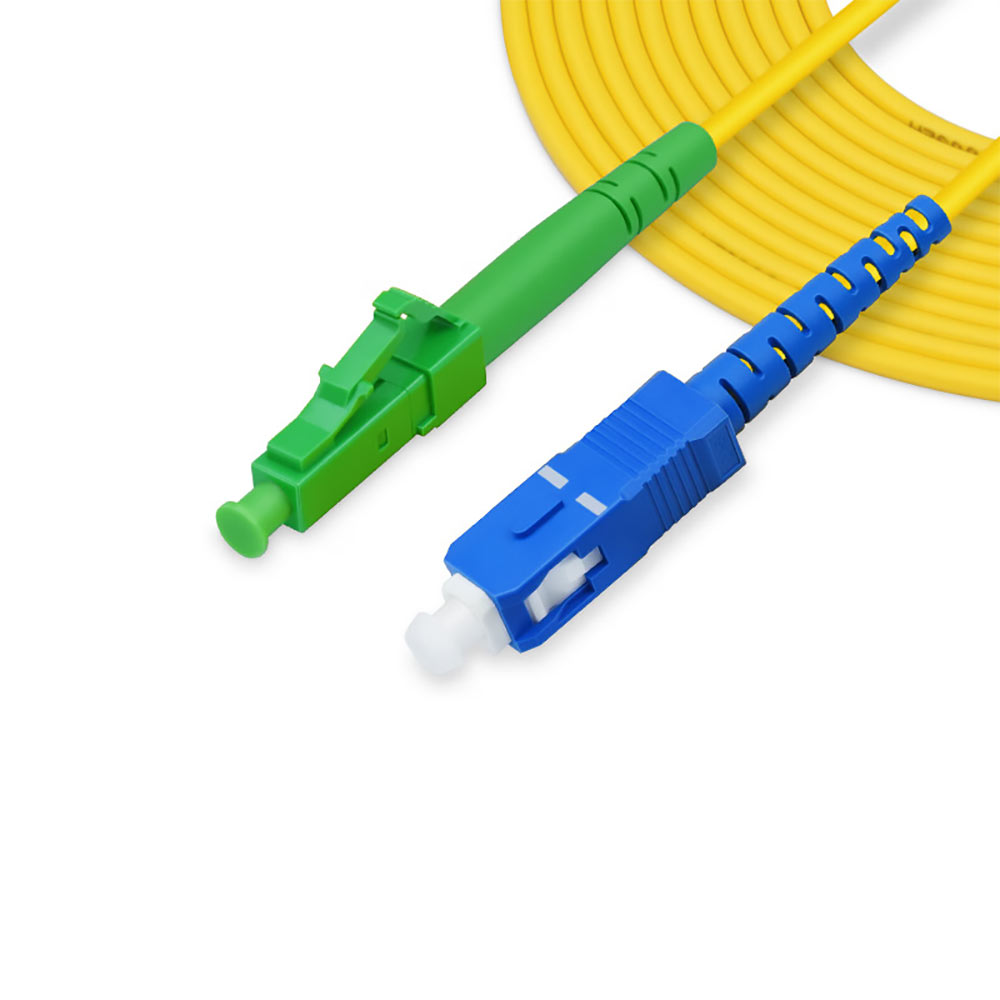

- Connector Types: Features LC APC to SC UPC connectors and is compatible with many networking devices.
- Single Mode Fiber: Designed for long distance, high-bandwidth applications while minimizing signal loss.
- Riser Rated (OFNR): The cable jacket is OFNR rated making it appropriate for vertical installations in the riser shaft.
- Diameter of Cable: It has a compact 2.0mm diameter which allows for easy installation in high density environments.
- Tight Buffered: High quality tight buffered cable protects fiber optic characteristics making it durable with increased strength.
- Bend Insensitive Fiber: G.657.A1 compliant bend insensitive fiber with a minimum bend radius of 10mm for tight enclosures and sharp turns.
- Data Transfer: Supports high data transfer rates in the range of 10GB to 200GB at distances up to 10km to 40km.
- Precision Zirconia Ferrules: 1.25mm LC and 2.50mm SC superior grade zirconia ceramic ferrules create precision alignment, very low optical loss and an 8-degree APC endface.
- Quality Assurance: Each cable is tested with Fluke Versiv™ CableAnalyzer and complies with ANSI/TIA 568.3-E standards.
