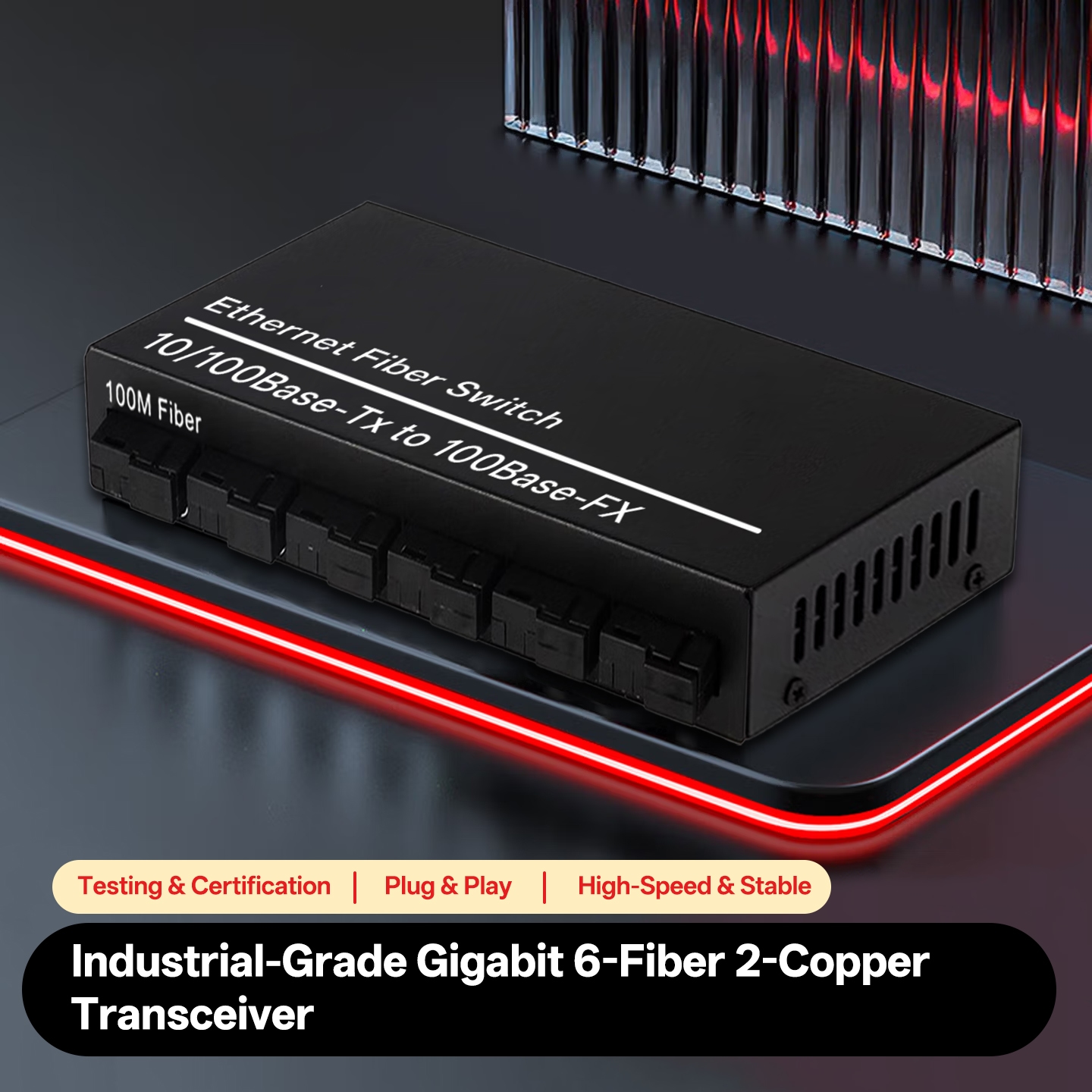

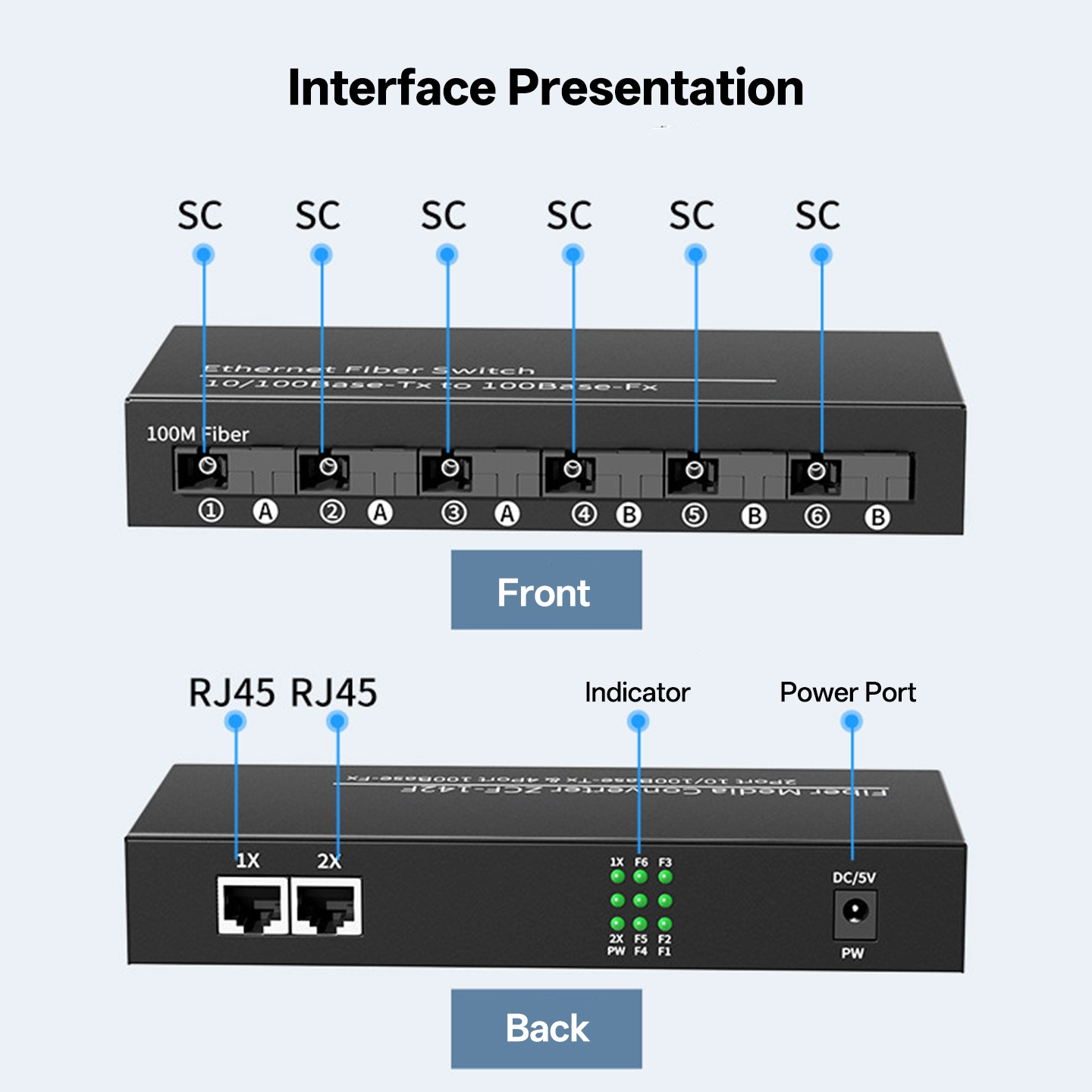

Industrial Media Converter – 2x 10/100/1000Base-T RJ45 to 6x 100/1000Base-X SFP, Customizable 4/6/8 Fiber Ports

Flexible Networking and Customization

The BYXGD Industrial Media Converter Series is a Modular Fiber-to-Copper Media Converter Platform developed for Industrial and Commercial applications. The core configuration of 6 Fiber + 2 Ethernet ports is the flagship model of the series; however, customizations are available for 4, 6, or 8 Fiber interfaces with dual RJ-45 uplinks.

This modular architecture makes it possible to modify and customize the media converter to fit every need – from compact CCTV deployments to large-scale citywide networks. All converters are manufactured by BYXGD, a leading OEM product manufacturer with the capability of customizing per parameter, allowing it to assist industrial network integrators in building reliable networks.

High-Performance Connectivity

The converter utilizes premium chipsets, which provide continuous synchronization of real-time information between copper and fiber networks. This ensures non-blocking, wire-speed forwarding, creating an exceptionally stable connection and low latency within highly trafficked data transfers.

The converter is well equipped for high-definition video distribution, control of high-speed systems, and monitoring of industries. It prevents packet loss and jitter to perform reliably up to a maximum distance of 20 km. Due to its reliability, this converter is ideal for applications that require uninterrupted network performance.

Rugged Construction and Efficient Heat Dissipation

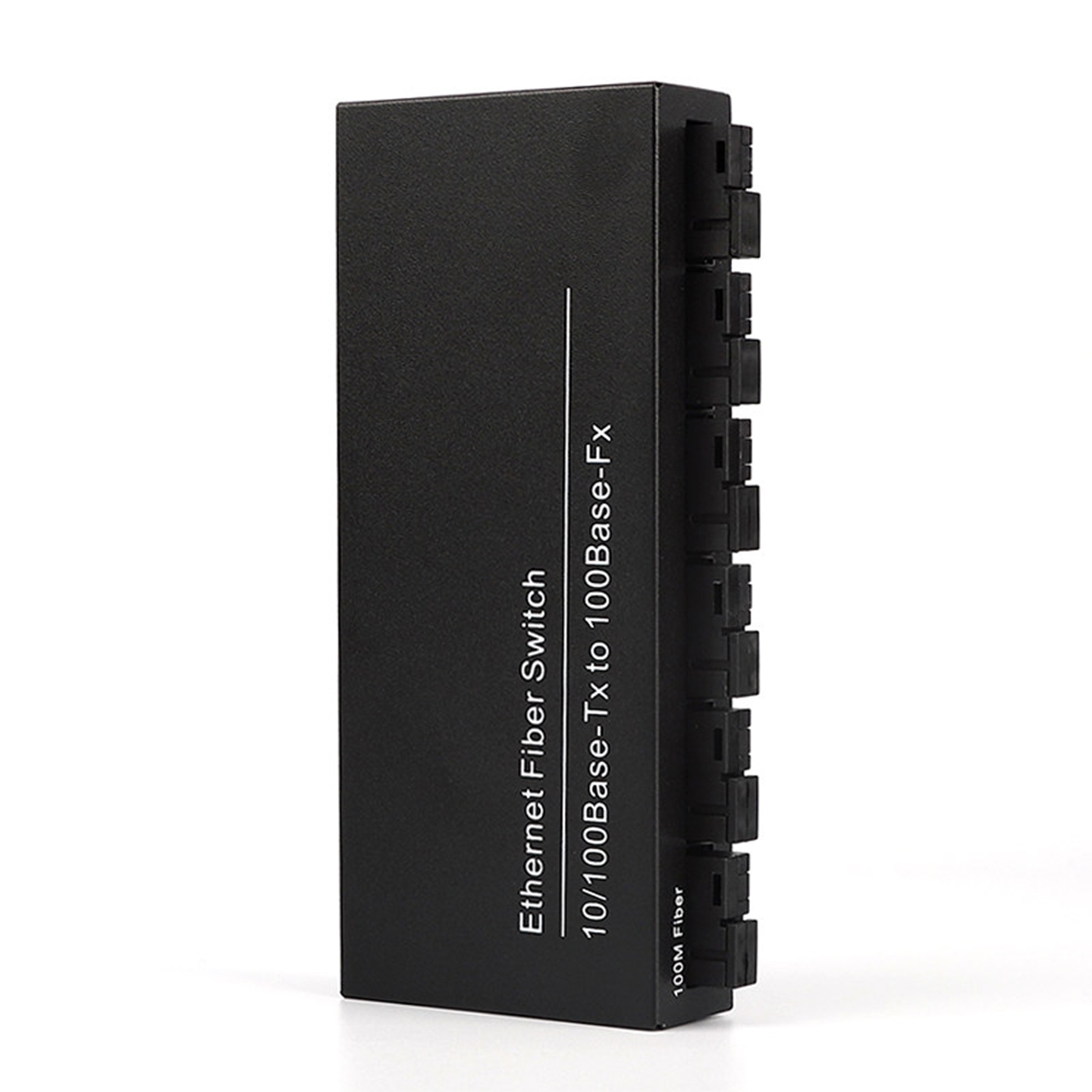

Industrial durability was considered when designing this device; it has a powder-coated metal enclosure that stands up to corrosion, abrasion, and mechanical stress. The unit’s side-vented construction provides airflow via passive ventilation, eliminating fan noise and the potential for mechanical failure due to fan malfunction.

This type of construction provides the unit with the ability to dissipate heat effectively and continuously without the use of fans. Because the device can operate at a constant temperature, it does so in high-temperature or very dusty environments, thus prolonging the life of its components and enhancing its reliability.

Long-Range Optical Stability

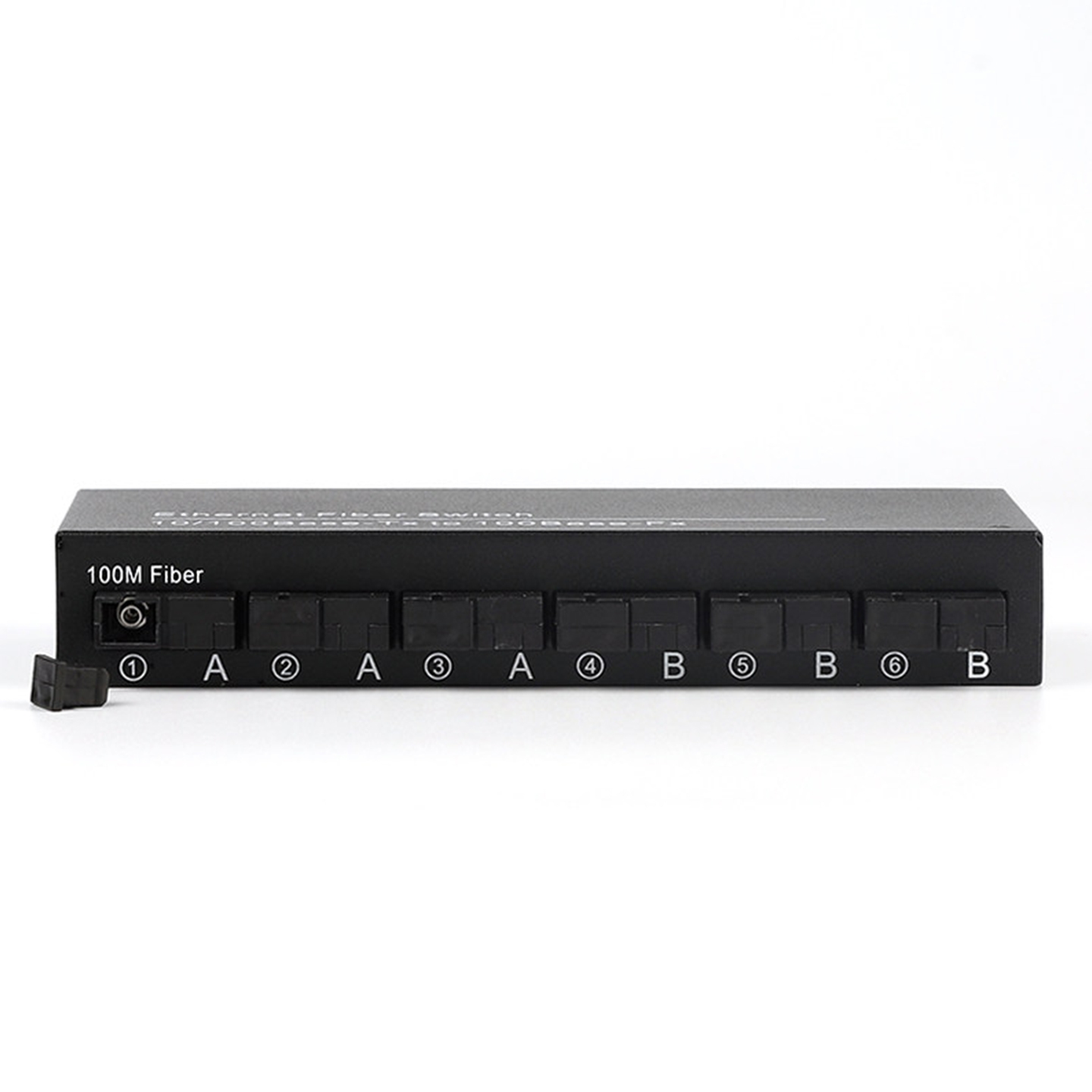

By default, the device provides one fiber optic, single-mode, and offers excellent signal quality over the longest distance of 20 km due to virtually no optical loss. Long-distance (100KM) applications are also available as optional models.

The optical modules provide high-quality optical performance for the transmission of data without distortion, while ensuring that the timing of the transmission is perfectly synchronized to avoid both time delay and frame loss, making it an ideal choice for use in applications such as video surveillance, rail systems, and traffic monitoring.

Comprehensive Industrial Application

As stated earlier, a number of industries can benefit from the adaptability of this series, including:

• Smart City System: the foundation of traffic lights, environmental sensors, and remote control systems.

• Renewable Energy Site: connects solar and wind monitoring systems with the control centers.

• Rail and Transportation: maintains reliable communication links throughout platforms, tunnels, and other locations.

• Fiber to the Home / Fiber to the Building (FTTX) Installation: acts as an optimal media bridge for fiber installed as a result of the activity.

• Industrial Automation: operates normally even in environments with a high level of electromagnetic interference.

The converter’s high level of anti-interference capability will ensure that data continues to flow without interruption, even when exposed to powerful machinery or complex electromagnetic environments.

Ease of Installation and Maintenance

This converter is a plug-and-play hardware solution, so there’s no additional software to install or configuration tool to use. You can connect the required ports and power supply; there is no setup menu, and no driver is required!

Hot-swapping is supported, allowing engineers to easily replace fiber modules without powering off their equipment, which can greatly reduce the time it takes to perform maintenance. In addition, for industrial applications, the optional DIN-rail mounting makes it easier to install inside control cabinets or racks.

Quality Assurance and International Certification

The converter passes many different international standards such as CE, FCC, and RoHS to comply with global safety and emissions regulations. The production testing of each unit is completed under the following conditions: thermal testing, load testing, or stability testing.

Each BYXGD product carries a 3-year warranty; this demonstrates the commitment of BYXGD to provide long-lasting dependability and value through their relationship with their manufacturers or distributors.

Specifications (Customizable Series)
