HY-8300 Pro Underground Fiber Optic Cable Locator – 33kHz 5W High-Power, ±2.5% Accuracy, >12H Battery Life

The HY-8300 Pro Underground Fiber Optic Cable Locator was specifically designed for medium- to large-scale utilities where many buried assets are present. After a metallic pipe or fiber optic cable tracer wire has been connected to the transmitter, a powerful signal is transmitted from the transmitter to the receiver. This allows the operator to visually see the location of the underground assets using the large backlit LCD screen and listen for audible alerts (e.g., beep or tone) to determine the asset’s exact location and depth without having to make any guesses.

With its flexibility, the HY-8300 Pro allows for easy mapping of optical fiber cable systems, high-voltage overhead and underground electrical power lines, underground utility gas and water mains, and non-metallic underground utilities that contain a tracer wire or have insulation breakdowns. The HY-8300 Pro will continue to perform these functions effectively for many years. Utility crews can also verify the exact locations of underground utilities before starting excavation projects. Next, we will examine the individual transmitter and receiver components of this system to better understand how the system works.

Transmitter Details

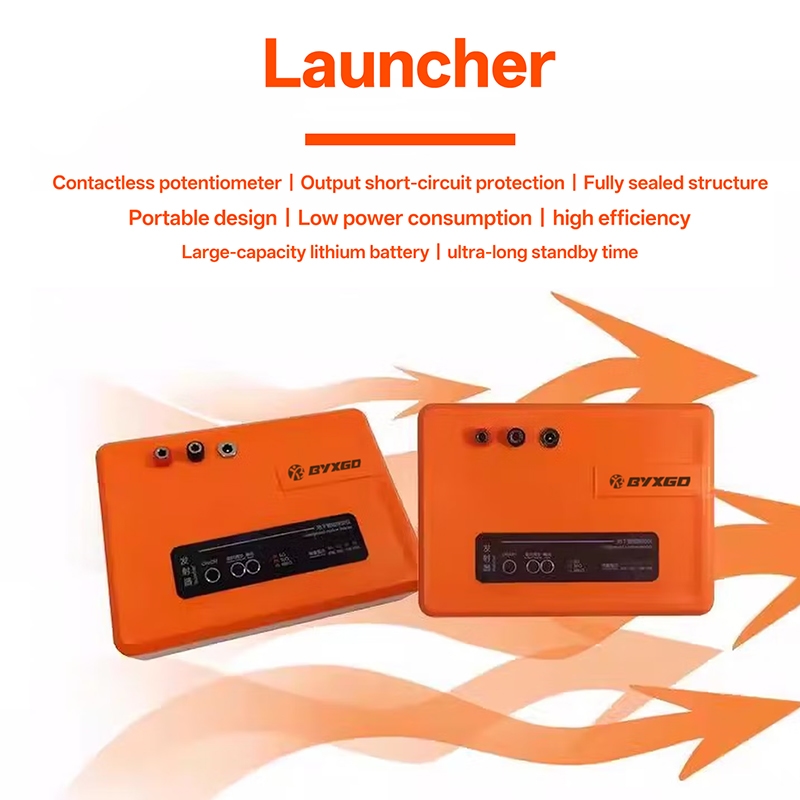

At only 128 x 178 x 47.5 mm in size, the transmitter is compact enough to be easily portable. Additionally, the bright orange color allows for easy visibility when you are working at a busy site. The transmitter connects to a cable access point with red and black clip leads; alternatively, it may be used in combination with a ground rod for pipe tracing.

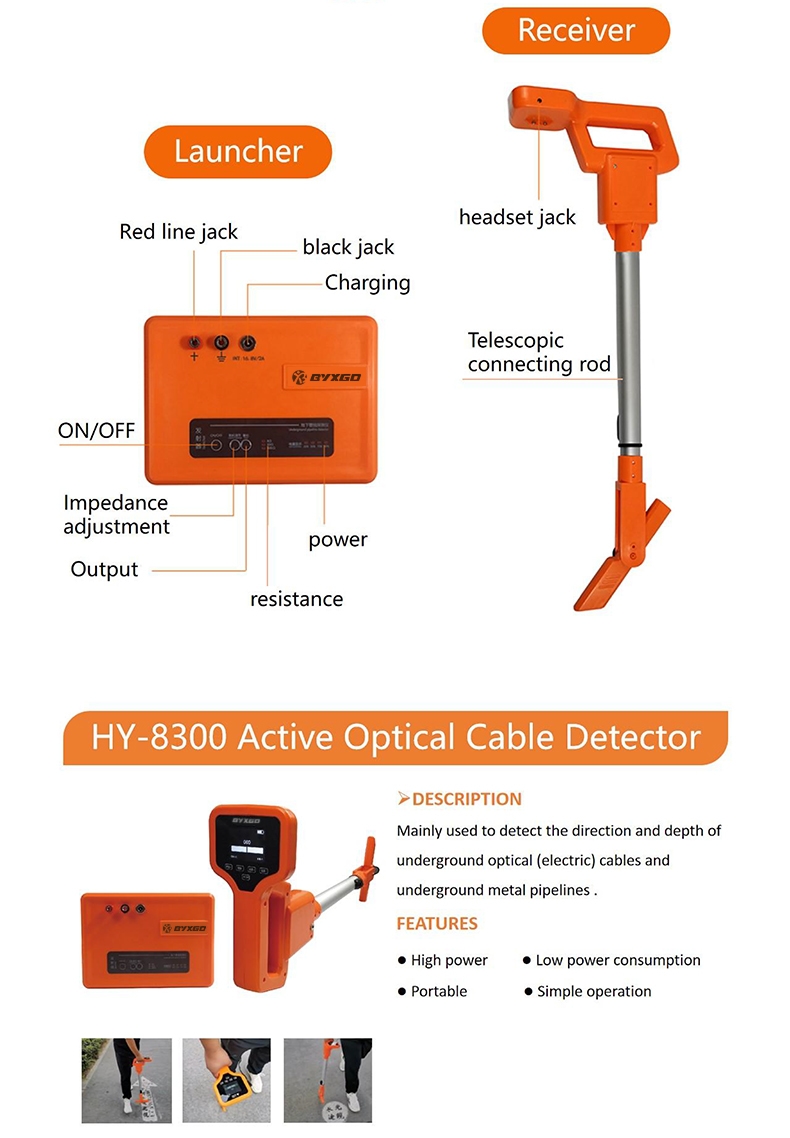

The transmitter has a few easy-to-use controls, including an ON/OFF switch, an impedance selector, and an output port; the built-in display shows the resistance and battery power levels in real time. The transmitter transmits pulsed signals every 0.8 seconds, with a frequency stability of ±0.1 Hz; this ensures that the transmitter will perform consistently over longer distances.

The transmitter includes short-circuit protection to prevent damage during the connection of cables. In addition, a no-touch potentiometer is used to make the adjustment of settings easier and more durable. The static current draw from the transmitter is less than 5 mA; as a result of these two features, battery life will be extended considerably during lengthy survey operations.

Receiver Design

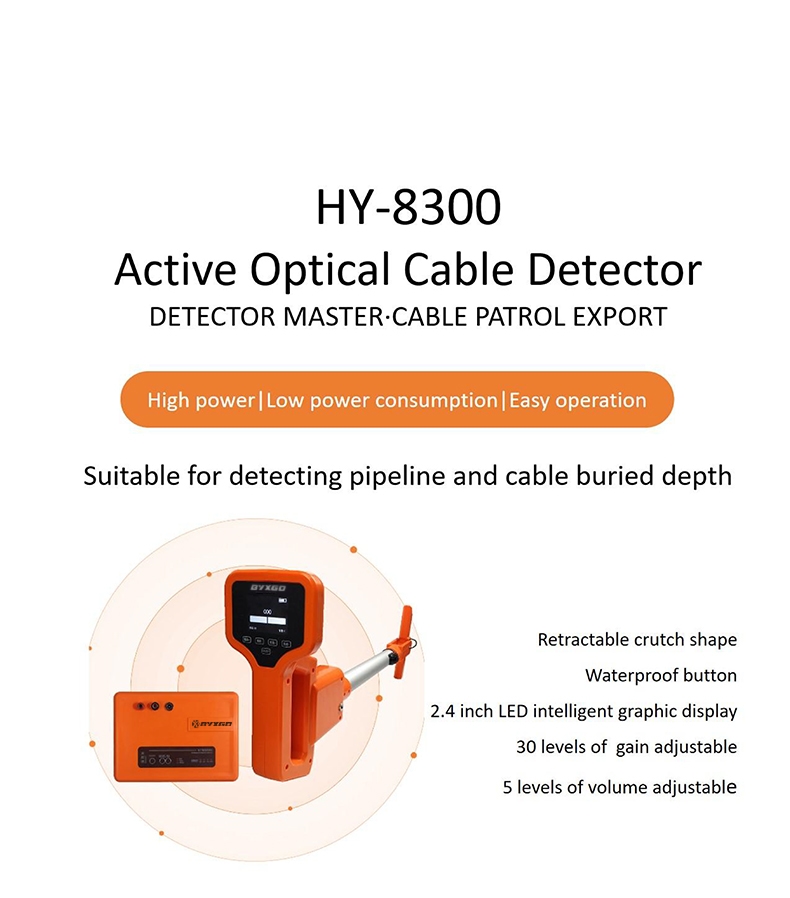

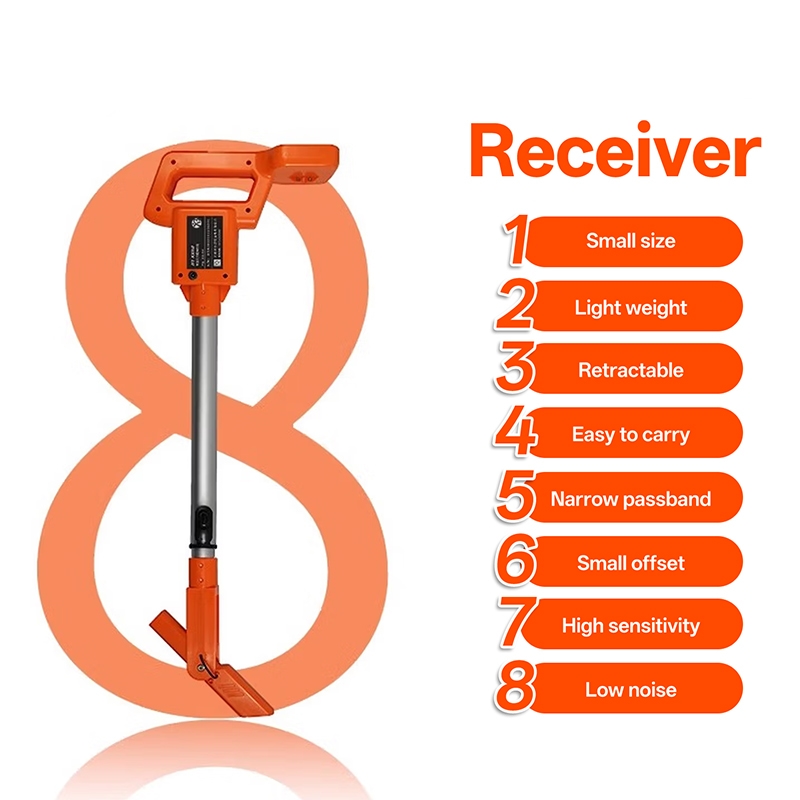

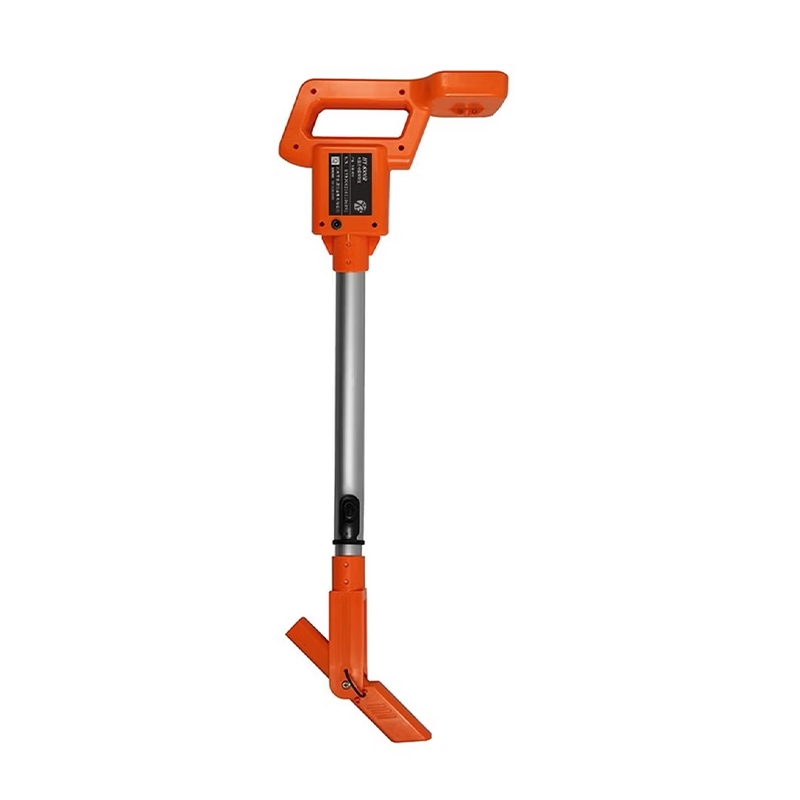

With a telescoping design (260 mm – 630 mm), the receiver resembles a lightweight walking cane. Its low weight allows for extended periods of use while providing little if any discomfort. The receiver displays the signal strength, depth estimates, and any other status icons via its bright 2.4-inch color LCD screen.

The front-mounted probe of the receiver allows for accurate detection of underground electromagnetic fields. The receiver has dedicated buttons that allow you to increase gain in increments of 30 and adjust audio volume (in steps of 5), thus allowing operators to tailor the sensitivity to site conditions. An audio jack allows for audio feedback in high-noise environments. The receiver also contains a stretch-lock button that locks the extended length of the pole securely, and a charge port located at the base for rapid recharge times.

The advanced narrow-band filtering built into the receiver removes most ambient noise from the detection spectrum. A minimal amount of offset prevents the receiver from being accidentally pointed in the wrong direction. The high level of sensitivity will pick up very weak signals coming from deep or distant targets, allowing operators to trace an accurate path through difficult urban environments.

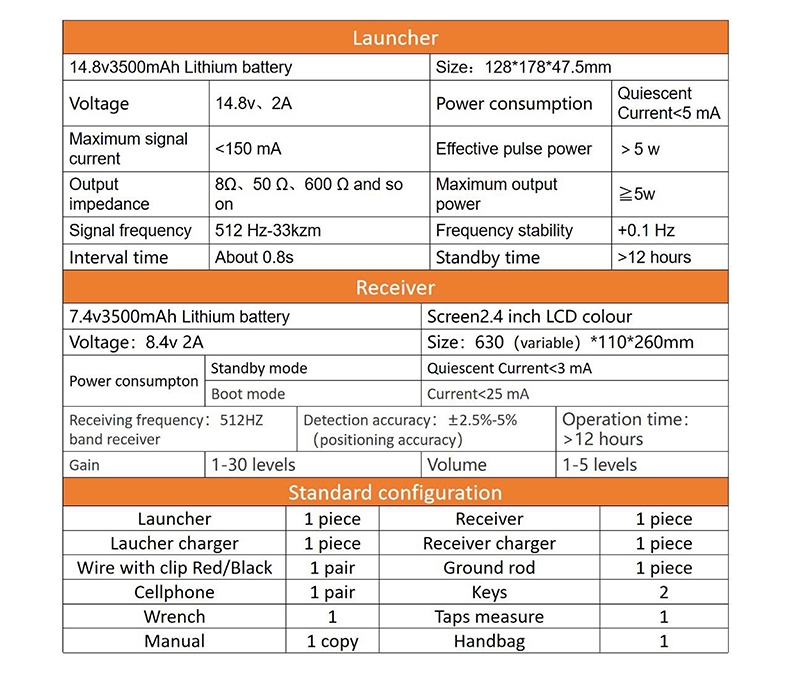

Technical Specifications

These specifications align precisely with the provided product image and documentation, supporting professional applications like tracing tracer wires in fiber installations.

How It Works

After powering on the transmitter and selecting the proper impedance, connect the leads to the access point. Once activated, the unit will inject a stable pulsed signal up to a frequency of 33 kHz.

Using the receiver, turn it on and adjust the gain to the mid-range level. Move slowly in a side-to-side motion from left to right along the suspected pathway where a buried utility line may be located. If located directly above a buried line, the signal strength will be greatest directly above the utility line (the audio beeps will increase in speed as you move closer), and you should mark these positions in order to accurately locate all straight sections of the utility line.

When you reach the peak signal strength above a buried utility line, you can measure depth; this will give you an estimated depth of the buried utility line based on the display reading at the peak. By rotating the probe to determine the precise cable heading, you can then trace signal irregularities or dropouts that indicate an insulation fault.

Telecom companies often mark their fiber routes every 50 meters over a 10-kilometer distance through a housing development, without having to excavate along the route. Plumbers can use this same method for locating water mains located beneath solid concrete. The results of this testing method are consistent throughout multiple jobs and can be completed in a very short amount of time.

Applications

This locator specializes in many different utility functions. For example, telecommunications workers plot out pathways of fiber optic cable tracer wires as they expand networks; electrical workers verify the locations of buried power ducts; gas and water companies locate the routes of their metallic pipes before they dig.

The locator identifies oil, steam, and drain pipes with metal in them. If non-metallic pipes have tracer wire attached to them or are leaking conductive fluids, the locator will help locate them. Additionally, operators will be able to locate areas of insulation failure (≥0.5 MΩ resistance) as far away as 15 km.

The locator’s impressive detection distance—up to 25 km when buried 1.5 m deep, over 10 km when buried 2.5 m deep—and a planar accuracy of <5 cm allow users to eliminate unnecessary trenching. Reports from field crews show they can successfully operate in all three types of environments (suburban, industrial, and urban).

Package Contents

A durable transport carry bag has everything you need to efficiently transport your gear. Items included are: transmitting unit with charging base, receiving unit with charging system, red/black clip lead pair, ground rod, adjustable wrench, headphones, tape measure, operating manual, and two keys for compartment lockout.

The product comes from Henan Province in China and has an orange finish, which helps prevent dirt accumulation. Both units (receiver and transmitter) have safe operating nominal voltage ratings of 7.4 volts and 14.8 volts respectively, in line with current power tool industry standards. A three-year warranty ensures you will have peace of mind for your purchase.

Why Choose HY-8300 Pro

The HY-8300 Pro represents a reliable marker for field professionals, delivering exceptional 5W signal penetration and ±2.5% depth accuracy that reduce the chance of accidental excavations and increase time savings in the field. Dual high-capacity batteries provide total run time for an entire workday, eliminating delays caused by changing batteries in the field.

With a tough, sealed chassis that protects against rain, dust, and abuse typically experienced in utility work environments, the HY-8300 is designed for long-term use. The telescoping body allows for adjustment based on the height of the user, while the fine-tuning of gain and volume settings gives the operator the ability to tailor the instrument to operate in areas of high interference, such as those near power substations.

The versatility offered by the HY-8300 is unmatched by entry-level locators. The HY-8300 is not restricted to narrow frequency ranges or to fixed or high impedances. Field technicians are able to obtain much clearer traces through dense underground cable networks, reducing the number of callbacks and providing a more productive work environment.

Daily Use Tips

Before you begin the job, make sure all units are fully charged. Charging overnight ensures that you will be able to work with each unit at its best level of performance. Check that they are functioning properly by testing them first on a short, known section of the line. To achieve the best possible return signal in very dry weather, place the ground rod deep into the wet soil.

Maintain a constant, steady walking pace while sweeping. Turn off the power between traces to help conserve your batteries. For longer runs, use high impedance settings; reduce gain as you get closer to the transmitter so that you don’t overload the unit.

Use headphones when working near roads or machinery, to ensure signal clarity amidst ambient noise. The manufacturer’s manual contains diagrams illustrating the use of complicated setups. When connecting the units together, tighten the connections with a wrench, and store the keys for accessing the battery compartments.
