How 10GBASE-LR vs 10GBASE-SR Modules Differ: Reducing Procurement Loss

When it comes to choosing an SFP 10GBASE-LR vs 10GBASE-SR, this is the common dilemma for countless network professionals. The wrong decision could result in network instability, unanticipated outages, and repairs. These procurement issues can also lead to budget and cost overruns by wasting money and not pairing the proper optical components. In this guide, we will outline the most important technical concepts, selection advice, and, of course, real-world use cases, so that decision-makers have the information needed to properly evaluate and select an SFP 10GBase LR or SFP 10GBase SR module and ensure their network will be reliable while minimizing procurement loss. The reader will feel engaged with relevant examples, clearly articulated information, and straightforward advice, so either the procurement decision-maker or procurement individual can make smart, informed choices for their network infrastructure.

What are the fundamental technical differences between 10GBASE-LR and 10GBASE-SR modules?

The distinct functions of 10GBASE-LR and 10GBASE-SR modules are important for 10-gigabit networks because they each rely on different technologies to support various fiber types and distances. Being aware of their fundamental differences in technology will aid in the selection of the best module for the network design and performance. 10GBASE-LR (Long Reach) modules use single-mode fiber and are used for longer distances. They operate with Distributed Feedback (DFB) lasers, which provide light output at a wavelength around 1310nm. The longer wavelength decreases attenuation and chromatic dispersion in fiber, supporting distances of 10 kilometers, and utilizing OS1 or OS2 single-mode fibers. The DFB laser provides a coherent and stable light source that maintains signal integrity at much extended links typical in a wide-area network or campus network.

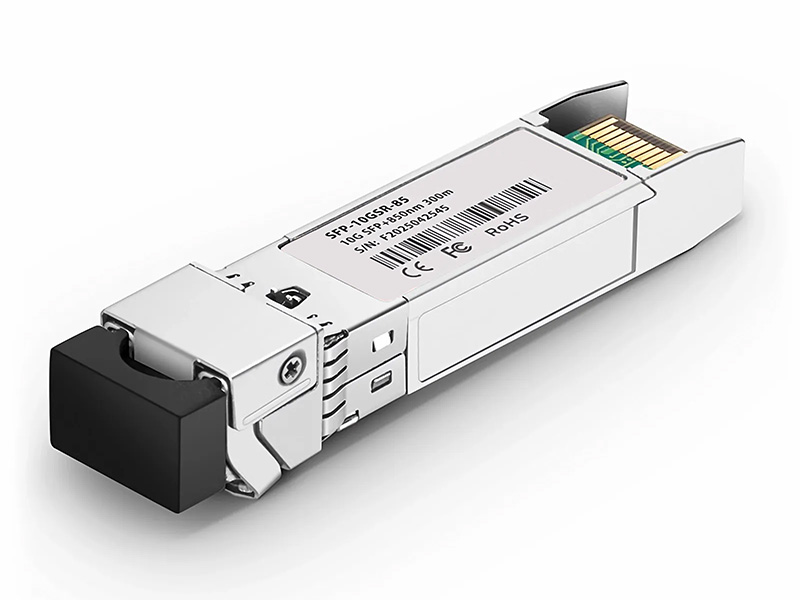

While 10GBASE-SR (Short Reach) modules leverage Vertical Cavity Surface Emitting Lasers (VCSELs) operating at a wavelength of 850nm. This combination supports multimode fibers such as OM3 or OM4. While multimode fibers support many light paths, they are limited by modal dispersion, and as such, the 10GBASE-SR maximum distance is about 300m on OM4. Although VCSELs are cost-effective and have high-power outputs, they provide the best results with shorter distances in a data center or rack-to-rack connection.

These categories of technical jargon have a practical impact on how networks are planned. Single-mode fiber discipline is narrower in the core and operates at a longer wavelength, allowing for greater distances with little loss of signal. This makes the SFP-10G-LR module ideal for connecting buildings or larger areas on a campus without worrying about loss of signal. In contrast, the SFP-10G-SR module is intended for shorter runs in a data center, allowing for a good balance of cost and performance for optimal network performance, while also using money and resources efficiently and avoiding overengineering.

To illustrate the situation, you could think of single-mode fiber as being like a narrower highway with a focused beam of light traveling very quickly, over long distances with minimal detours. In contrast, multimode fiber could be imagined as a wide road with traffic and too much scattering (indicating lower speed and shorter distances). Again, this is reflected in the source of the laser type as described above: DFB lasers are designed to deliver a very concentrated, coherent light beam that is capable of going long hauls. VCSELs are designed for less concentrated bursts. But keep in mind that they are also generally cheaper.

By understanding these core technical differences, you can avoid mismatches that could be costly to replace in the next step (i.e., using SR modules over single-mode fiber and using LR modules on multimode fiber would clearly have unacceptable impacts on the ability of the networks to sustain reliability). The type of laser you select is intrinsically tied to the type of fiber you intend to use. The fiber and the type of laser used should at least be consistent with respect to some threshold or fabric, where throughput differences could lead to undesired frame losses. Making the right choice is vital in deciding whether the laser type and fiber are compatible.

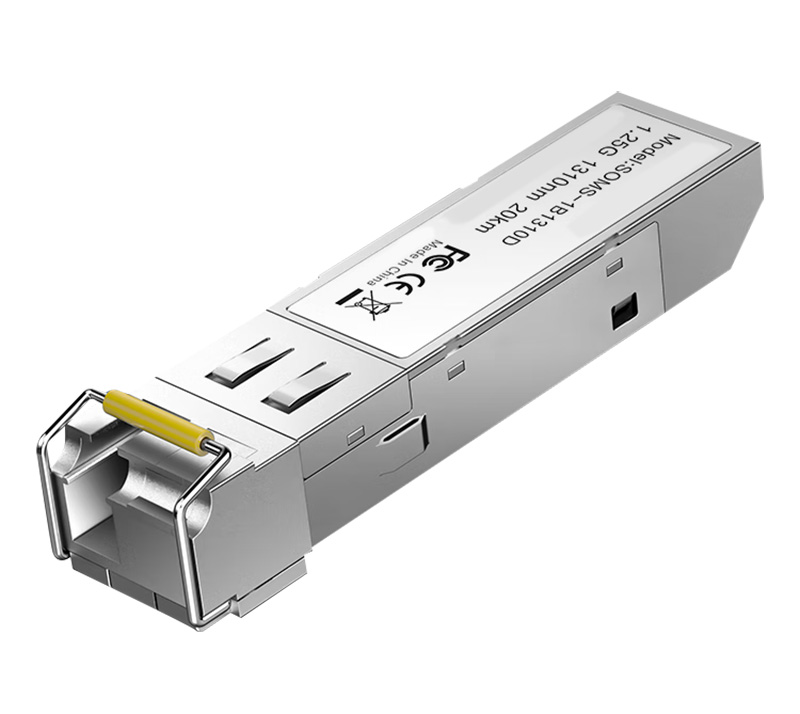

In summary, the SFP-10G-LR module is best suited for long distances when running over single-mode fiber, covering distances of about 10 km with DFB lasers operating at 1310nm (depending on the network budget and campus or building size). The SFP-10G-SR module is best for running short multimode fiber distances, where you would expect to go about 350-400m with an 850nm VCSEL laser. Selecting between these modules should always be made with consideration of the fiber infrastructure, the distances anticipated, and the expected budget limitations to find the most economical and effective design and make it affordable.

Why does transmission distance vary significantly between 10GBASE-LR and SR modules?

Transmission distance is a major differentiator between 10GBASE-LR and 10GBASE-SR modules. The differences in transmission distance are driven primarily by the type of fiber and the physics of each. These differences affect the design of the network and component choices.

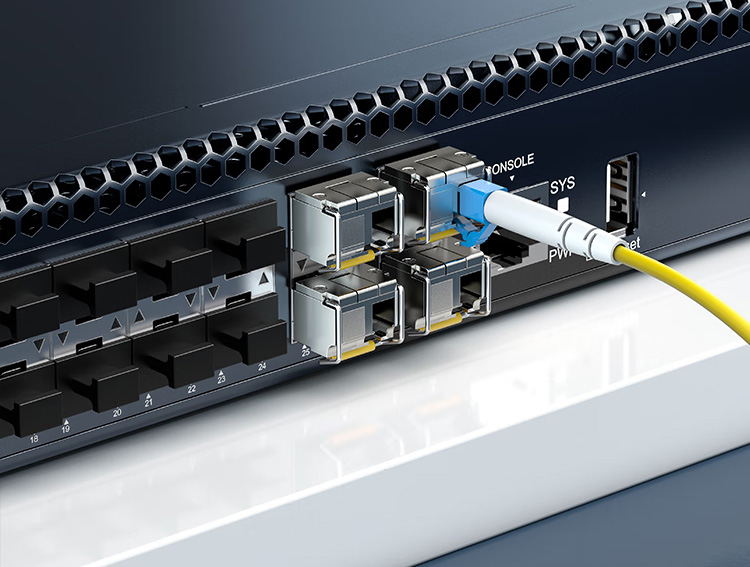

10GBASE-LR modules work on single-mode fibers, such as OS1 and OS2, which can support distances of up to 10 kilometers. Because single-mode fiber has a smaller core, light travels in a direct line with very little scattering. This impacts delay distortion by improving attenuation (the gradual loss of intensity of a signal traveling through fiber) and modal dispersion (where different wavelengths of light may arrive at different times, causing the signal to be blurry).

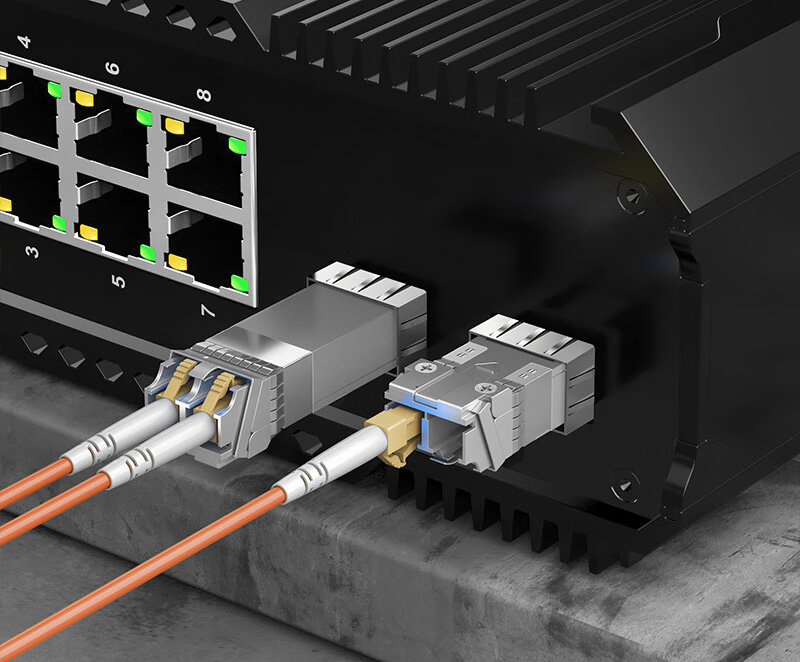

For example, multimode fibers like OM3 and OM4 can support 10GBASE-SR modules. With a larger core in a multimode fiber, light is transmitted through the fiber using multiple modes at the same time. This creates modal dispersion, which is one of the factors that contribute to distortion, causing a limitation of distances for signal transmission over longer distances. 10GBASE-SR can achieve about 300 meters on OM4 and about 100 meters on OM3.

While traveling through fiber, light energy diminishes or attenuates over distance. Single-mode fiber has the least attenuation, which allows for the longest runs. Multimode fibers suffer from attenuation and modal dispersion and, consequentially, have a significantly shorter distance approximation for effective bandwidth. Chromatic dispersion affects single-mode fiber, but with 1310 nm lasers, chromatic dispersion should not be an issue up to 10 km in distance.

To paint a picture of how these characteristics might occur: when you shine a flashlight through a long, narrow pipe (single-mode), the light will maintain its energy and direction. In contrast, a flashlight passing through a wider pipe with layered glass, reflecting and scattering the light (multimode), will cause the distance to weaken as it disperses and goes in unexpected directions.

These physical characteristics would affect your infrastructure. For example, a long-distance link connecting two buildings or multiple campus buildings will often dictate the necessity for 10GBASE-LR on OS2 fiber. Conversely, linking pieces of equipment within a building or data center usually promotes the use of 10GBASE-SR modules on OM3 or OM4 fiber, which efficiently aligns cost with distance.

If you select the wrong distance or fiber type for your requirements, you may unintentionally create a new network with instability or may just create a dormant fiber that you need to upgrade at a cost. Therefore, it is useful to note the distance for each module or any specific fiber optic type required for a reliable design and to minimize purchasing loss.

In summary, 10GBASE-LR offers distance advantages stemming from the low attenuation of single-mode fiber and chromatic dispersion (up to 10 km). In contrast, 10GBASE-SR is limited by the modal dispersion of multimode fiber, with distance limits to a couple hundred meters or less. When considering modules, these physical characteristics are important for ensuring the proper module is selected while achieving network specifications with ease of intention for both performance and the desired infrastructure.

How to choose the right module based on transmission distance and fiber type?

When choosing the correct 10G SFP module, you need to begin with an understanding of the transmission distance you need and the type of fiber. If you follow a specific process, you can avoid making impulsive and regrettable decisions that can be very costly. In addition, you can align SFP modules with your network needs precisely.

Step 1: Determine Distance Requirement

You need to identify what the physical distance of the link needs to be. Short runs from one switch to another, such as from an access layer switch inside a rack or two adjacent racks, will rarely exceed 100 meters. Longer distances may be common if you are linking across buildings or a campus, which may require several kilometers.

Step 2: Identify Fiber Type

You will want to verify the fiber type of existing fiber in your infrastructure. To distinguish between single-mode or multimode fiber, you may want to use visual identifiers or testing equipment and verify if you have OS1/OS2 or OM3/OM4 fiber in place.

Step 3: Choose Module Type

For links of less than 300 meters utilizing multimode fiber, choose SFP-10G-SR modules. For links greater than 300 meters and up to 10 km, SFP-10G-LR modules are suitable.

Failing to confirm the fiber type puts both your connection and probable purchase at risk. For example, using a 10GBASE-SR module on single-mode fiber results in an unreliable signal because the VCSEL laser operating at 850nm is not efficient in coupling to the narrow single-mode core.

Items such as this demonstrate why it is critical to confirm the identification of fiber type, to protect against the expense of an ideal module purchase. It can also serve to preemptively avoid upgrading and incurring additional costs for fiber. If you are unsure of your fiber specifications, you can utilize an optical time-domain reflectometer (OTDR), which will provide a very accurate characterization of the existing fiber type.

You do not want your linking process with a specific SFP module to put the network at risk or waste time and budget troubleshooting, returning, or purchasing new hardware to manage compatibility risk. Accomplishing the correct mix of SFP modules and fiber type will allow you to sustain throughput and value as a total cost of ownership.

To use an analogy, think of networking as trying to fit a specific key to a locked door. In this case, the SFP module you choose will be the key, while the fiber type will be the lock. They need to match in order for your network to be viable, just as the key will only open the lock if the two (the key and the lock) match.

In summary, determining the correct 10G SFP module involves determining the required distance for the link, identifying if you have multimode or single-mode fiber, and choosing the most appropriate modules based on these factors. This approach for determining a 10G SFP module will greatly minimize the risk of compatibility issues and provide the most cost-effective process towards sustaining your investment and the overall deployment of the 10G SFP module in your network.

What is the difference in power consumption and total cost of ownership (TCO) between LR and SR modules?

Beyond their technical specifications, power consumption and total cost of ownership (TCO) help guide end customers between 10GBASE-LR and 10GBASE-SR modules and will have a significant impact on data center budgets and operational efficiency.

Generally speaking, SFP-10G-LR modules consume more power than SFP-10G-SR modules. LR modules use DFB lasers, which require more power to properly emit stable, long-wavelength light for longer distances, consuming more energy in the process. The extra power consumption results in more heat generated, impacting cooling requirements across multiple racks of servers. On the other hand, SFP-10G-SR modules use VCSEL lasers that are more energy-efficient. Consequently, SR modules consume less total power, which leads to lower costs for cooling.

Procurement of LR modules generally costs more than SR modules, largely due to lasers and precision manufacturing techniques associated with single-mode fiber. While the cost of the module is higher compared to the SR procurement cost, the long-range capability means fewer maintenance costs and less network-compatible upgrading, which helps create a TCO that is in balance with the higher initial investment.

Here are the direct impacts of power consumption and procurement costs on TCO:

• LR modules have higher upfront module costs.
• Higher power usage causes higher ongoing electricity and cooling costs.
• The SR modules will ride the edge of having lower procurement and power costs but ONLY be utilized for short distances.
• Mismatched module types cause all sorts of network problems, which also results in increased ongoing costs.

Caution in procuring networking modules should emphasize the importance of finding the correct power consumption balance and minimizing expenses, and this can be approached with some simple strategies:

• Closely assess distances and the type of fiber to avoid overpaying for LR modules when the SR module would have sufficed.
• Bundle your purchases with manufacturers such as Cisco (and other quality vendors) for warranty and counterfeit protection.
• Use power-measurement tools during the infrastructure design to help make a better cooling capacity assessment.
• Regularly assess the module’s performance to proactively detect faults to reduce operational and repair costs before the device fails.

I like to think of power consumption as the type of fuel the “car” needs to travel a distance. For example, an SUV will consume more gas than a small sedan over the same distance with a longer trip. The LR modules will “drive” the signal further but will cost you more power than the SR modules. In terms of effective and efficient procurement—factors include the cost of purchase, ongoing cost of energy usage, and the distance required to run a connection.

To conclude, although the LR module carries a higher SFP module cost and power footprint, it will provide adequate distance to justify the investment if the case is right. A short run with SR modules simply represents a better cost paradigm. Analyzing TCO by factoring in power, cooling demands, and reliability helps ensure that the investment provides value over the life of the network.

How does market pricing fluctuation and supply chain risk affect 10GBASE-LR and SR module procurement?

The purchasing of 10GBASE-LR and SR modules will vary as prices fluctuate based on market conditions and supply chain stability. Understanding the market conditions and vendor performance is an important part of your purchasing processes and budgeting strategy.

Price points for SFP modules are always going to vary with demand, technology, and world events impacting production. LR modules are generally priced higher than SR modules because of the complexity of the manufacturing process and lower yields. In general, since the technology has been adopted by a larger customer base, SR modules have historically exhibited more price stability. This price stability is due to less complicated manufacturing processes and a larger production volume to meet the demand for the technology. That being said, both LR and SR modules will be subject to supply constraints, and as a result, price and lead times for both will be affected.

Finding parts suppliers that do not sell counterfeit products will save your organization substantially, both directly and indirectly. Reliable vendors will always provide documents of authenticity, warranty options, and provenance in their sourcing of products. Valid vendors have a recognized vendor rating or history of reviews that have been proven outside of their direct influence and have not violated their reseller status. If the deal sounds too good to be true, take the time to source provenance of the product.

To plan for the possible variability of price fluctuations in your budgets for procurement, you should not only assess your anticipated price volatility but also set aside a reserve for emergency procurements. Depending on your vendor relationships, pricing contracts, and prices perceived as bulk pricing can lessen exposure to price increases. Buying in bulk can also lessen vendor risk if those costs are forgone for guaranteed prices contractually, to lock in your direct procurement costs.

Establishing a layered strategy for vendor selection will yield higher odds of procurement success, such as:

• Verify the credentials and feedback from the vendor’s customers.
• Pick vendors that have stable inventory and support after the sale.
• Before placing a direct order with any potential vendor, request that they send you samples of modules from their stock to test and assess before committing to any larger orders for operational use.
• Have and maintain an open dialogue with the vendor so you can immediately resolve issues when they develop.

In procurement, you can think of the process as similar to procuring products from flea markets. Just as you would seek trusted shops and walk away from purchasing knockoffs, your procurement team would profit similarly by confirming with authentic vendors who have tested products at a cost saving.

To recap, although the cost of 10GBASE-LR and SR modules will fluctuate based on market conditions and the ongoing stability of the supply chain, there are multiple factors for comparatively procuring through trusted sources and building a budget with contingencies that will lessen your exposure to counterfeit products and the shock of an electrical product failure.

Should organizations want to protect their investments and sustain ongoing availability of product, as it relates to the competitive availability of optical module products, it is most beneficial for organizations to engineer and develop compliant and defensible markets with their purchasing teams.

What lessons can be learned from real-world cases of incorrect module choice?

An excellent case study involving the 10GBASE-LR illustrates the dangers of selecting the wrong module. A campus network that intended to link two buildings several kilometers apart loaded routers and switches with 10GBASE-SR modules in error. The SR modules were designed for short multimode distances and could not achieve stable links across the single-mode fiber connecting the two sites.

As soon as they were deployed, network outages and intermittent failures began to surface. Troubleshooting sessions confirmed repeated loss of signals caused by non-compatible modal systems, and transmission power was insufficient to clear the links. Resolving these issues was costly in terms of emergency equipment that had to be replaced, and in labor costs associated with troubleshooting the issue, creating a significant cost to the project.

• The resolution included switching out the SR modules for the correct 10GBASE-LR modules designed for single-mode fiber, which improved reliability and prevented further outages.

Taking this case into consideration, here are valuable takeaways:

• Confirm the fiber type and the install distance in advance of purchasing any modules
• Don’t assume similar modules are interchangeable
• Test the modules to confirm whether they are appropriate for the physical infrastructure
• Prepare a contingency plan to limit downtime when troubleshooting network issues

This example highlights how seemingly minor decisions in SFP module selection can lead to network disasters and significant budget costs. I like the analogy of finding a square peg and attempting to fit it into a round hole. When you choose the wrong modules, you create fixtures that may fit, but they are clearly not solutions or components that belong together; this creates tension and a pathway to failure.

Enter future projects, it makes sense that you build in verification steps to your procurement process to reduce the probability of SFP module failure. This verification step simply means investing in the appropriate modules to avoid unnecessary troubleshooting and allowable budget expenses in the latter stages of your project.

In summary, ensuring that you have taken care with the correct module type, fiber infrastructure, and applicable distance of fiber design will help your network operate smoothly while avoiding the frequent pitfalls addressed in the many 10GBASE-LR case studies. This painstaking endeavor really illustrates the reality of neighbor network construction design, and ensures a real value proposition towards effective network planning and coordination.

How to maintain and monitor SFP modules to ensure ongoing network stability?

SFP module upkeep is vital to keeping a network stable and avoiding unplanned outages. Digital Diagnostics Monitoring (DDM, or Digital Optical Monitoring (DOM)) provides real-time visibility into operational parameters: temperature, voltage, laser bias current, optical output, and received power.

These measurements can indicate problems before they become serious, such as escalating temperature or power variations when the SFP is aging or will soon fail. Network equipment commands make it easy for an administrator to query these values, allowing the health of the SFP to be examined, and fault isolation to be managed, without physically going to the SFP itself.

As an example, commands are often used with routers and switches that allow the DDM data to be displayed for the module. These commands provide measurable diagnostics, which may be helpful in troubleshooting and are also useful for preventative maintenance. Preventative maintenance using DDM monitoring reduces downtime for the module and extends the life of the module. Instead of waiting for a failure to happen, it is always advantageous to monitor the DDM diagnostics to identify an issue before it occurs, thus preserving the flow of data through the modules and avoiding costly emergency repairs. Regular audits and cleaning of the fiber connections also extend the life of the SFP module.

Use the analogy of DDM to a vehicle’s dashboard gauges; monitoring the engine vitals will prevent breakdowns. Monitoring and acting on the DDM warnings keep optical modules performing efficiently.

In summary, SFP module maintenance is a mix of DDM monitoring, router commands for diagnostics, and scheduled upkeep of the physical equipment. The combination of these ideas keeps reliability high and protects the network investment by detecting issues early and addressing them.

What are the key takeaways and intelligent procurement recommendations for 10GBASE-LR and SR modules?

The discussion around SFP-10G-LR and SFP-10G-SR transceivers is relatively simple when it comes to understanding some technical differences between each module, selection criteria, and the costs associated with each module. The LR modules support longer distances over single-mode fiber, using DFB (distributed feedback) laser types, and are more suitable for campus area network switch-to-switch (or cross-building) links, versus SR modules that are more suitable for short multimode fiber runs, both with laser types of VCSEL (vertical cavity surface-emitting laser) transceivers, and are optimized for data center fiber networks, etc.

When selecting any of the SFP-10G modules, you must carefully analyze the total distance of the network, the type of fiber you intend to install, the power consumption, the budget, and more. Not taking the time to analyze each of these components will lead a network engineer to lose money for a number of reasons: insufficient signal, network downtime, and wasted money/procurement for the network itself. The reliability of the vendor you procure products from should also be analyzed and verified. Once again, we may not think of this in a general environment, but if there is a vendor whom you can trust and who sells high-quality products, that would greatly reduce the risk of purchasing counterfeit products and ensure quality.

A general checklist for intelligent procurement decisions would be:

• Confirm the exact link distance and fiber you are going to use.
• Confirm the type of SFP you are going to use: LR for long, single-mode fibers, and SR for short, multimode links.
• Review and analyze the total cost of ownership, not simply the cost of the module.
• Confirm that whoever you purchase from is a reputable and verified vendor and includes warranty and service provisions.
• Include a planned ongoing maintenance and monitoring strategy to extend the useful life of the SFP module and network.

The procurement process can be thought of like having a tailored suit made: you need measurements (distance/fiber) and fabric (module type) to fit well together; otherwise, it will be uncomfortable or fail.

Lastly, once you have covered the core technologies and the costs associated with these SFP modules (LR/SR), along with reputable vendors and procurement decisions, you will be able to procure networks and minimize unnecessary procurement loss: and effectively have a quality, fluent, and stable network, using either an SFP-10G-LR or SFP-10G-SR module, that is fit to your needs for a solid network infrastructure.
