Model | G9 High Accuracy Optical Power Meter |
Red Light Wavelength | 650 nm |
Red Light Output Power | 5 mW, 15 mW, 20 mW, 30 mW (optional) |
Visual Fault Detection Range | 5 km, 15 km, 20 km, 30 km (selectable) |
Wavelength Measurement Range | 800–1700 nm |
Standard Wavelengths Supported | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 nm |
Detector Type | InGaAs |
Measurement Range | -70~+6 dBm, -50~+26 dBm, -70~+10 dBm (optional) |
Measurement Uncertainty | ±5% |
Display Resolution | Linear: 0.1%; Logarithmic: 0.01 dBm |
Frequency Identification | 270 Hz, 1000 Hz, 2000 Hz |
Data Storage Capacity | 20 records |
Interface Type | Universal 2.5mm port, compatible with SC/FC/ST connectors |
Wireless Module | 2G (optional) |
Input Voltage | 3–6V |
Power Supply Options | Built-in 1500mAh rechargeable lithium battery (USB charging) / 3x AA batteries (optional) |
Charging Time | 3 hours |
Continuous Working Time | ≥48 hours |
Auto Power Off | 10 minutes |
Operating Temperature | -10°C to +60°C |
Storage Temperature | -25°C to +70°C |
Device Dimensions | 142 × 76 × 30 mm |
Package Dimensions | 172 × 77 × 40 mm |
Net Weight | 212g / 224g |
Connector Material | Replaceable metal or ceramic ferrule |

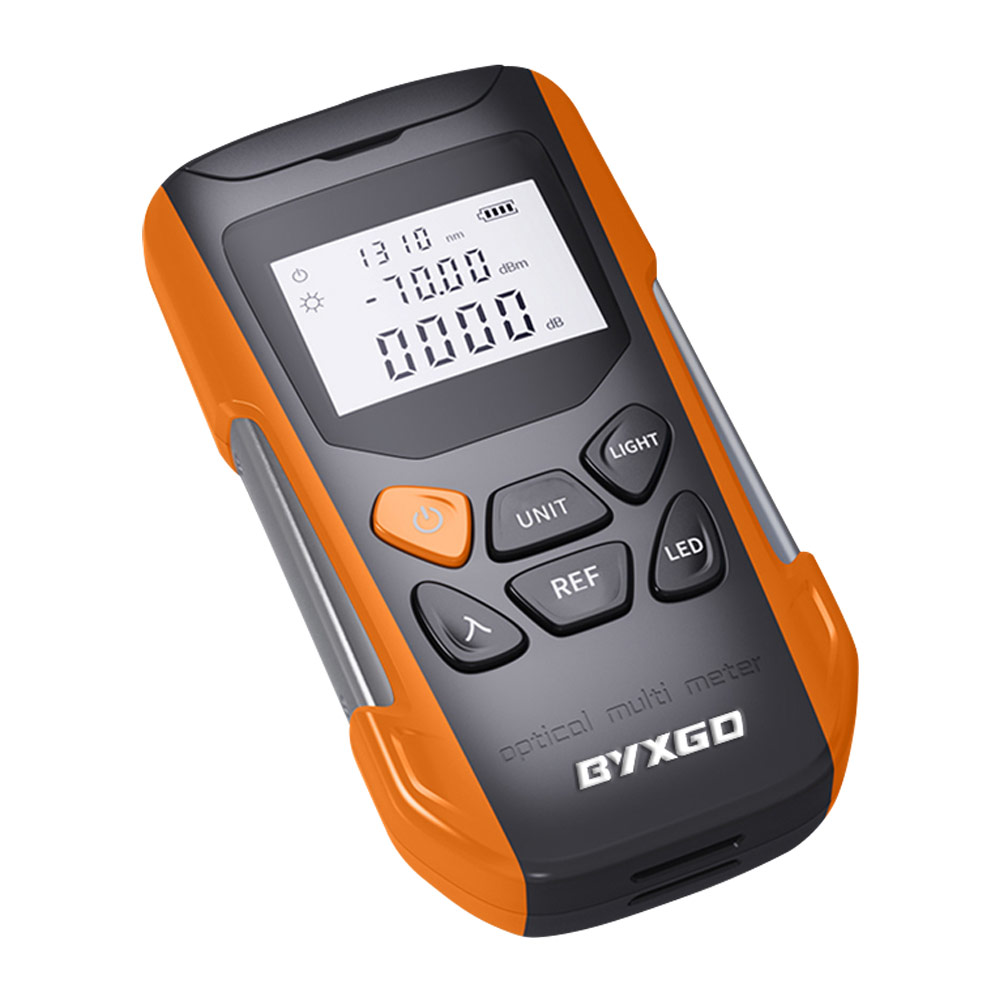

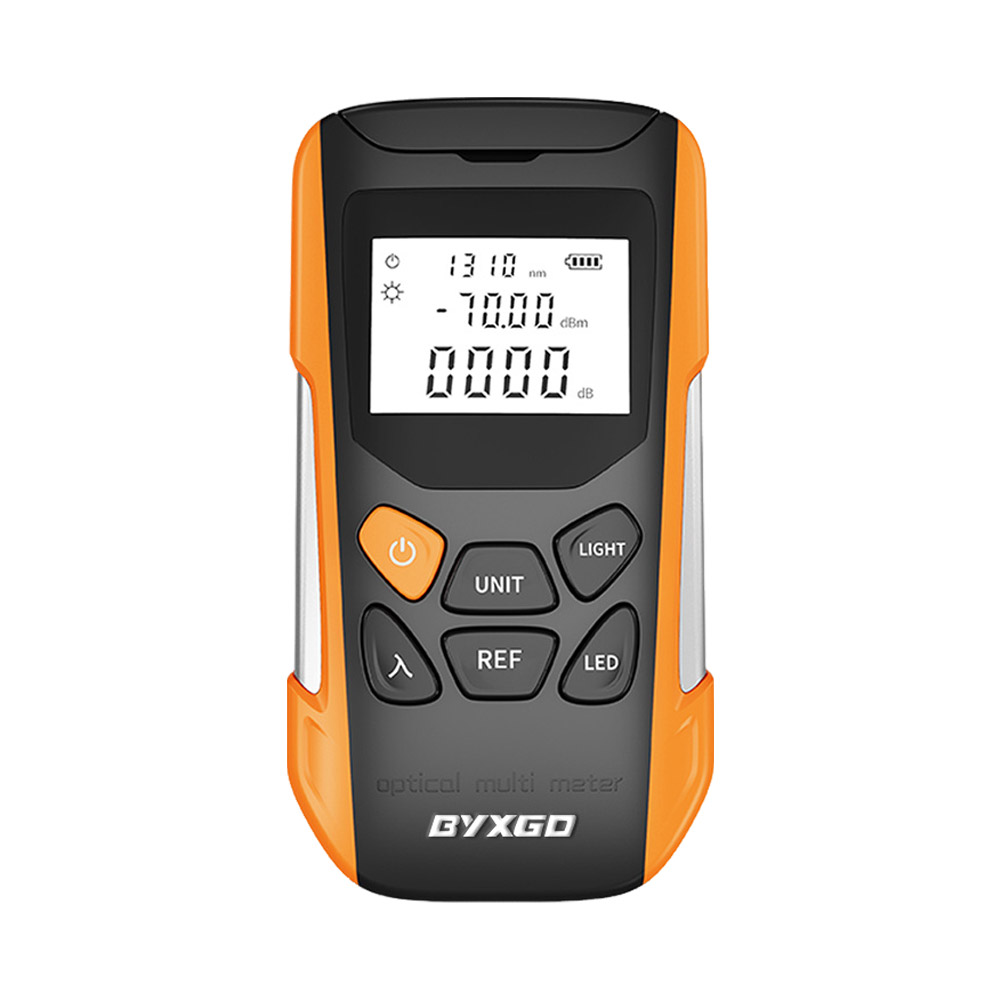

G9 High Accuracy Optical Power Meter with Visual Fault Locator | 30km Red Light Detection | Dual Power Supply
High Precision Measurement: Measures optical power accurately at 9 wavelengths: 850/980/1300/1310/1270/1490/1550/1577/1625 nm.
Long-Range Fault Detection: Able to detect red light at distances of 5 km, 15 km, 20 km, and 30 km to meet your fiber testing needs.

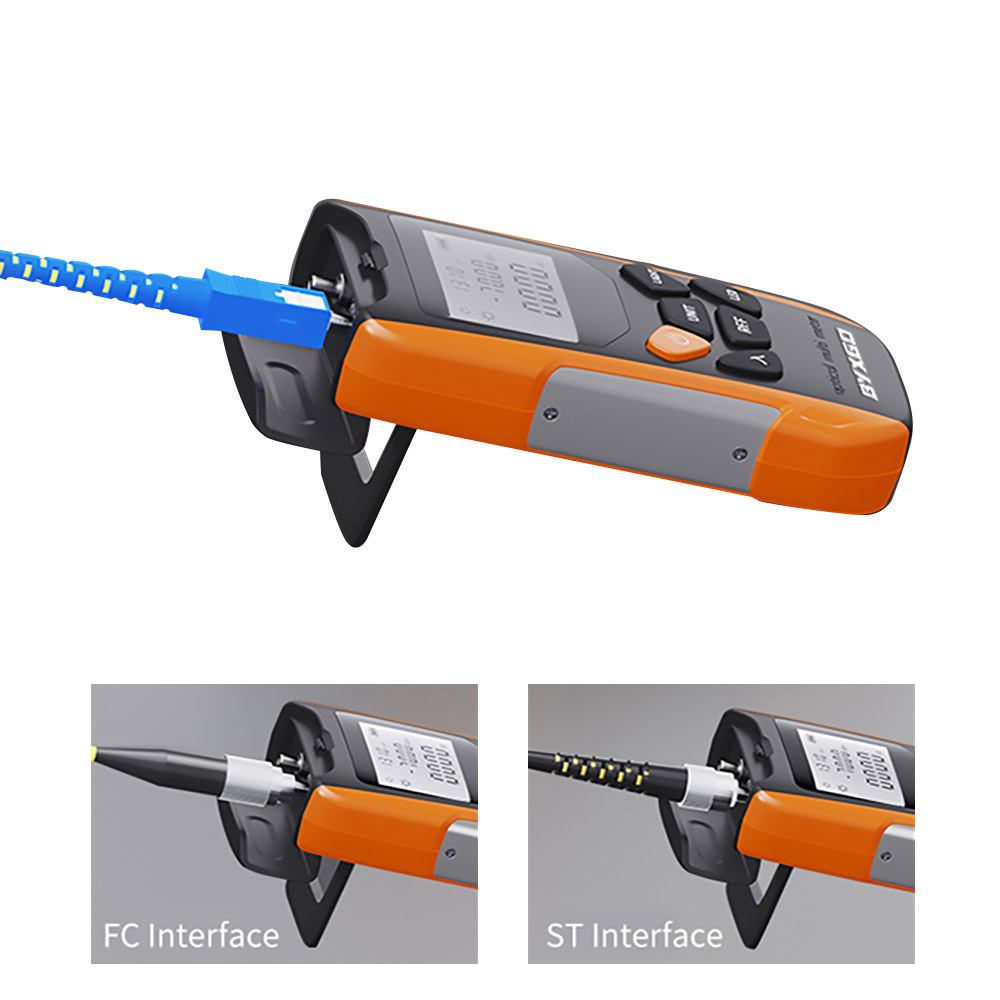

Universal Compatibility: 2.5 mm port for SC/FC/ST connectors, no need for an adapter, completely plug-and-play.
Dual Power Supply: Lithium battery (USB charging) and AA battery, to give complete flexibility.
Large Storage: You can save up to 20 test records to make working in the field easier.
Fast Charging: Fully recharges in 3 hours.
Extended Continuous Operating Time: Up to 48 hours continuous working time.
Auto Power Off: 10-minute auto shutoff saves battery life.
Rugged & Portable: Compact (142×76×30 mm), lightweight, and easy to carry.
Durable Construction: -10°C to +60°C range of operating temperatures.
Frequency Recognition: Signal recognition of 270 Hz, 1 kHz, and 2 kHz.
Easy to Read Display: High resolution display for easy to read and accurate display.
