| Model | Tumtec V9+ 6 motors for core-to-core alignment |
| Dimensions | 130 mm (W) × 170 mm (L) × 170 mm (H) without rubber bumper; 140 mm × 170 mm × 176 mm with bumper |
| Weight | 2.233 kg (with battery); 1.853 kg (without battery) |
| Number of Fibers | Single fiber |
| Supported Fiber Types | Single-mode (ITU-T G.652 & G.657), Multimode (ITU-T G.651), Dispersion Shifted (ITU-T G.653), Non-zero Dispersion Shifted (ITU-T G.655) |
| Compatible Fiber/Cable Size | 0.25 to 3.0 mm diameter; suitable for indoor cables |
| Cleaved Fiber Diameter | 0.125 to 1 mm |
| Cleave Length Range | 5 to 16 mm |
| Cladding Diameter Range | 80 to 150 micrometers |
| Coating Diameter Range | 100 to 3000 micrometers |
| Splicing Modes | 41 preset modes; supports up to 100 user-defined modes |
| Heating Modes | 5 preset heating modes for sleeve lengths of 20, 30, 40, 50, and 60 mm; up to 100 modes storable |
| Typical Splice Loss | SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB; G.657: 0.02 dB (ITU-T standard) |
| Return Loss | Equal to or greater than 60 dB |
| Illumination | Three high-intensity white LEDs |
| Splicing Time | 6 seconds in quick mode |
| Splice Loss Estimation | Real-time estimation with accuracy better than 0.1 dB |
| Heating Sleeve Length | Compatible with sleeves from 20 to 60 mm |
| Heating Time | Quick heating in 13 seconds; typical heating cycle about 30 seconds |
| Data Storage Capacity | Stores up to 20,000 splicing records and 200 images |
| Tension Test Force | Fiber tension test range between 1.96 and 2.25 Newtons |
| Operating Environment | Altitude: 0 to 5000 m; Temperature: -10 to 50 °C; Humidity: 0 to 95%; Max wind speed: 15 m/s |
| Storage Environment | Temperature range from -40 to 80 °C; Humidity up to 95% |
| Display | 5-inch high-resolution color LCD with touch capability; 90° bi-directional viewing |
| Fiber View & Magnification | Multiple views (X, Y, XY, X/Y) with 500× magnification |
| Power Supply | AC input: 100 to 240 V, 50/60 Hz; DC input: 9 to 15 V |
| Battery Capacity | Detachable 5200 mAh battery supporting about 250 splice and heating cycles |
| User Interface | Operable via buttons and touch screen |
| Automatic Calibration | Arc calibration adjusts automatically for air pressure and temperature |
| Electrode Life | Rated for 5000 arc discharges; extendable with electrode grinder |
| Connectivity | Mini USB 2.0 interface |

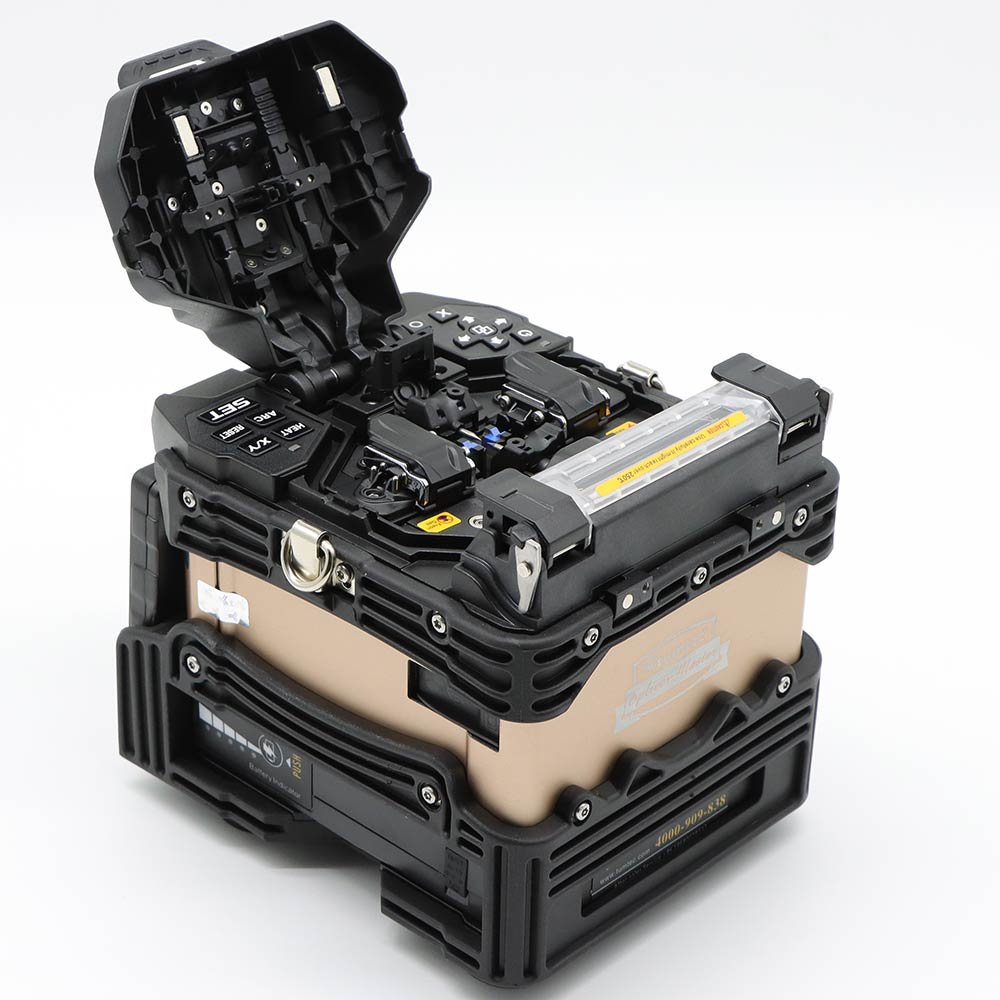

Tumtec V9+ HD Core Alignment Fiber Optic Fusion Splicer

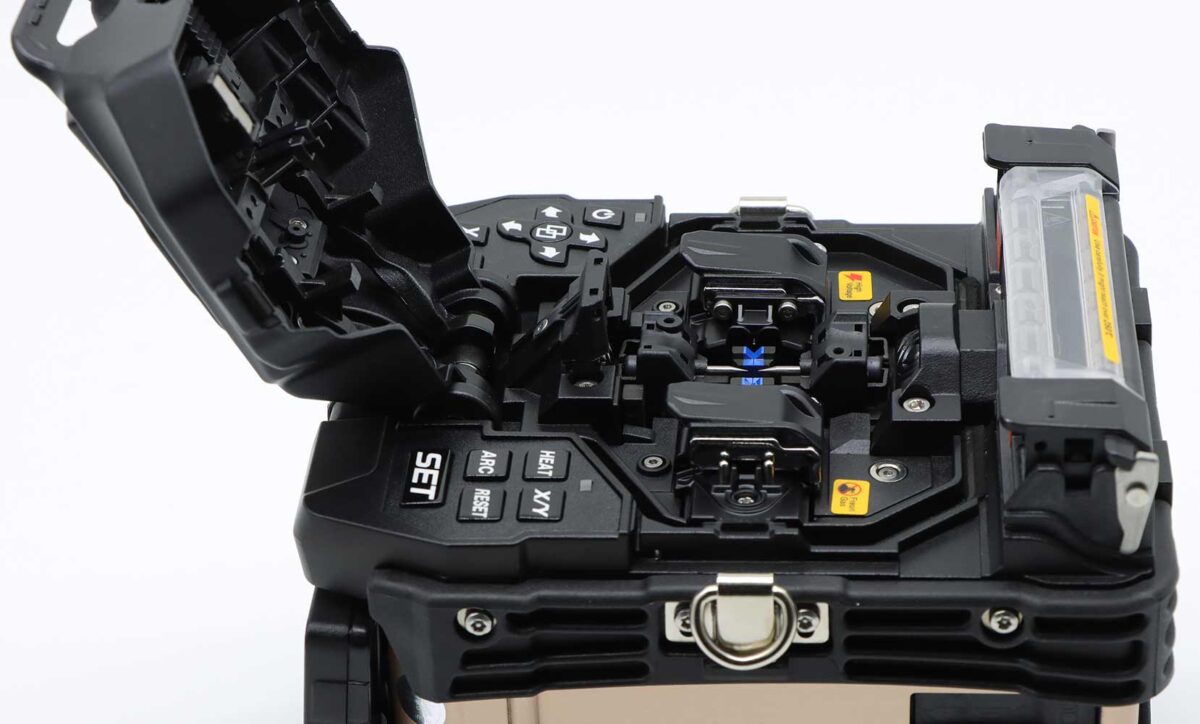

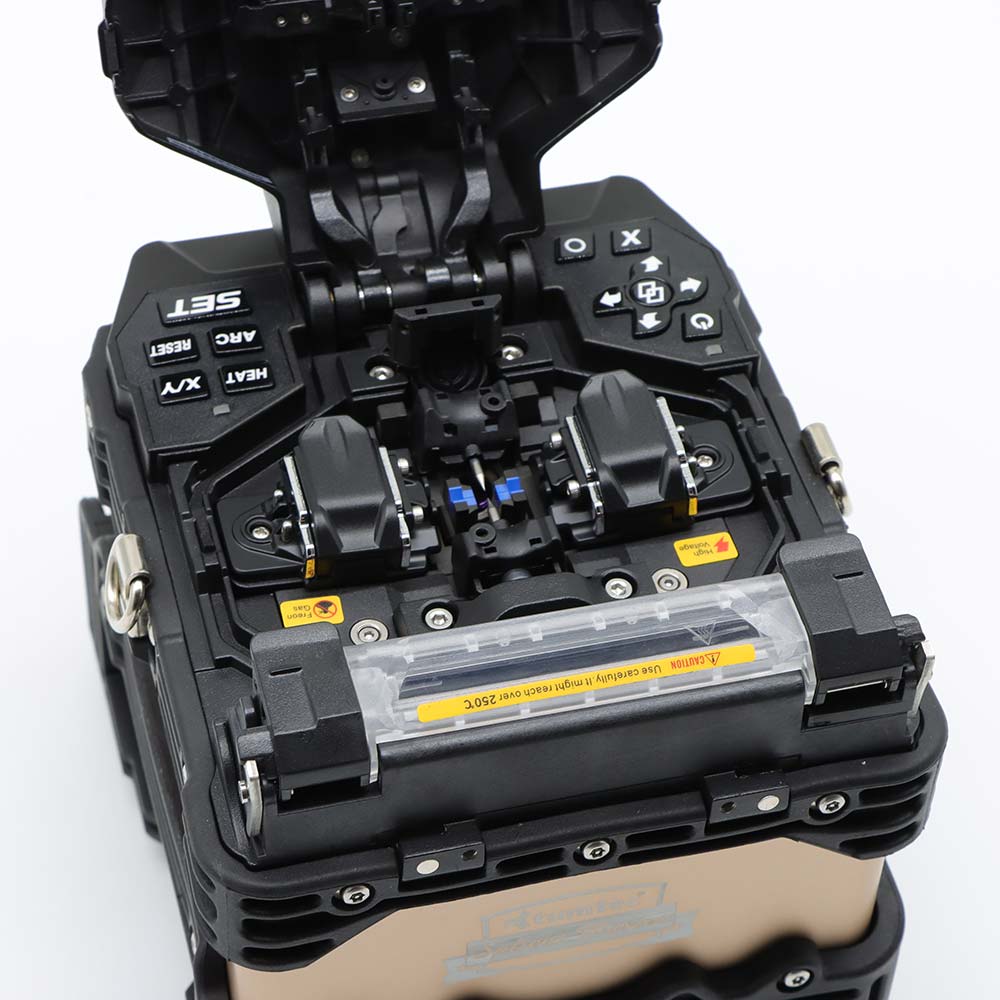

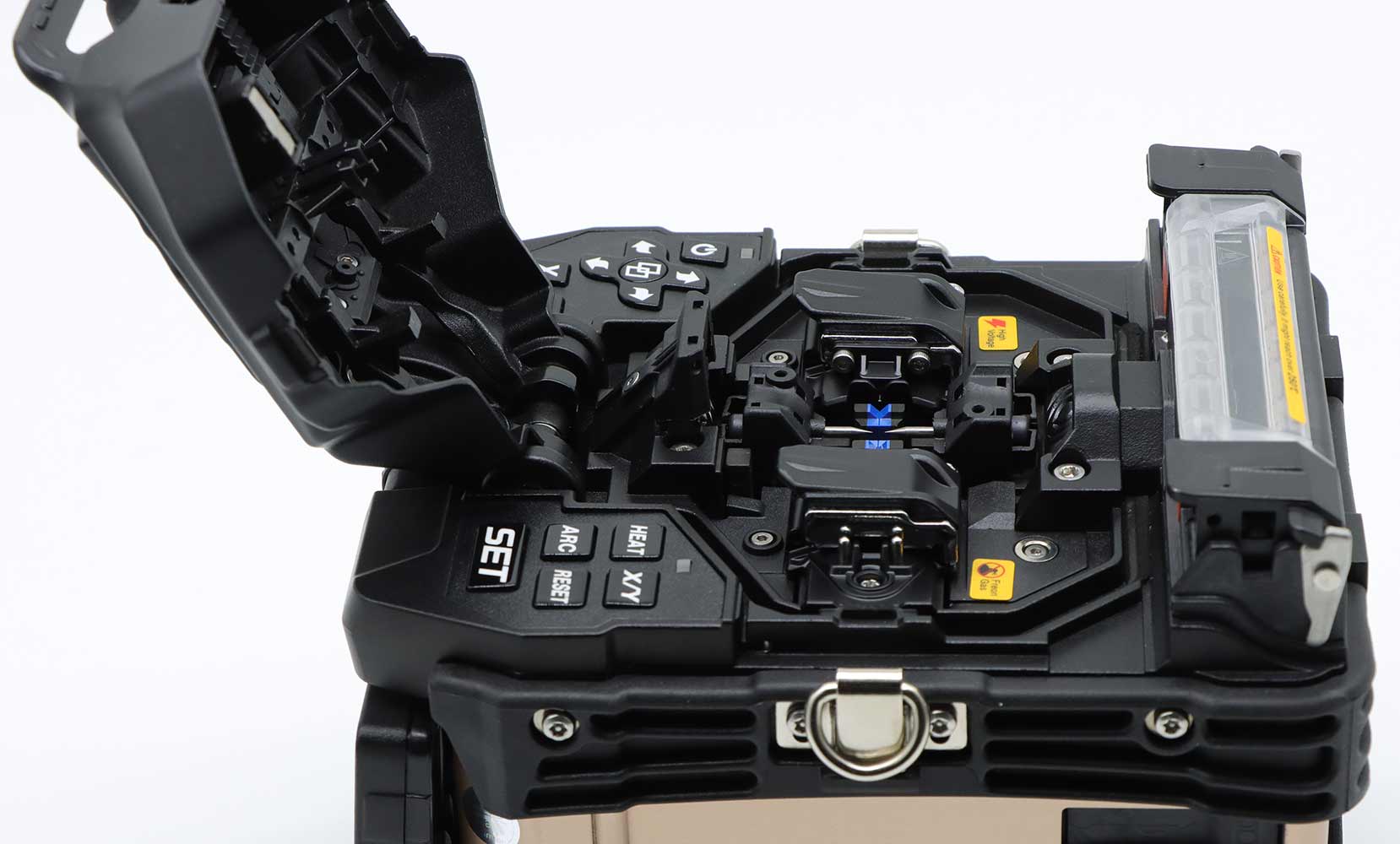

6 Motor Core Alignment: Provides accurate and consistent fiber alignment to give you the best splice possible.

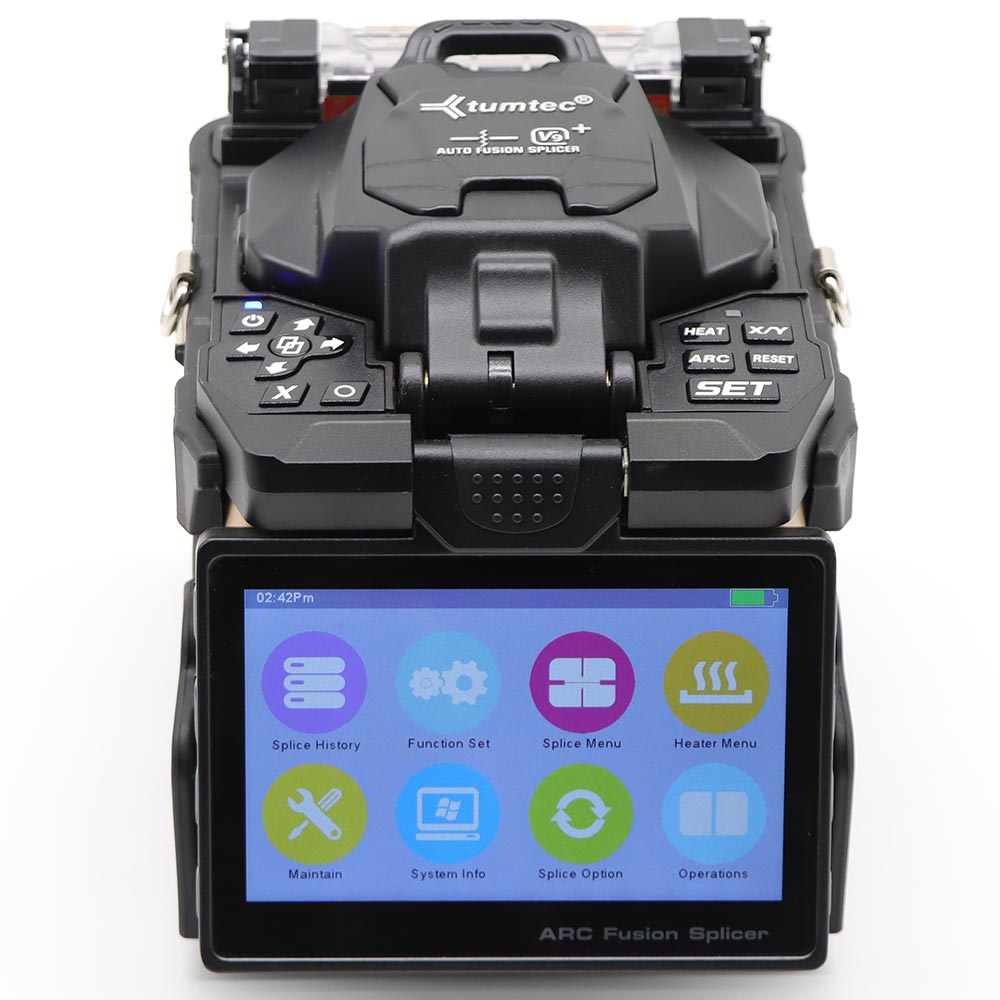

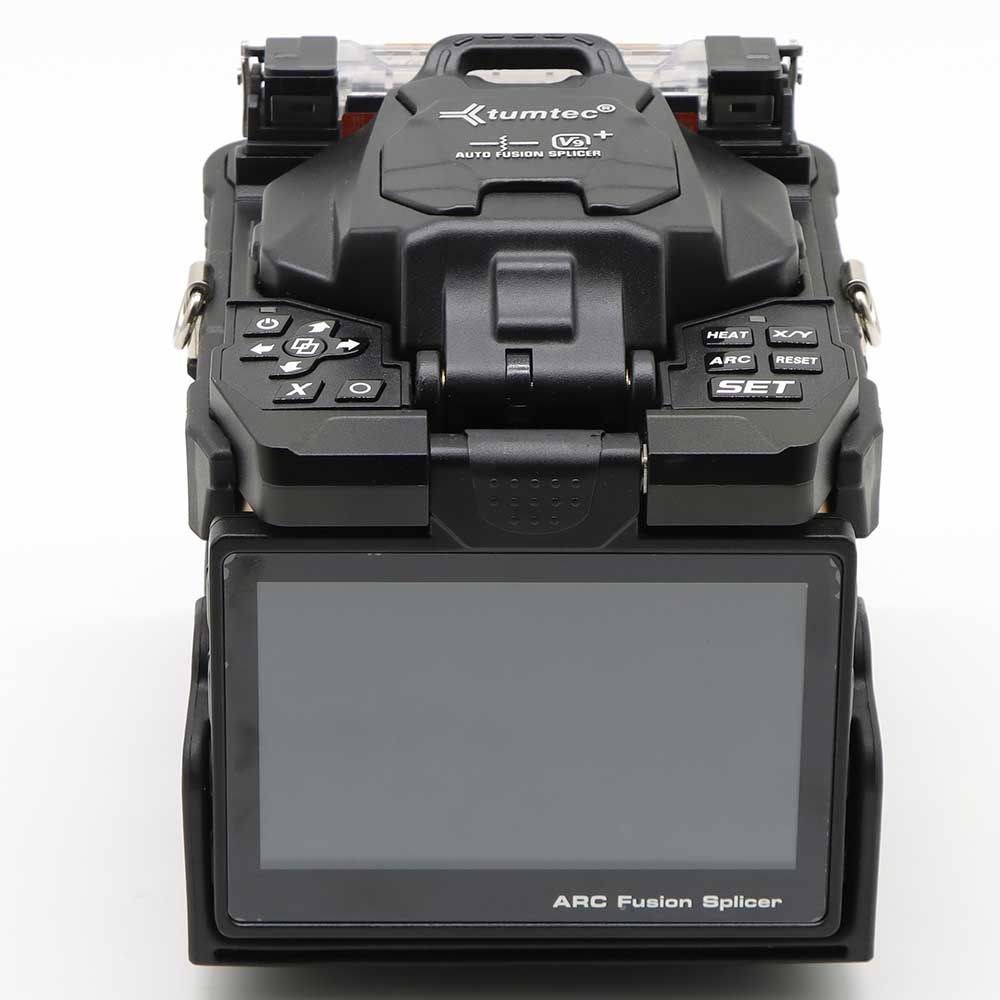

5” Touchscreen: Simple interface for simple operation and rapid adjustments to the settings.

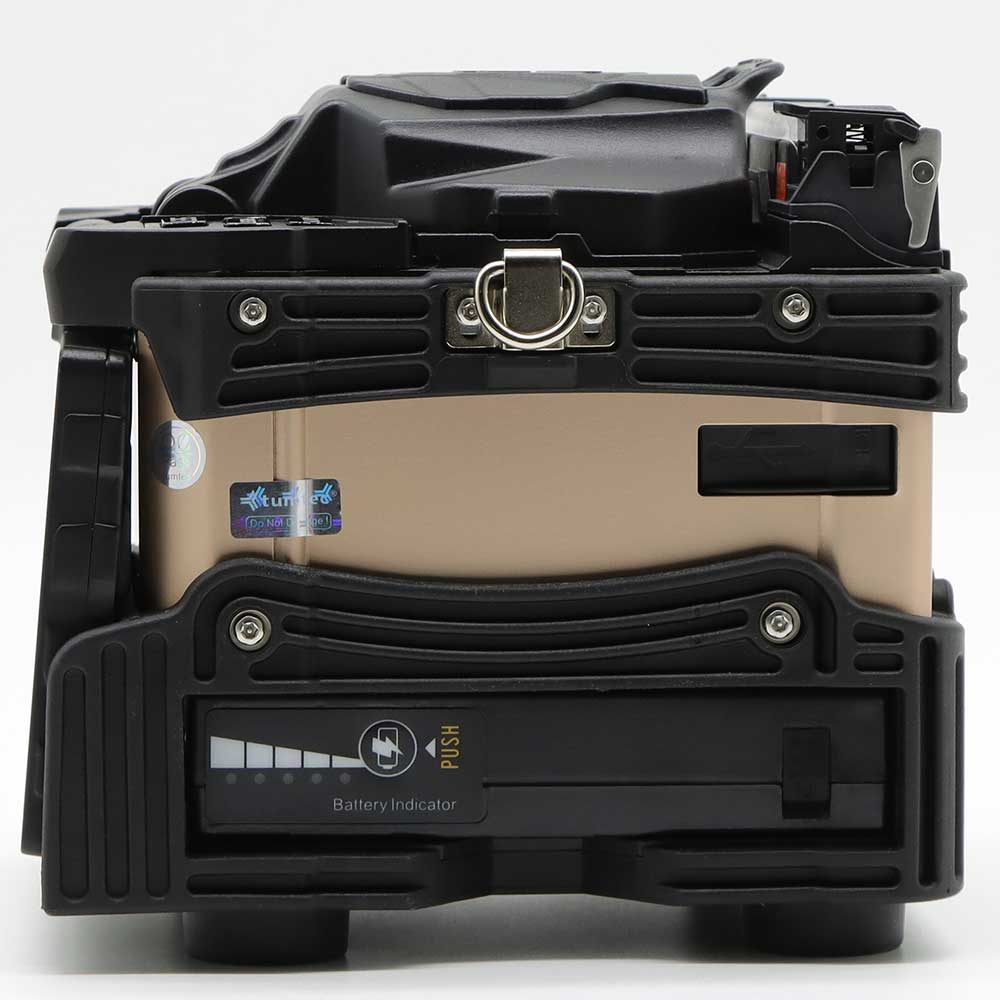

High Capacity Battery: 5200mAh battery provides you with 250 splices and heating cycles per charge.
Fast Splicing & Heating: Splice time is 6 seconds, and heating time is 15 seconds.
Wide Fiber Compatibility: Complies with SM, MM, DS, and NZDS fibers.
Rugged: Dustproof, waterproof & shockproof for reliable fieldwork.
500x Magnification Camera: Allows you to inspect the fiber core for quality assurance.
