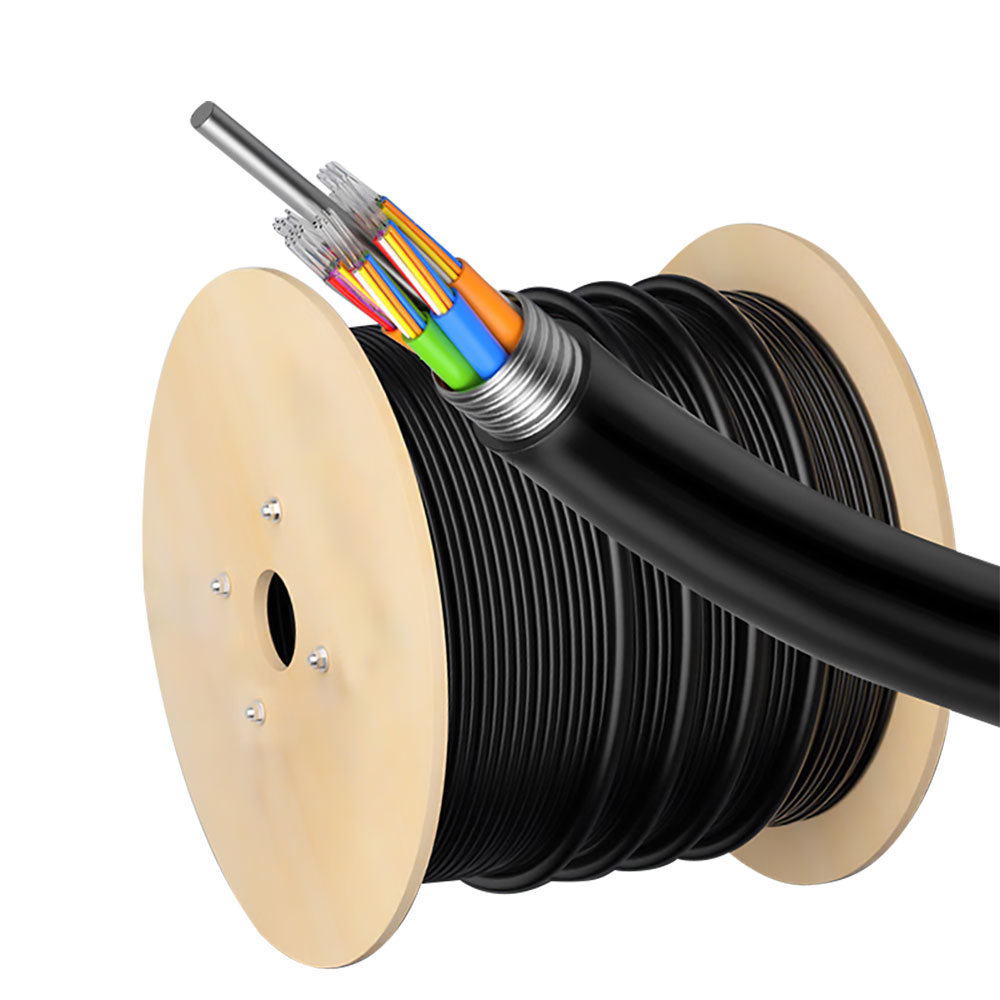

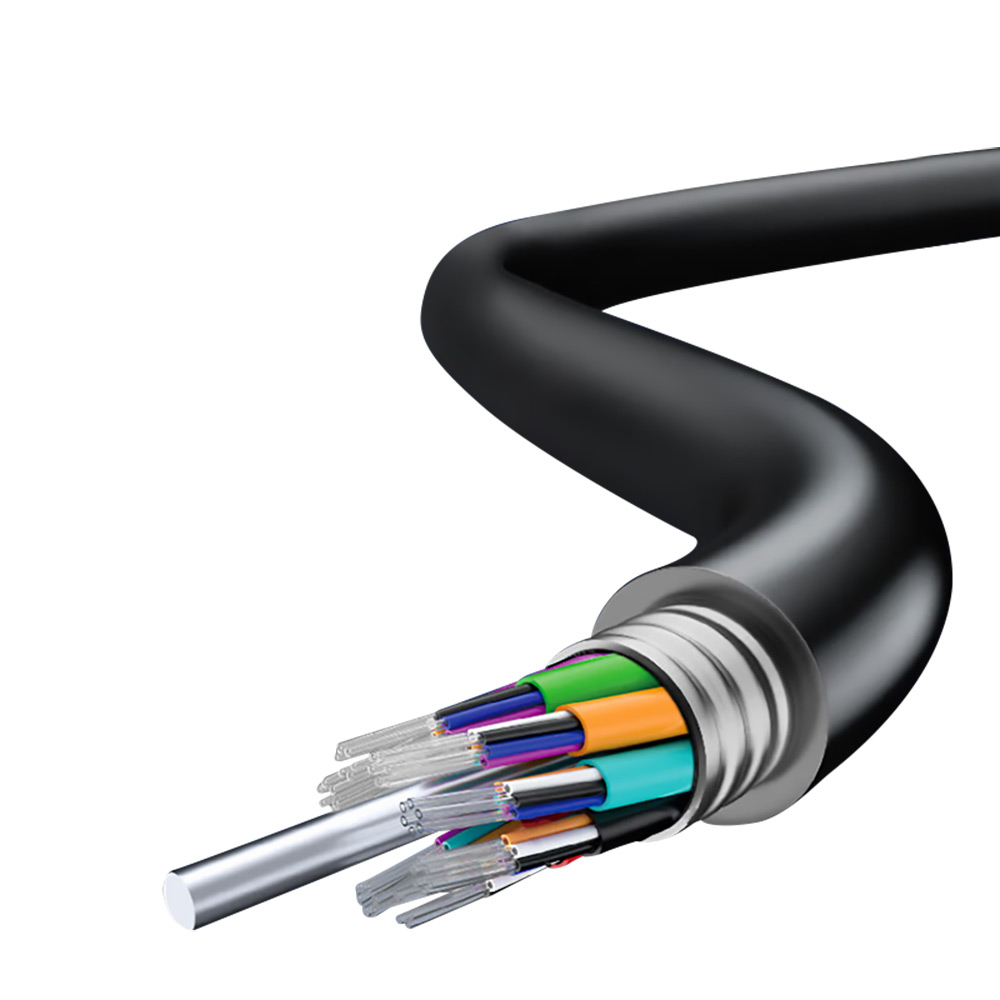

GYTZA Armored Fiber Optic Cable, Stranded Loose Tube, Aluminum Tape, Flame Retardant LSZH, Outdoor Cable Tray & Conduit, 2-288 Cores

Flame Retardant Cable: Featuring flame retardant LSZH (Low Smoke Zero Halogen) outer sheath, enhanced fire safety for outdoor installations.
Wide Fiber Core Options: Full spectrum of fiber counts available from 2 to 288 cores, including the very popular 48 core configurations.

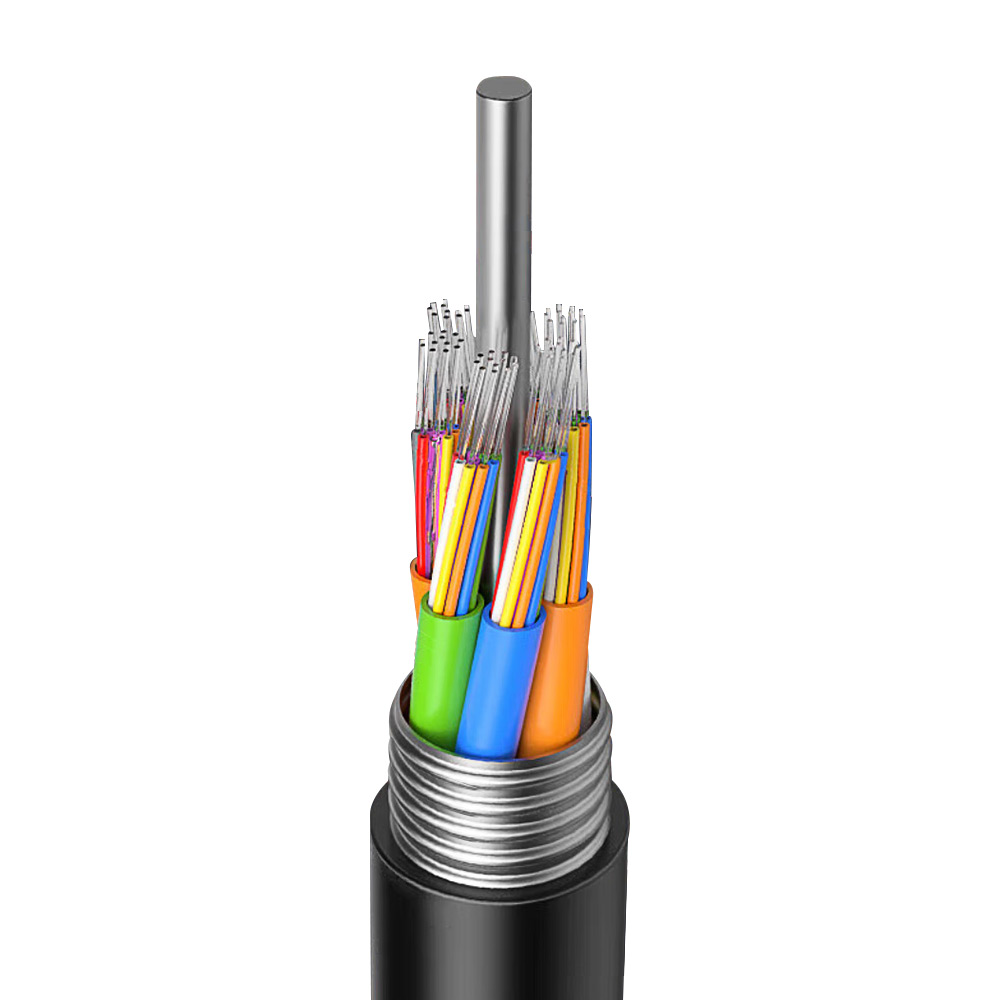

Stranded Loose Tube: Provides fiber flexibility and excellent mechanical protection, and is designed to accommodate temperature variations.
Aluminum Tape Armoring: Effective mechanical protection, longitudinally wrapped aluminum tape to enhance moisture, rodent and impact resistance.
Non-Metallic Sheathed Cable: A non-metallic strength member provides excellent electrical insulation and protection from lightning strikes.
Maximum Water and Moisture Resistance: Double-sided laminated aluminum tape and water-blocking materials to prevent any water ingress, as well as in humid and harsh environments.
Mechanical Strength: Designed for outdoor installations, with high tensile force capability and crush resistance, suitable for direct burial, duct, or aerial installations.
UV and Environmental Resistance: UV-resistant LSZH jacket provides protection against UV radiation, chemicals, and environmental aging.
Easy Installation: Due to the flexible construction of the cable, pulling and bending is much smoother and easier, making installation in a cable tray and conduit smooth.
Maximum Use: Meant for backbone, campus, and outdoor distribution networks where highly reliable and safe service is required.

Price range: $0.60 through $499.00

Categories: Fiber Optic Cables, Outdoor Fiber Optic Cables

Description

Product Name	GYTZA Armored Fiber Optic Cable
Fiber Count	2 – 288 cores (customizable: 2, 4, 6, 8, 12, 24, 36, 48, 72, 96, 144, 288)
Fiber Type	Single-mode (G.652D, G.655, G.657); Multi-mode (OM1, OM2, OM3, OM4)
Structure	Stranded Loose Tube
Armoring	Longitudinally applied Aluminum Tape
Sheath Material	Flame Retardant LSZH (Low Smoke Zero Halogen)
Strength Member	Non-metallic (FRP/Glass yarn)
Water Blocking	Water-blocking yarn and filling compound
Outer Jacket Color	Black (UV resistant)
Application	Outdoor, Cable Tray, Conduit, Direct Burial, Duct, Aerial
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +70°C
Installation Temperature	-10°C to +50°C
Cable Diameter	Varies by fiber count, typically 8.5mm to 20mm
Weight	Varies by fiber count, typically 150kg/km to 400kg/km
Sheath Thickness	1.2mm to 1.5mm
Bending Radius	Static: ≥ 10 × cable diameter; Dynamic: ≥ 20 × cable diameter
Crush Resistance	≥ 2000 N/100mm
Tensile Strength	Short term: ≥ 1500 N; Long term: ≥ 600 N
Max Tensile Load	Short term: 1500 N; Long term: 600 N
Impact Resistance	≥ 20 Nm
Max Attenuation	≤ 0.35 dB/km at 1310 nm, ≤ 0.22 dB/km at 1550 nm
Flame Retardant	IEC 60332-1, LSZH compliant
Flame Retardant Rating	IEC 60332-1, IEC 61034, IEC 60754
Moisture Protection	Double-sided laminated aluminum tape, water-blocking materials
UV Resistance	Yes
Environmental Resistance	UV, moisture, chemical resistance
Mechanical Properties	High tensile strength, crush resistance, impact resistance
Standard Compliance	IEC 60794, ITU-T G.652D, YD/T 901-2009, RoHS
Certifications	ISO9001, CE, RoHS
Packing Length	Standard 2000m/reel (customizable)
Core Identification	Standard color coding as per TIA/EIA-598-C
Typical Use Cases	Backbone network, campus network, outdoor distribution, FTTx
Installation Methods	Cable tray, conduit, direct burial, aerial installation
Additional Features	Rodent resistant, water blocking, flame retardant, low smoke emission
