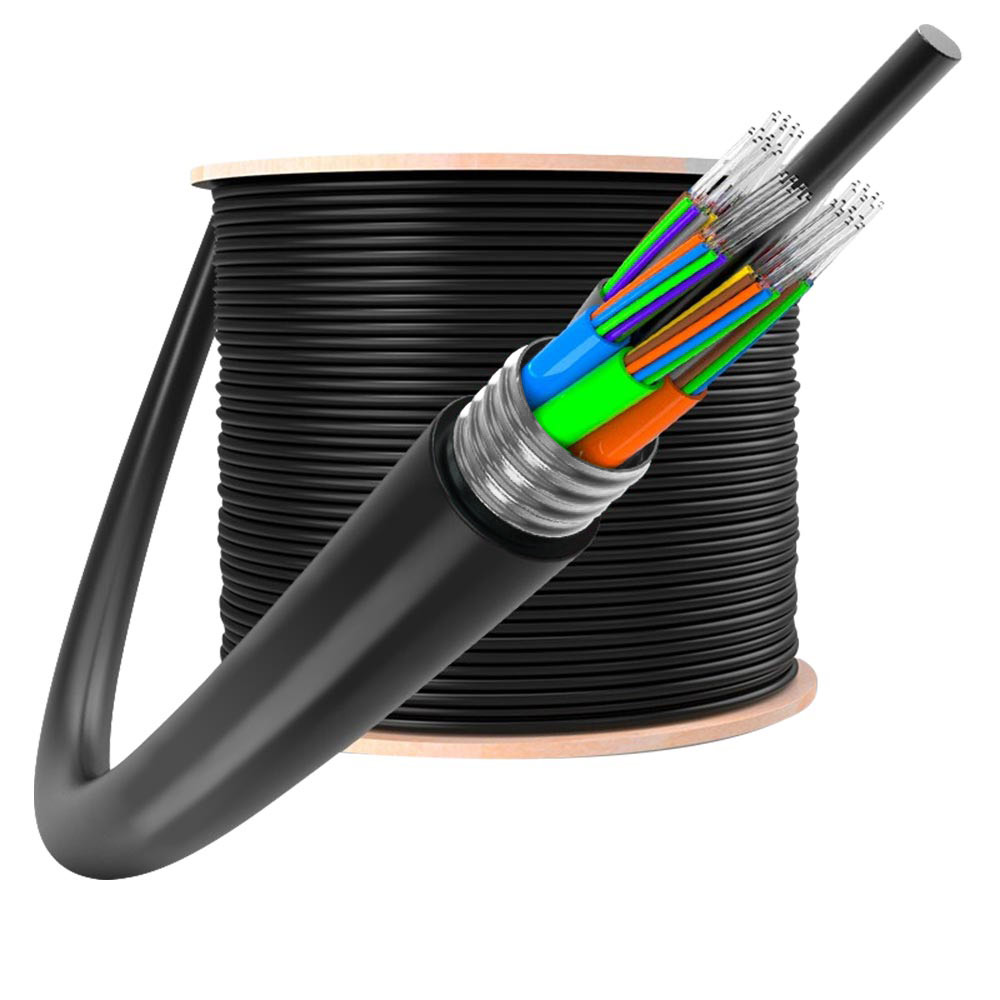

GYTA Aluminum Armored Fiber Optic Cable, G.652D, Loose Tube, 2 to 288 Cores, Outdoor

Wide fiber count options from 2 to 288 cores for different network sizes and room to grow.
G.652D optical fiber offers low attenuation and high bandwidth, enabling transmission of data long distances and at high speeds.

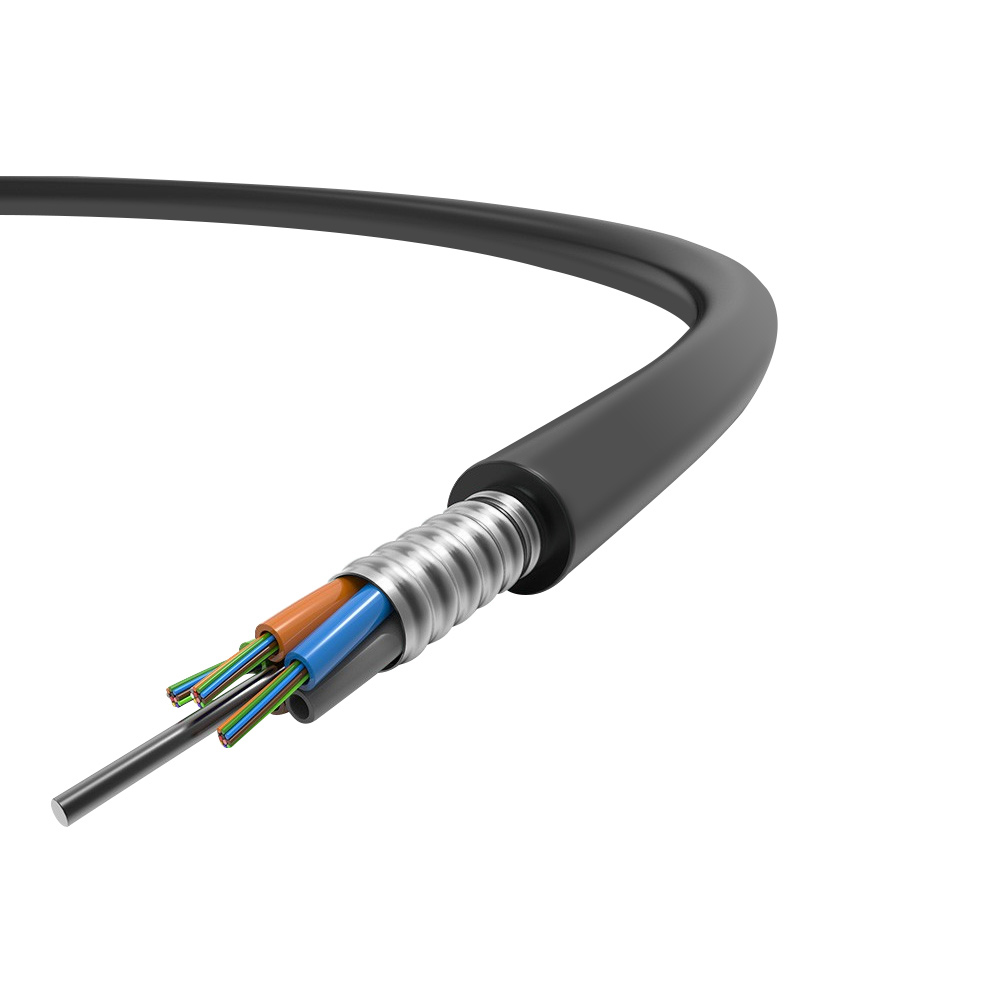

Aluminum tape armoring offers perfect mechanical protection against rodent damage, moisture, and physical damage which is excellent for demanding outdoor environments.

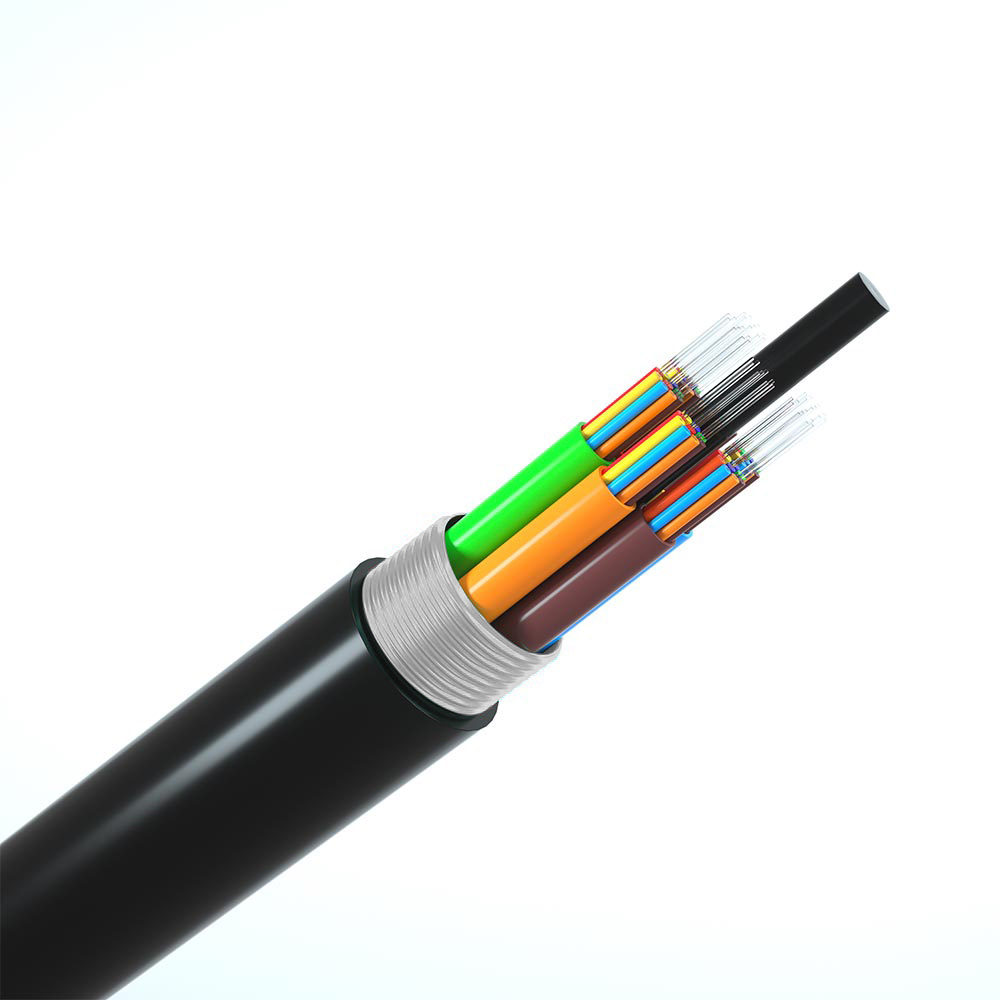

Stranded loose tube design allows each individual fiber to be independent while protecting fibers from damage, improving durability, and reducing signal loss.
Water-blocking structure, with gel-filled tubes and water-blocking tape, prevents water from contacting fibers, protecting optical performance.
The UV resistant PE outer jacket provides protection from sun exposure and allows variables to exist in the cable application.
It offers flexible installation as it can be directly buried, installed in duct, or post installed above ground aerially.
Temperature resilience from -40°C to +60°C for performance consistency.
Compliant with IEC and RoHS standards.
Color-coded fibers provide easy identification during installation and maintenance.

Model	GYTA Aluminum Armored Fiber Optic Cable
Optical Fiber	Single-mode G.652D (multi-mode available if required)
Fiber Count	2–288 cores, customizable

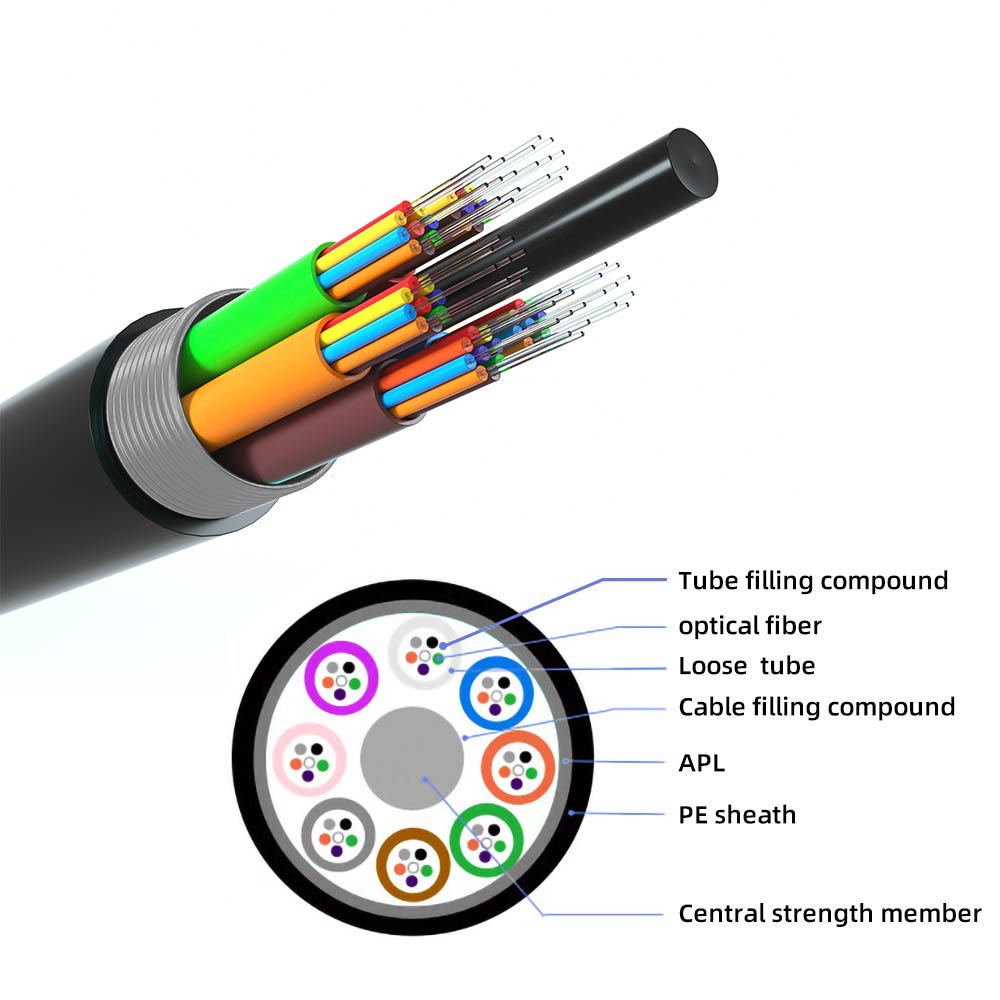

Cable Structure	Stranded loose tube, filled with protective gel
Tube Material	PBT (Polybutylene Terephthalate)
Central Strength Member	Phosphatized steel wire
Water Blocking	Water-blocking yarn and gel for moisture resistance

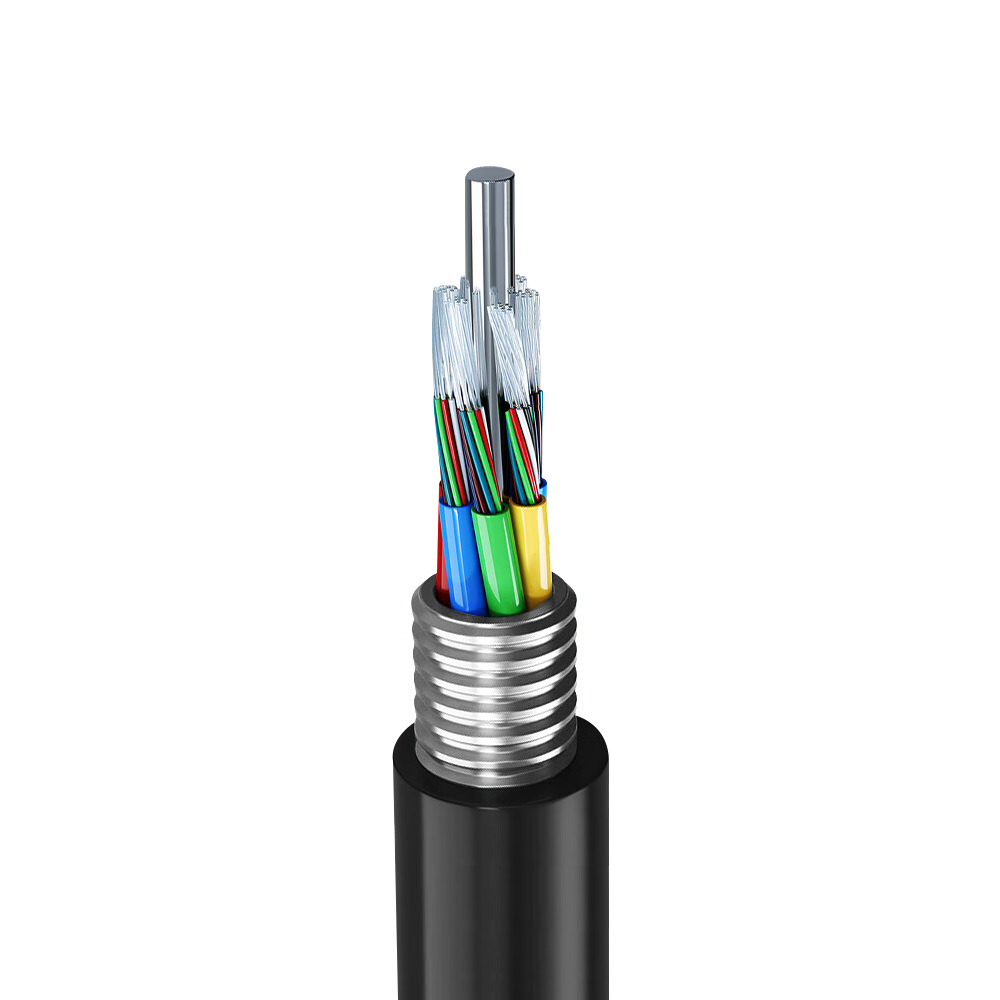

Armoring	Corrugated aluminum-polyethylene laminated tape
Outer Sheath	UV-resistant black HDPE (High Density Polyethylene)
Outer Diameter	8.5mm to 18.5mm, varies with fiber count
Cable Weight	90kg/km to 250kg/km, varies with fiber count
Tensile Strength	Short-term ≥1500N, Long-term ≥600N
Crush Resistance	≥1000N/100mm
Minimum Bending Radius	10 times cable diameter (installation), 20 times cable diameter (operation)
Operating Temperature	-40°C to +60°C
Storage Temperature	-40°C to +70°C
Installation Temperature	-30°C to +60°C
Attenuation (G.652D)	≤0.36 dB/km at 1310nm, ≤0.22 dB/km at 1550nm
Fiber Color Code	Complies with IEC 60304/TIA-EIA-598
Flame Retardant	Optional, available as specified
Application	Outdoor use: duct, aerial, direct burial
Standards	IEC 60794, YD/T 901, RoHS, ISO/EN
Rodent/Impact Protection	Provided by aluminum armor
Moisture Protection	Complete water-blocking structure
Sheath Marking	Custom printing available
Accessories	Optional: connectors, pigtails, patch panels, and more

Cable Type	Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Tensile Strength (N) (Short-term / Long-term)	Crush Resistance (N/100mm) (Short-term / Long-term)
GYTA	2–30	9.7	90	1500 / 600	1000 / 300
	32–36	10.3	109	1500 / 600	1000 / 300
	38–60	10.8	119	1500 / 600	1000 / 300
	62–72	11.5	145	1500 / 600	1000 / 300
	74–96	13.5	175	2000 / 600	1000 / 300
	98–120	14.8	209	2000 / 600	1000 / 300
	122–144	16.6	249	2500 / 600	1000 / 300
	146–216	16.7	254	2500 / 600	1000 / 300
	218–288	19.0	325	3000 / 1000	1000 / 300
