| Product Type | GYFTY / GYFTZY Stranded Loose Tube Fiber Optic Non-Metallic Sheathed Cable |
| Fiber Count | 2 to 216 cores (customizable) |
| Fiber Type | Single-mode (G.652D, G.657A1/A2), Multi-mode (optional) |
| Structure | Stranded loose tube, gel-filled |
| Central Strength Member | FRP (Fiber Reinforced Plastic), non-metallic |
| Sheath Material | Flame retardant LSZH or PE |
| Outer Sheath Color | Black |
| Installation Environment | Outdoor (aerial, duct, direct burial) |
| Flame Retardant | Yes, IEC 60332-1 compliant |
| Water Blocking | Water-blocking yarn and gel |
| EMI Resistance | Yes, all-dielectric, non-metallic |
| UV Resistance | Yes |
| Operating Temperature | -40°C to +70°C |
| Maximum Tensile Strength | Up to 3000N |
| Crush Resistance | ≥ 1000N/100mm |
| Minimum Bending Radius | 10 x cable diameter (installation), 20 x cable diameter (static) |
| Cable Diameter | Varies by core count |
| Weight | Varies by configuration |
| Application | Power communication, telecommunication backbone, FTTx, campus, industrial networks |
| Compliance | IEC 60794, ITU-T G.652D, RoHS, ISO9001 |

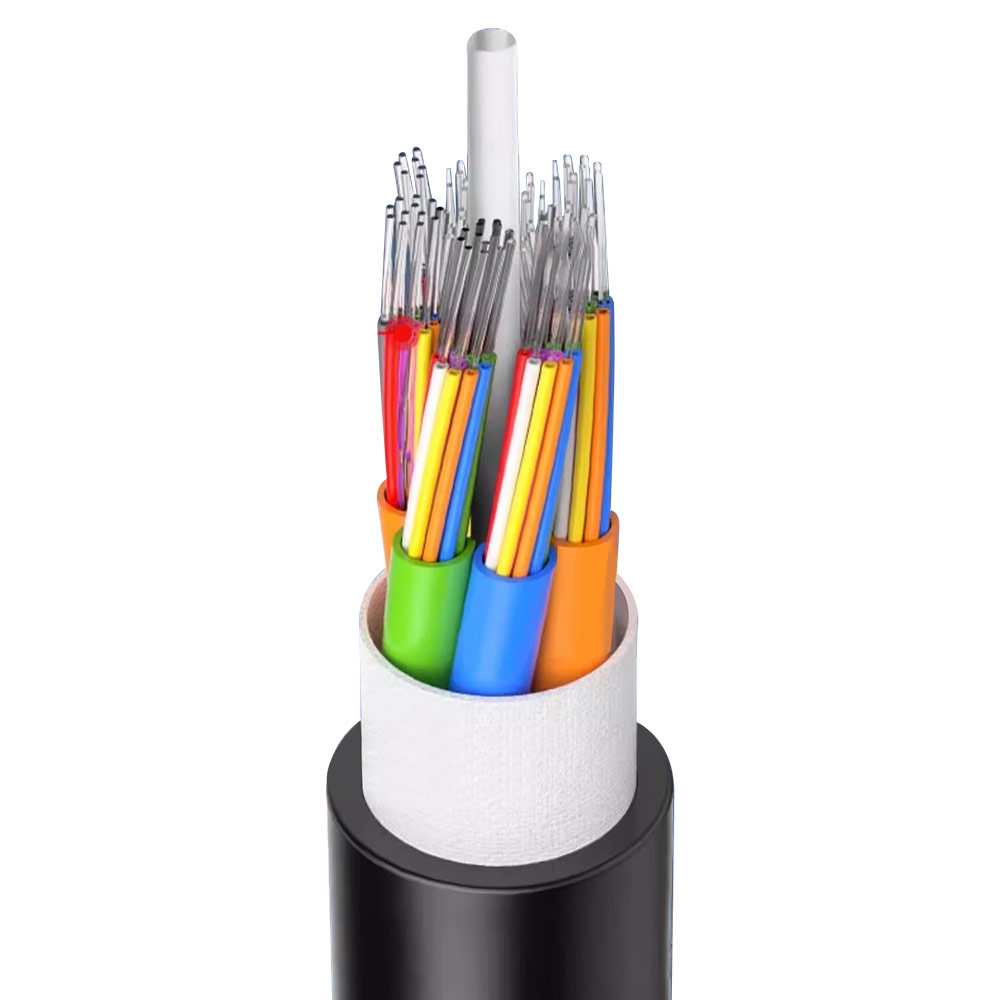

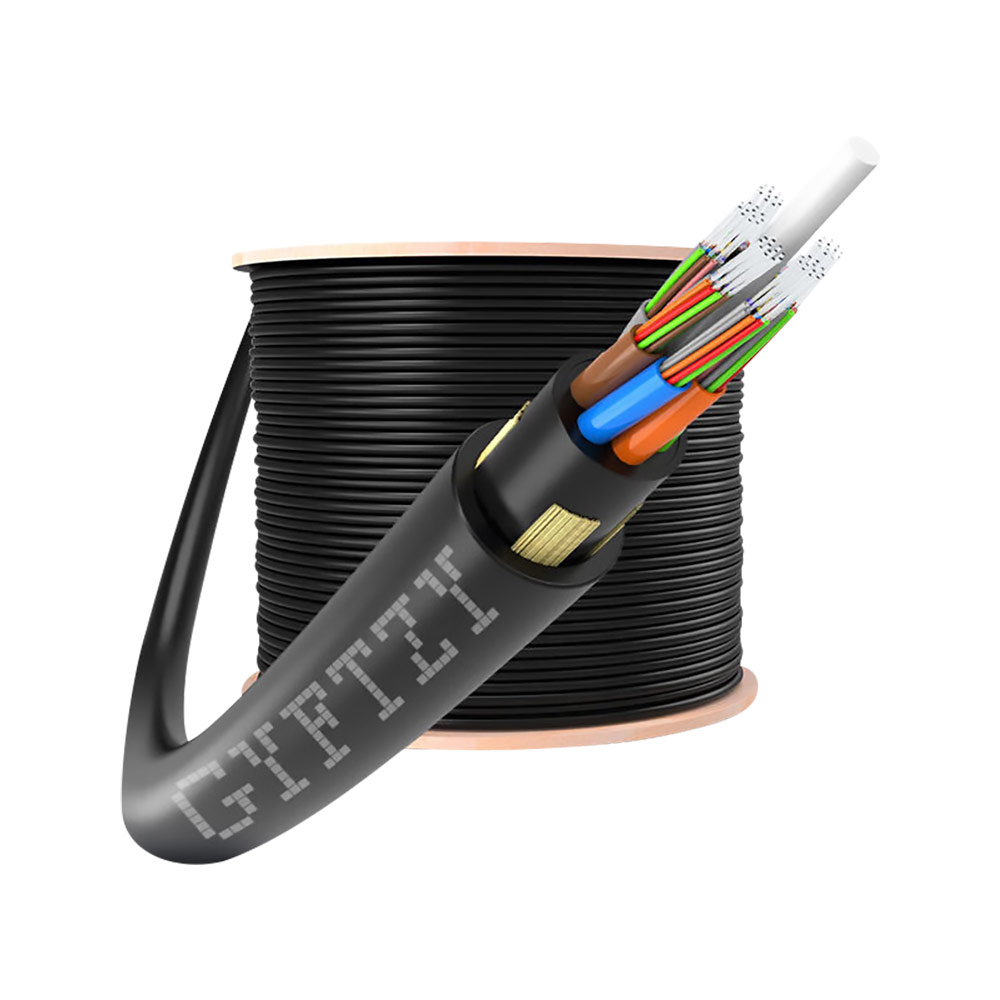

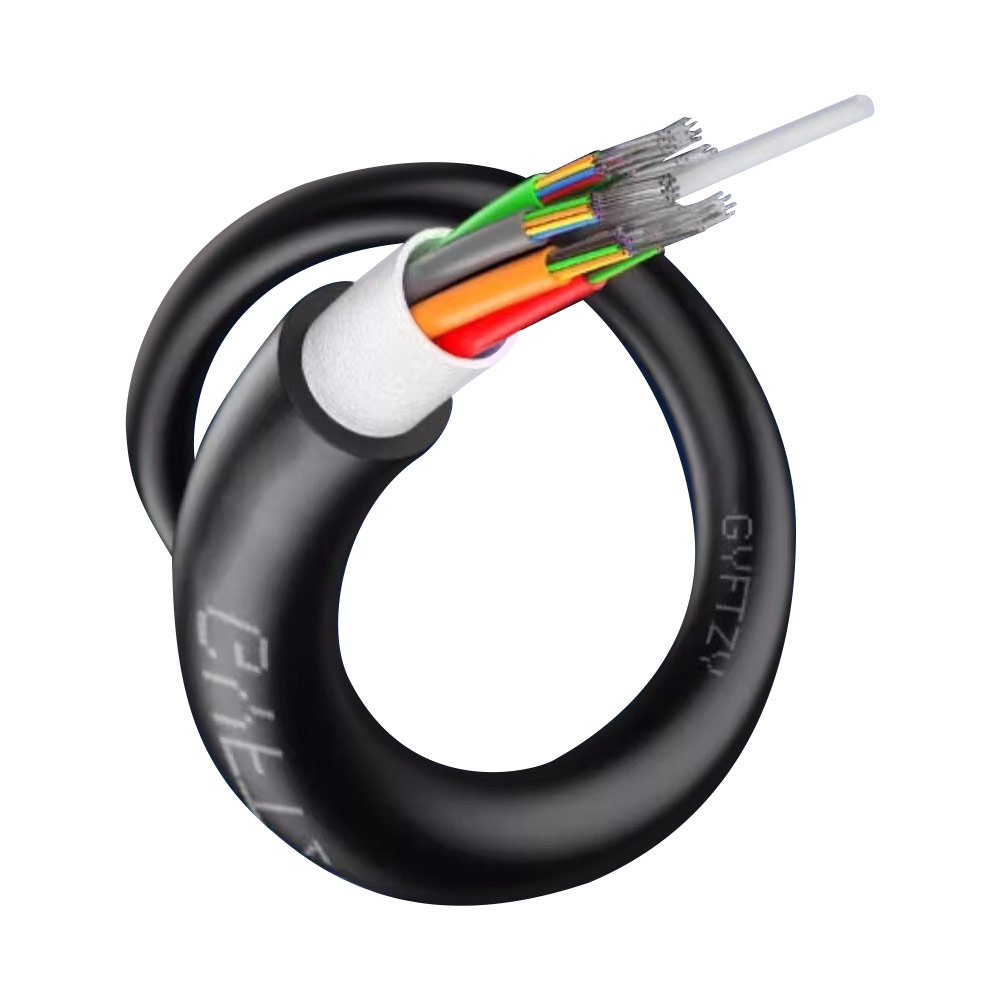

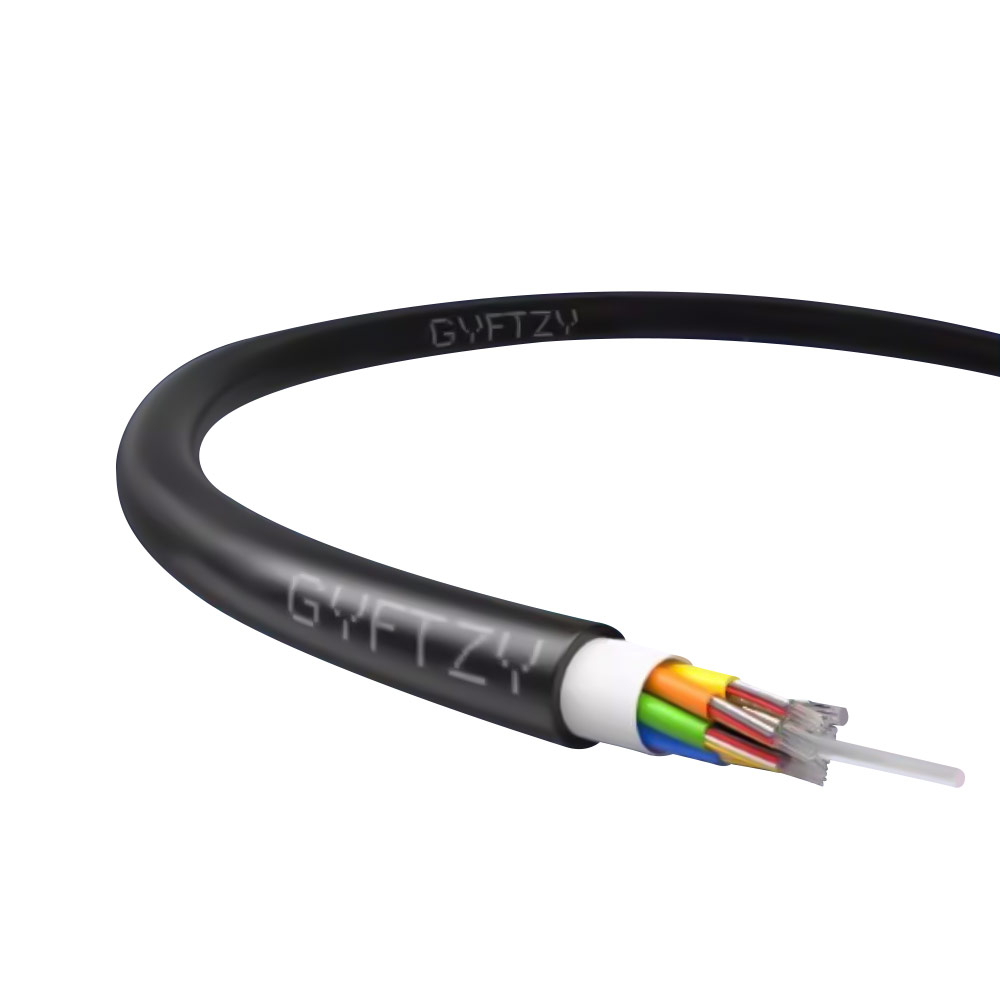

GYFTY/GYFTZY Stranded Loose Tube Fiber Optic Non-Metallic Sheathed Cable, Flame Retardant, EMI Resistant, Outdoor, 2 ~ 216 Core
- Flame Retardant Cable: The unique outer construction is designed to resist fires, so safety and building code compliance are ensured in critical situations.
- Non-Metallic Design: Completely non-metallic construction means no metallic components for outstanding EMI and lightning protection.
- Large Core Options: Many configurations from 2 to 216 fibers available, including popular 48 core configurations allowing for flexibility in your network size.

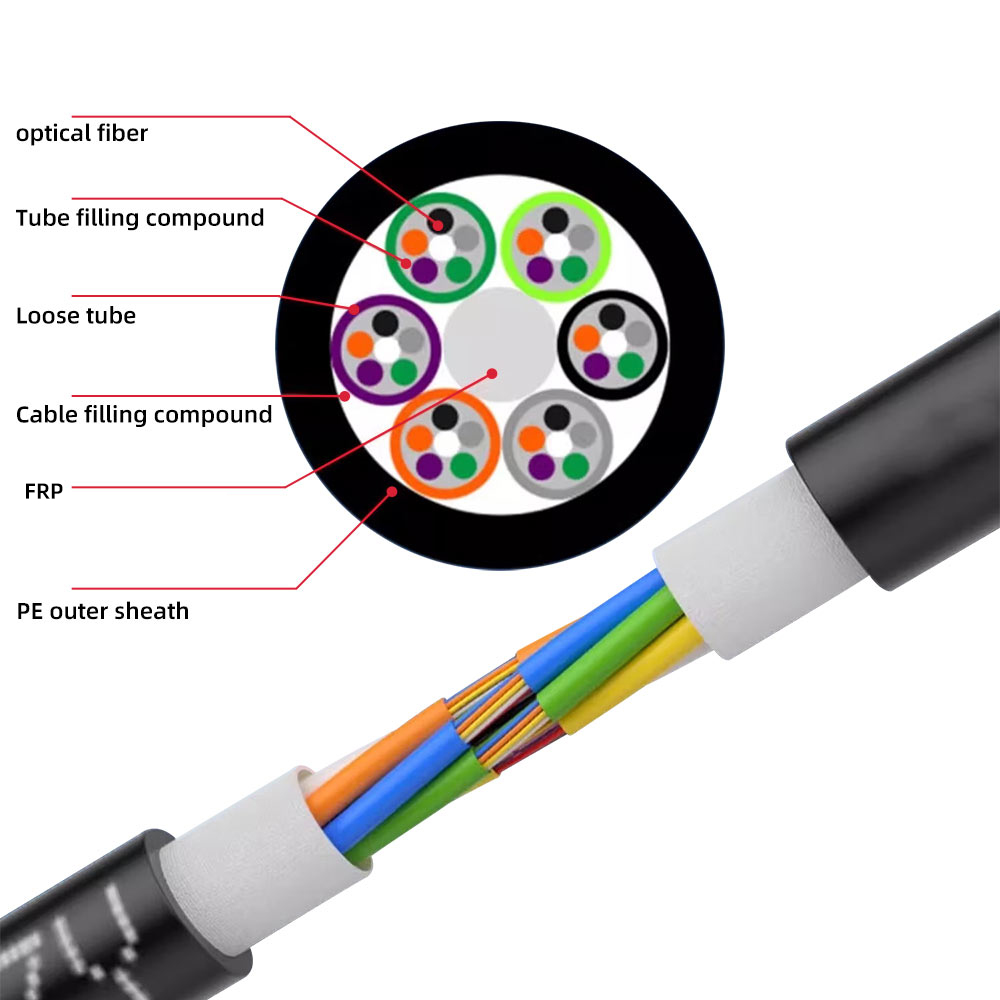

- Stranded Loose Tube Construction: Inside the armored sheath, each fiber is contained in tubes filled with gel for ultimate mechanical protection and moisture resistance.
- FRP Central Strength Member: High strength, non-metallic core provides higher tensile strength for outdoor stability and reliability.
- Outdoor Ready: The PE or LSZH jacket is UV resistant, waterproof, and ready for aerial or duct installation in harsh environments.
- EMI Protection: Perfect for high voltage and areas that regularly experience thunder, protecting your data transmission in tough conditions.
- Ease of Installation: Lightweight construction and flexible design make installation an easy routing assignment and also reduces labor costs.
- Low Signal Loss: Because 3rd party, independent testing is conducted, signal performance will remain high speed and low latency over distance for backbone and campus networks.
- Long Service Life: The non-corrosive materials and water blocking features of the cable properly designed to deliver years of reliable service.
