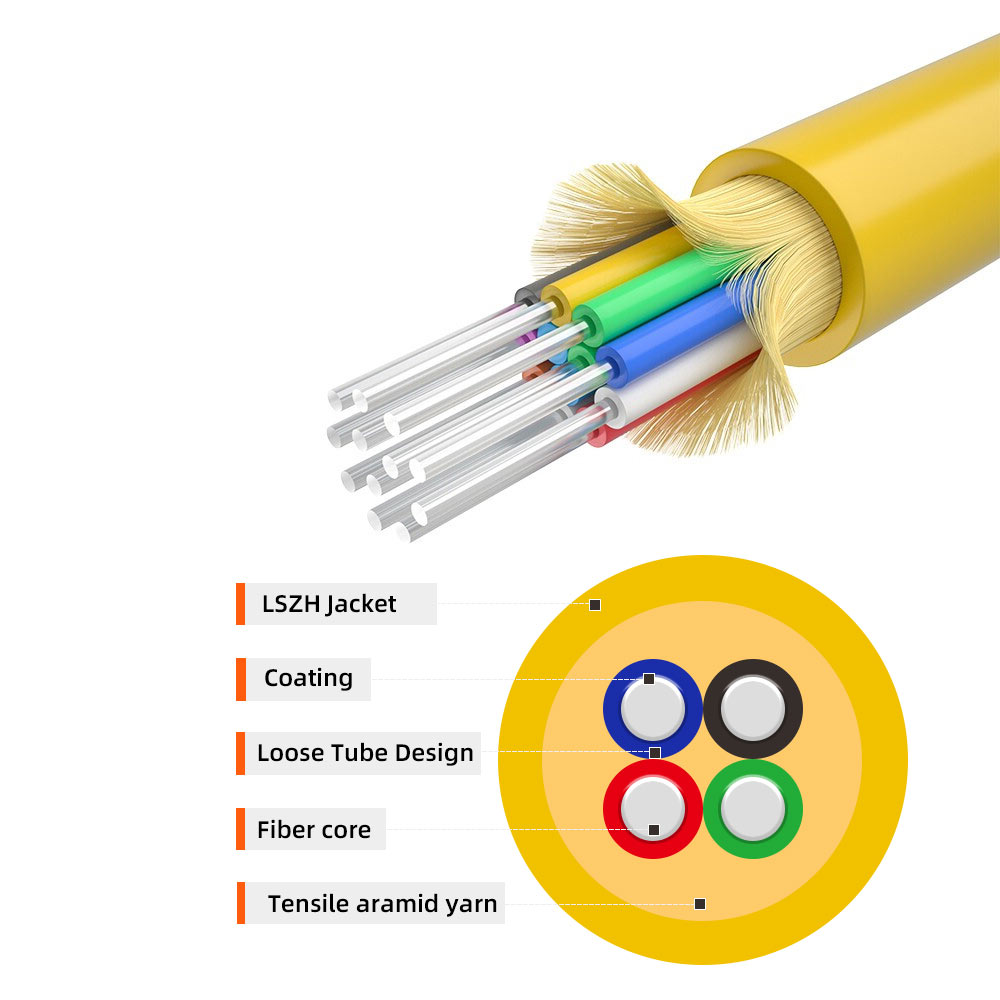

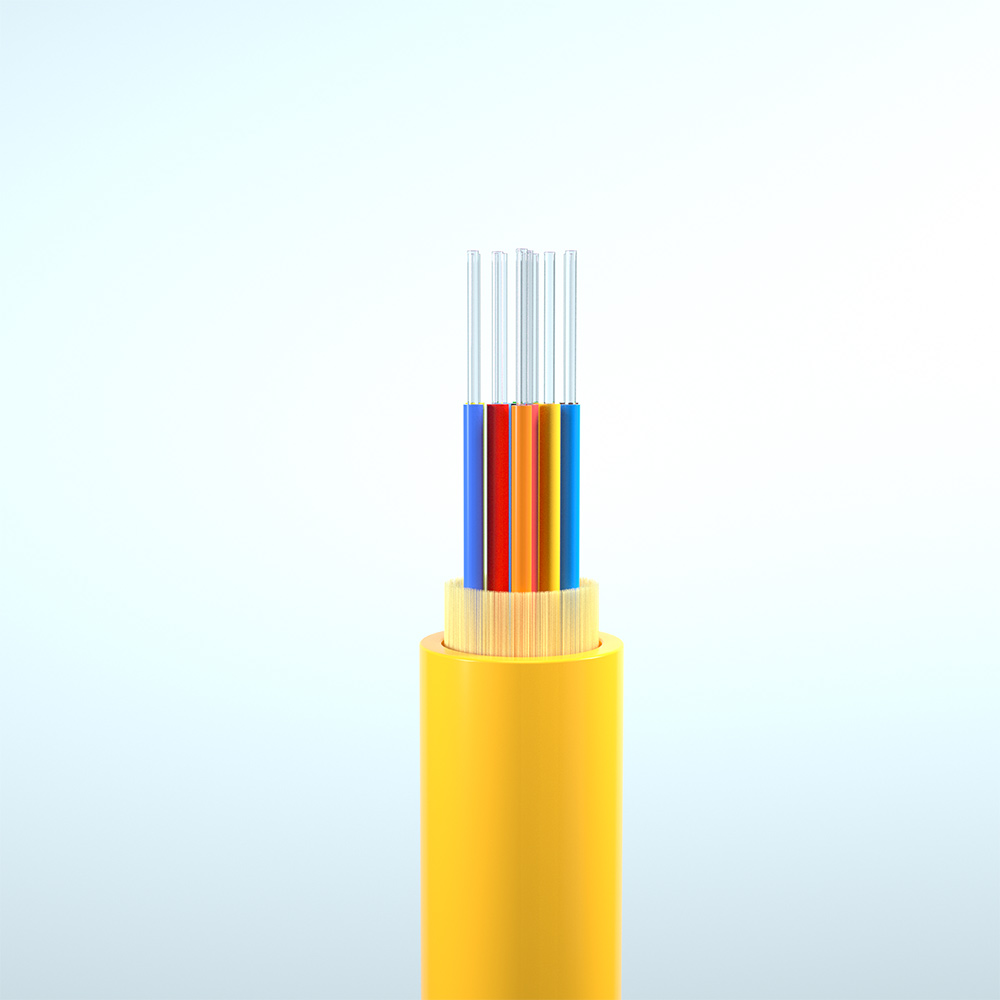

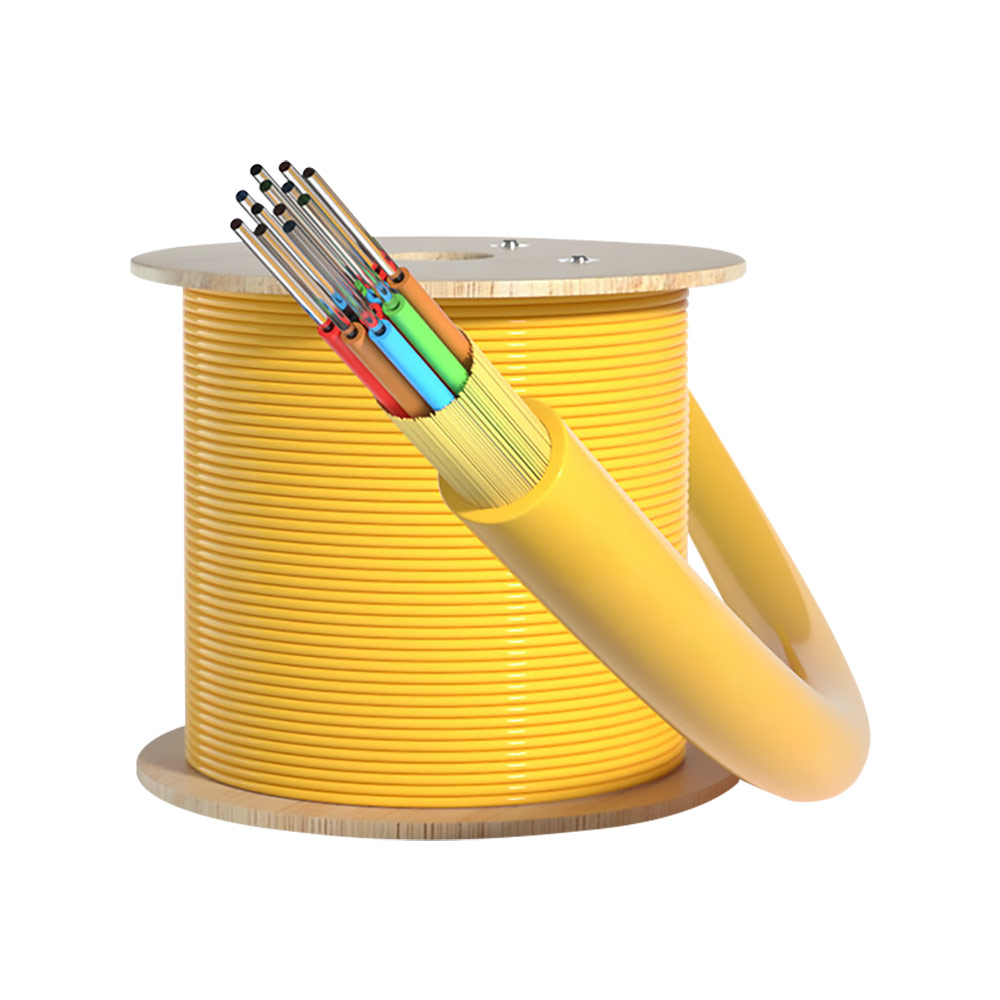

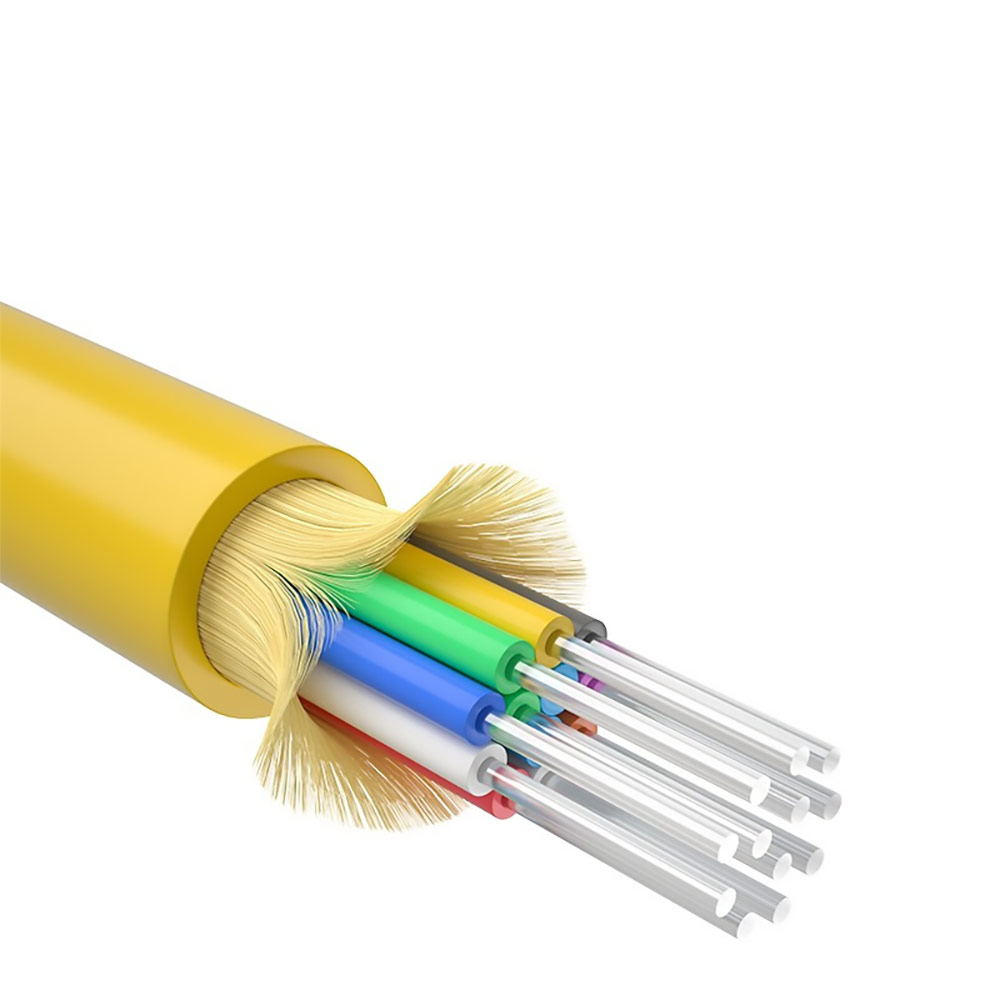

GJFJH Fiber Optic Bundle Cable, Telecom-Grade Single Mode LSZH, 4/6/8/12/24 Core

Telecom-Grade Performance
Guarantees low signal loss for reliable, high-speed data transmission.
Single Mode Fiber (9/125)
Enables long-distance high-bandwidth for high-performance operations.
LSZH Outer Jacket
Low smoke, zero halogen to promote fire safety and protect the environment.
High Modulus Aramid Yarn Strengthening
Provides advanced tensile strength and durability for secure installation.

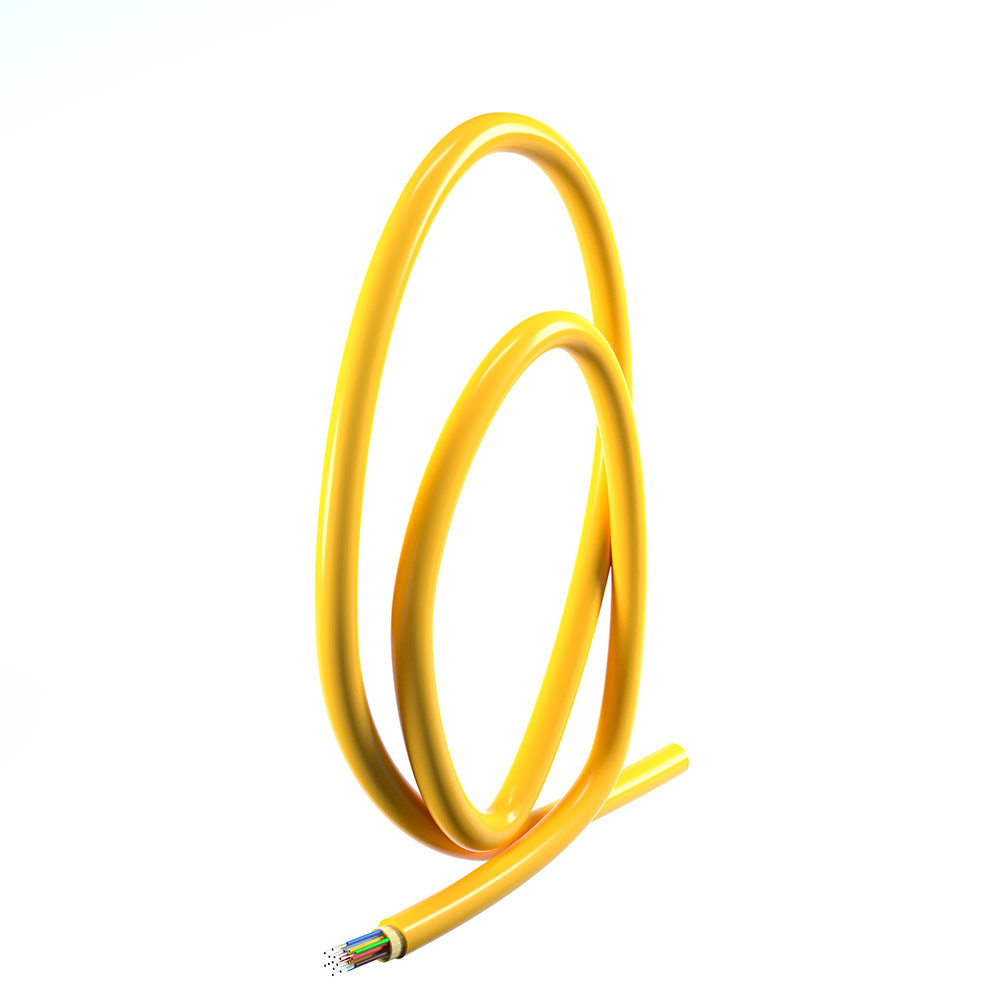

Flexible and Easy to Install
With superior bend radius and soft construction makes it well suited for tight spaces indoors.
Multi-Core Options
Available in multi-core configurations (4, 6, 8, 12 or 24 cores) to allow easy network scalability.
Anti-Interference Design
Robust structure possesses resistance to electromagnetic interference for a consistent connection.

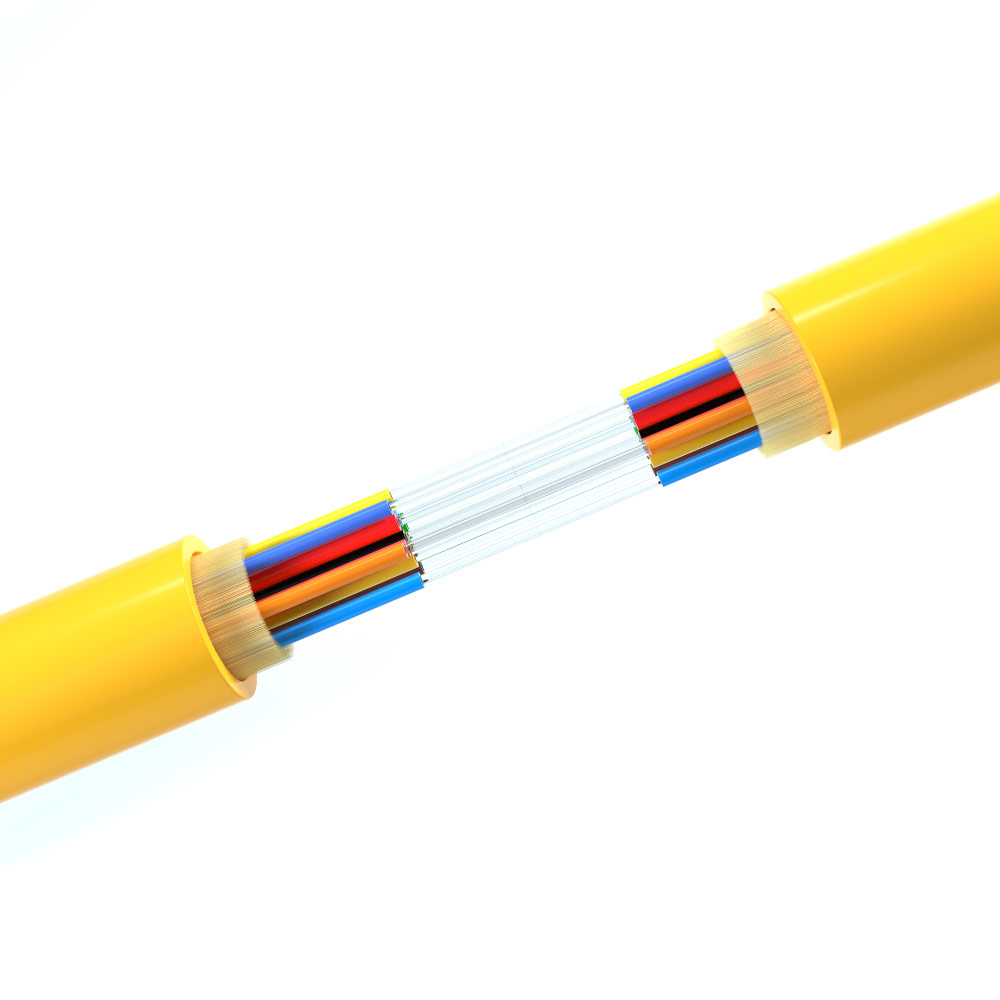

Easy Stripping and Splicing
Simplifies on-site connections realized.
Wear-Resistant and Durable
Adapted to accommodate daily wear and mechanical stress in action.
Wide Application
Recommended for indoor horizontal or vertical infrastructure, equipment interconnectivity and monitoring systems.

GJFJH Fiber Optic Bundle Cable Parameter	4 Core	6 Core	8 Core	12 Core	24 Core	48 Core
Cable Diameter (mm)	4.5	5.0	5.5	6.5	8.5	10.5
Cable Weight (kg/km)	≈30	≈35	≈40	≈45	≈55	≈60
Allowable Tensile Strength (N)	200 (long) / 600 (short)
Allowable Crush Resistance (N/100mm)	200 (long) / 1000 (short)
Minimum Bend Radius (mm)	55 (dynamic) / 110 (static)
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +70
Fiber Type	A+ Grade G652D 9/125μm Single Mode
Jacket Material	LSZH (Low Smoke Zero Halogen)
Strength Member	High Modulus Aramid Yarn
Color	Yellow
