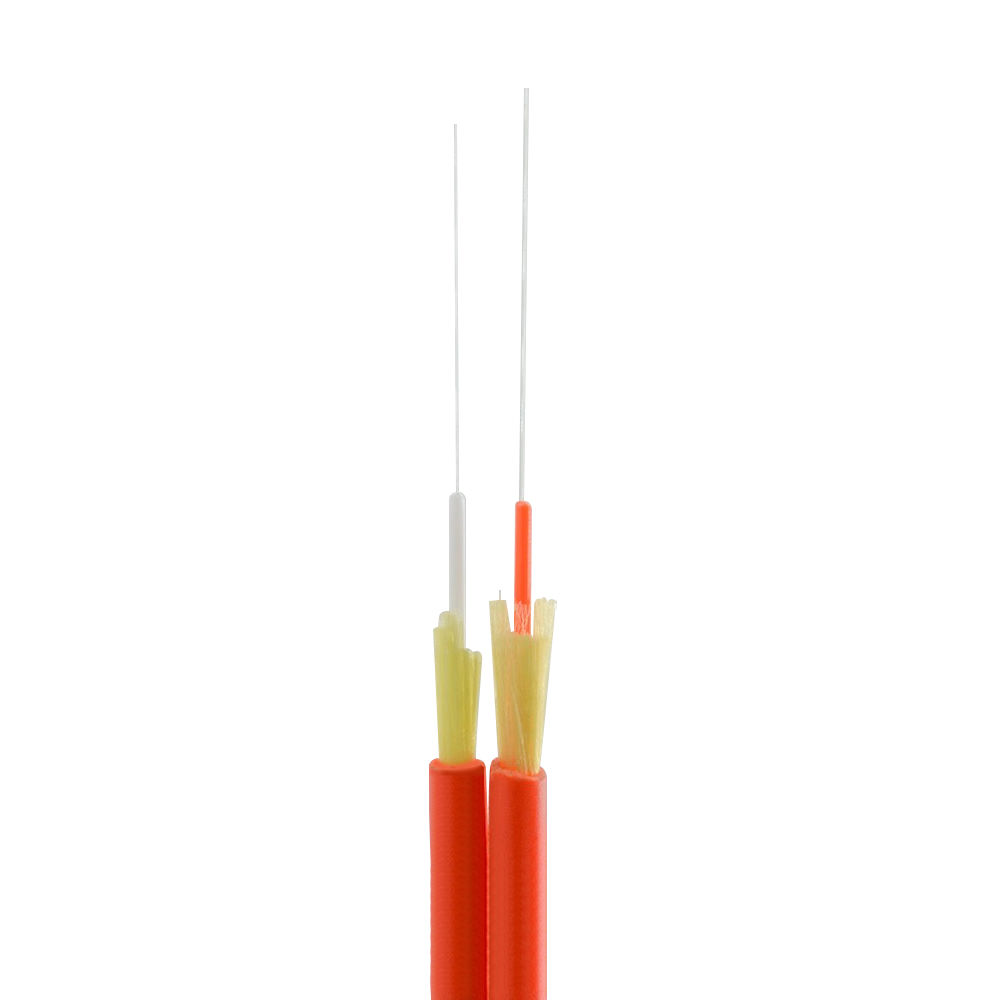

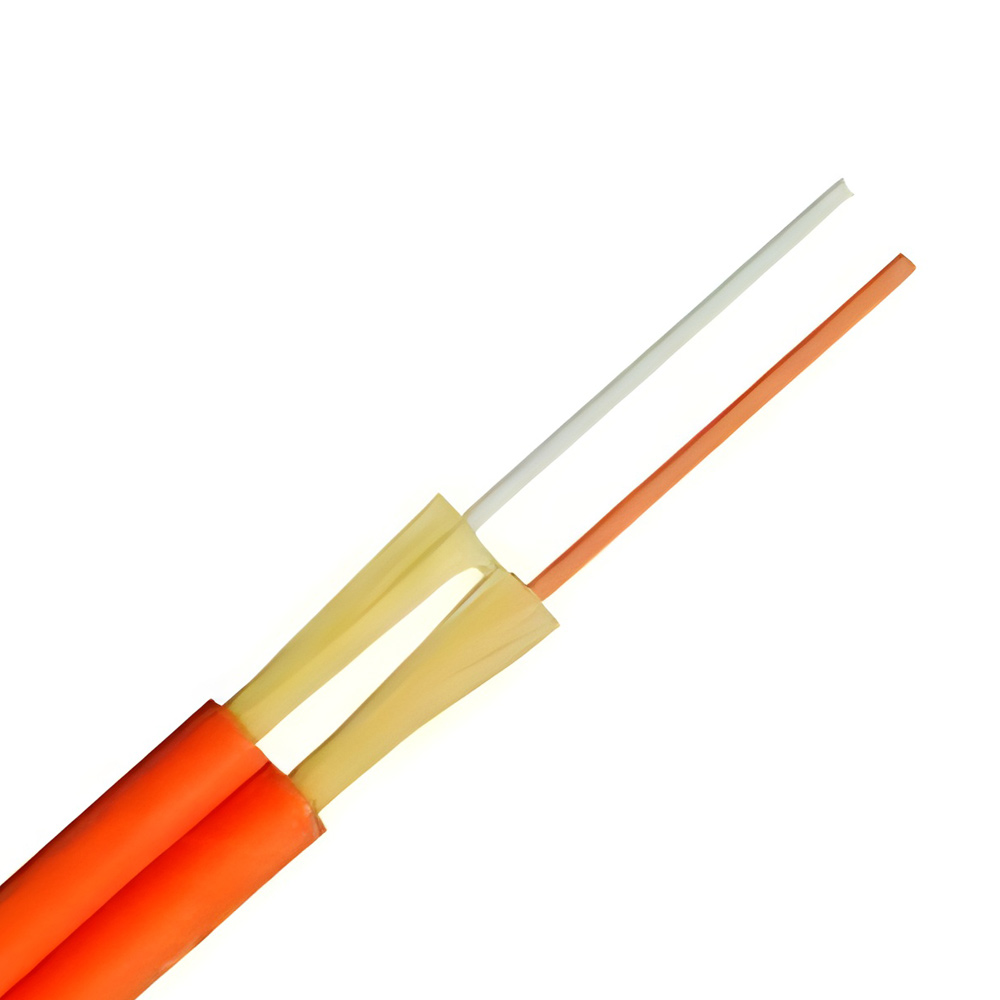

GJFJBV Flat Duplex Tight Buffer Fiber Optic Zipcord Cable, 2mm/3mm, Indoor

Tight Buffered Fiber: Utilizes 900μm or 600μm tight buffered fibers to provide ease of stripping, along with reliable signal transmission.
Superior Flame Retardancy: Tight buffered fiber is highly flame resistant, which increases safety when used indoors.
Aramid Yarn Strength: Designed with added aramid yarn for exceptional tensile strength and durability for both installation and use.
Flat Zipcord Design: Flat, compact design keeps the fibers together and makes for easier routing in confined indoor spaces.
Robust PVC Jacket: The sheath is constructed of high grade PVC, offering corrosion resistance, waterproofing and environmental protection.
Customizable Sheath Options: Offered with LSZH or TPU jacket, based on safety and environmental specifications.
Easy Handling: Flexible and lightweight design for easy installation, management and termination.
Versatile Applications: Appealing for duplex patch cords, pigtails, interconnection of instruments, and indoor cabling associated with riser and forced ventilation applications.
International Standards: Constructed according to YD/T1258.3-2003 and IEC 60794-2-10/11 standards for quality and reliability.
Wide Temperature Range: Suitable for indoor applications that require operation within a temperature range from -20°C to +60°C.

Parameter	Specification
Model	GJFJBV Flat Duplex Tight Buffer Fiber Optic Zipcord Cable
Cable Structure	Flat duplex, two tight-buffered fibers placed side by side
Fiber Count	2
Fiber Type	900μm or 600μm tight-buffered (Singlemode: G652, G655; Multimode: 50/125μm, 62.5/125μm)
Tight Buffer Diameter	0.90 ± 0.05 mm
Strength Member	Aramid yarn
Outer Sheath Material	PVC (optional LSZH, TPU available)
Outer Sheath Color	Orange, white, yellow (customizable)
Cable Dimensions	2.0 × 4.1 mm / (3.0 ± 0.2) × (5.4 ± 0.2) mm / (3.8 ± 0.2) × (7.0 ± 0.2) mm
Cable Weight	13.8 kg/km (3.0 × 5.4 mm) / 20 kg/km (3.8 × 7.0 mm)
Minimum Bending Radius	30 mm (static), 60 mm (dynamic)
Tensile Strength	Long-term: 100 N / Short-term: 200 N (some models: 120 N short-term)
Crush Resistance	Long-term: 100 N/100mm / Short-term: 500 N/100mm
Attenuation (Multimode)	≤3.5 dB/km @850nm, ≤1.5 dB/km @1300nm
Attenuation (Singlemode)	≤0.45 dB/km @1310nm, ≤0.30 dB/km @1550nm
Bandwidth (Multimode 50/125μm)	≥600 MHz·km @850nm, ≥1200 MHz·km @1300nm
Bandwidth (Multimode 62.5/125μm)	≥200 MHz·km @850nm, ≥600 MHz·km @1300nm
Operating Temperature	-20°C ~ +60°C (some models up to +70°C)
Flame Retardant	Yes
Corrosion/Water Resistance	Yes
Environmental Protection	Yes
Standards	YD/T1258.3-2003, IEC 60794-2-10/11
Typical Applications	Indoor cabling, patch cords, pigtails, equipment interconnection, riser and forced ventilation use
Recommended Delivery Length	1000 m / 2000 m (customizable)
